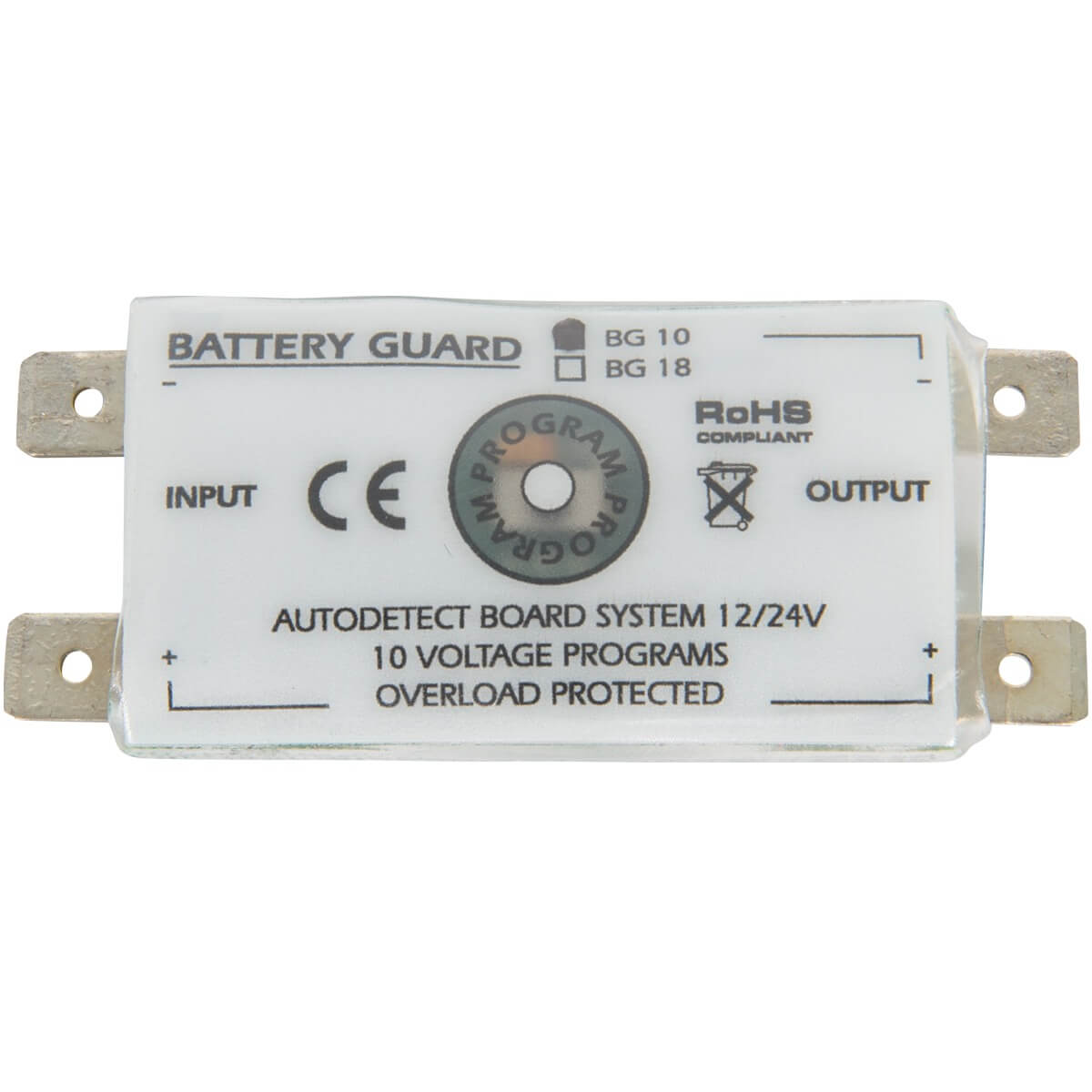

10A Low Battery Cutout
10A Low Battery Cutout
SKU:EN-LBC1224-10
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
The Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode). Microprocessor Controlled.
Accessories
| Enerdrive Part # | Description | |
|---|---|---|
| EN-DCMOTION |  |
EN-DCMOTION Motion Sensor Switch |
| Note: Specifications subject to change without notice. |
Features
The Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).
Microprocessor Controlled
The LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage parameters.
Additionally, the LBC range offers features like:
- Overvoltage Protection
- Ignition proof (no relay, no spark)
- Delayed alarm output
- Delayed load disconnect
Applications
- Recreational vehicles
- Service vehicles
- Maritime applications
Specifications
| SKU | EN-LBC1224-10 | EN-LBC1224-40 (Superseded) | EN-LBC1224-40-G2 | EN-LBC1224-60 | EN-LBC1224-200 |
|---|---|---|---|---|---|
| Auto Voltage Detect | 12 / 24V | 12 / 24V | 12 / 24V | 12 / 24V | 12 / 24V |
| Max Load (shut down current) | 10 - 15A | 40 – 45A | 40 – 45A | 60 – 65A | 200 – 210A |
| Peak current | 75A @ 12V | 120A | 120A | 120A | 480A |
| Weight | 20g | 185g | 185g | 185g | 730g |
| Dimension LxWxH | 62mm x 27mm x 9mm | 82mm x 65mm x 41mm | 82mm x 65mm x 41mm | 82mm x 65mm x 41mm | 120mm x 112mm x 61mm |
