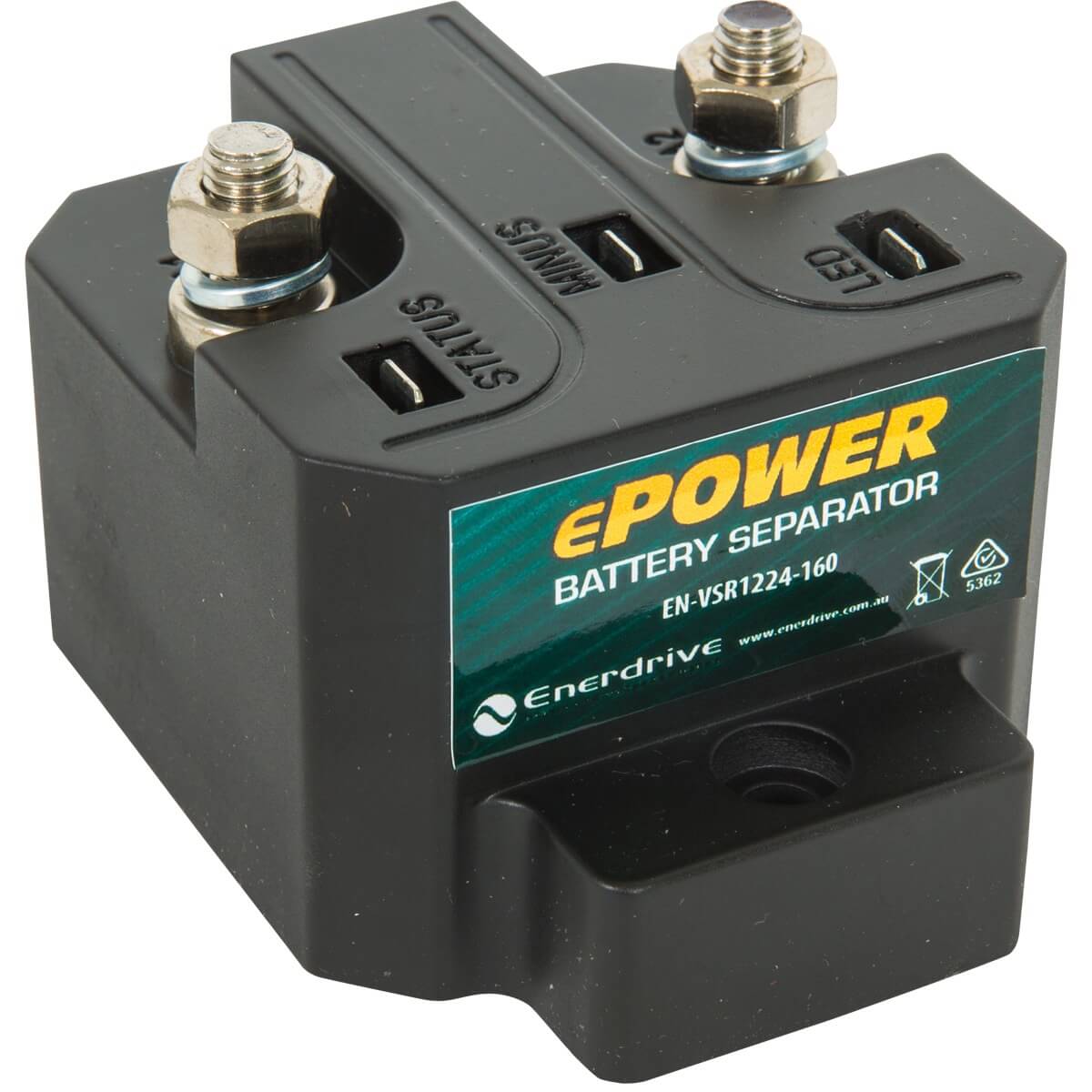

• 160A 12/24v Voltage Sensitive Relay
1 1

Dometic

160A 12/24v Voltage Sensitive Relay

160A 12/24v Voltage Sensitive Relay

$171.00 AUD
$171.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

EN-VSR1224-160

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

Accessories

Enerdrive Part # Description
EN-DCMOTION EN-DCMOTION Motion Sensor Switch

Note: Specifications subject to change without notice.

Features

Additionally, the ePOWER VSR range offers features like :

  • No voltage loss
  • Intelligent battery monitoring to prevent unwanted switching
  • Starter battery priority
  • Bipolar switching
  • Voltage dependent switching

Applications

  • Marine
  • Caravans
  • Camper vans
  • RV’s

Specifications

EN-VSR1224-160
Auto Voltage Detect 12 / 24V
Continuous Current (A) 160
Connect Voltage (V) 13.2 / 26.4
Disconnect Voltage (V) 12.8 / 25.6
Standby Current <3mA
Connection for remote on / off Yes
Micro switch for remote status indication LED
IP Rating IP67
Weight (kg) 0.47
Dimensions L x W x H (mm) 108 x 72 x 58

Note: Specifications subject to change without notice.
