Dometic

3-IN-1 Battery Charger

3-IN-1 Battery Charger

$1,096.00 AUD
$1,096.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

EN31240DC

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

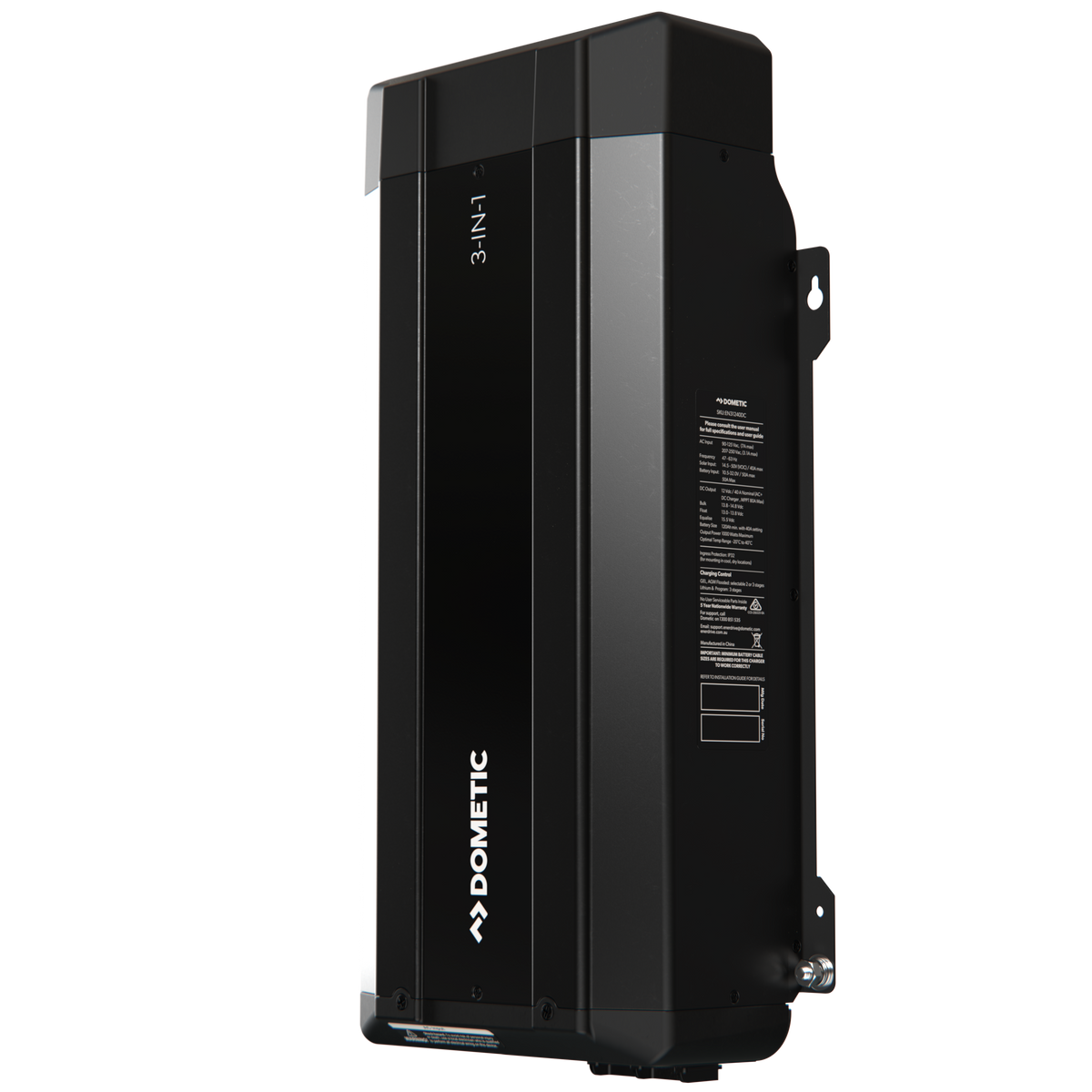

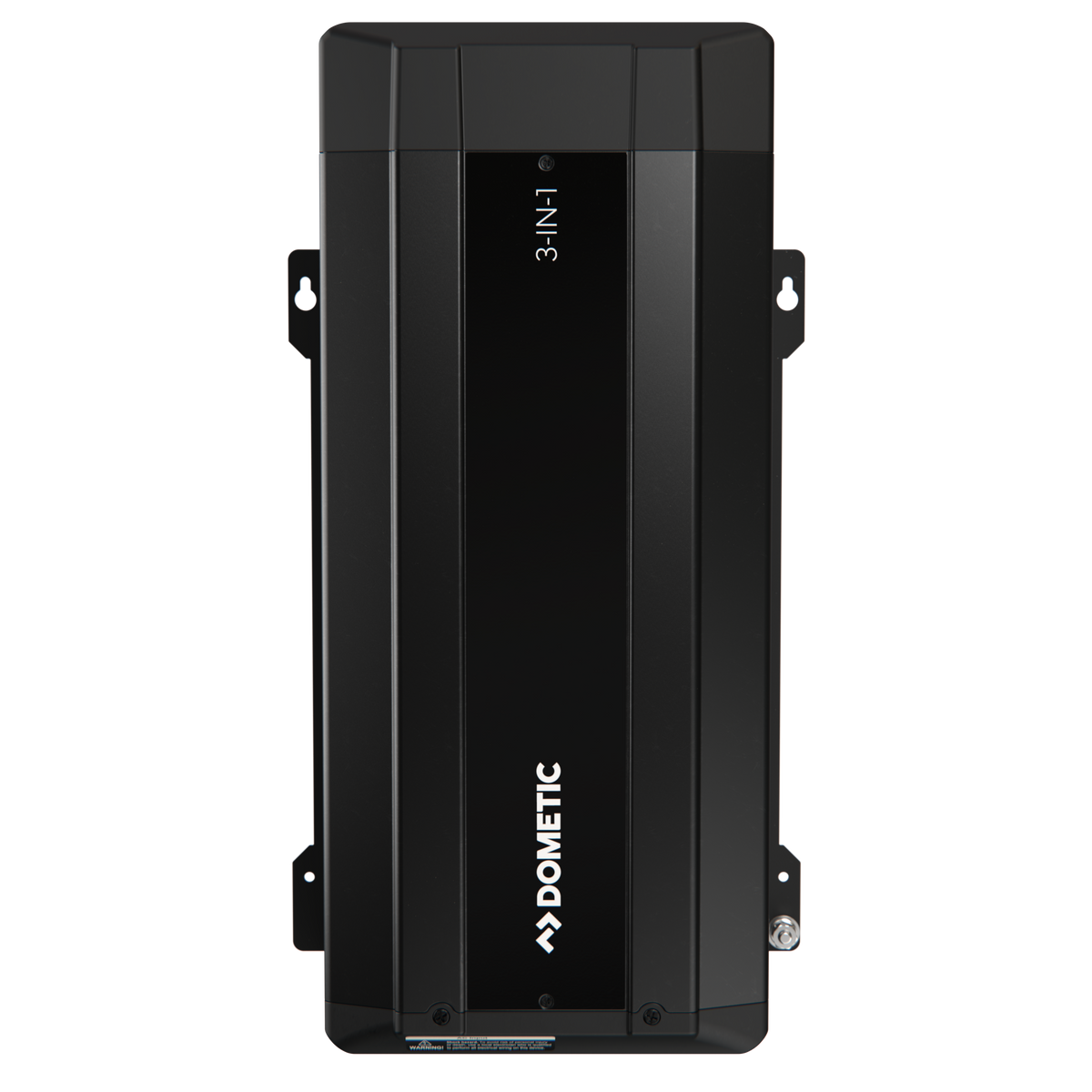

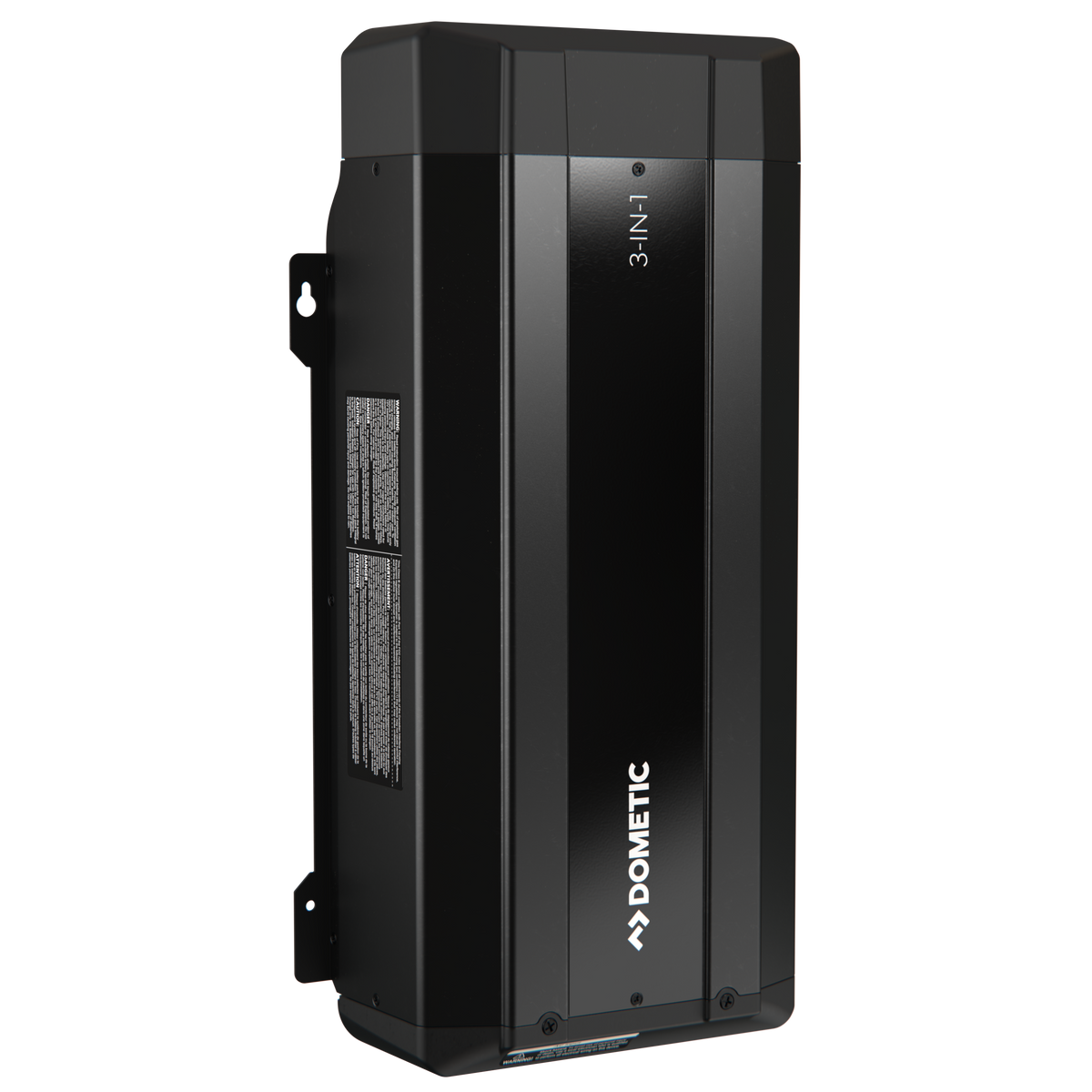

Charge from mains, alternator and solar with one compact unit. Up to 80A combined output, remote display included.

Product Details

The Dometic 3-IN-1 Battery Charger replaces three separate devices with a single unit. A 40A AC charger handles mains or generator power, while a 40A DC channel charges from either your vehicle’s alternator (DC-DC) or solar panels (MPPT), switching automatically when the engine starts. Run AC and DC together and you get up to 80A into your battery bank for fast recovery. One unit means less space, less cabling and a faster install, and the included remote display lets you monitor and adjust charging without getting to the charger itself.

Features

  • AC Input: Allows you to charge your battery bank from 230V mains power, generator, or while parked in the garage at home.
  • DC-DC Charging: Built in DC-DC charger allows charging your house battery from the vehicles Alternator up to 40A.
  • MPPT Solar Charging: The integrated MPPT solar regulator delivers up to 40A output from your solar panel, ensuring fast & efficient battery charging.
  • Advanced Battery Charging: Charge your battery from a variety of input sources, with the ability to use AC and DC-DC / MPPT simultaneously.
  • Fan Cooled: For optimum performance, the 3-IN-1 charger is fan cooled to provide consistent output even in high ambient temperatures.

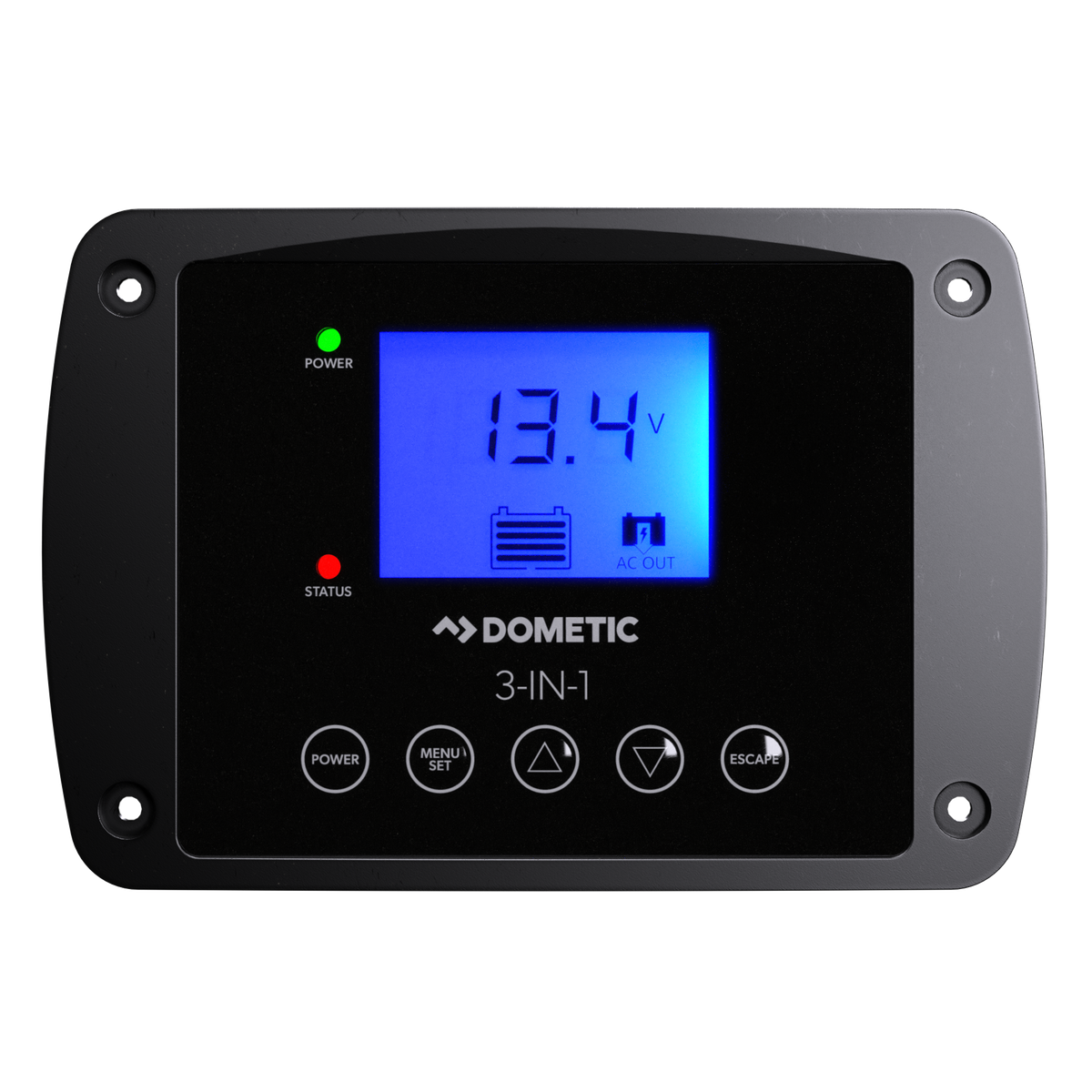

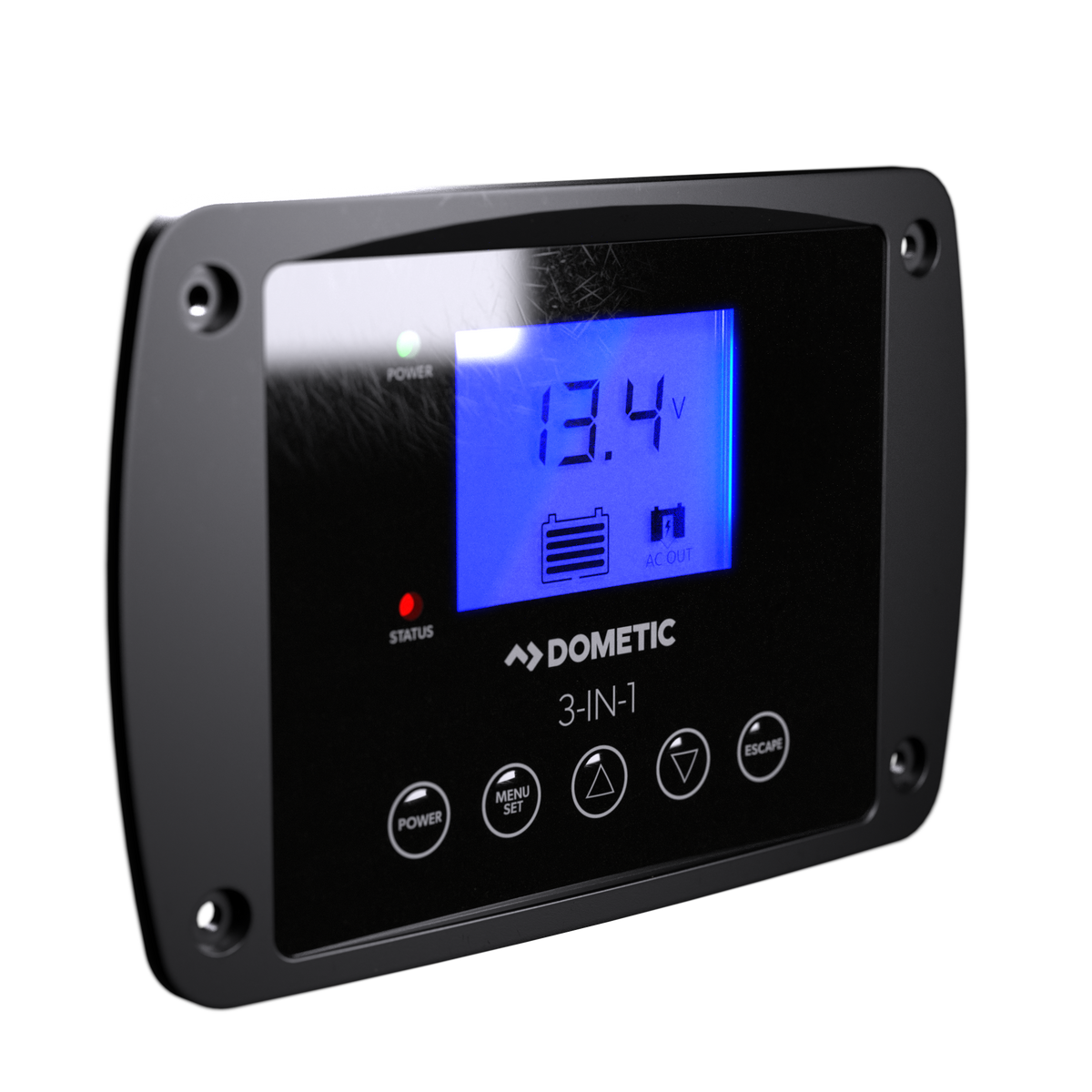

  • Remote Display Included: Included with the charger is a fully programmable remote LCD display panel, allowing for easy, remote monitoring and control of your unit.
  • 5 Year Warranty from an Australian company renowned for customer support.

Specifications

3-IN-1 Battery Charger
SKU EN31240DC
CHARGER OUTPUT
Output Current (Maximum) 80A combined (AC 40A + DC-DC/MPPT 40A)
OUTPUT VOLTAGE RANGE
Charge 13.5 - 15.5V
Float 13.0 - 13.8V
Equalise 15.5V (Flooded Battery only)
Charging Control 5 Stages (Test/Bulk/Absorption/Float/Recharge)
DC Output Bank One
Selectable Battery Type Gel, AGM, Lithium, Program, Flooded (with Equalisation)
Minimum Battery Size 120Ah minimum with 40A setting
DISPLAY PANEL
Digital Display LED Display with Back Lighting
Display Indicators Voltage, Current, Status, Error Code

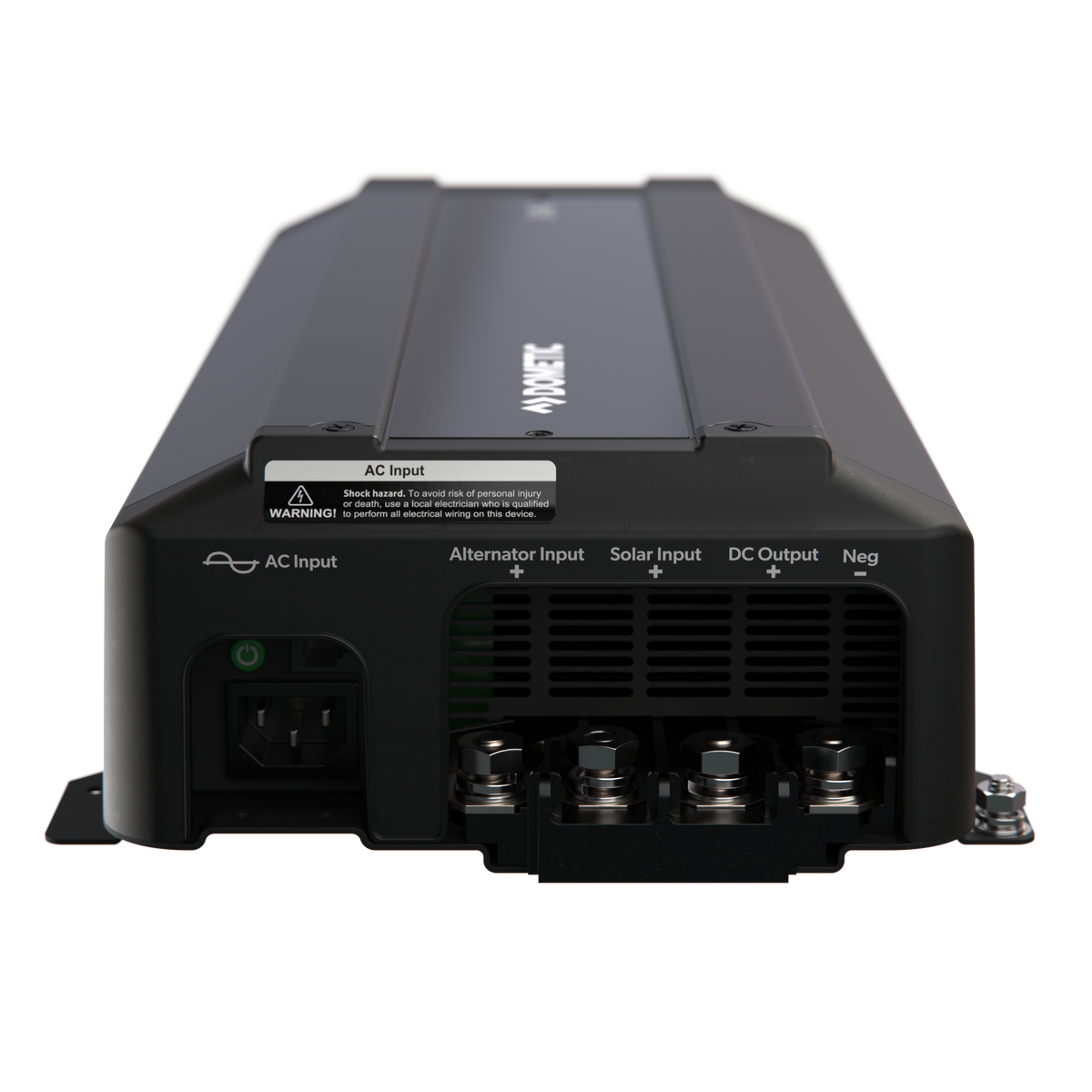

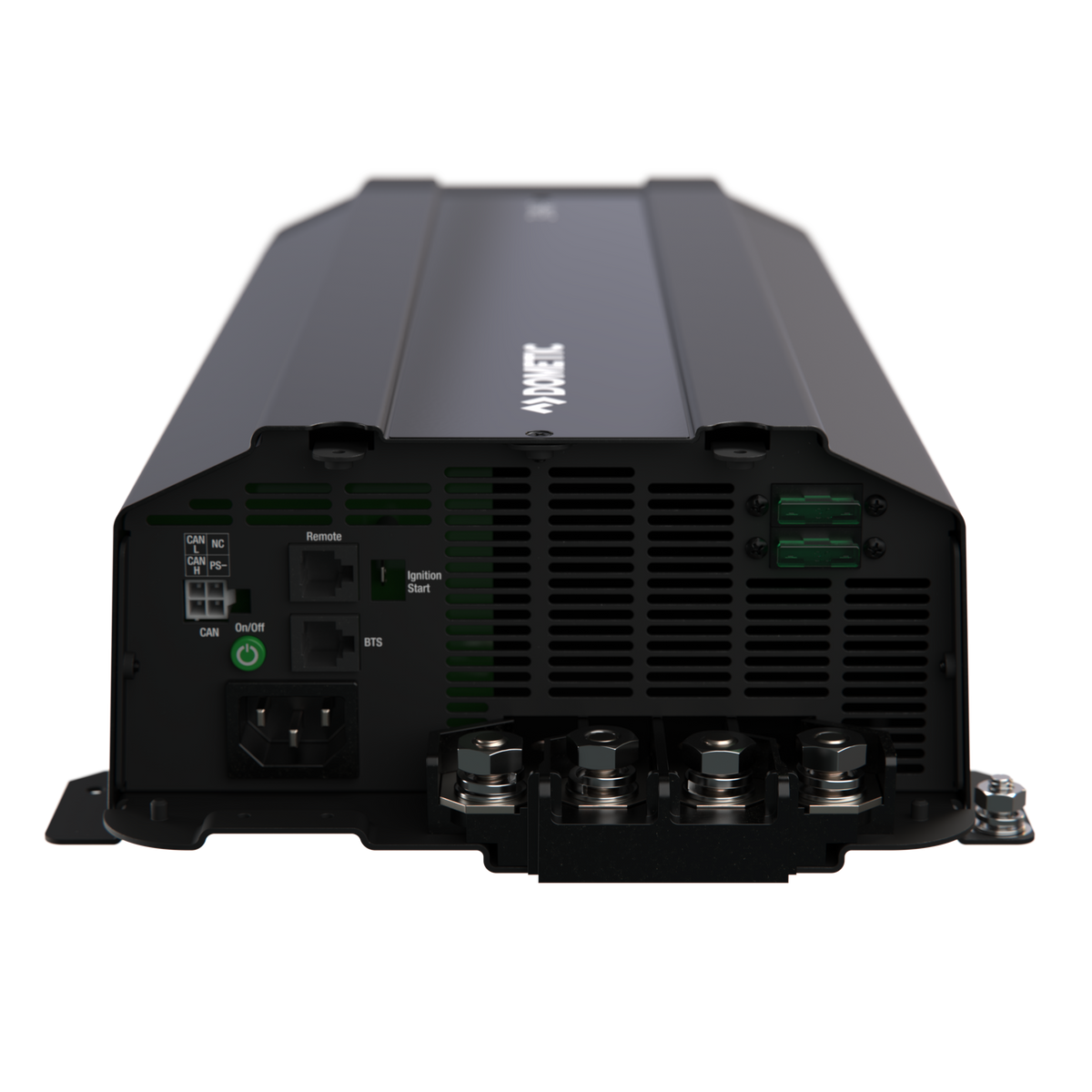

CONNECTIONS
DC Input Connection Hardwire
DC Output Connection Hardwire
AC Input Connection IEC Socket
PHYSICAL & ENVIRONMENTAL
Dimensions 455 x 238 x 104 mm
Weight 3.45kg
Storage Range -40° to 70° C
Operating Range -20° to 60° C
Humidity 5-95%, RH non-condensing
Ingress Protection IP32 - Protected against solid objects over 2.5mm and water sprays up to 15 degrees from vertical
DC INPUT (battery/alternator)
DC Input Range 10.5-16Vdc
DC Input Nominal Operation 13.2V for 12V input charging system
Engine Start Control ON DC input from Battery/Alternator
Engine Start Control OFF DC input from PV input (if applicable)
Input Current Max 40A
Max Solar Input Power 1000W, Max PV Voltage = 55V, Max PV Current 40A
AC INPUT (Utility/AC Generator)
AC Input Voltage (Nominal) 100, 120, 220, 230, 240VAC
AC Input Operating Range 90 - 250VAC
AC Input Frequency Range 47 - 63 Hz

Note: Specifications subject to change without notice.
