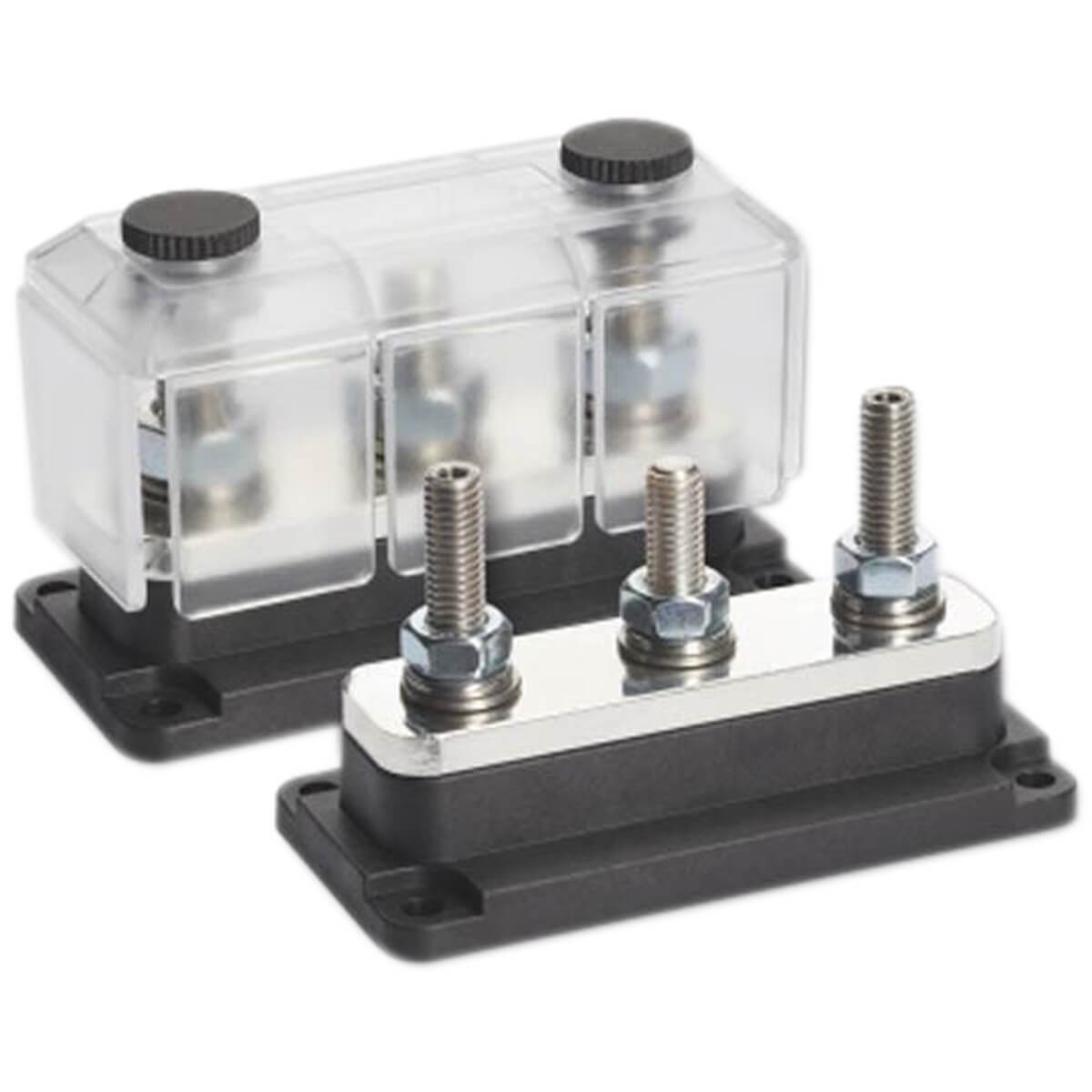

3 Stud Busbar - DCM-5073180

3 Stud Busbar - DCM-5073180

$136.00 AUD
$136.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

DCM-5073180

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members. The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Additional information

SKU

DCM-5073160, DCM-5073180

Features

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers

Specifications

Model Part No. Grid size Maximum Current1) Max. Voltage Connection stud size
DCM 3xM8 Busbar DCM-5073160 1 x 2 600A 50V M8
DCM 3xM10 Busbar DCM-5073180 1 x 2 600A 50V M10

1) Higher voltages may require additional safety measures
