Dometic

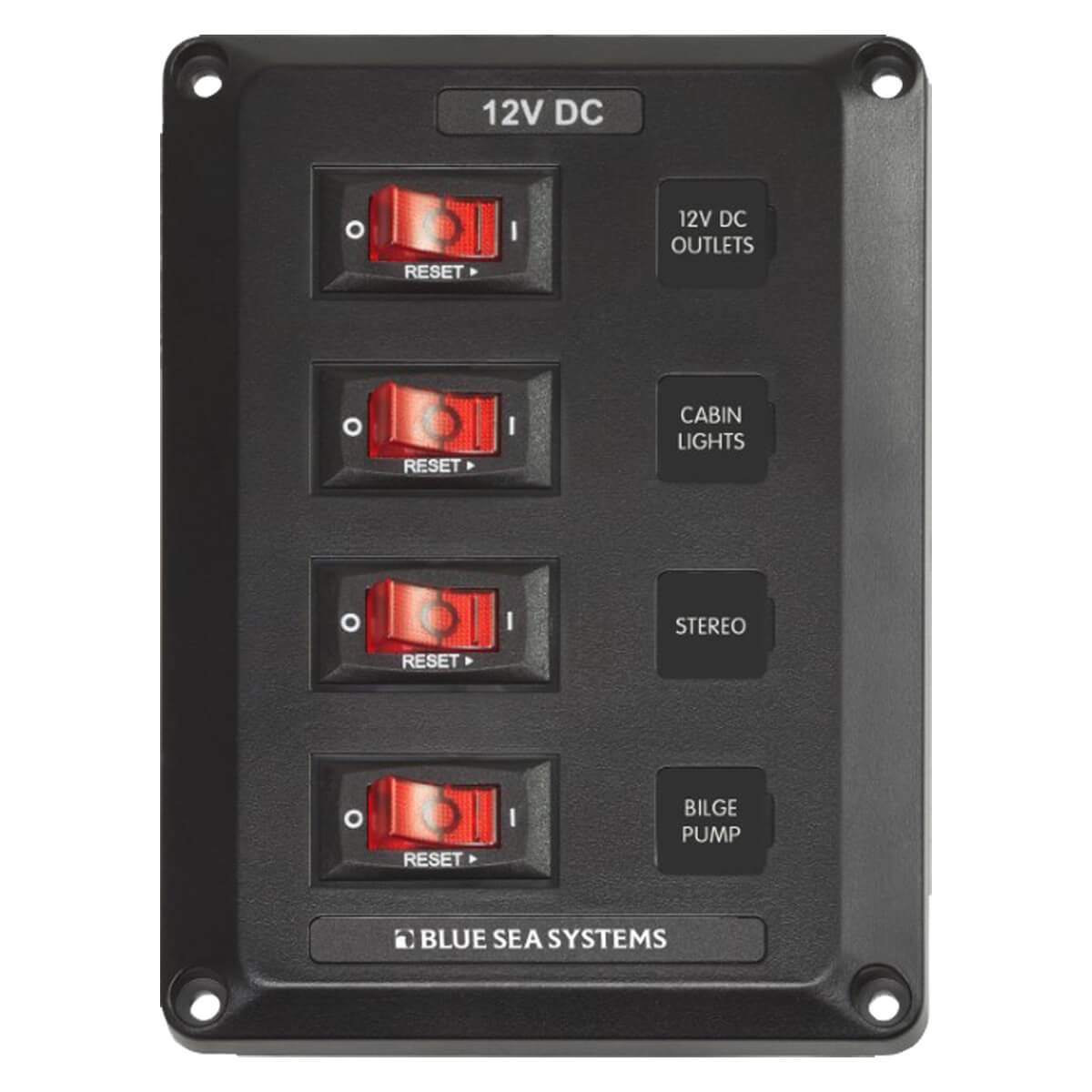

4 Position, BelowDeck Circuit Breaker Panel
4 Position, BelowDeck Circuit Breaker Panel
Regular price
$73.00 AUD
Regular price
Sale price
$73.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:BS-4350B
Quantity
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
- DURABLE Moulded panel frame will stand up to UV and salt air
- EASY Low profile makes it easy to install in tight spaces
- SIMPLE Fast-on circuit breaker connectors make it quick to wire
- CONVENIENT Red “ON” indicating LEDs for safe operation in low light conditions
- 4 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #10 ring terminals.
- Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace.
- Additional standard or custom labels are available through Blue Sea Systems
- Stainless steel #6 x 5/8? mounting screws included
Features
DURABLE
Molded panel frame will stand up to UV and salt air
EASY
Low profile makes it easy to install in tight spaces
SIMPLE
Fast-on circuit breaker connectors make it quick to wire
CONVENIENT
Red “ON” indicating LEDs for safe operation in low light conditions
- 4 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #5 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
- Stainless steel #6 x 5/8″ mounting screws included
Specifications
| 4 Position, BelowDeck Circuit Breaker Panel | |
|---|---|
| Positions | 4 |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 45A |
| Terminal Type | 1/4″ Male Quick Connect |
| Hardware | Stainless Steel #6 X 5/8″ mounting screws |
| Ring Terminal Size | M5 (#10) |
| Height | 144.78mm |
| Width | 107.95mm |
| Depth | 44.45mm |
Note: Specifications subject to change without notice.
