Dometic
400W 12V Generation 2 True Sine Wave Inverter
400W 12V Generation 2 True Sine Wave Inverter
Regular price
$370.00 AUD
Regular price
Sale price
$370.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:EN1104S-12V
Quantity
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
With a state of the art, easy to use design, the 400W G2 inverter will offer you reliable service for providing AC power for your home, boat, caravan, 4WD or commercial vehicle.
NOTE. PLEASE CHECK IEC PLUGS ARE FULLY INSERTED AFTER OFF-ROAD USE, AND PERIODICALLY EVERY 6 MONTHS
Features
The Enerdrive | Dometic 400W G2 Inverter can run many AC powered appliances when you need AC power anywhere.

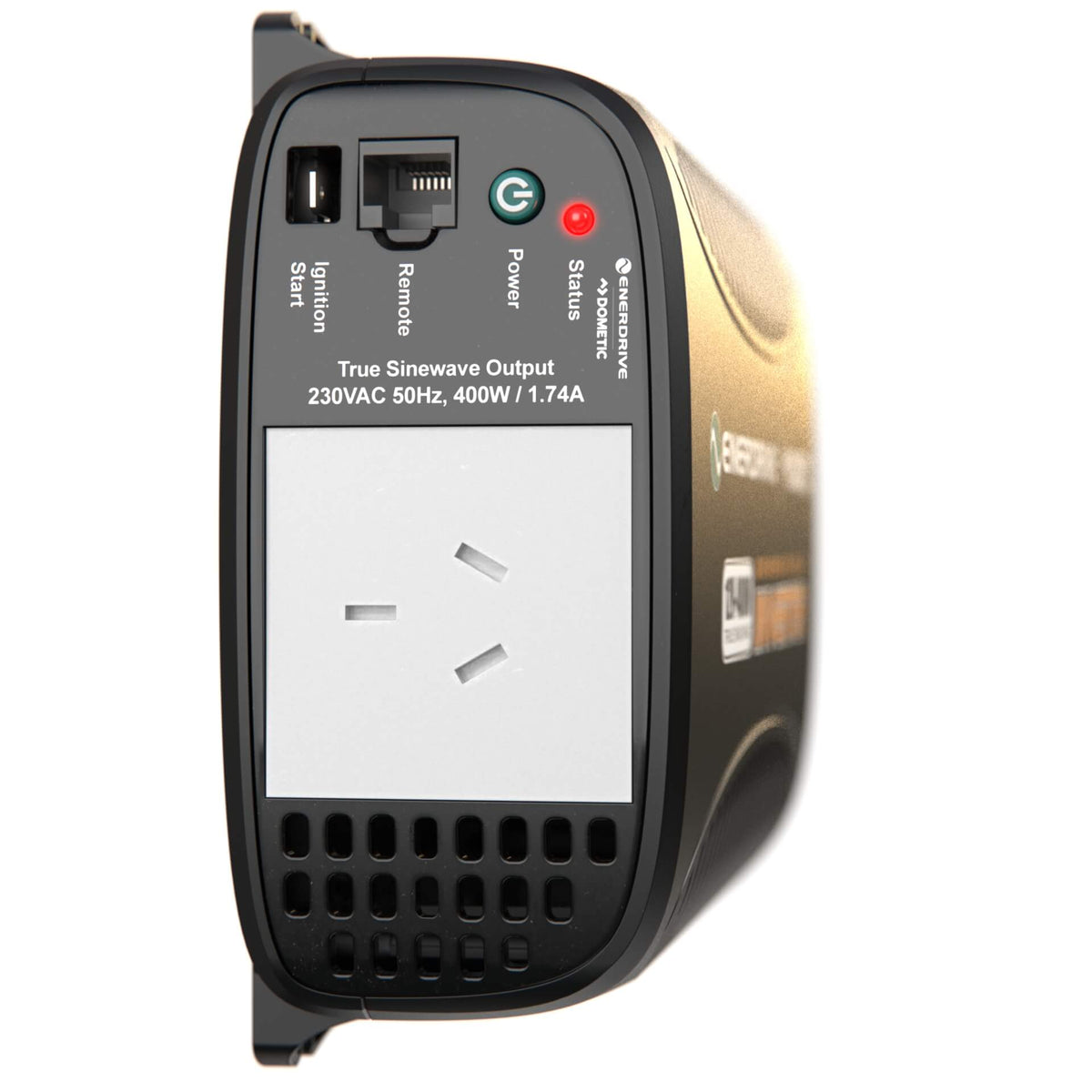

- Australian GPO Outlet
- True Sine Wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio & Visual alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Mounting brackets for permanent installation

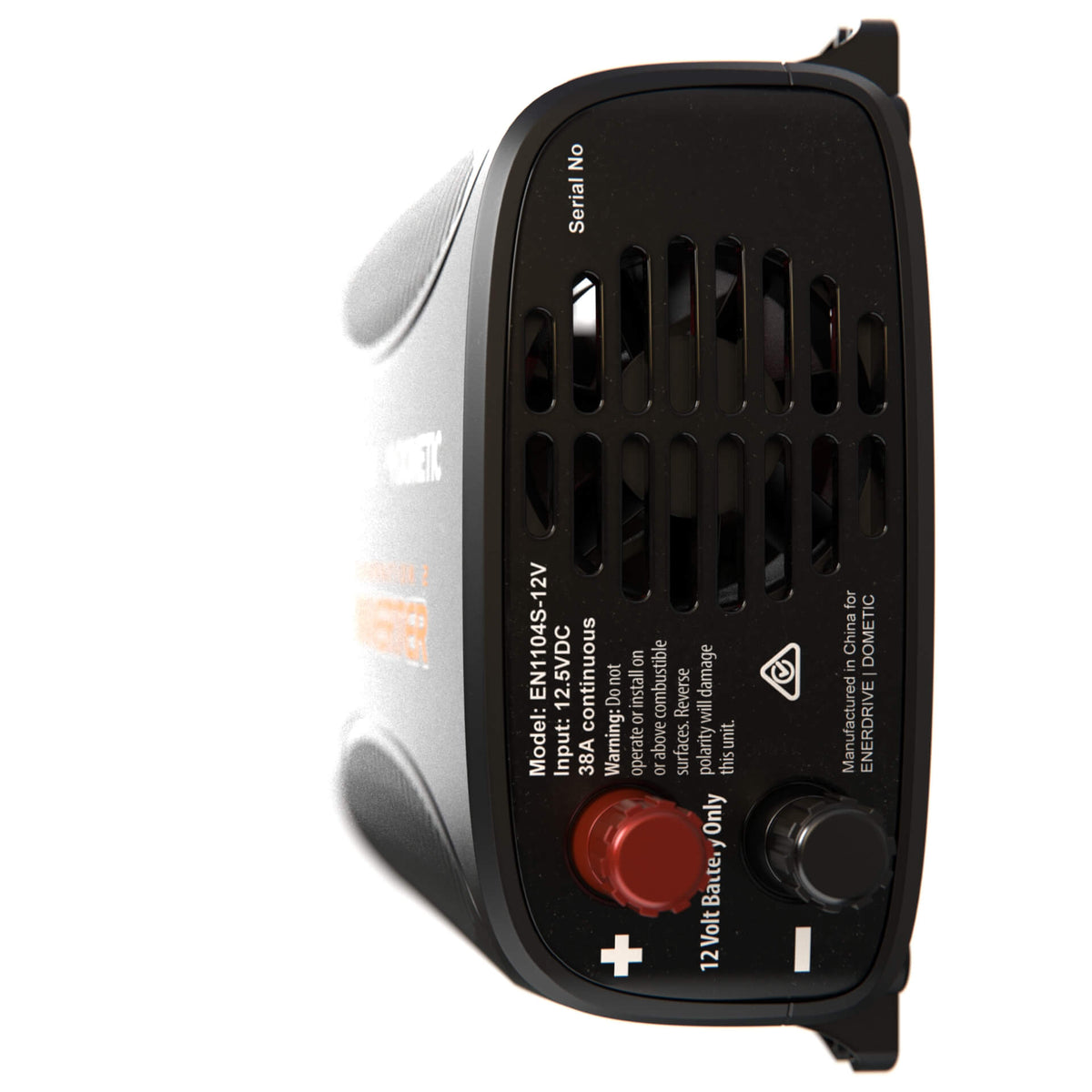

- Heavy duty DC battery stud connectors
- Ignition Start terminal for turning the unit On and OFF using a +12V signal

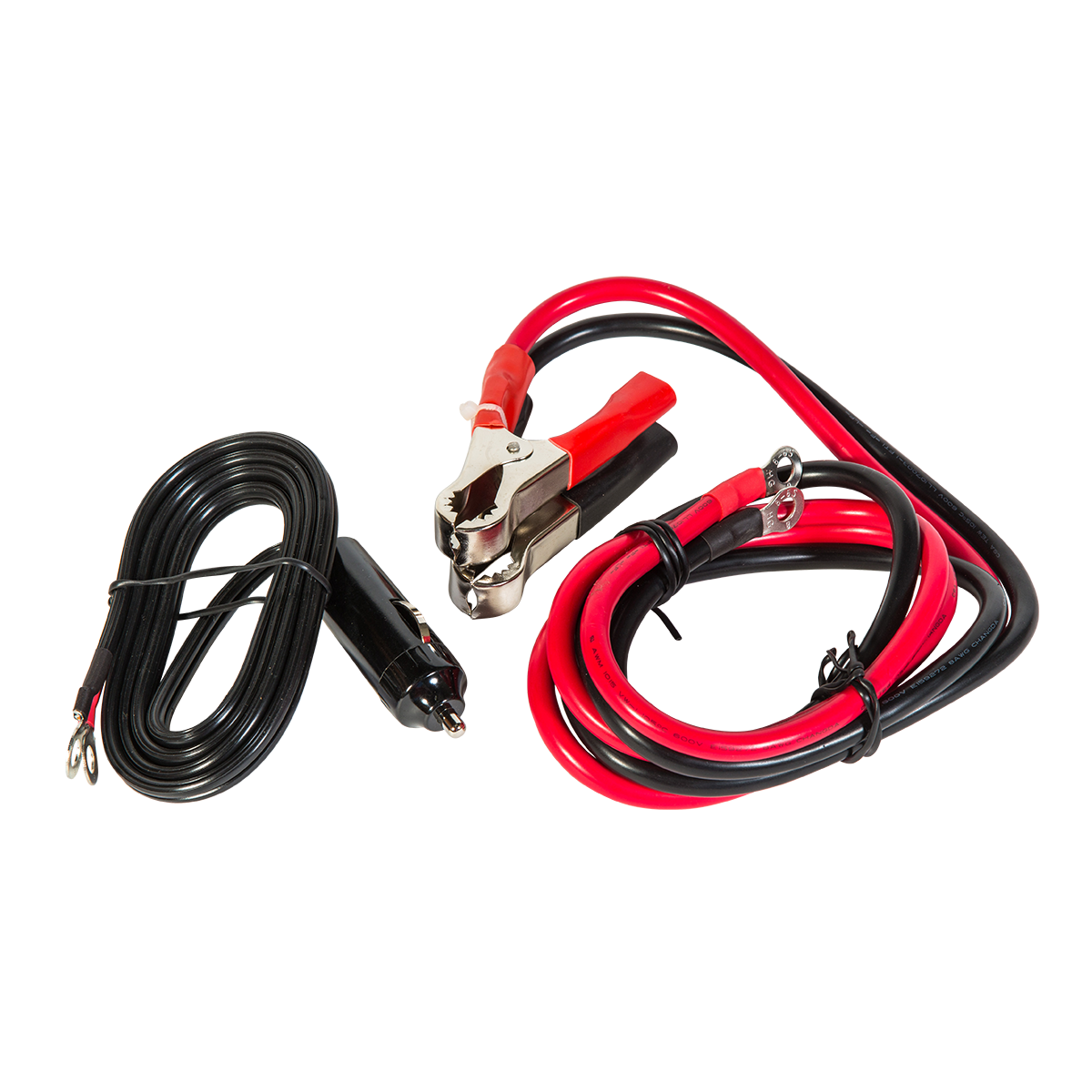

- DC battery cable with HD aligator clips & 12v Cig Socket cable supplied
Specifications
| ePOWER 400W G2 Inverter | |
|---|---|
| SKU | EN1104S-12V |
| AC Output Power | 400W |
| AC Output Current | 1.74A |
| AC Surge Power (Peak) | 800W |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | True Sinewave |
| AC Output Socket | 1 outlet |
| Nominal DC Input Voltage | 12.5 VDC |
| No Load battery draw | < 0.8 ADC |
| DC Input Voltage operating range | 10.5 – 15.9 VDC |
| Under Voltage Alarm | 11.0 VDC |
| Under Voltage Shutdown | 10.5 VDC |
| Under Voltage Recovery | 12.0 VDC |
| Over Voltage Shutdown | 15.9 VDC |
| Safety and Environmental | |
| Conformance | All required Australian Standards |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% noncondensing |
| Weights and Dimensions | |
| Weight | 1.1Kg |
| Dimensions (W x L x H) | 152 x 218 x 66mm |
| Warranty | 5 Years |
Manuals, Safety Information And Downloads
