Dometic

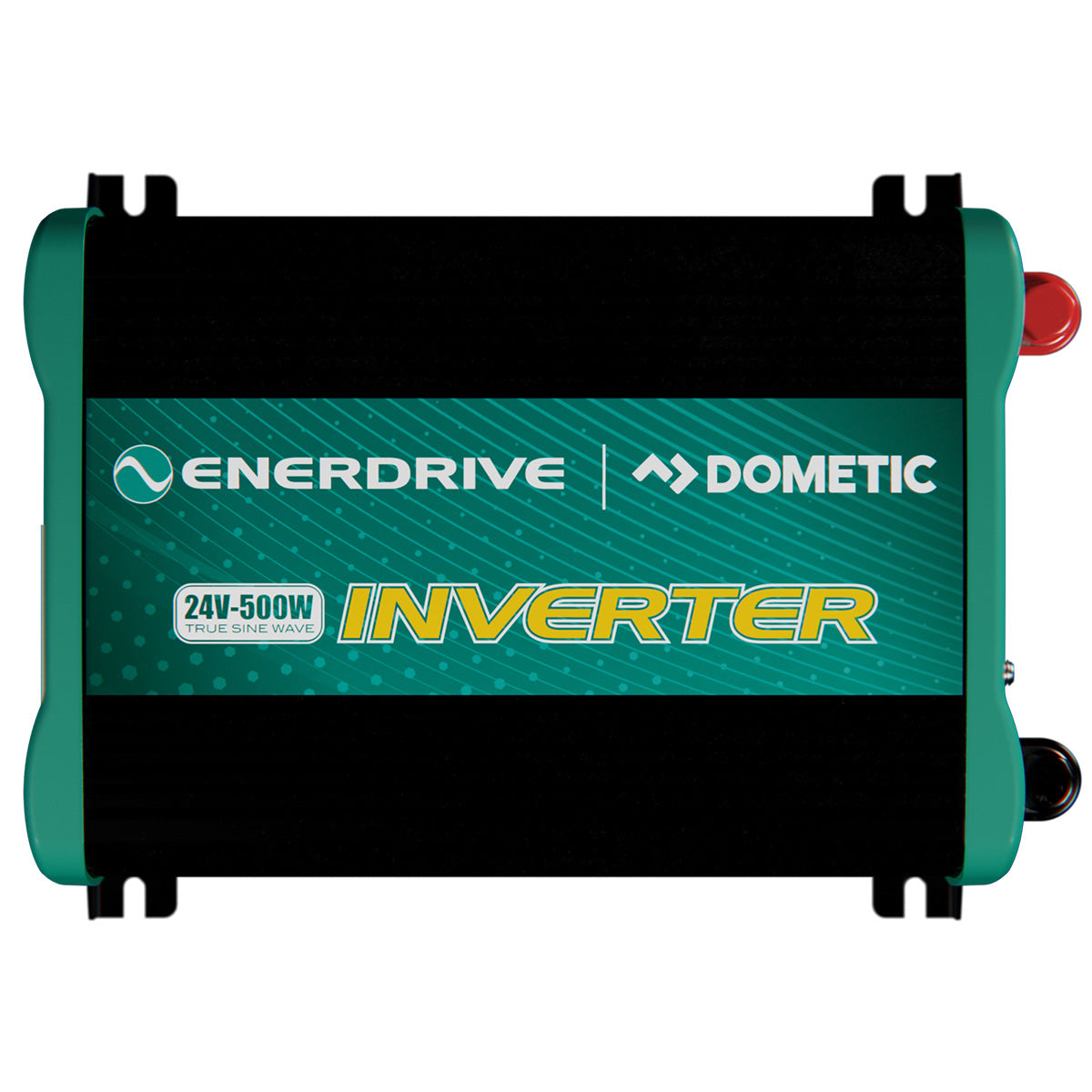

500W 24V True Sine Wave Inverter
500W 24V True Sine Wave Inverter
Regular price
$475.00 AUD
Regular price
Sale price
$475.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:EN1105S-24
Quantity
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
With a state of the art, easy to use design, this 500W 24V inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.
NOTE. PLEASE CHECK IEC PLUGS ARE FULLY INSERTED AFTER OFF-ROAD USE, AND PERIODICALLY EVERY 6 MONTHS
Accessories
| Part No. | Product Description | |
|---|---|---|
| EN1210C |  |
35mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 1200watts. |
| EN1220C |  |
70mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 2500watts. |
Note: Specifications subject to change without notice.
Features

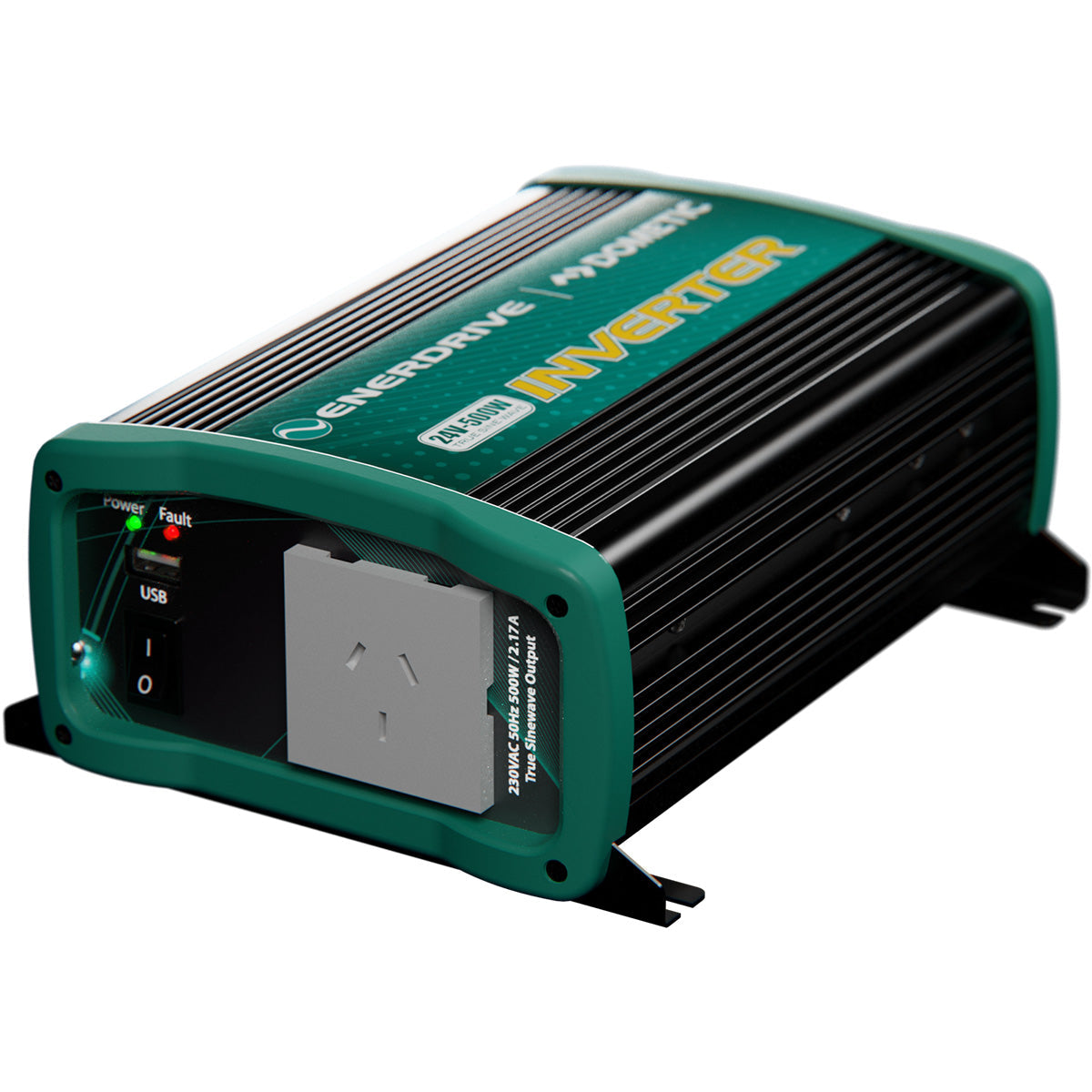

The Enerdrive | Dometic 500W Inverter can run many AC powered appliances when you need AC power anywhere.

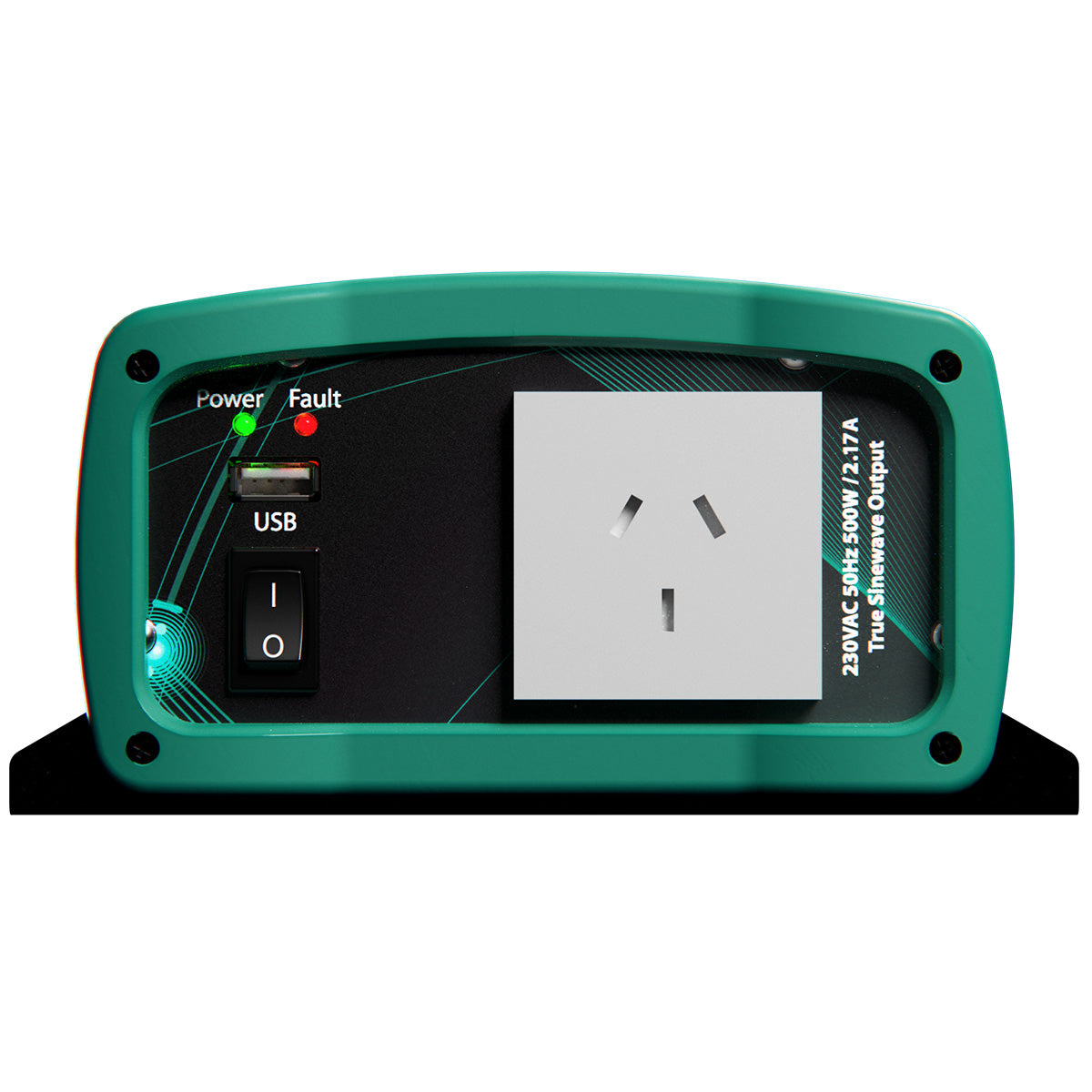

- Australian GPO Outlets
- True Sine Wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Mounting brackets for permanent installation

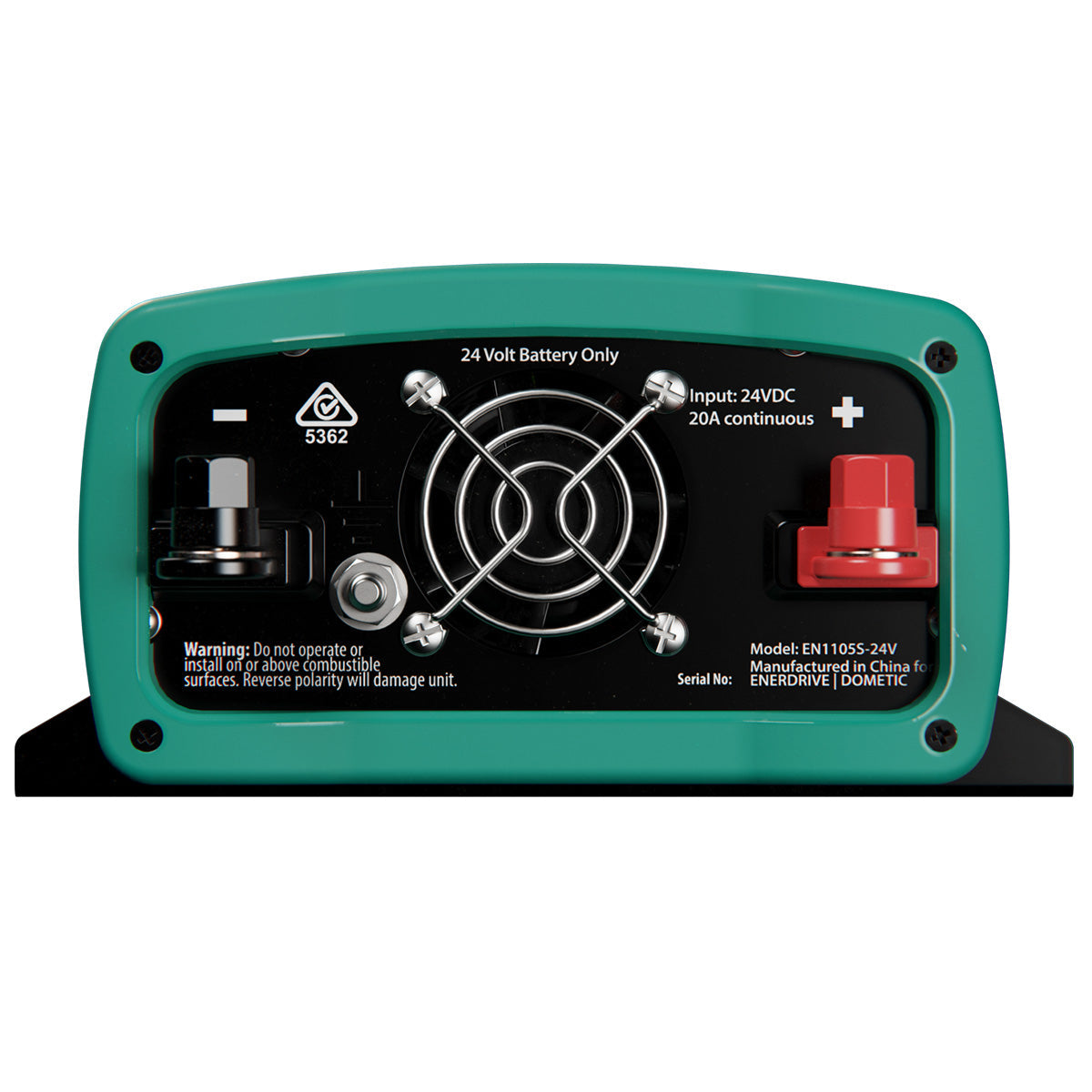

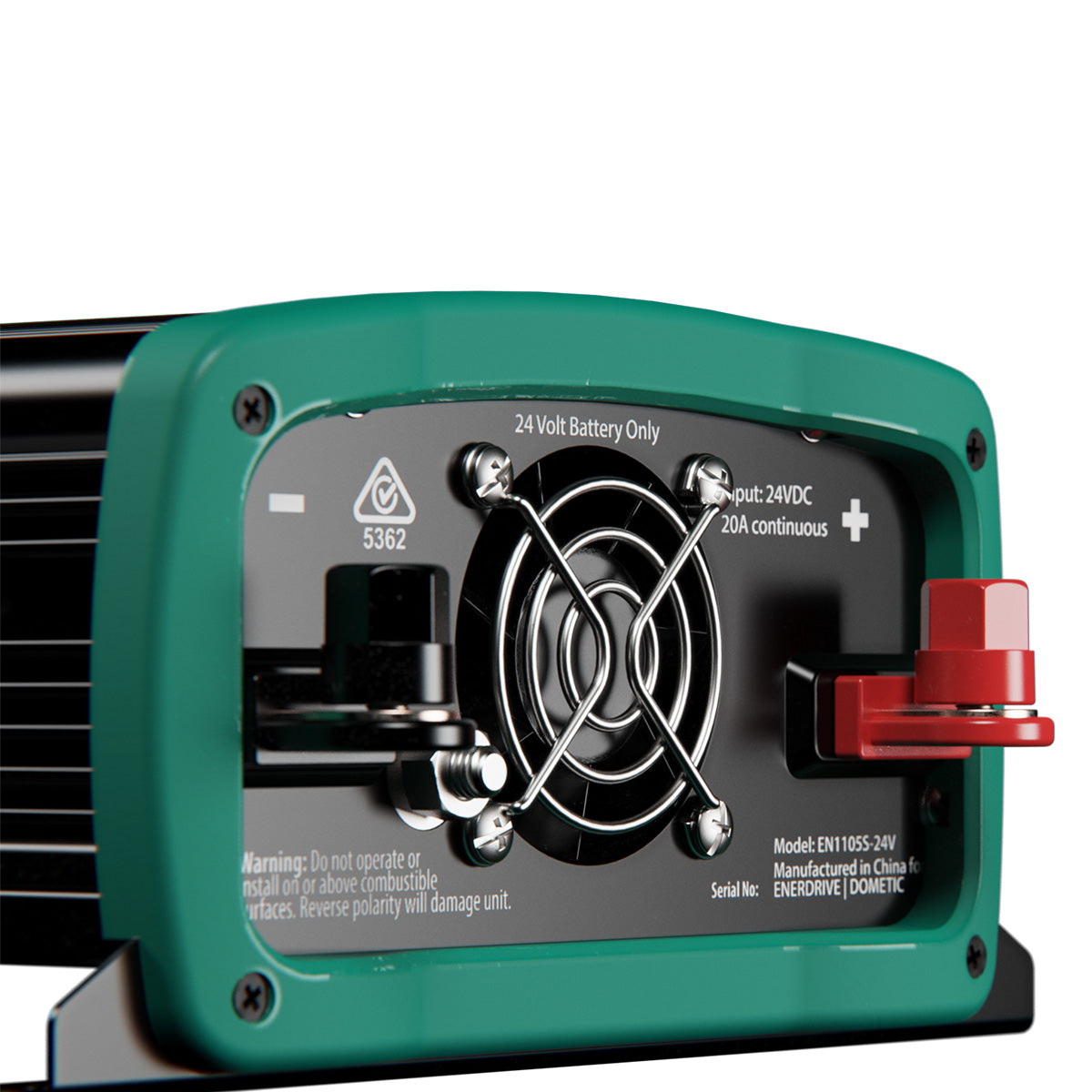

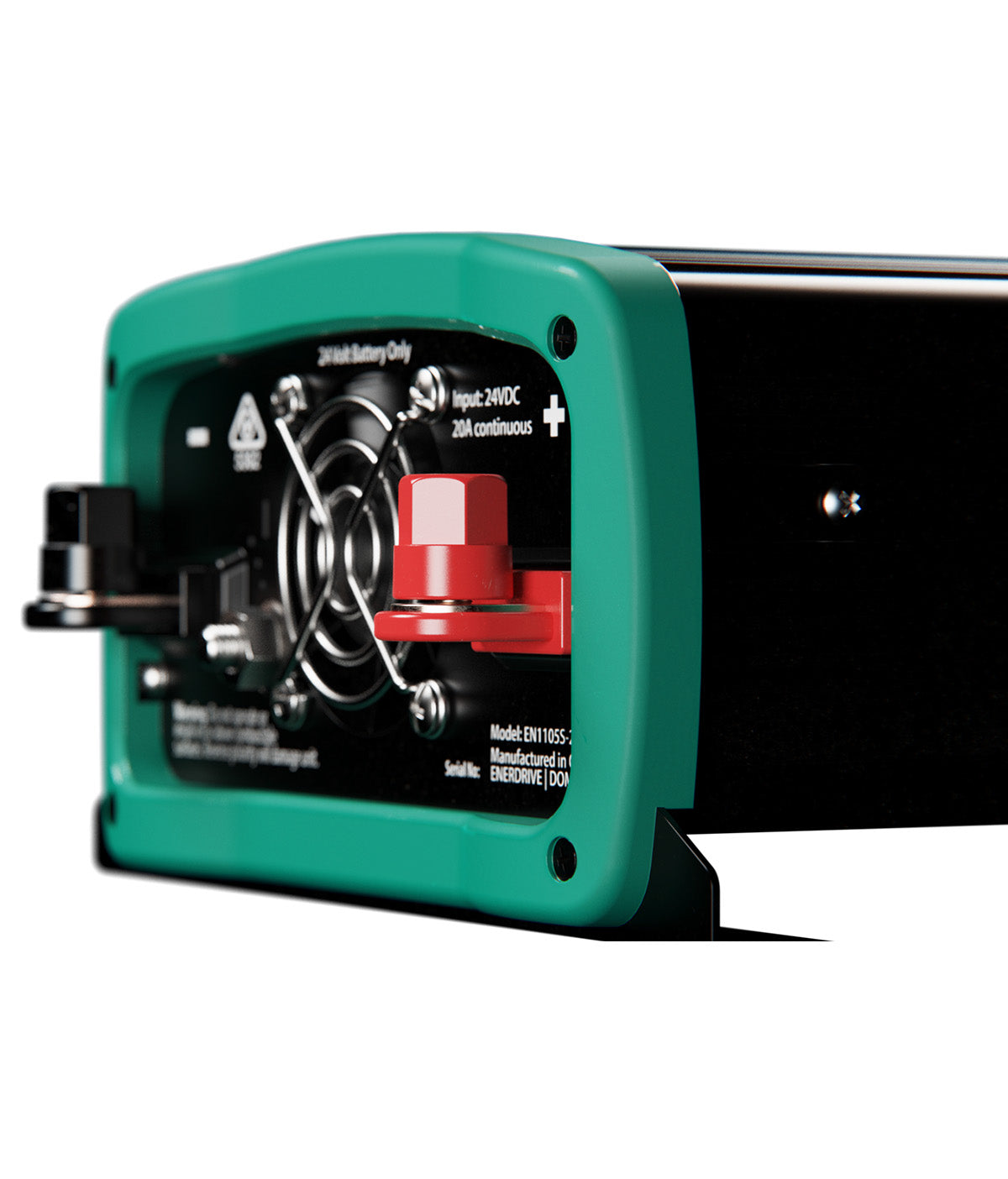

- Heavy duty DC battery stud connectors
- Includes 5V USB port
Specifications
| ePOWER 500-24V Inverter | |
|---|---|
| SKU | EN1105S-24 |
| AC Output Power | 500W |
| AC Output Current | 2.17A |
| AC Surge Power (Peak) | 1000W |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | True Sinewave |
| AC Output Socket | 1 outlet |
| Nominal DC Input Voltage | 25 VDC |
| No Load battery draw | < 0.5 ADC |
| DC Input Voltage operating range | 21.0 – 31.0 VDC |
| Under Voltage Alarm | 22.4 VDC |
| Under Voltage Shutdown | 21.0 VDC |
| Under Voltage Recovery | 23.6 VDC |
| Over Voltage Shutdown | 31.0 VDC |
| USB | 5V, 2.1A |
| Safety and Environmental | |
| Conformance | All required Australian Standards |
| Agency Markings | RCM |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% noncondensing |
| Operating Altitude | Up to 2000 meters above sea level |
| Weights and Dimensions | |
| Weight | 1.73Kg |
| Dimensions (W x L x H) | 175 x 312 x 87mm |
| Warranty | 5 Years |
| Load | Consumption | Estimate Run time |
|---|---|---|
| Cordless Phone | 5W | 150 hrs |
| Clock/Radio | 8W | 100 hrs |
| Table Lamp | 40W/60W | 27 hrs/ 18 hrs |
| Freezer (249 Litre) | 80W | 15 hrs |
| 20″ LCD TV | 100W | 11.5 hrs |
| Refrigerator (18 cu. ft.) | 120W | 8.3 hrs |
Note: Specifications subject to change without notice.
Above run time is an estimate based on using a 24V-60AH battery bank for reference (Depth of discharge to 50%). Actual run time may vary.
Manuals, Safety Information And Downloads
