Dometic

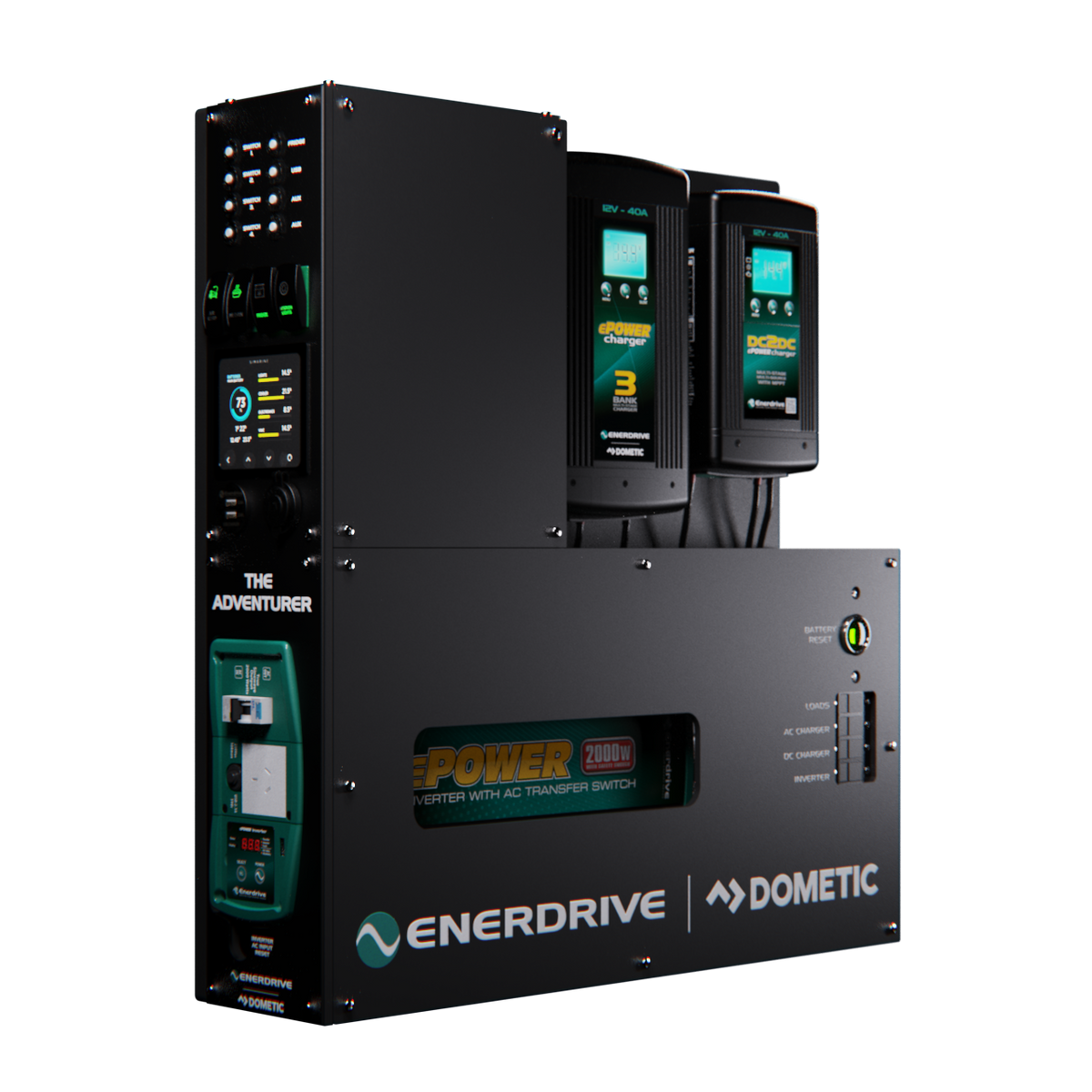

Adventurer Power System
Adventurer Power System
SKU:K-ADVENTURER-01-R
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Combines a 2000W inverter, 40A AC-DC charger, 40A DC-DC MPPT, and DC load monitoring into a single, plug-and-play unit.
Product Details
Built using high-quality components and proven to withstand the rugged Aussie conditions, these systems are designed to suit the needs of those looking for a reliable power system. The components of the system are also pre-wired where possible in-house by Enerdrive Dometic’s expert staff using only best-practice procedures to make installation easier than ever. With a range of customisable options available, including faceplate colour options, custom rocker switches, and various mounting orientations, you can design a system truly tailored to fit your specific needs.
Features
With Enerdrive Dometic breaking into the 4WD canopy market in recent years, we have been consistently asked by manufacturers and end users to come up with a compact power solution to operate all of the electrical equipment that is ending up in the back of these canopies. From a simple system to operate a fridge and a couple of lights to a full on power station, these are the type of systems we have been asked for.
After many brainstorming sessions and 3D modelling designs, Enerdrive have produced 3 models to cover just about any customer request for power in their canopies.
The Adventurer:
This system is designed for the end user requiring maximum power requirements along with AC charging ability and 230v Inverter power. Available in 3 different versions;
- K-ADVENTURER-01 inc ePRO+ Battery Monitor
- K-ADVENTURER-02 inc Simarine Battery Monitoring
- K-ADVENTURER-03 inc Simarine & Individual Load Monitoring
⚠️Please Note. Standard Stocked versions of this system have Green Face Plate. If you require a Custom (Black) face plate, please ensure you advise this at the time of placing your order.
The Adventurer 01 for example consists of the following items
- Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
- Enerdrive ePOWER 40A AC charger
- Enerdrive ePOWER 2000W AC Transfer Inverter
- 1 x ePRO+ Battery Monitor (K-ADVENTURER-01)
- 1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse
- 4x Pre-wired Circuit Breakers for main power equipment
- 4 x Contura switches for Lights & Auxiliary loads
- 4 x additional Circuits Breakers for Air/Water Pumps and more
- Main System & Inverter Hi-Amp Circuit Breakers
- 1 x 12v CIG
- 1 x Dual 2.4A USB socket
- Battery Reset button for kick starting your flat battery from the DC2DC Charger
- Simarine LCD Battery WIFI Monitoring System with option to incorporate individual load/charge information. (K-ADVENTURER-02 & 03)
- Optional Water/Fuel Tank module also available. (K-ADVENTURER-02 & 03)
All Adventurer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs, battery cable connection kit & vehicle/solar/tank inputs. We have also created a comprehensive installation guide to walk you through mounting the system, connecting loads (appliances), solar and battery connections.
All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicle canopy. The systems are available in either Left (passenger side) or Right (drivers side) installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.
If you are interested in having custom engraving for switch/circuit breakers to your specific requirements, this option is available at an additional cost.
Please be aware that the Enerdrive Flat Battery restart button is only to be used when start system input is 12v only. This button is not suitable for use in 24v starting systems. If you do require restart facilities for a 24v start system please speak to the Enerdrive team. We can modify these systems to be suitable for 24v start systems at an additional cost.
Enerdrive are proud to bring to market this innovative design that can be installed by the manufacturer or end user in a neat one piece installation.
Specifications
4x4 Canopy Power Systems Comparison
| SKU / Items Included | Journeyman | Explorer | Traveller | Lackey | Adventurer | Voyager | Voyager Digital | Salty One x Adventurer | Salty One x Voyager | Commercial Power System |
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | K-JOURNEYMAN-01 | K-EXPLORER-01, K-EXPLORER-02, K-EXPLORER-03 | K-TRAVELLER-01, K-TRAVELLER-02, K-TRAVELLER-03 | K-LACKEY-02 | K-ADVENTURER-01, K-ADVENTURER-02, K-ADVENTURER-03 | K-V3L01, K-V3R01, K-V3T01 | K-V3L02, K-V3R02 | K-ADVENTURER-03-L-S01, K-ADVENTURER-03-R-S01 | K-V3L01-S01, K-V3R01-S01 | K-CPS-01, K-CPS-02 |
| DC Battery Charger | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) |
| AC Battery Charger | N/A | N/A | 12V 40A AC Battery Charger | N/A | 12V 40A AC Battery Charger | 12V 100A AC Battery Charger | 12V 100A AC Battery Charger | 12V 40A AC Battery Charger | 12V 100A AC Battery Charger | 12V 40A AC Battery Charger |
| Solar Charge Input (Solar ready) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Lithium Battery ready | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | Supplied with B-TEC 12V 200Ah Slimline Lithium Battery |
| Inverter | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | N/A | N/A | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | 3000W/100A Inverter-Charger | 3000W/100A Inverter-Charger | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | 3000W/100A Inverter-Charger | 2000W Inverter |
| Battery Monitor | ePRO+ Battery Monitor (K-EXPLORER-01) | ePRO+ Battery Monitor (K-TRAVELLER-01) | ePRO+ Battery Monitor (K-ADVENTURER-01) | Simarine PICO | Simarine PICO | Simarine PICO | Simarine PICO | ePRO+ Battery Monitor | ||
| Simarine LCD Touch Screen WiFi Battery Monitoring System | K-EXPLORER-02 K-EXPLORER-03 | K-TRAVELLER-02 K-TRAVELLER-03 | K-ADVENTURER-02 K-ADVENTURER-03 | ✓ | ✓ | ✓ | ✓ | |||
| Pre-Wired Circuit Breakers for Main Power Equipment | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Switches | 3 x 10A Pushbutton with Indicator Light | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | 6 x Digital Switches - Garmin PowerSwitch™ Digital Switch | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | ||
| Integrated Light Bar | Sold separately | ✓ | Sold separately | |||||||
| 4 x Customisable Laser-etched Rocker Switches | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse | ✓ | ✓ | ||||||||
| Pre-wired 70mm2 Main Battery Cable Connection with Main DC Fuse | ✓ (with 175A Anderson Plug Socket) | ✓ (with 175A Anderson Plug Socket) | ✓ | ✓ | ||||||
| Pre-wired Fridge 50A Anderson Plug connection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| USB Socket Output | Twin USB-A & C 100W Sockets (x2) | Twin USB-A 2.4A Hi Amp Sockets | Twin USB-A 2.4A Hi Amp Sockets | Twin USB-A 2.4A Hi Amp Sockets (x2) | Twin USB-A 2.4A Hi Amp Sockets | Twin USB-A 2.4A Hi Amp Sockets | 2 x Dual USB-A + USB-C (Max. Output Power 100W) sockets come standard (4 x Outputs) | Dual USB-A + USB-C (Max. Output Power 100W) | Dual USB-A + USB-C (Max. Output Power 100W) | K-CPS-01 = Dual USB-A + USB-C* K-CPS-02 = 1x USB-A, 1x USB-C* *Max. Output Power 100W |
| Cig Socket Output | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | K-CPS-01 = 2 K-CPS-02 = 1 |
| Anderson Plug Socket Output | 1 (Front) | 1 | 1 | 1 | 1 | 1 | ||||
| RCD Protected Powerpoint | 1 | 1 | 1 | 2 | 2 | 1 | 2 | K-CPS-01 = 4 K-CPS-02 = 2 |
||
| Battery Reset Button | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Individual Load/Charge Module for Simarine (SKU: SI-SCQ50) | K-EXPLORER-03 | K-TRAVELLER-03 | K-ADVENTURER-03 | ✓ | ✓ | ✓ | ✓ | |||
| Water/Fuel Tank monitoring for Simarine - 2x resistance inputs included with SI-SC303 | K-EXPLORER-02 (Included) K-EXPLORER-03 (Included) | K-TRAVELLER-02 (Included) K-TRAVELLER-03 (Included) | K-ADVENTURER-02 (Included) K-ADVENTURER-03 (Included) | Included | Included | Included | Included | |||
| Water/Fuel Tank Module for Simarine. 4x resistance inputs 3x voltage (SKU: SI-ST107) | K-EXPLORER-02 (Optional) K-EXPLORER-03 (Optional) | K-TRAVELLER-02 (Optional) K-TRAVELLER-03 (Optional) | K-ADVENTURER-02 (Optional) K-ADVENTURER-03 (Optional) | Optional | Optional | Optional | Optional | |||
| Low Battery Cutout DC Loads 60A | ✓ | |||||||||
| Load Output 50A Circuit Breaker | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Ignition Input for Smart Alternator Equipped Vehicles | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. |
| 2000W Inverter 200A Input Circuit Breaker | ✓ | ✓ | ✓ | ✓ | ✓ | |||||
| 3000W Inverter 300A Input Circuit Breaker | ✓ | ✓ | ✓ | |||||||
| Dimensions | 911L x 165W x 390H | 455L x 155W x 330H mm | 685L x 155W x 330H mm | 590L x 415W x 135D mm | 630L x 155W x 665H mm | 830W x 700H x 155D mm | 830W x 700H x 155D mm | 630L x 155W x 665H mm | 830W x 700H x 155D mm | K-CPS-01 = 730L x 630W x 250H mm K-CPS-02 = 730H x 630D x 250W mm |
| Weight | 20.0kg | 7.0kg | 10.5kg | 15.0kg | 18.0kg | 28.5kg | 28.5kg | 18.0kg | 28.5kg | 60.0kg |
| Orientation | Left | Left, Right, Top (Ceiling) variants | Left, Right, Top (Ceiling) variants | Left, Right | Left, Right | Left, Right, Top (Ceiling) | Left, Right | Left, Right | Left, Right | K-CPS-01 = Horizontal K-CPS-02 = Upright |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| (✓) or (SKU) Indicates Standard Fitment |
Manuals, Safety Information And Downloads
- Canopy Power System Brochure
- Custom Rocker Switch Cover Order Form
- Adventurer 02/03 Installation Guide – Manufactured from June 2022
Wiring Diagrams
Manufactured AFTER June 2022:
- Adventurer-ePRO+ Enerdrive Wiring Diagram – Manufactured from June 2022
- Adventurer-ePRO+ Installer Wiring Diagram – Manufactured from June 2022
- Adventurer-Simarine Enerdrive Wiring Diagram – Manufactured from June 2022
- Adventurer-Simarine Installer Wiring Diagram – Manufactured from June 2022
- Adventurer-Simarine-SCQ50 Enerdrive Wiring Diagram – Manufactured from June 2022
- Adventurer-Simarine-SCQ50 Installer Wiring Diagram – Manufactured from June 2022
- Adventurer 02/03 Installation Guide – Manufactured from June 2022
Manufactured BETWEEN June 2021 – June 2022:
- Adventurer-ePRO+ Enerdrive Wiring Diagram – Manufactured from June 2021
- Adventurer-ePRO+ Installer Wiring Diagram – Manufactured from June 2021
- Adventurer-Simarine Enerdrive Wiring Diagram – Manufactured from June 2021
- Adventurer-Simarine Installer Wiring Diagram – Manufactured from June 2021
- Adventurer-Simarine-SCQ50 Enerdrive Wiring Diagram – Manufactured from June 2021
- Adventurer-Simarine-SCQ50 Installer Wiring Diagram – Manufactured from June 2021
Manufactured BEFORE June 2021:
- Adventurer-ePRO+ Enerdrive Wiring Diagram
- Adventurer-ePRO+ Installer Wiring Diagram
- Adventurer-Simarine Enerdrive Wiring Diagram
- Adventurer-Simarine Installer Wiring Diagram
- Adventurer-Simarine-SCQ50 Enerdrive Wiring Diagram
- Adventurer-Simarine-SCQ50 Installer Wiring Diagram
- Adventurer 02/03 Installation Guide
