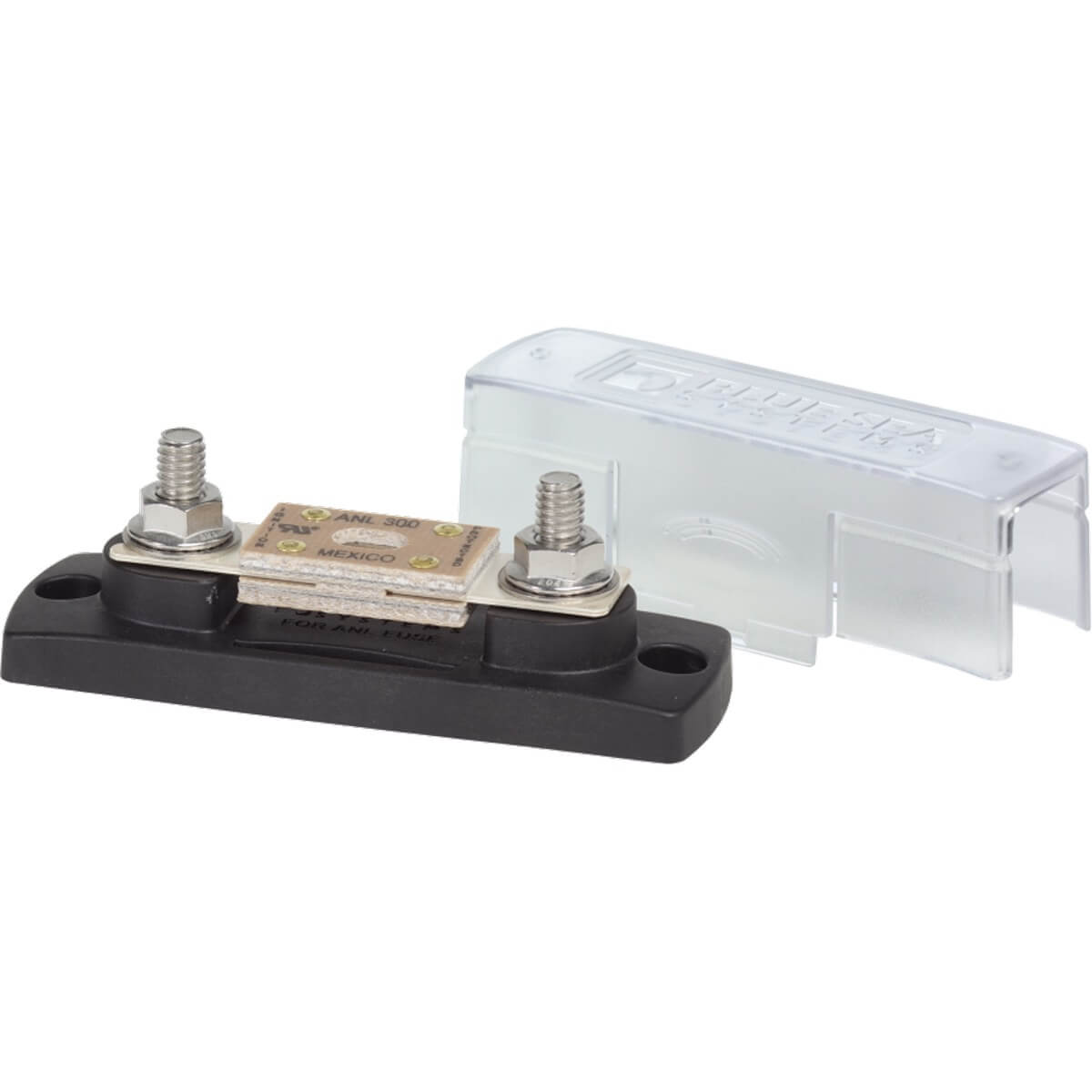

• ANL Fuse Block with Insulating Cover - 35 to 300A
1 1

Dometic

ANL Fuse Block with Insulating Cover - 35 to 300A

ANL Fuse Block with Insulating Cover - 35 to 300A

$46.00 AUD
$46.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

BS-5005B

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

  • Accepts 5/16″ (M8) ring terminals
  • For use on systems up to 32 Volts
  • DC Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torqueing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately

Features

ANL Fuse Block with Insulating Cover – 35 to 300A
  • Accepts 5/16″ (M8) ring terminals
  • For use on systems up to 32 Volts DC
  • Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately

Specifications

ANL Fuse Block with Insulating Cover – 35 to 300A
Maximum Voltage 32V DC
Base Material Reinforced Polycarbonate
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 2/0 AWG
Maximum Torque 110 in-lb (12.43 Nm)
Terminal Stud Size 5/16″ – 18 (M8)
Weight 0.16 kg

Note: Specifications subject to change without notice.
