Compact Reel System Bracket #3 - Flat Mount

Introducing the APEX DESIGNS Compact Reel System (CRS) Flat Mount Bracket — the cleanest, most space-efficient way to mount your hose reel flat against vertical surfaces in your setup.

Purpose-built for tight, organised installs, this bracket allows you to mount your CRS on top of load bars, tub racks, or MOLLE panels.

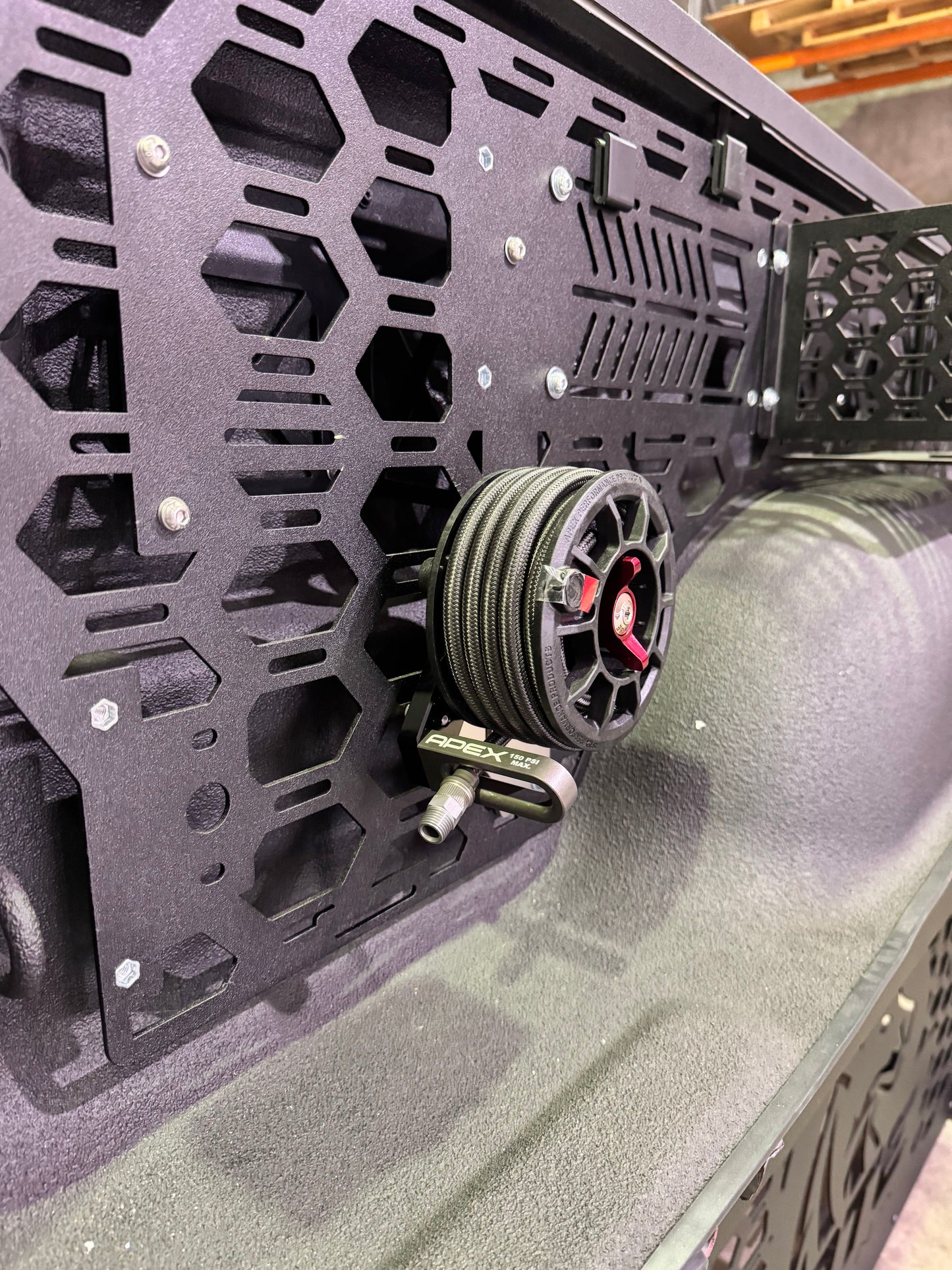

The flat mounting design keeps your Compact Reel System tucked in close, reducing bulk while maintaining full functionality. Perfect for vertical mounting inside canopies, trays, or enclosed setups, this bracket ensures your air hose reel stays secure, accessible, and out of the way until you need it.

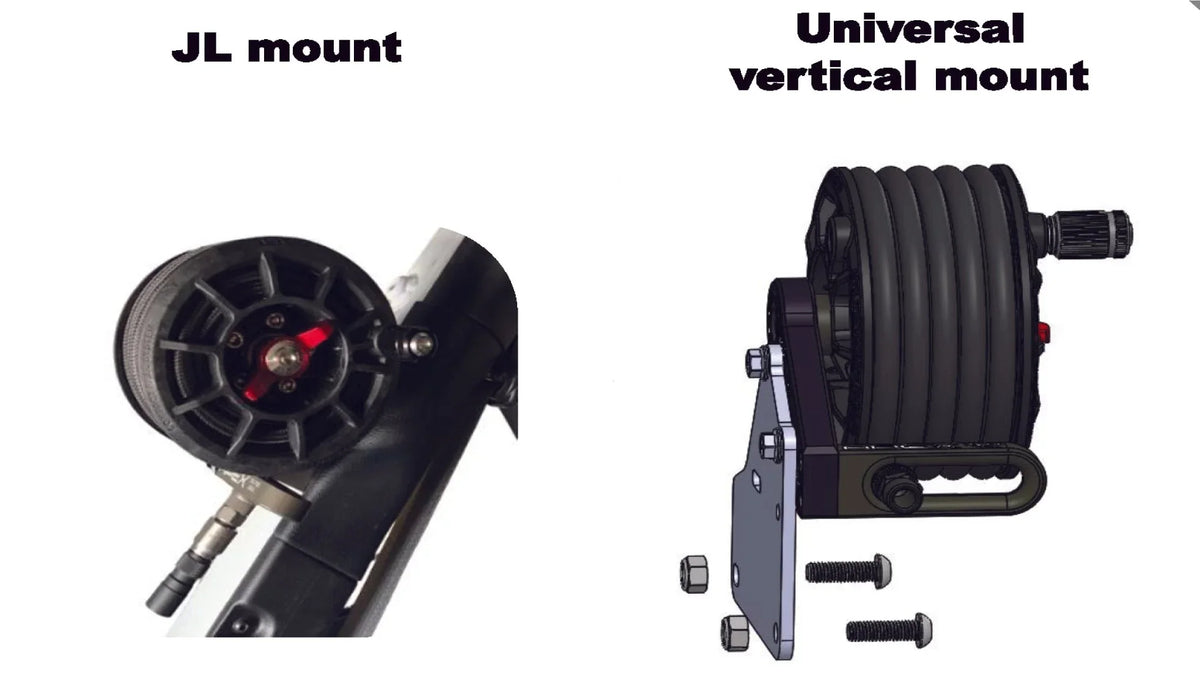

Designed with real-world installs in mind, this bracket requires adequate clearance for the Banjo Fitting on the side of the reel, ensuring proper hose routing and optimal airflow performance. For more flexible mounting positions or external installs, the CRS Side Mounting Bracket may be a better option.

Key Features:

• Flat mount design for vertical installation against canopy walls, tub panels, and MOLLE systems
• Ideal for Mate Designs MOLLE Panels and custom canopy fit-outs

• Low-profile mounting solution to maximise usable space
• Perfect for enclosed setups, touring rigs, and organised storage systems
• Designed to maintain clean hose routing with proper clearance for banjo fittings
• Secure and stable mounting for the APEX DESIGNS Compact Reel System (CRS)

Fitment Notes:

• Not compatible with Jeep Wrangler JLU Factory Soft Top configurations
• Suitable for Hard Top setups only
• Ensure sufficient clearance for side-mounted fittings during installation
