Dometic

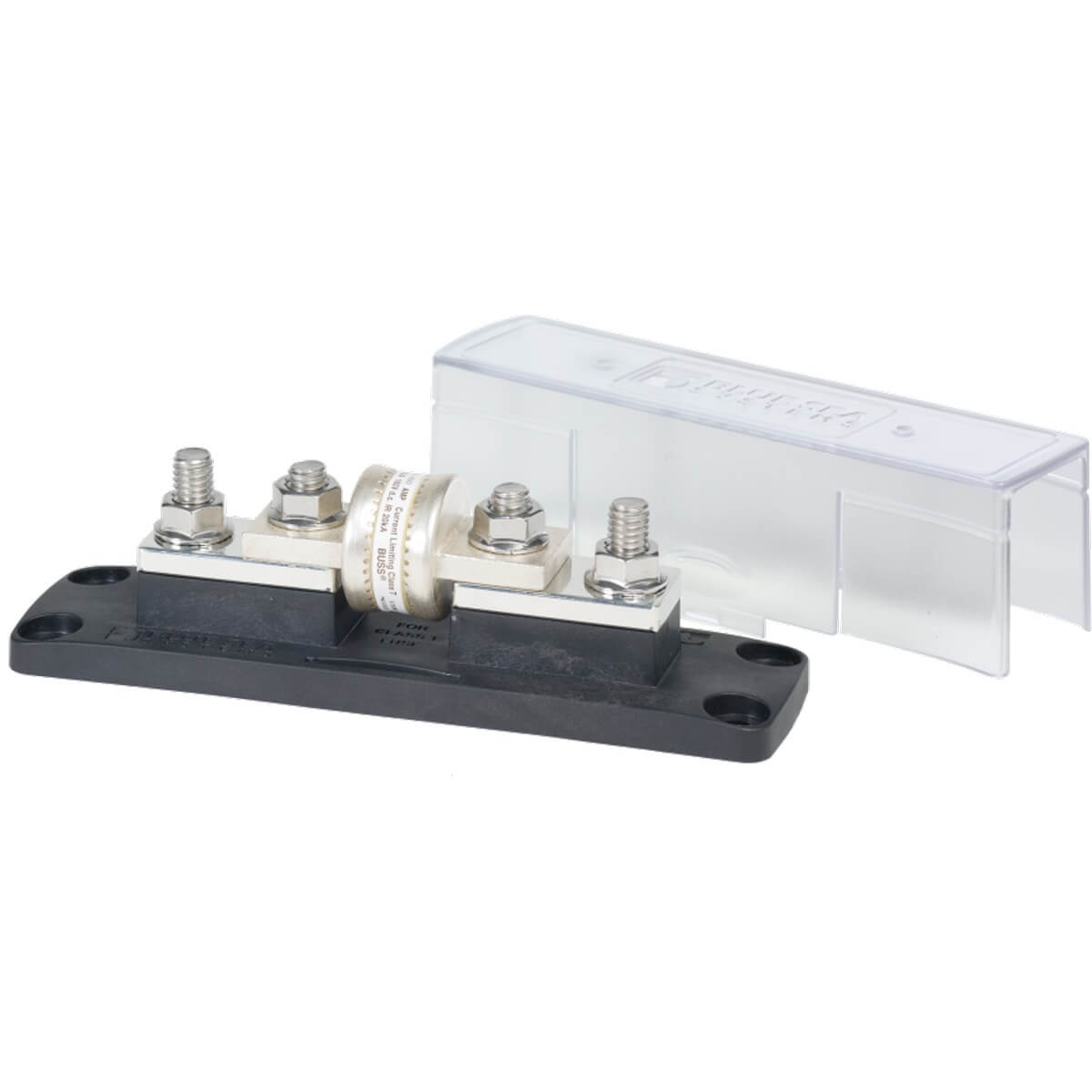

Class T Fuse Block with Insulating Cover - 225 to 400A
Class T Fuse Block with Insulating Cover - 225 to 400A
Regular price
$99.00 AUD
Regular price
Sale price
$99.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:BS-5502B
Quantity
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
- The fuse system recommended by most inverter manufacturers for high speed response to short circuits
- Clear insulating cover, satisfies ABYC/USCG requirements
- For use on systems up to 160 Volts DC
- Large 3/8″-16 stud terminals accept ring terminals for wire up to 4/0 AWG
- Large heat dissipating tin-plated copper mounting blocks
- Fuse sold separately
Features
Class T Fuse Block with Insulating Cover – 225 to 400A
- The fuse system recommended by most inverter manufacturers for high speed response to short circuits
- Clear insulating cover, satisfies ABYC/USCG requirements
- For use on systems up to 160 Volts DC
- Large 3/8″-16 stud terminals accept ring terminals for wire up to 4/0 AWG
- Large heat dissipating tin-plated copper mounting blocks
- Two # 8 accessory terminals located on each end
- Fuse sold separately
Specifications
| Class T Fuse Block with Insulating Cover – 225 to 400A | |
|---|---|
| Maximum Amperage | 400A |
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 4/0 AWG |
| Maximum Torque | 190 in-lb (21.47 Nm) |
| Mounting Holes | Accept 1/4 (M6) Screw |
| Terminal Stud Size | 3/8″ – 16 (M10) |
| Weight | 0.05 kg |
Note: Specifications subject to change without notice.
