Dometic
DC Motion Switch - EN-DCMOTION-L
DC Motion Switch - EN-DCMOTION-L
SKU:EN-DCMOTION-L
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details

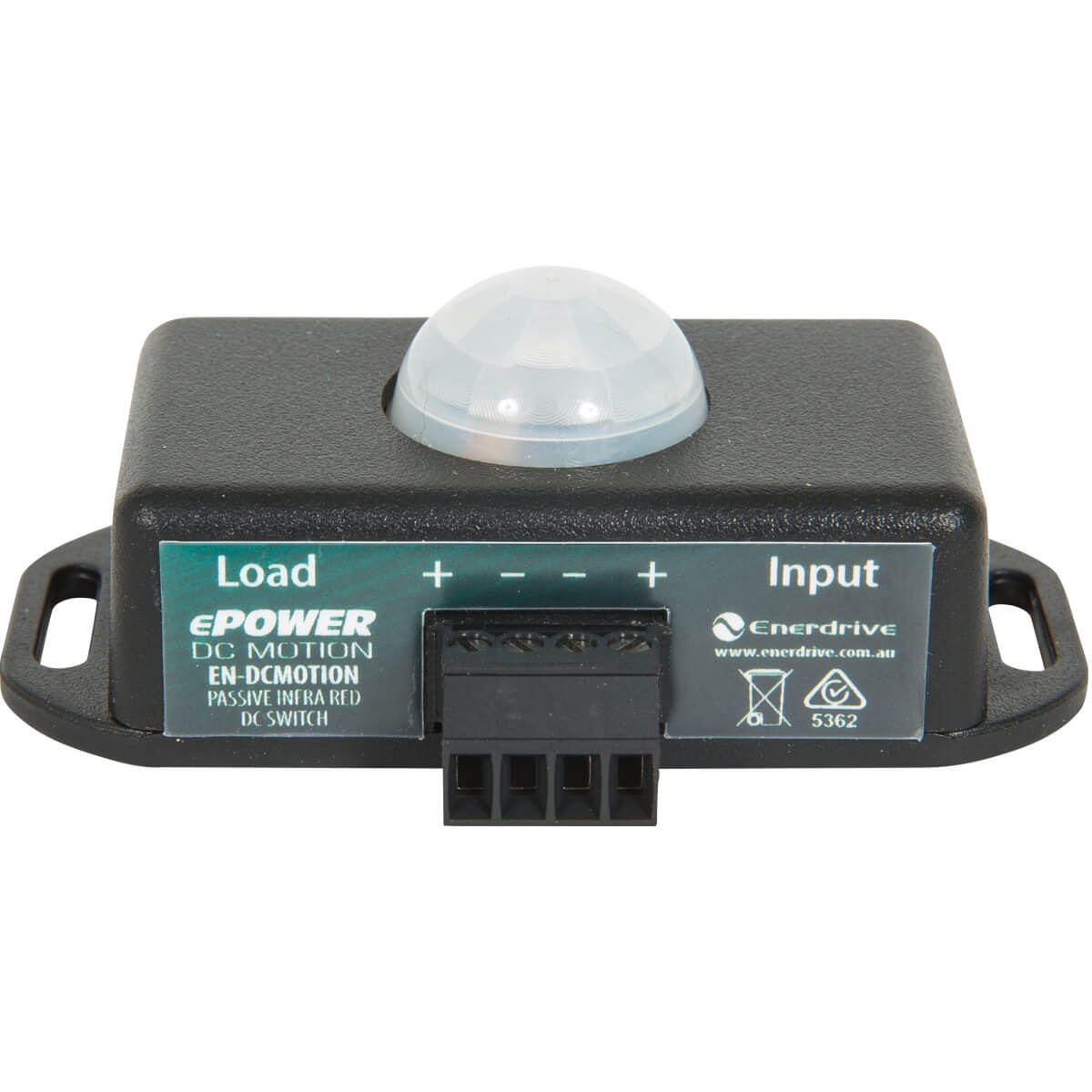

The EN-DCMOTION is a motion activated switch for 12 and 24 Volt systems for which a Passive Infra-Red Detector (PIR) is used.

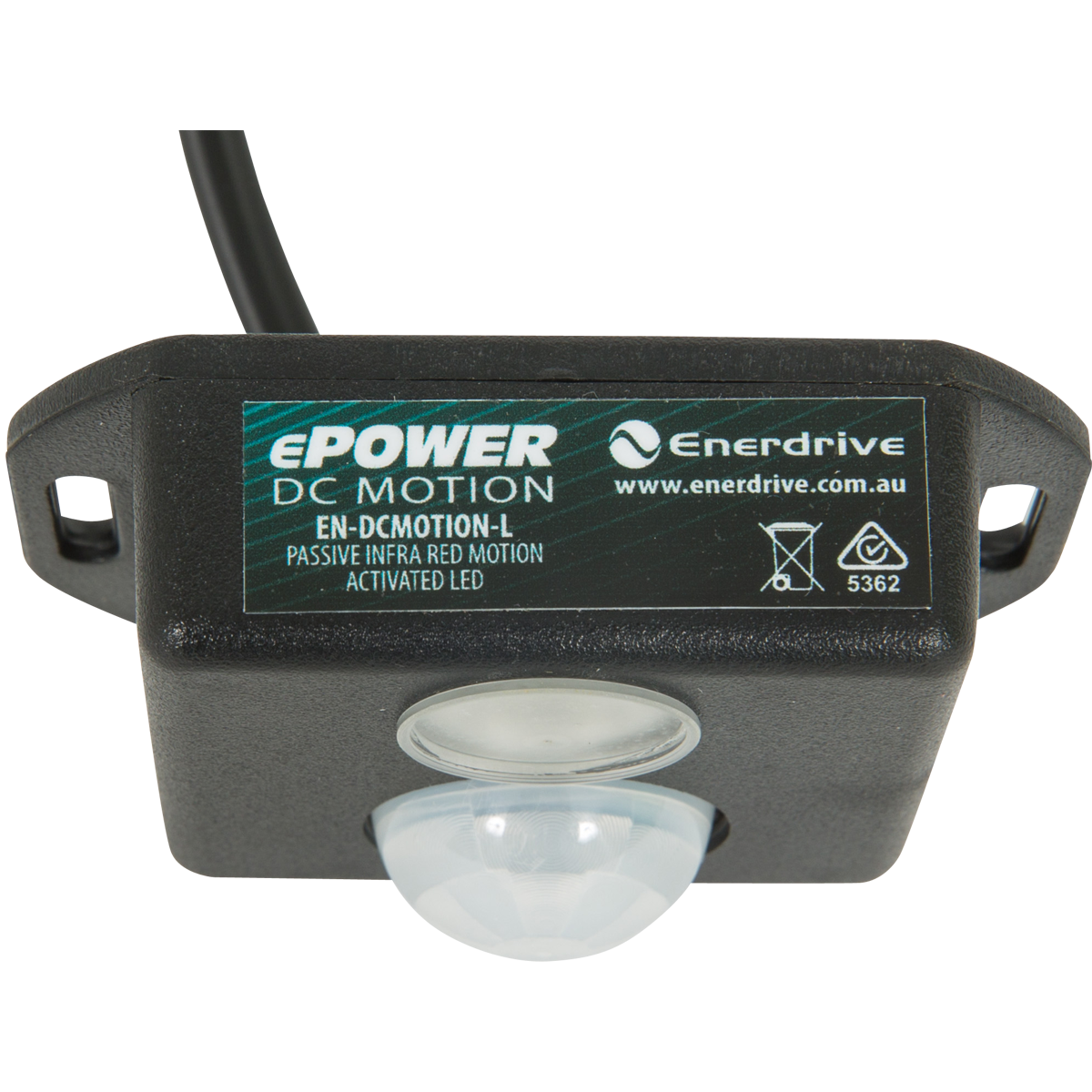

The EN-DCMOTION-L is a motion activated LED lamp for 12 and 24 Volt systems for which a Passive Infra-Red Detector (PIR) is used. It has a built in high efficiency Power CREE LED (1 Watt). It is designed for indoor use only. This could be for example cargo space of a truck, a bus or inside a ship.
Additional information
| SKU | EN-DCMOTION, EN-DCMOTION-L |
|---|
Features
P.I.R. Sensor Motion Switch
The DCMotion can be used in a number of situations like yacht or ship engine rooms, undercover truck loading bays or RV applications.
The ePOWER DCMotion-L is a motion activated LED lamp for 12v and 24v systems for which a Passive Infra-Red Detector (PIR) is used. This unit has a built in high efficiency Power CREE LED (1 Watt). The DCMotion-L switches the load as soon as motion is detected. If no motion is detected any more the DCMotion-L switches off with a delay. The delay time can be set by way of an internal potentiometer. This is done in steps of 5 seconds. The minimum delay time is 5 seconds and the maximum delay time is 60 seconds. Default is a delay time of about 30 seconds. The load will be disconnected 30 seconds after the last motion is detected.
Applications
- Recreational vehicles
- Industrial systems
- Service vehicles
- Maritime applications
Specifications
| Model Number | Auto Voltage | Switch Off Time | Power up delay | Detection Angle | Detection Parameter | LED Light | Weight | Dimension LxWxH | |
|---|---|---|---|---|---|---|---|---|---|
| EN-DCMOTION | 12VDC / 24VDC | 5 min. * | +/- 30 sec. | 60° H – 60° V | 5 meters | No | 30g | 76.5 x 48.5 x 30mm | |
| EN-DCMOTION-L | 12VDC / 24VDC | 5 min. * | +/- 30 sec. | 60° H – 60° V | 5 meters | Yes | 107g | 67 x 50 x 30mm | |
| * Switch Off time is adjustable between 1 – 10 min. | |||||||||
Note: Specifications subject to change without notice.
