Digital Switching Accessories Panel (DSAP) Range
Digital Switching Accessories Panel (DSAP) Range
SKU:DSAP-V1
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Garmin PowerSwitch digital switching on one panel, with space for sockets, a 230V GPO and a battery monitor. Built to order in Brisbane.
Product Details

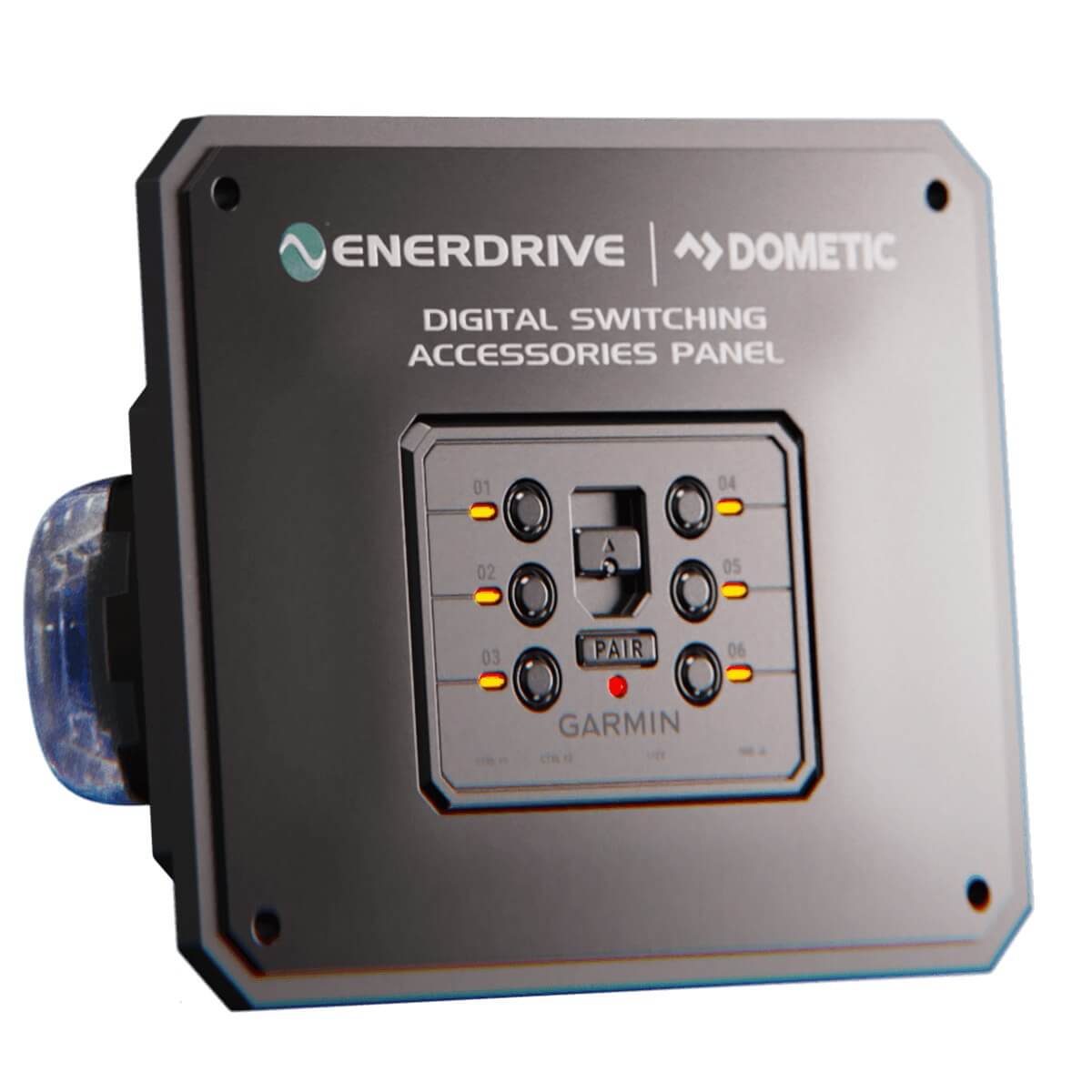

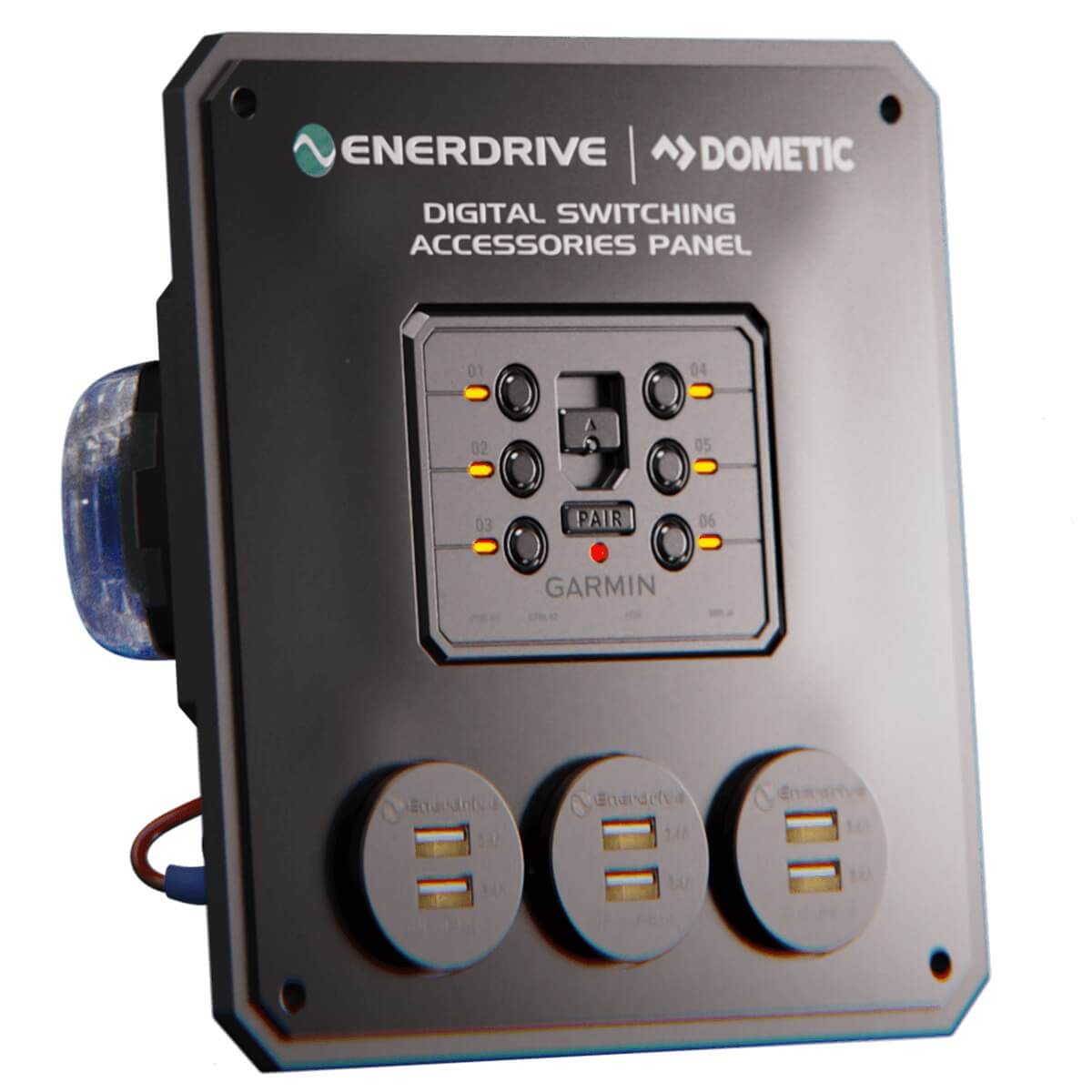

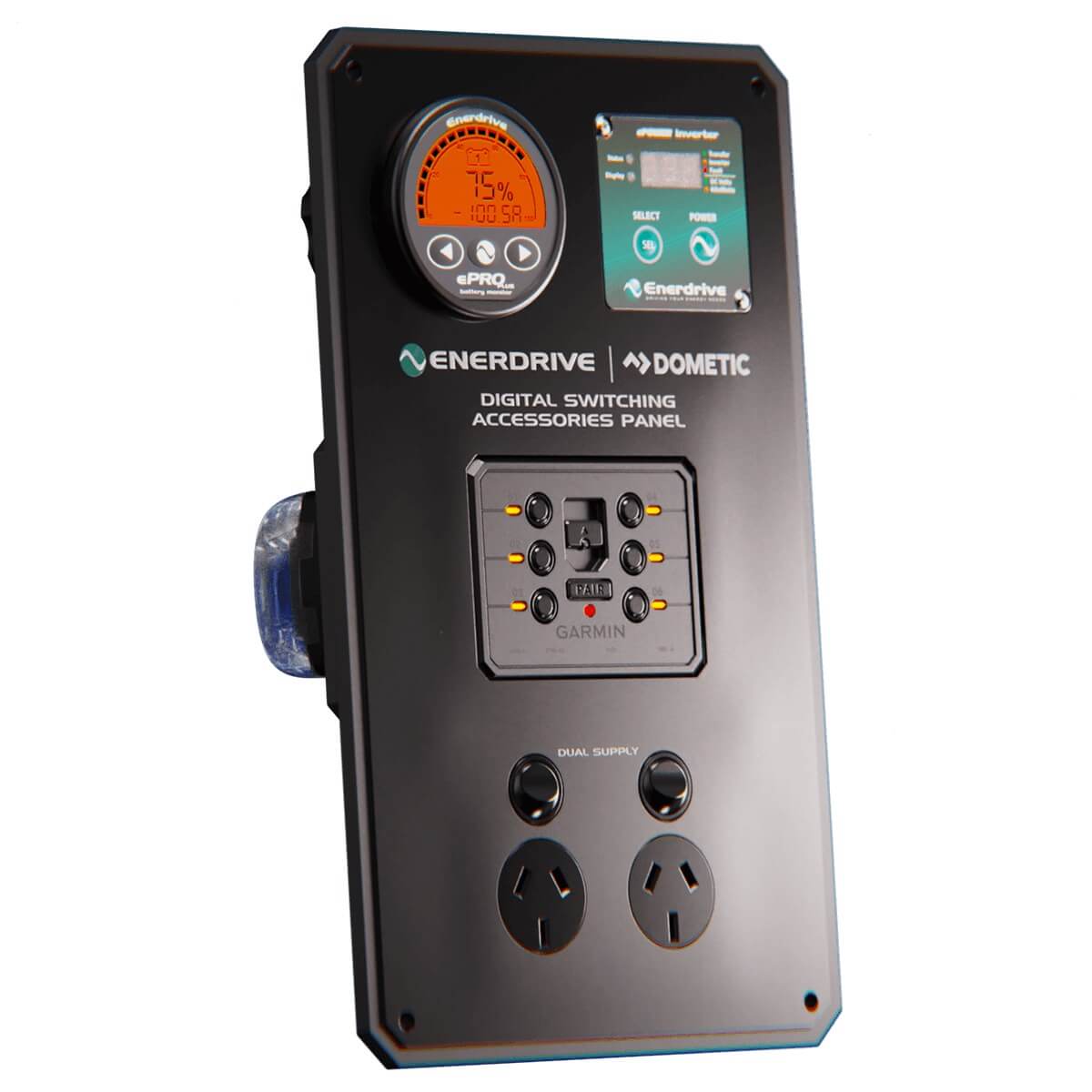

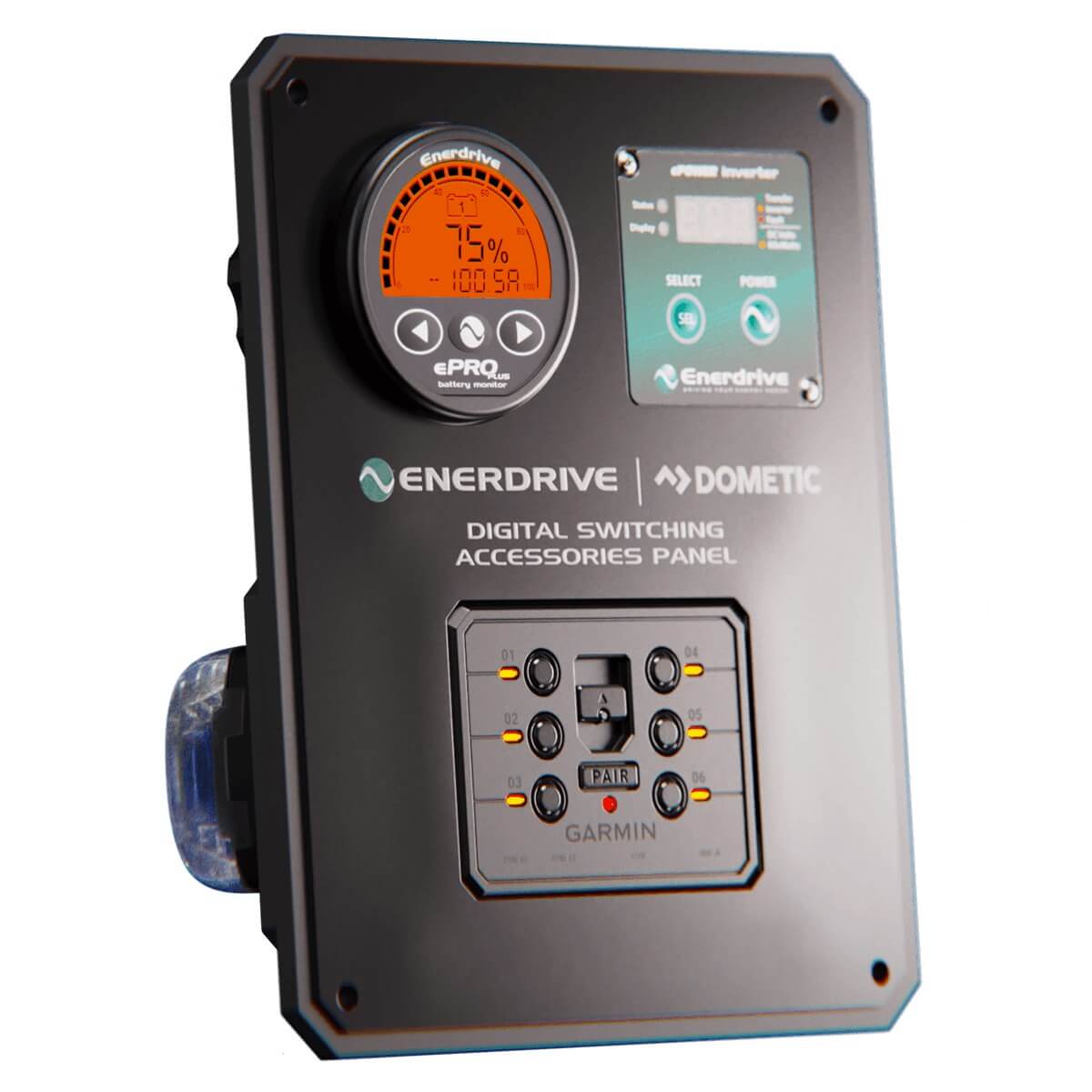

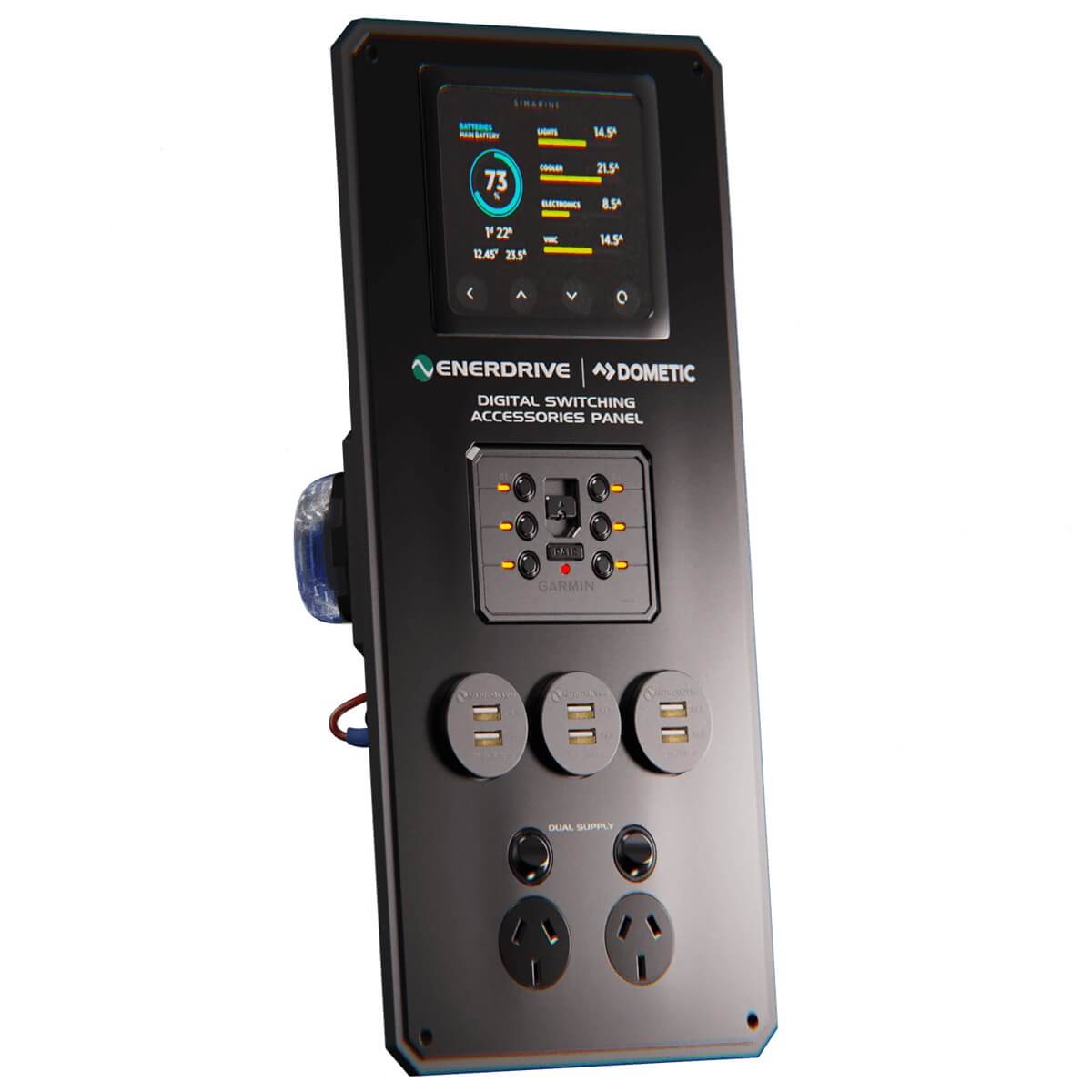

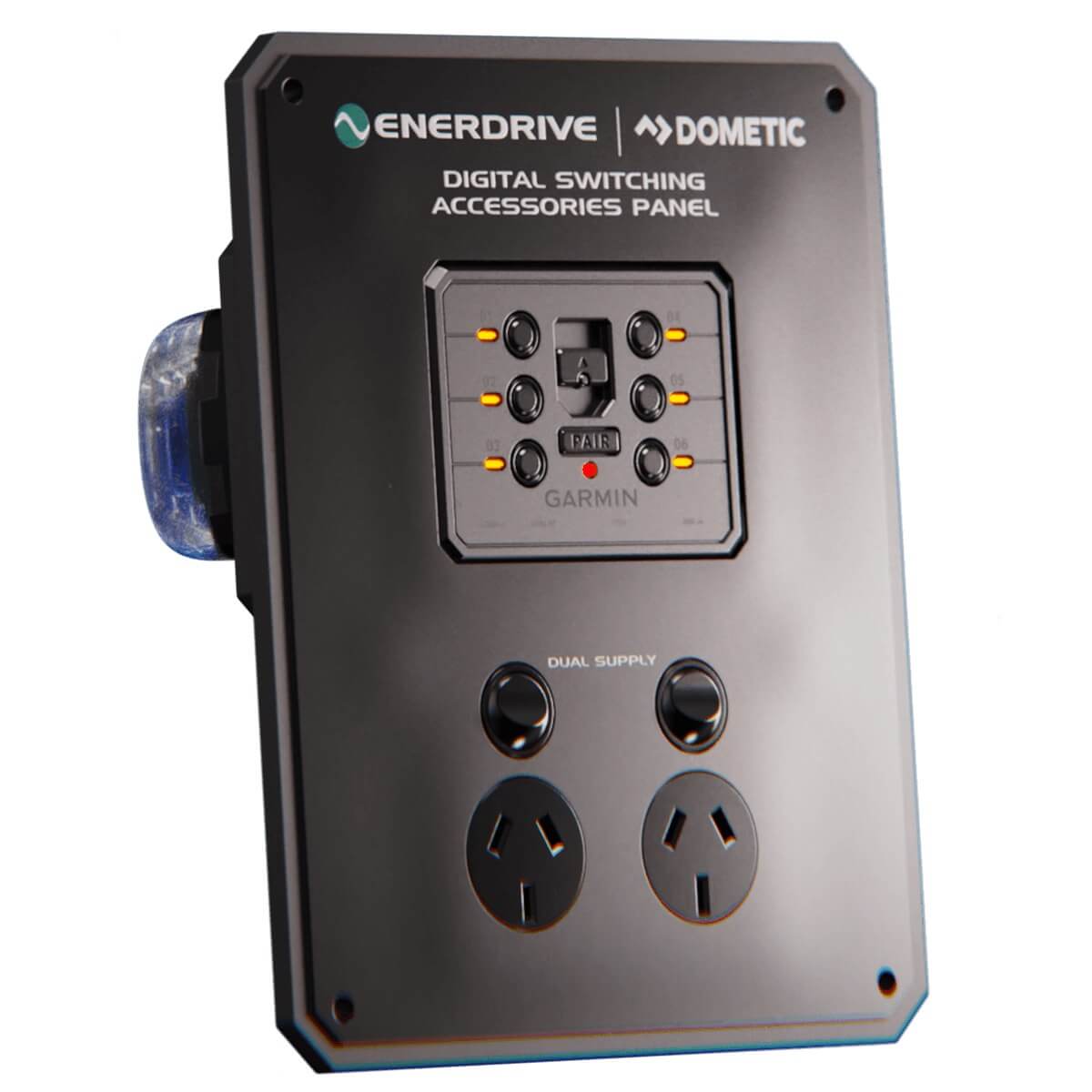

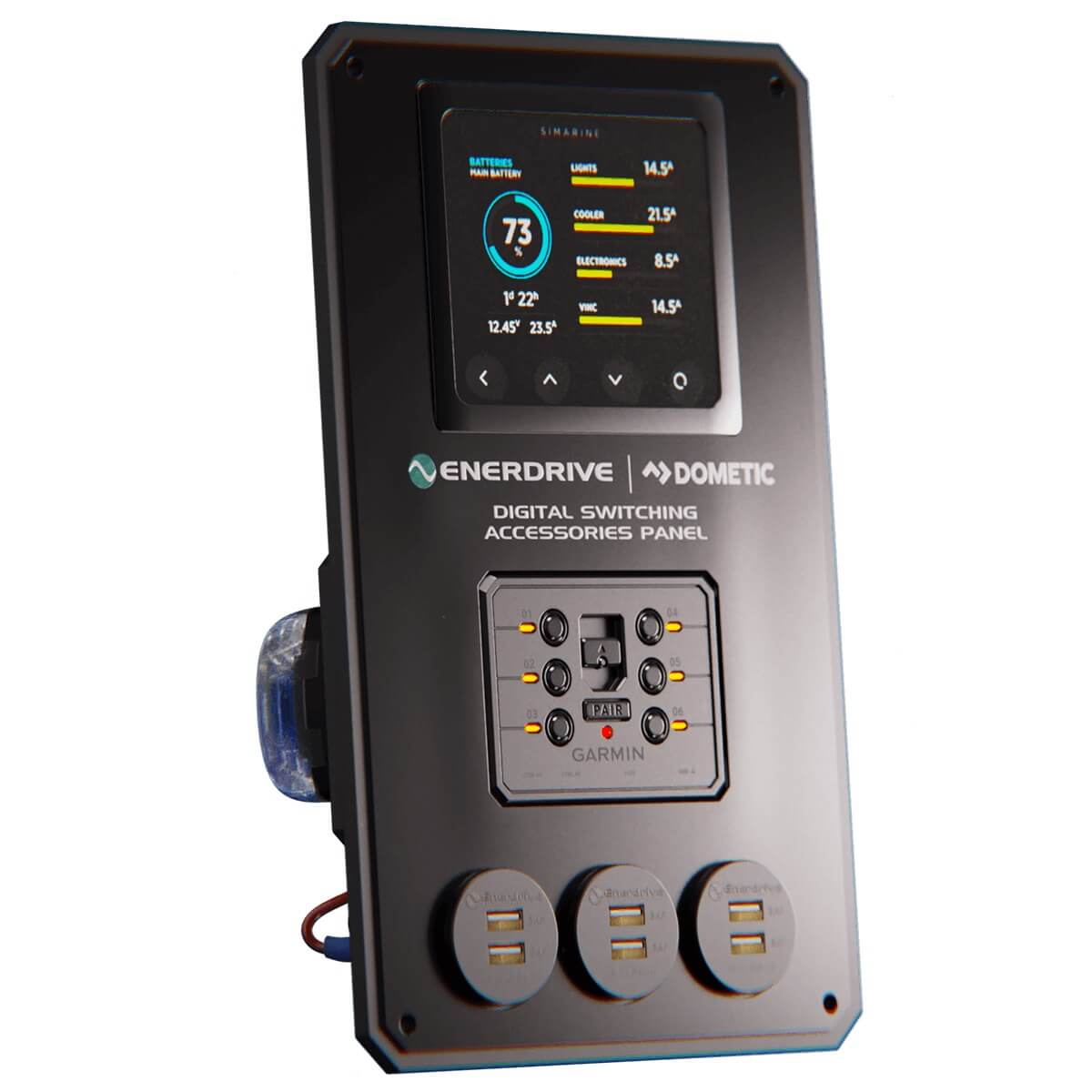

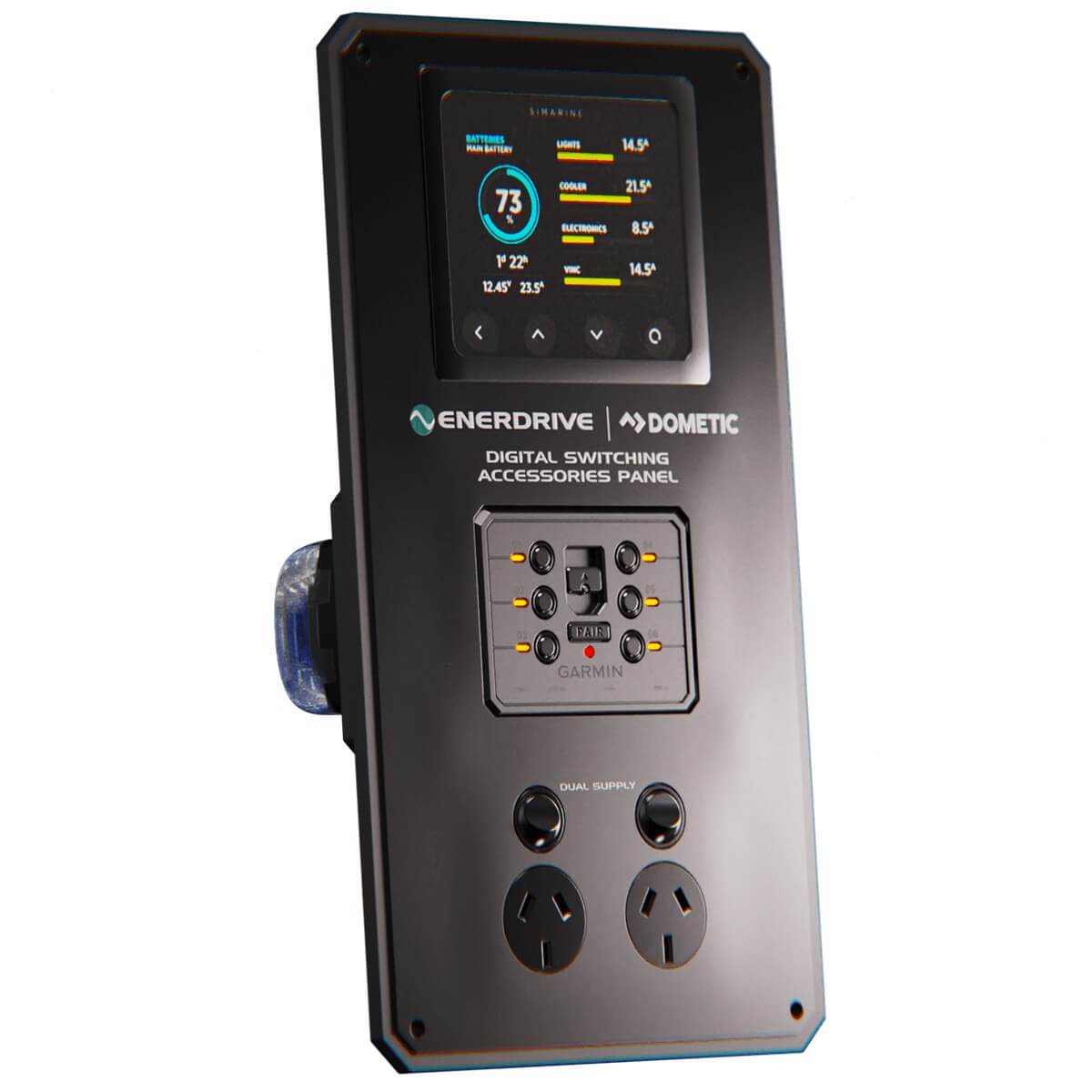

Enerdrive Dometic is proud to present our new Digital Switching Accessories Panel (DSAP) range. We’ve built a number of solutions to grant you access to digital switching, battery monitoring and common accessory outlets – all on the one panel. With multiple solutions available to suit different sizes and applications, the DSAP range is flexible enough to cater for all kinds of installations.
Included: Garmin PowerSwitch and main power supply harness with midi fuse.

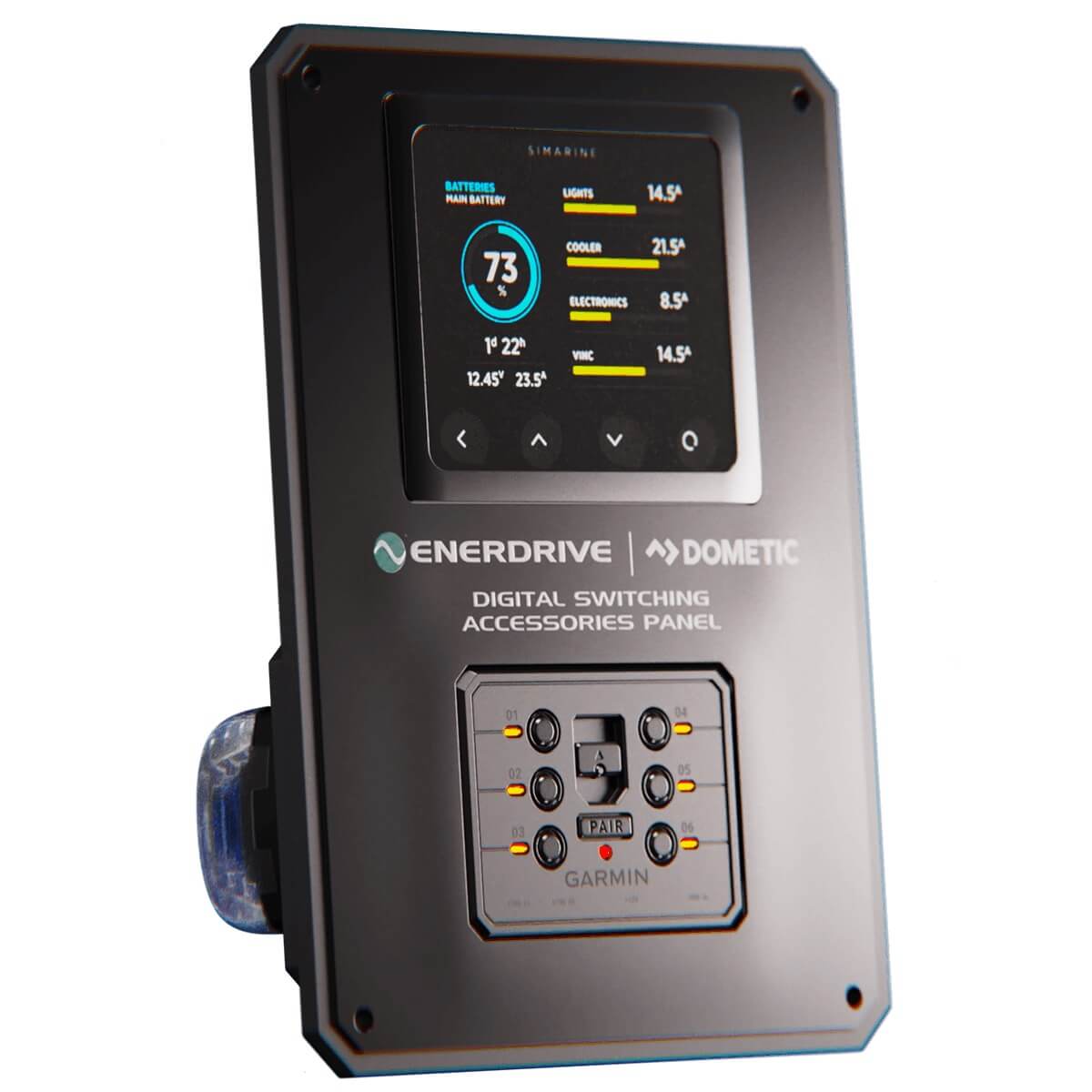

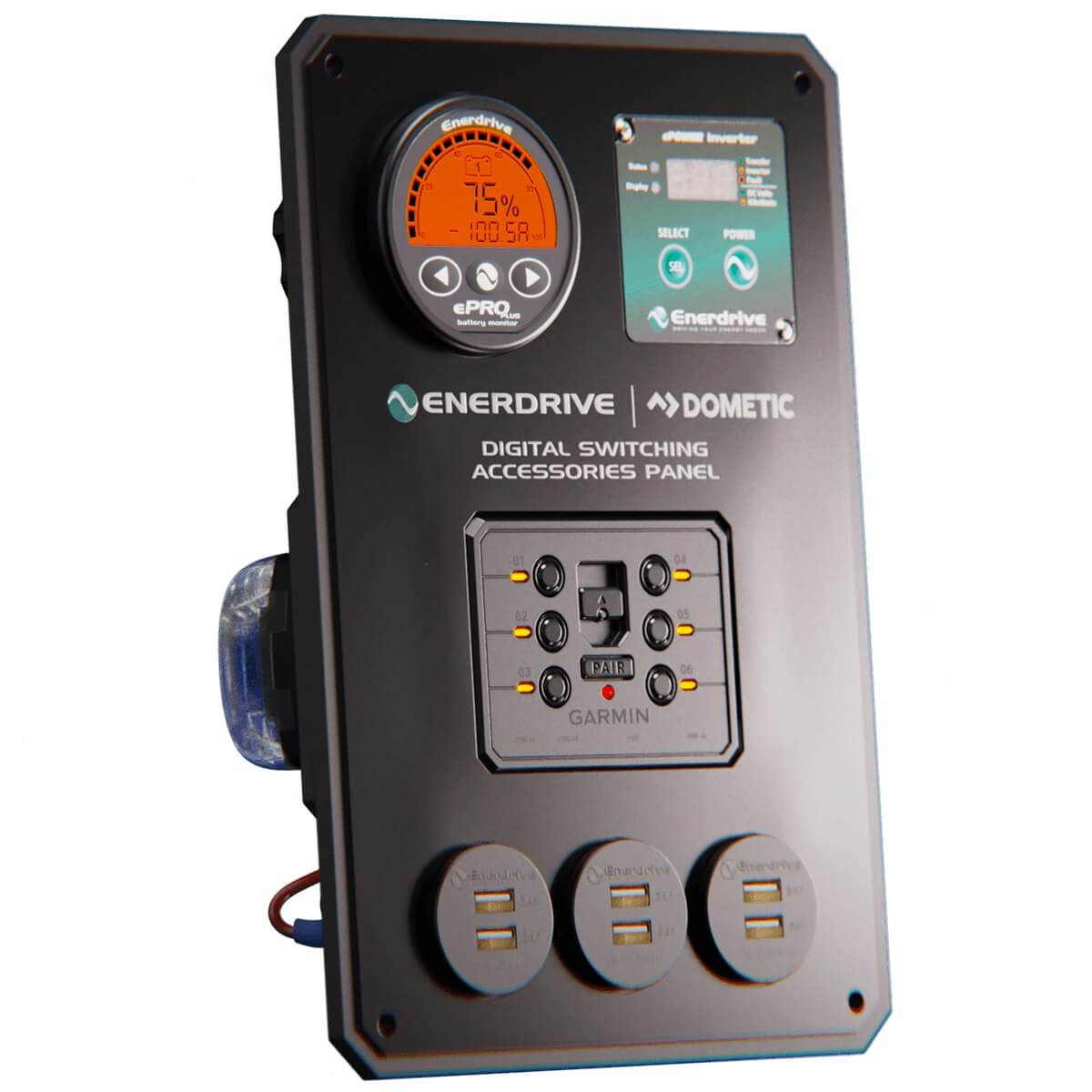

Sold separately: Dometic ePRO+ Battery Monitor, Simarine PICO Battery Monitor, Inverter Remote and 12V sockets (USB, cigarette, OLED temperature).

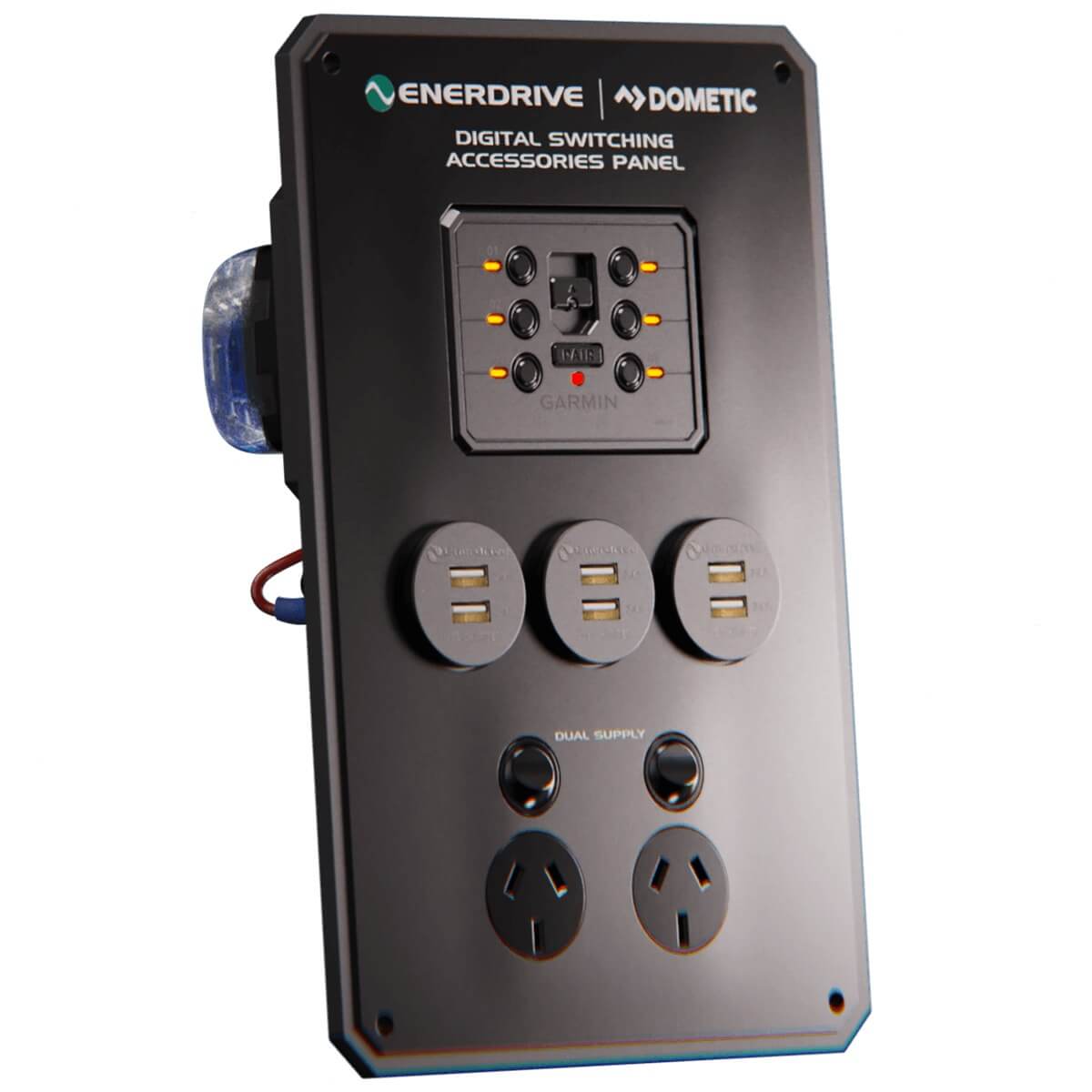

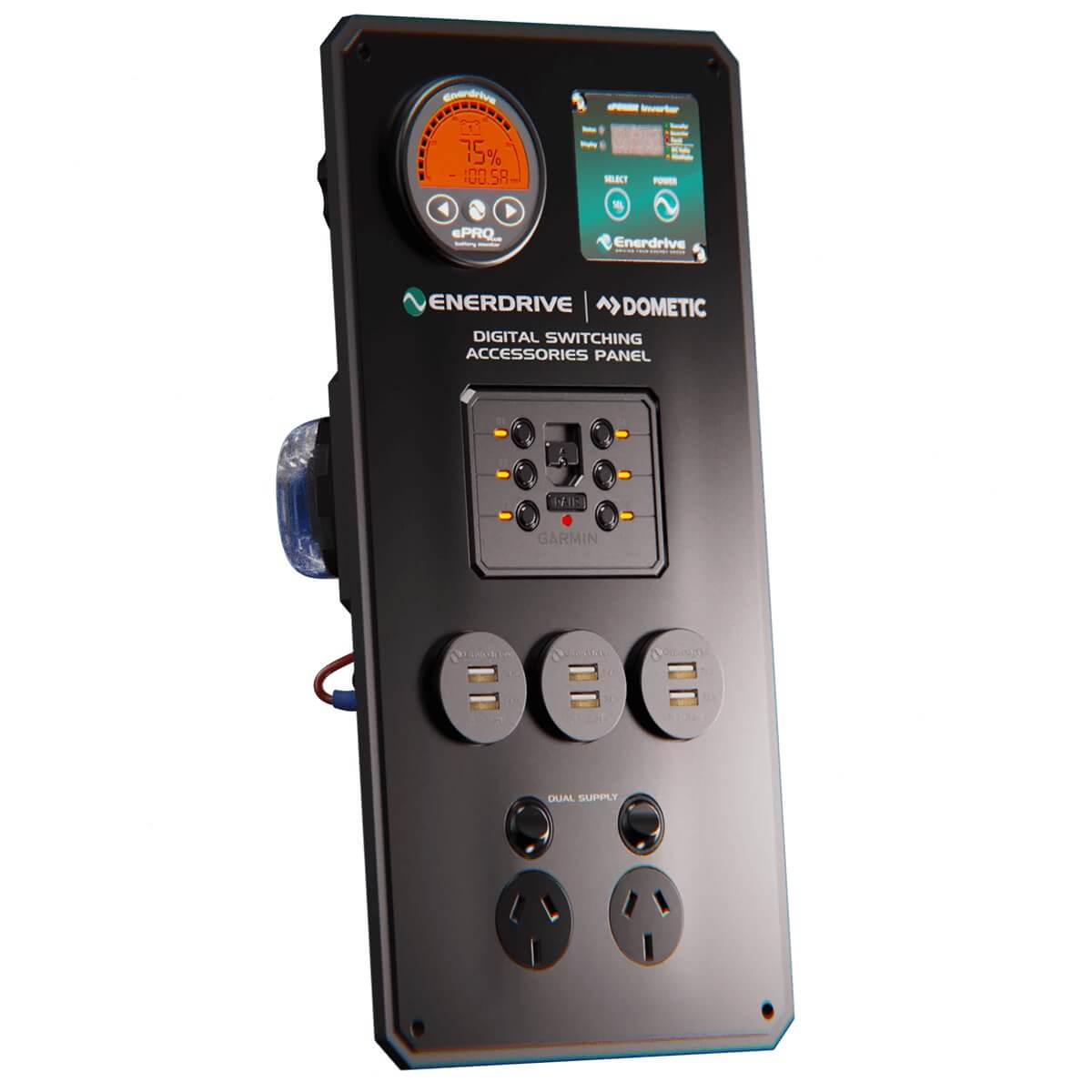

DSAP V3/V4 compatible with CMS C Series AC Plug n Play System.
Features
ADD WIRELESS CONTROL FOR YOUR VEHICLE’S ELECTRICAL ACCESSORIES

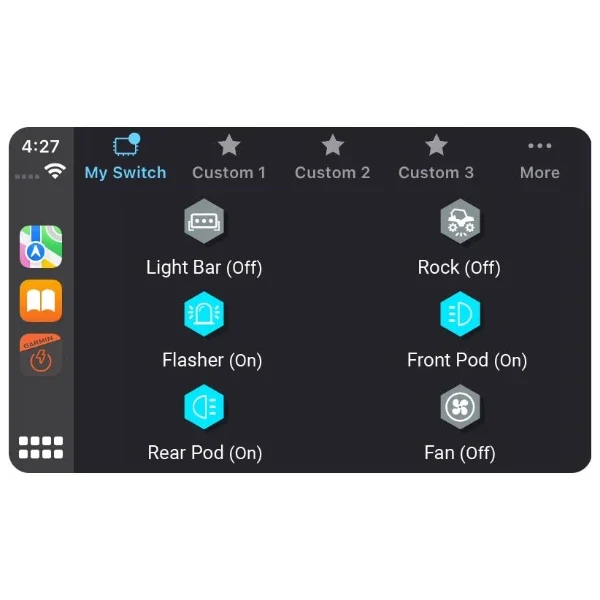

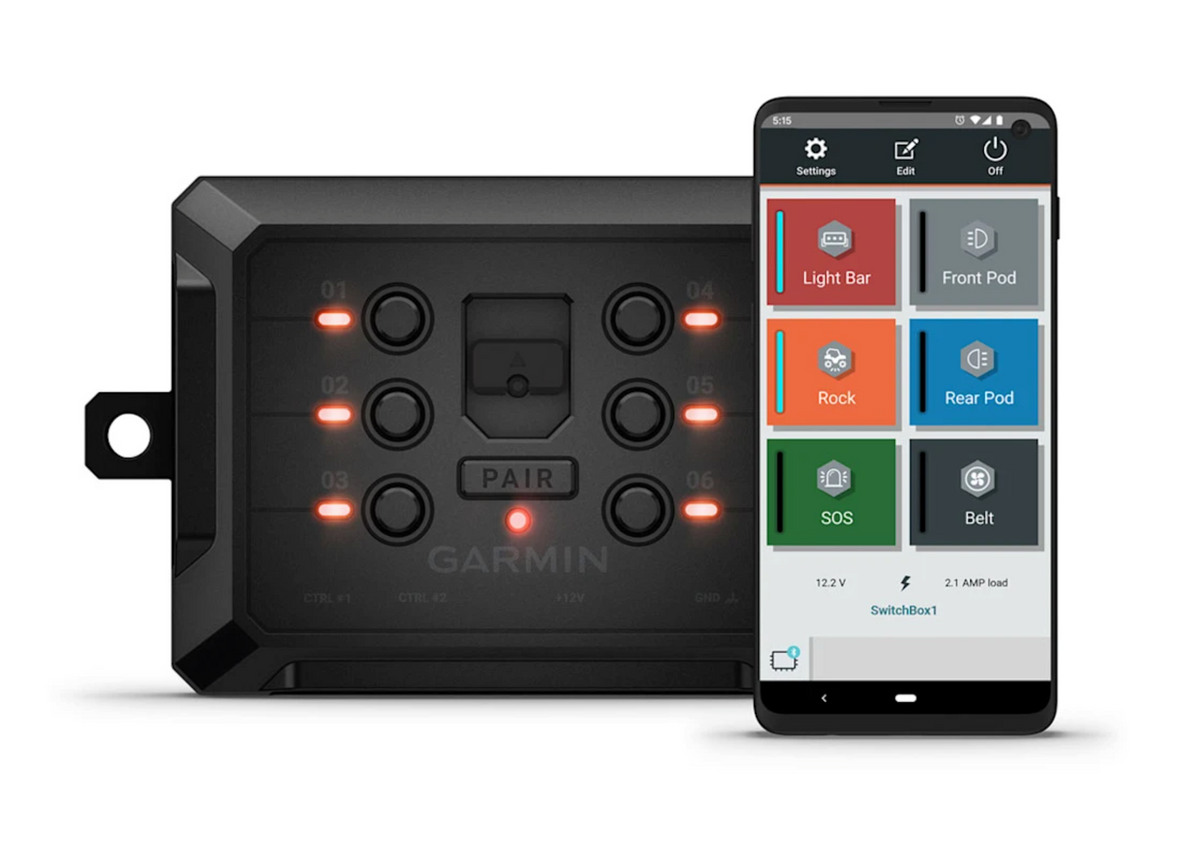

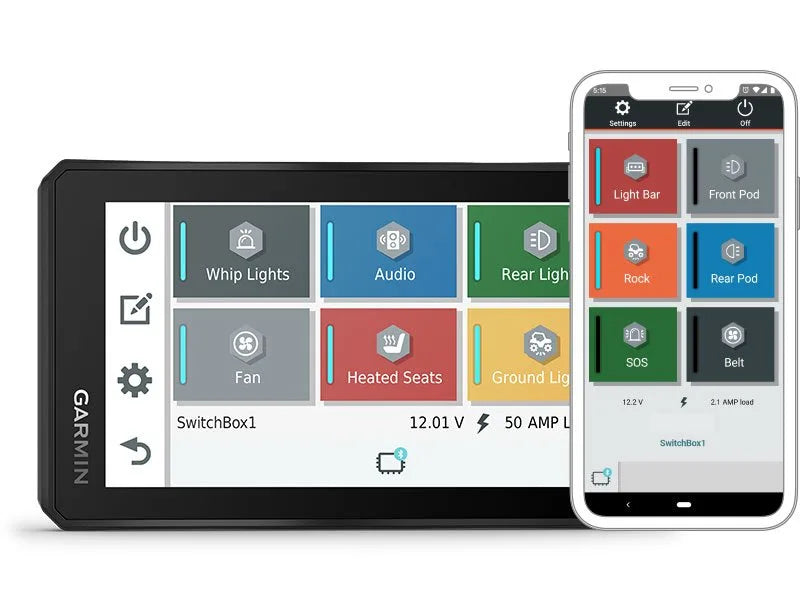

Garmin PowerSwitch is the compact digital switch box that offers convenient centralised control of your vehicle’s 12-volt accessories from a compatible Garmin sat nav or smartphone.
Specifications
Digital Switching Accessories Panel Specifications
| SKU / Included items | Garmin PowerSwitch™ | DSAP-V1 | DSAP-V1E | DSAP-V1S | DSAP-V2 | DSAP-V2E | DSAP-V2S | DSAP-V3 | DSAP-V3E | DSAP-V3S | DSAP-V4 | DSAP-V4E | DSAP-V4S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bluetooth | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Number of Switch Outputs | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Max Amps per Switch Output | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps | 30 amps |
| Max Amps Total | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps | 100 amps |
| Number of Hardware Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum number of controllers* paired to PowerSwitch | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Water Rating | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 |
| Main power supply harness with midi fuse | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Mounting holes for ePRO+ Battery Monitor (sold separately) | ✓ | ✓ | ✓ | ✓ | |||||||||
| Mounting holes for Inverter Remote (sold separately) | ✓ | ✓ | ✓ | ✓ | |||||||||
| Mounting holes for Simarine Battery Monitor (sold separately) | ✓ | ✓ | ✓ | ✓ | |||||||||
| Mounting holes for your choice of *USB Sockets / Cig Sockets / OLED Temp Sensors (sold separately) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||
| 230v CMS GPO (Must be used with CMS “C” Series AC Plug n Play System) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||
| Dimensions | 125W x 75H x 30Dmm | 175W x 140H x 70Dmm | 175W x 215H x 70Dmm | 175W x 240H x 70Dmm | 175W x 180H x 70Dmm | 175W x 255H x 70Dmm | 175W x 280H x 70Dmm | 175W x 215H x 70Dmm | 175W x 290H x 70Dmm | 175W x 315H x 70Dmm | 175W x 265H x 70Dmm | 175W x 340H x 70Dmm | 175W x 365H x 70Dmm |
| Weight | 283 grams | ||||||||||||
| Warranty | 12 months | ||||||||||||
| (✓) or (SKU) Indicates Standard Fitment | |||||||||||||
| *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY) |
