SKU: EN-RCB25
Shipping Information: 0484 945 845 before placing your order.
Product Details
Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected – Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit* “Trip Free” – cannot be held closed after trip
Do not use as a switch where high inrush currents are expected.
Specifications
Circuit Breakers
Maximum Voltage
48V DC
Circuit Breaker Class
Type III – switchable/manual reset – trip free
Circuit Breaker Type
Single Pole Thermally Responsive Bi-metal Blade
Interrupt Capacity
3000A @ 48V
Minimum Operating Temp
-32° C
Maximum Operating Temp
82° C
Ignition Protected
Meets SAE J553, J1625, J1171, UL1550
Splash & Dust Proof
IP67
UL Rating
Housing is Thermal Plastic UL Rated, 94V0
Terminal Stud
25-70A - M6 (accepts 1/4″ ring Terminal)
Terminal Stud Torque
50 in-lb (5.65 Nm)
Weight
0.23 kg
Note: Specifications subject to change without notice.
Mount Listings
Amps

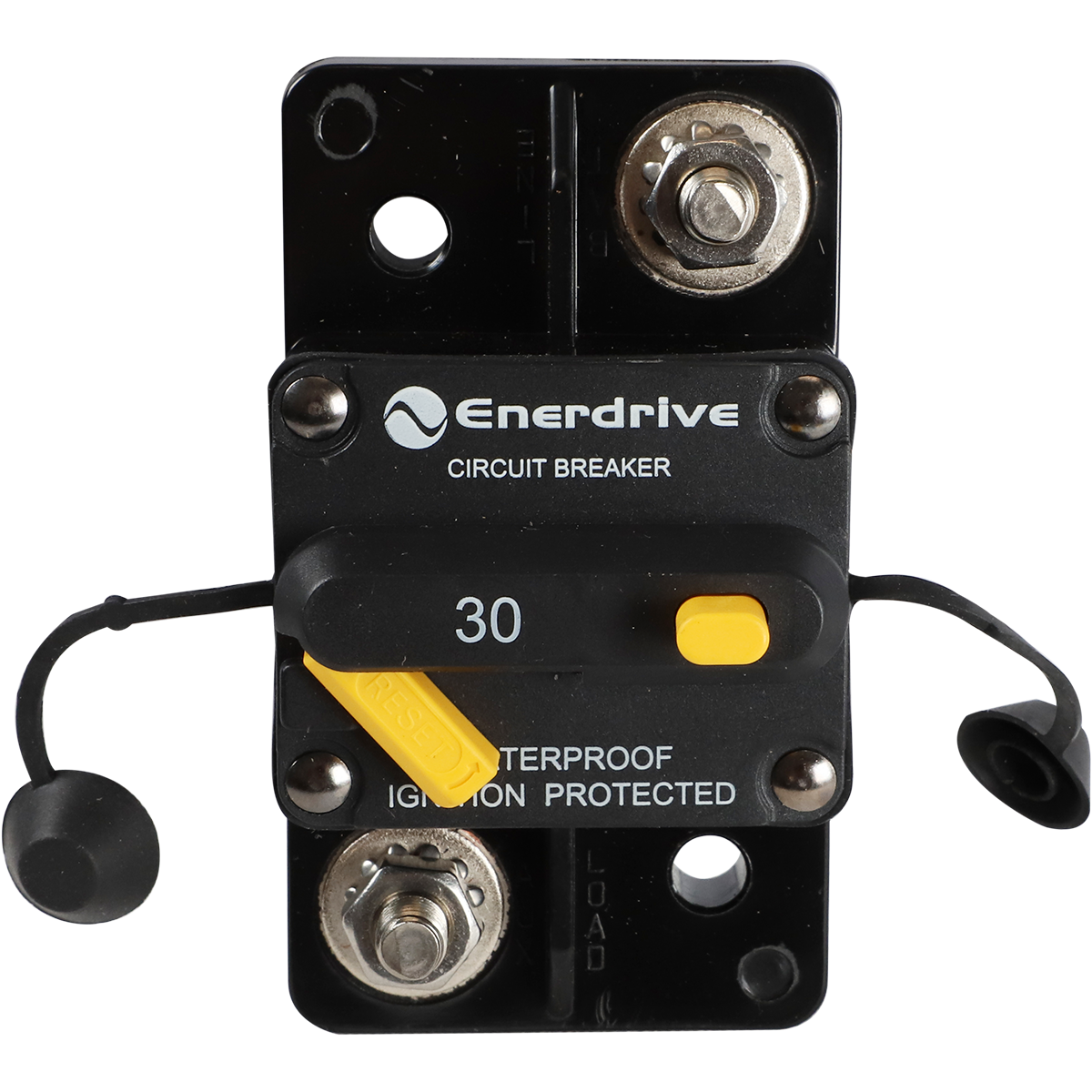

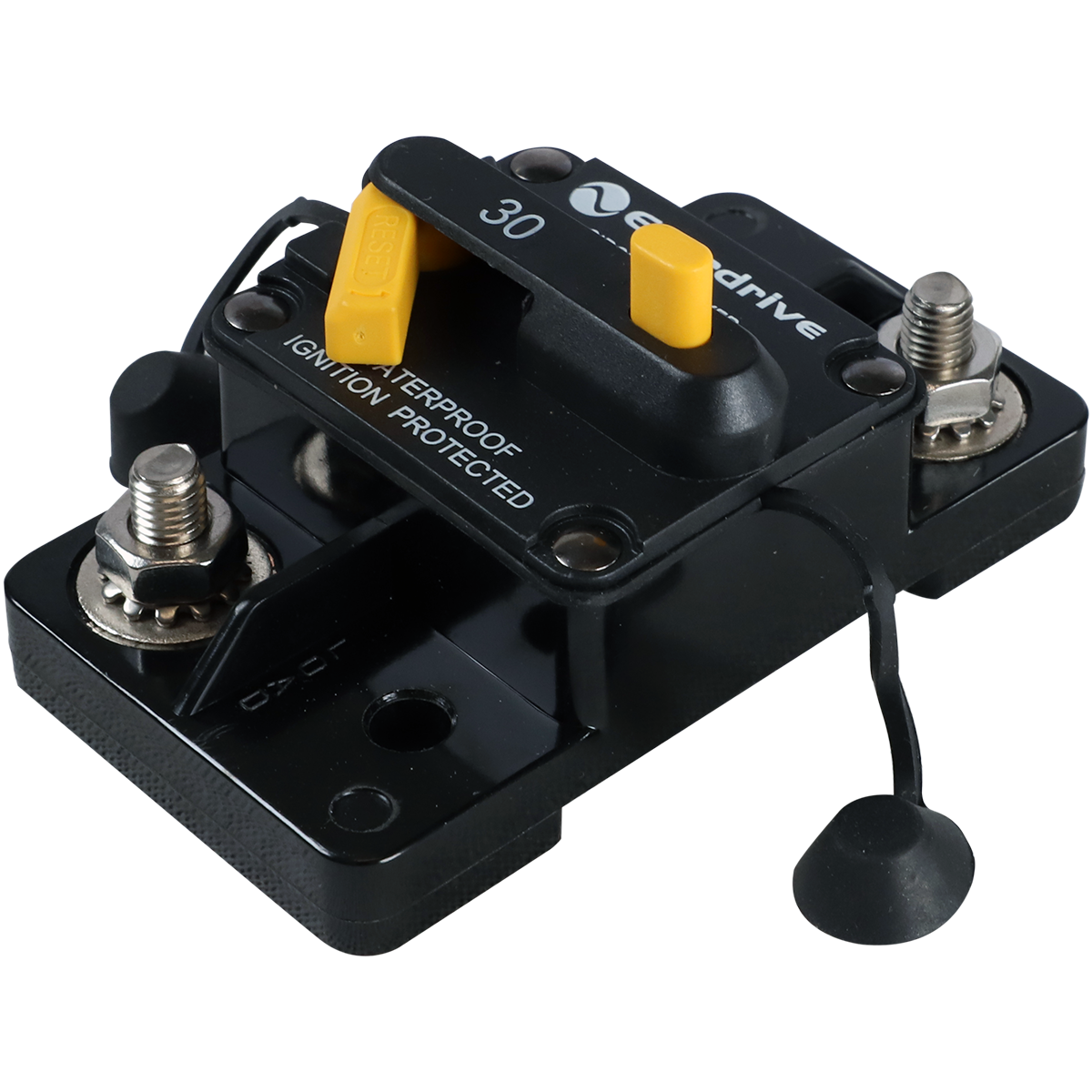

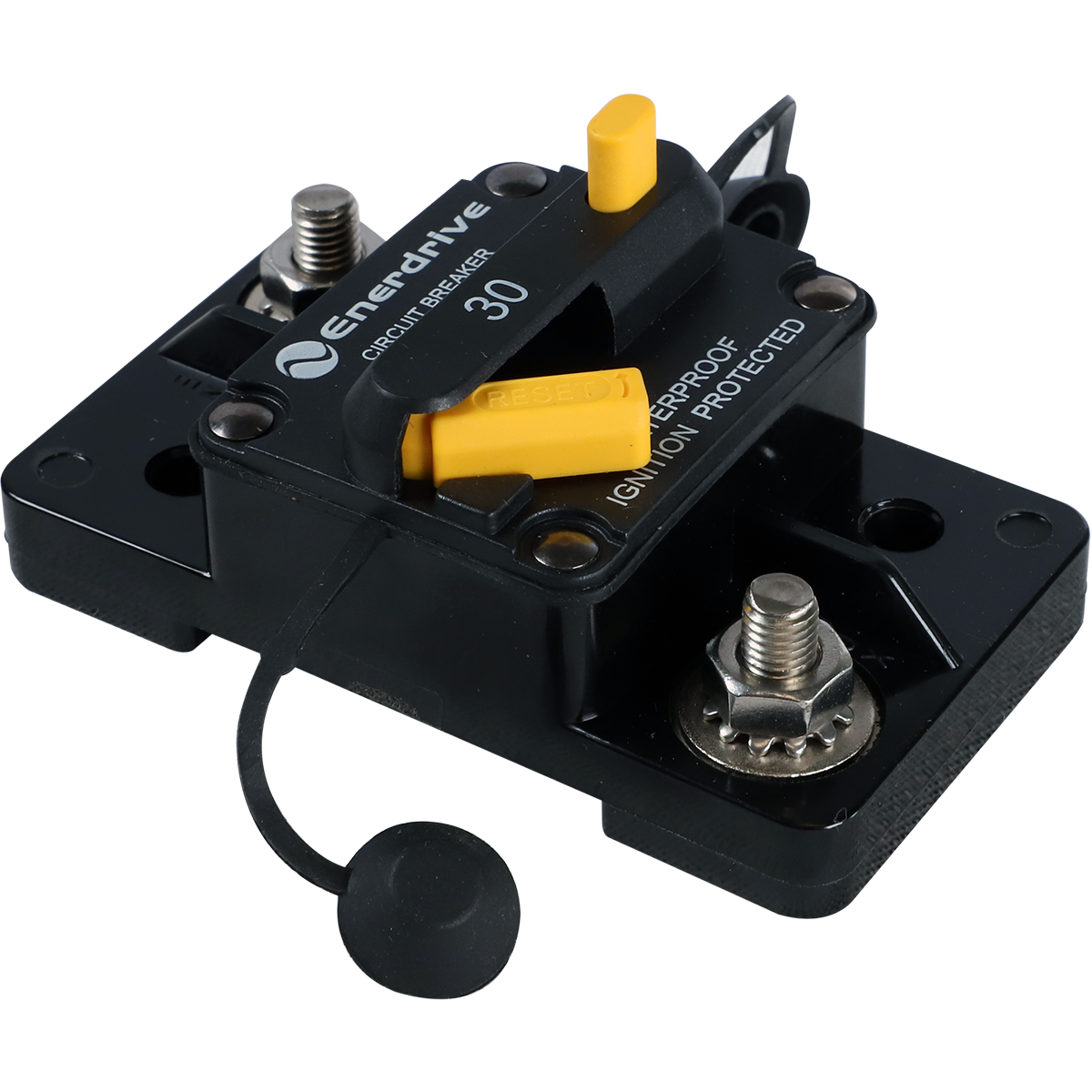

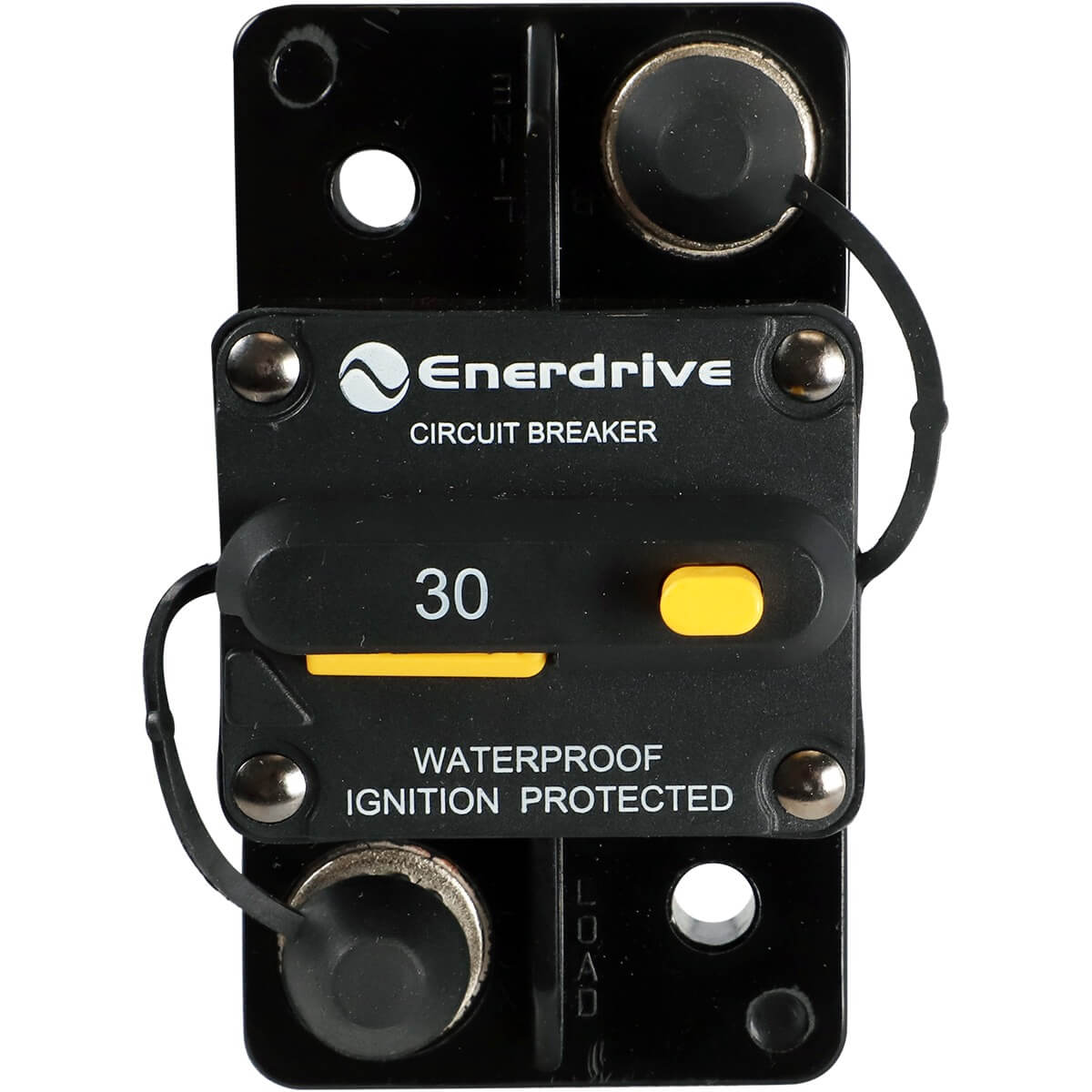

Surface Mount 5/16 Stud
Surface Mount 3/8 Stud

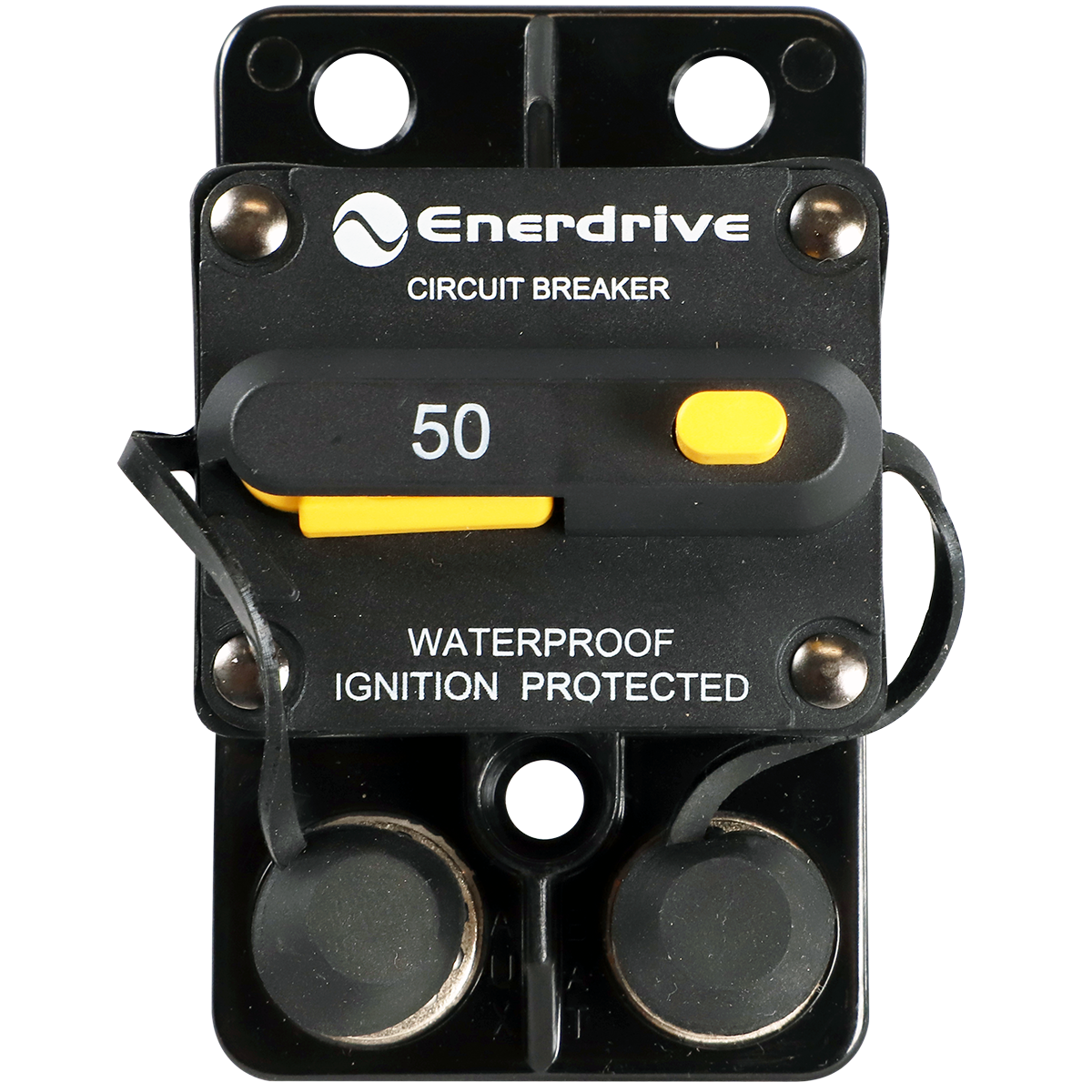

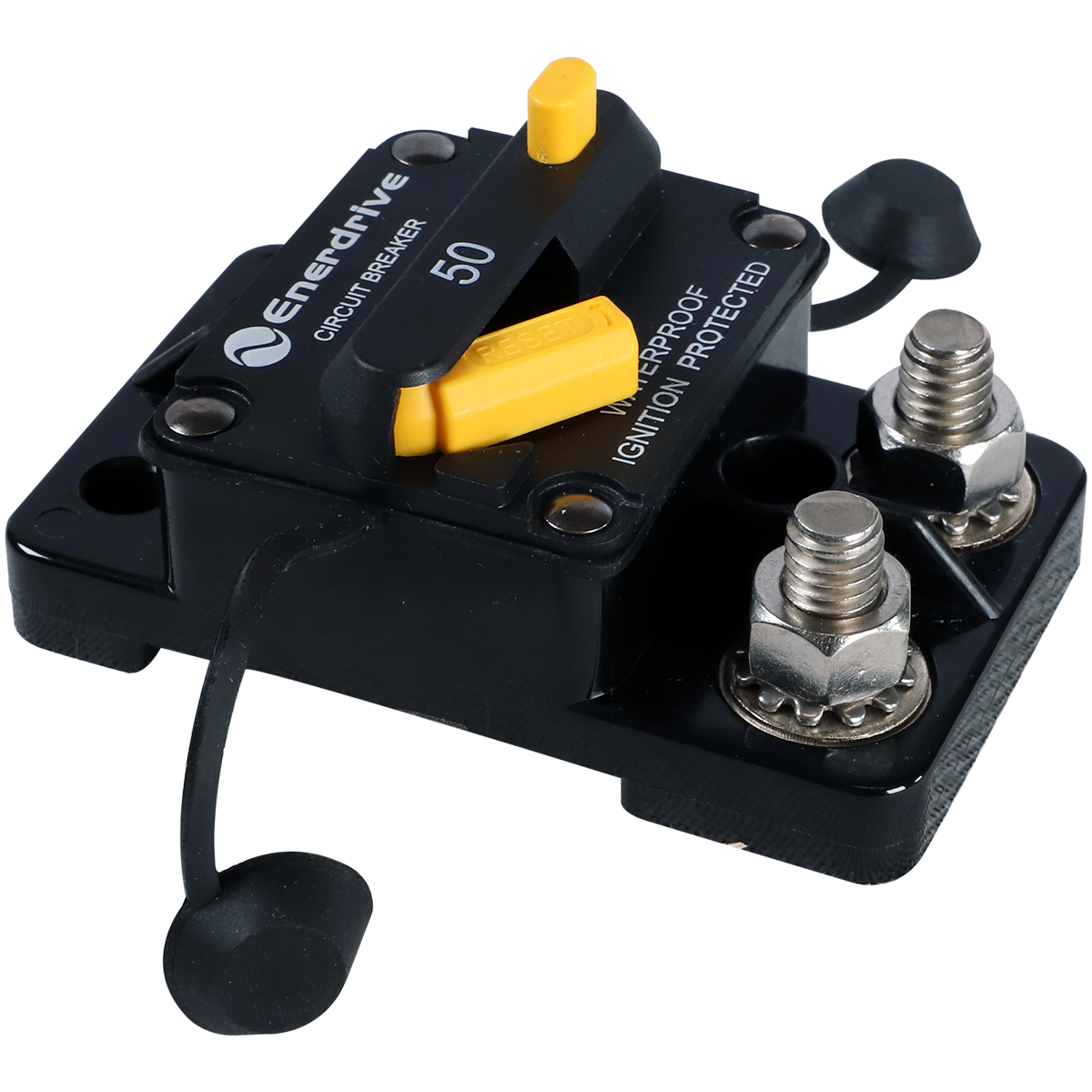

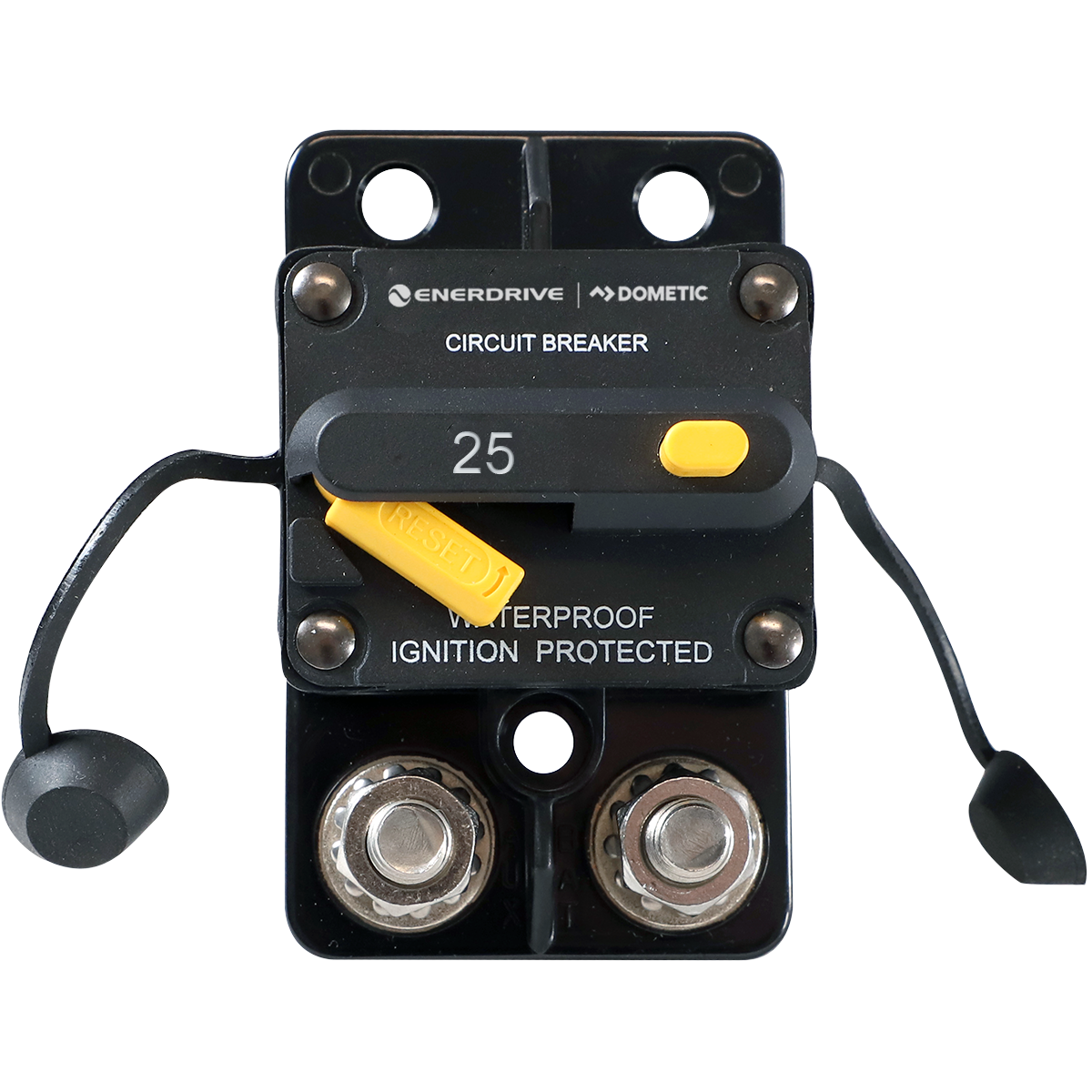

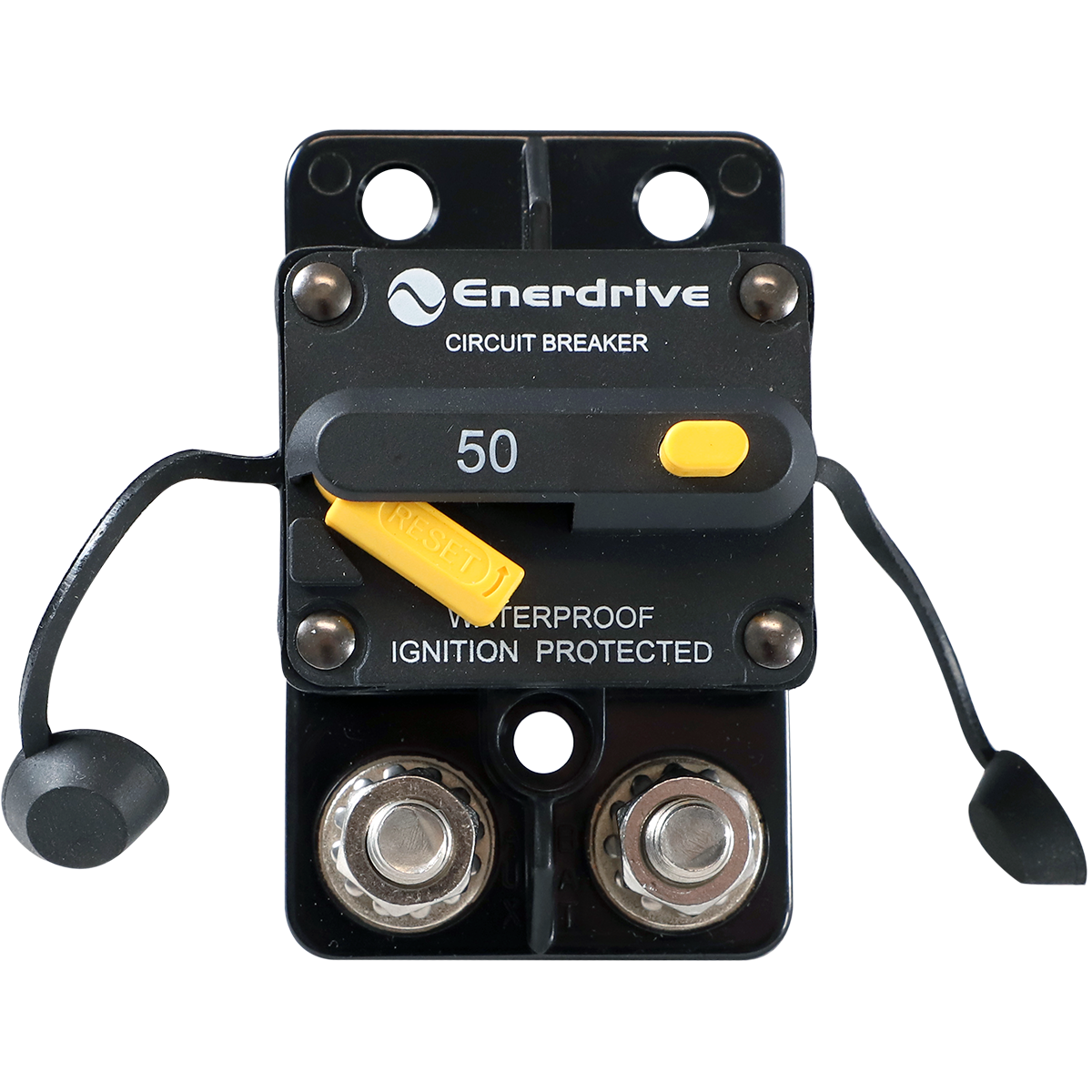

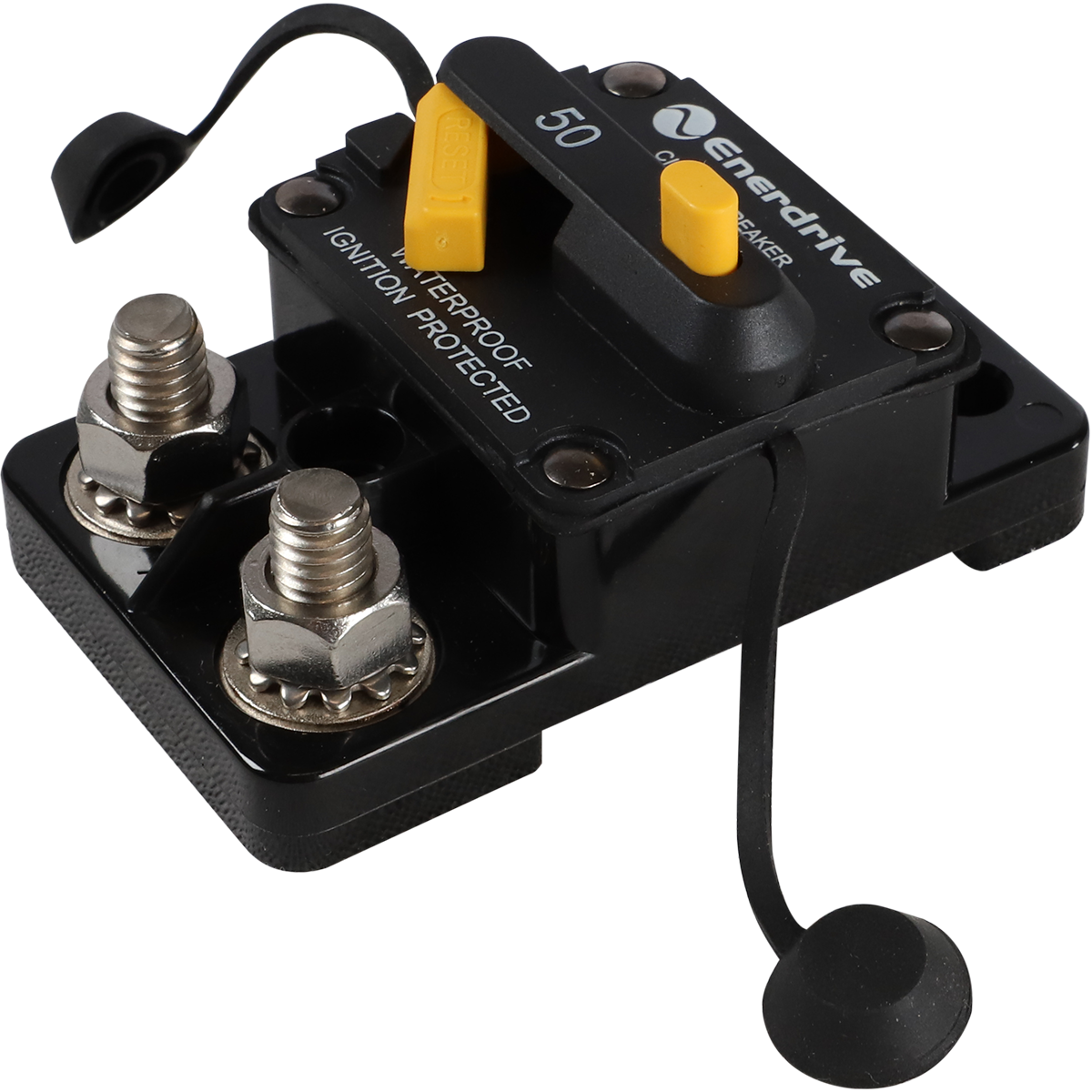

Surface Mount Parallel
Surface Mount Parallel

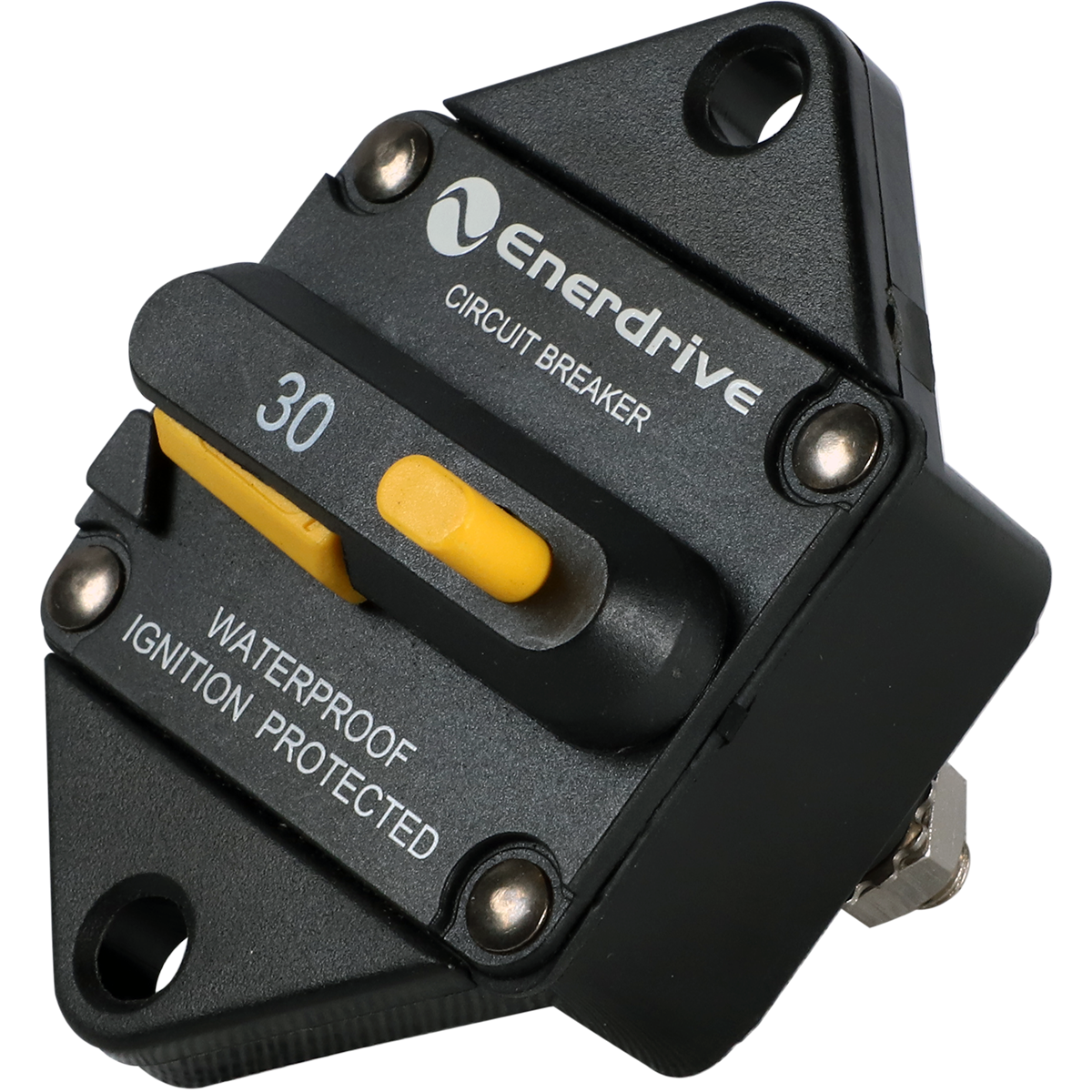

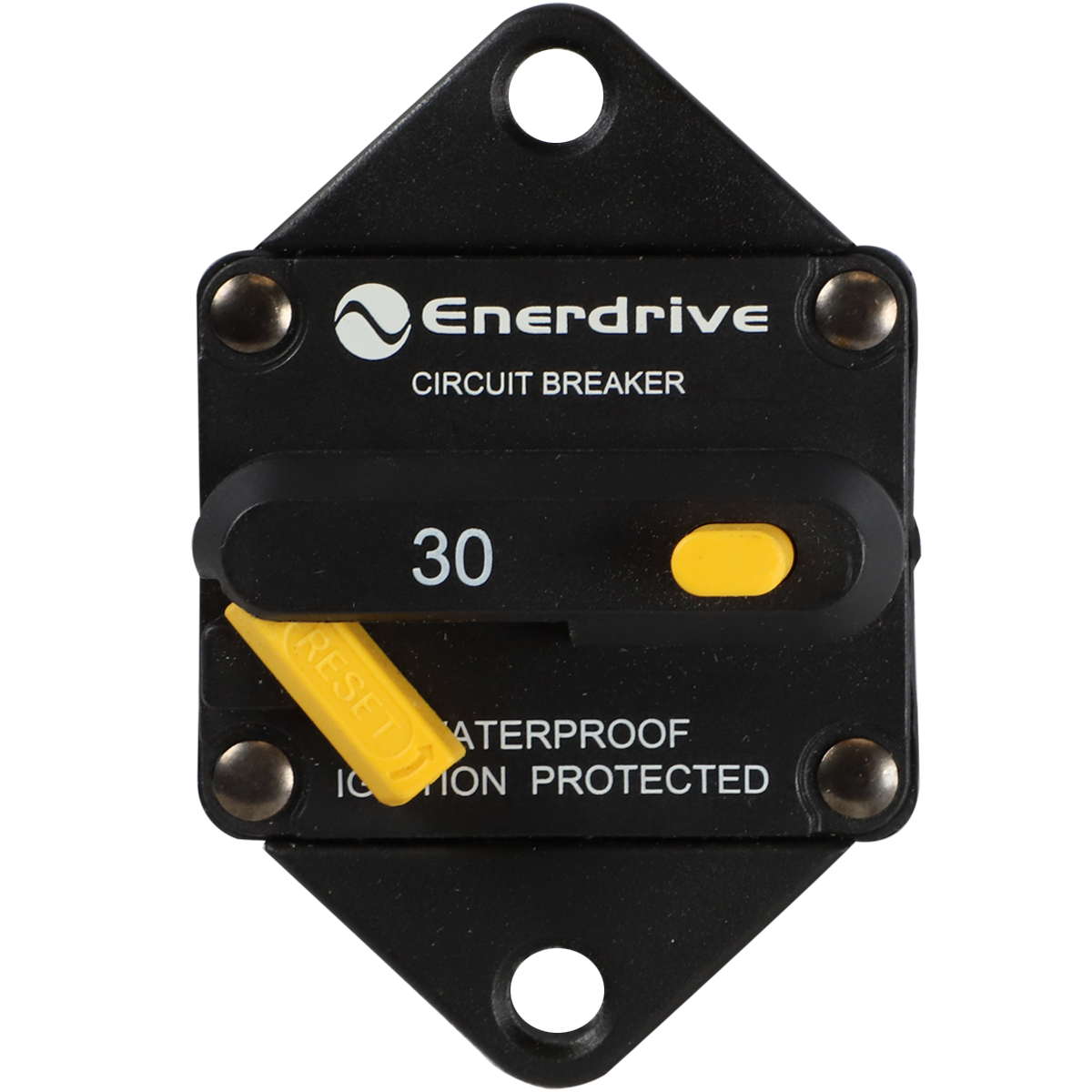

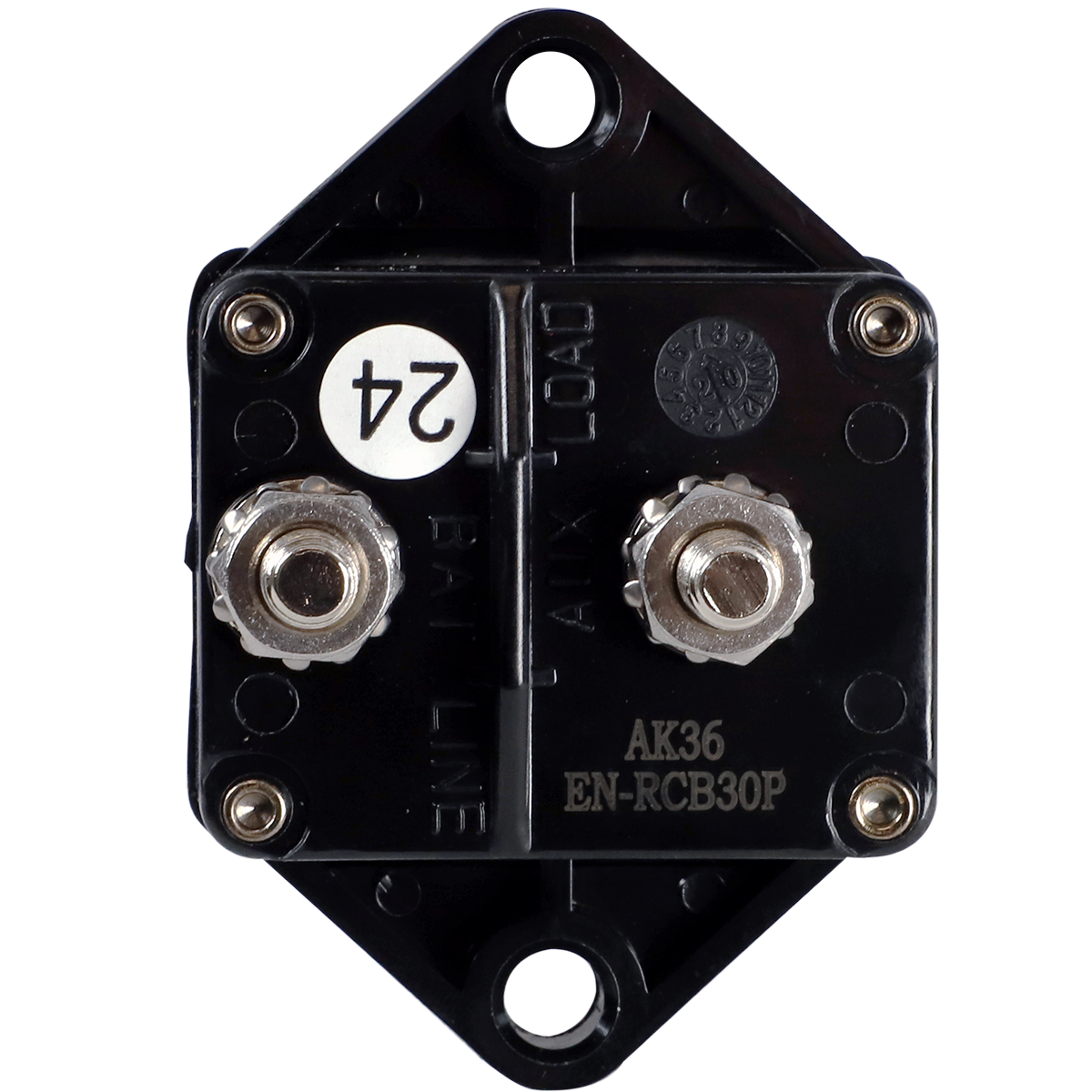

Panel Mount
25A
EN-RCB25
EN-RCB25S
EN-RCB25P
30A
EN-RCB30
EN-RCB30S
EN-RCB30P
40A
EN-RCB40
EN-RCB40S
EN-RCB40P
50A
EN-RCB50
EN-RCB50S
EN-RCB50P
60A
EN-RCB60
EN-RCB60S
EN-RCB60P
70A
EN-RCB70
EN-RCB70S
EN-RCB70P
80A
EN-RCB80
EN-RCB80S
EN-RCB80P
100A
EN-RCB100
EN-RCB100S
120A
EN-RCB120
EN-RCB120S
150A
EN-RCB150
EN-RCB150S
200A
EN-RCB200
EN-RCB200S
250A
EN-RCB250
