• eSYS-D
1 1

Dometic

eSYS-D

eSYS-D

$2,778.00 AUD
$2,778.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

ESYS-D

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

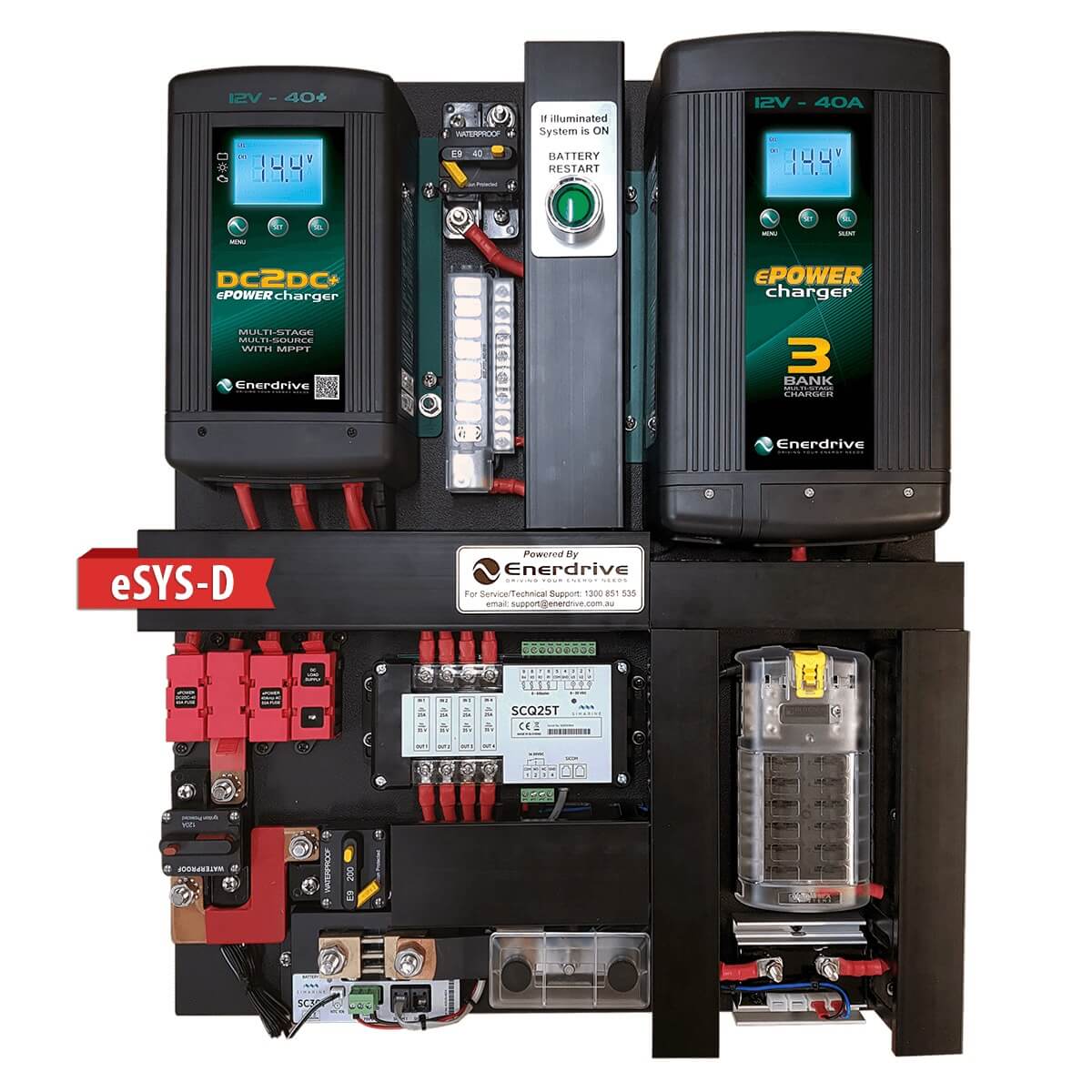

Introducing Enerdrive Dometic’s eSYSTEM pre-wired board power system range for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive | Dometic have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time.

eSYS-D

  • 490W x 600H x 100Dmm
  • Charge via a Vehicle input, Solar or Mains power;
    • Vehicle: 12 or 24v input, up to 50A Charging
    • Solar (DC2DC): up to 45VOC / 800W
    • Mains 240V: 40A Charging
  • Simarine Battery Monitor
  • Lithium low battery reset button (12V start battery input only)
  • Upgrade: SCQ50 for larger loads (Note. When replacing SCQ25T with SCQ50 the ST107 module is required for tank monitoring).

Features

eSYS-D

  • 490W x 600H x 100Dmm
  • Charge via a Vehicle input, Solar or Mains
    power;
    • Vehicle: 12 or 24v input, up to 50A Charging
    • Solar (DC2DC): up to 45VOC / 800W
    • Mains 240V: 40A Charging
  • Simarine Battery Monitor
  • Lithium low battery reset button (12V start battery input only)
  • Upgrade: SCQ50 for larger loads (Note. When replacing SCQ25T with SCQ50 the ST107 module is required for tank monitoring).

Specifications

Pre-Wired Board Power Systems Comparison

SKU / Items Included ESYS-C ESYS-D ESYS-E ESYS-F ESYS-G ESYS-H ESYS-I ESYS-J ESYS-K ESYS-L ESYS-M-EP-03 ESYS-M-SI-03 ESYS-N-EP-01 ESYS-N-SI-01 ESYS-O ESYS-R-EP-01 ESYS-R-SI-01 ESYS-R-EP-02 ESYS-R-SI-02 ESYS-R-EP-03 ESYS-R-SI-03 ESYS-S-EP-02 ESYS-S-SI-02 ESYS-U ESYS-COMBI-EP-01 ESYS-COMBI-SI-01 ESYS-COMBI-SI-02 ESYS-ICA-EP-02 ESYS-ICA-SI-02 ESYS-ICB-EP-01 ESYS-ICC-SI-01 EPDM-01 EPDM-02 EPDM-03
DC2DC Battery Charger (Vehicle/Solar) EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+ EN3DC30-24 x 2 EN3DC40+ EN3DC40+ EN3DC40+ EN3DC40+
AC 230v Battery Charger EN31240 EN31240 EN31240 EN31240 EN31240 EN31260 EN31260 EN31260 EN31240 EN31240 EN31240 EN31240 EN31240 EN31240 EN31260 EN31260 EN312100 EN312100 EN31260 EN31260 EN31240
AC Transfer Inverter EN1120S-X EN1120S-X EN1120S-X EN1120S-X EN1226S-X EN1226S-X EN1226S-X EN1226S-X EN1226S-X EN1226S-X
Inverter/Charger Combination Unit EPC-3000-12 EPC-3000-12 EPC-3500-24 EN230100-12 EN230100-12 EN220080-12 EN230100-12
Solar Controller SR-TS-45-ED SR-TS-45-ED SR-TS-45-ED SR-TS-45-ED SR-TS-45-ED EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 EN43540 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2 EN43540 x 2
ePRO+ 500A Battery Monitor with Remote Display EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050 EN55050
Simarine PICO Battery Monitor Screen SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3 SI-PICO-3
Simarine VIA Monitor & Digital Switching SI-SCC8/SPDU-52 SI-SCC8/SPDU-52
Simarine SC303 300A Main Battery Shunt SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303 SI-SC303
Simarine SCQ25T Individual Load/Charge Module SI-SCQ25T SI-SCQ25T SI-SCQ25T SI-SCQ25T
Simarine SCQ50 Individual Load/Charge Module SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50 SI-SCQ50
Simarine ST107 Tank Monitoring Module SI-ST107 SI-ST107 SI-ST107 SI-ST107 SI-ST107 SI-ST107 SI-ST107
Low Battery Cutout EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60 EN-LBC1224-60
Main Load Distribution Fuse Block (Low Battery Protected) EA-FB-07 EA-FB-07 EA-FB-08 EA-FB-08 EA-FB-08 EA-FB-08
24hr Critical Load Distribution Fuse Block EA-FB-10 EA-FB-10 EA-FB-11 EA-FB-11 EA-FB-10 EA-FB-10 EA-FB-10 EA-FB-11 EA-FB-11
Battery Restart Switch (Lithium Batteries) EA-START-BUTTON EA-START-BUTTON EA-START-BUTTON EA-START-BUTTON EA-START-BUTTON EA-START-BUTTON EA-START-BUTTON
Inverter Circuit Breaker (Pre Wired Inverter Supply) EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB200 EN-RCB250 EN-RCB250 EN-RCB250 EN-RCB250 EN-RCB250 EN-RCB250 EN-RCB200 EN-RCB250 EN-RCB250 EN-RCB250
Inverter/Charger Fuse Holder (Pre Wired Inverter/Charger Supply) 400A T-Class 400A T-Class 400A T-Class 400A T-Class 400A T-Class
Solar Input Circuit Breaker EN-RCB40 EN-RCB40 EN-RCB40 EN-RCB40 EN-RCB60 EN-RCB60 EN-RCB60 EN-RCB60 EN-RCB60 EN-RCB50 x 2 / EN-RCB40 x 1 EN-RCB50 x 2 / EN-RCB40 x 1 EN-RCB50 x 2 EN-RCB50 EN-RCB50 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB40 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB50 x 2 EN-RCB40
Dimensions (mm) 1185W x 380H x 125Dmm 490W x 600H x 100Dmm 490W x 600H x 100Dmm 1185W x 380H x 125Dmm 790W x 380H x 100Dmm 1195W x 380H x 111Dmm 1195W x 380H x 111Dmm 920W x 380H x 111Dmm 490W x 600H x 100Dmm 490W x 600H x 100Dmm 600W x 350H x 100Dmm 600W x 350H x 100Dmm 1190W x 380H x 100Dmm 1190W x 380H x 100Dmm 520W x 600H x 85Dmm 535W x 1195H x 125Dmm 535W x 1195H x 125Dmm 535W x 1195H x 125Dmm 535W x 1195H x 125Dmm 535W x 1195H x 125Dmm 535W x 1195H x 125Dmm 550W x 1195H x 125Dmm 550W x 1195H x 125Dmm 800W x 380H x 100Dmm 535W x 1195H x 147Dmm 535W x 1195H x 147Dmm 535W x 1195H x 147Dmm 535W x 1195H x 120Dmm 535W x 1195H x 120Dmm 1020W x 350H x 120Dmm 715W x 605H x 120Dmm 300W x 200H x 78Dmm 200W x 460H x 78Dmm 290W x 435H x 78Dmm
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
(*) Indicates Standard Fitment
