Dometic
eSYS-ICC
eSYS-ICC
Regular price
$4,828.00 AUD
Regular price
Sale price
$4,828.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:ESYS-ICC-SI-01
Quantity
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
Please note: The Simarine VIA panel in this system is supplied with blank buttons. If you need your buttons laser etched with icons, please contact us before ordering so we can confirm your layout. Email sales.enerdrive@dometic.com or call 1300 851 535.

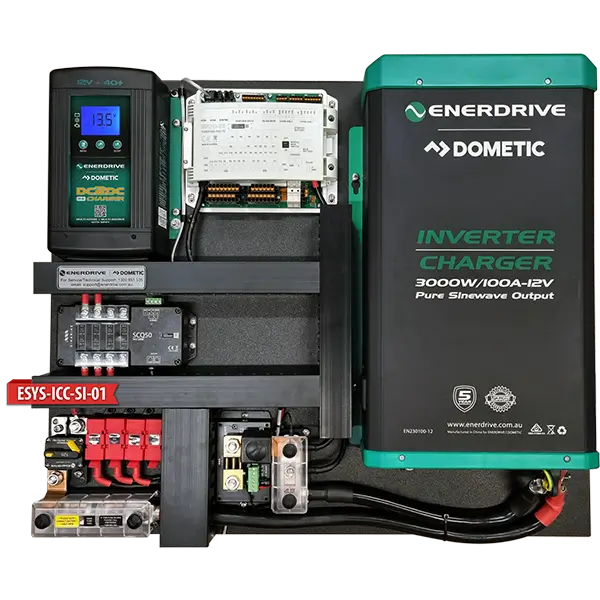

Introducing Enerdrive Dometic’s eSYSTEM pre-wired board power system range for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive | Dometic have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time.
Features
eSYS-ICC-SI-01
- 715W x 605H x 120Dmm
- Charge via a Vehicle input, Solar or Mains power;
- (DC2DC): up to 45VOC / 800W
- (Dual MPPT): up to 100VOC / 1800W
- Vehicle: 12 or 24v input, up to 100A Charging
- Solar:
- Mains 240V: 100A Charging
- Inverter suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, rooftop air-conditioning units and more peak surge of 6000W

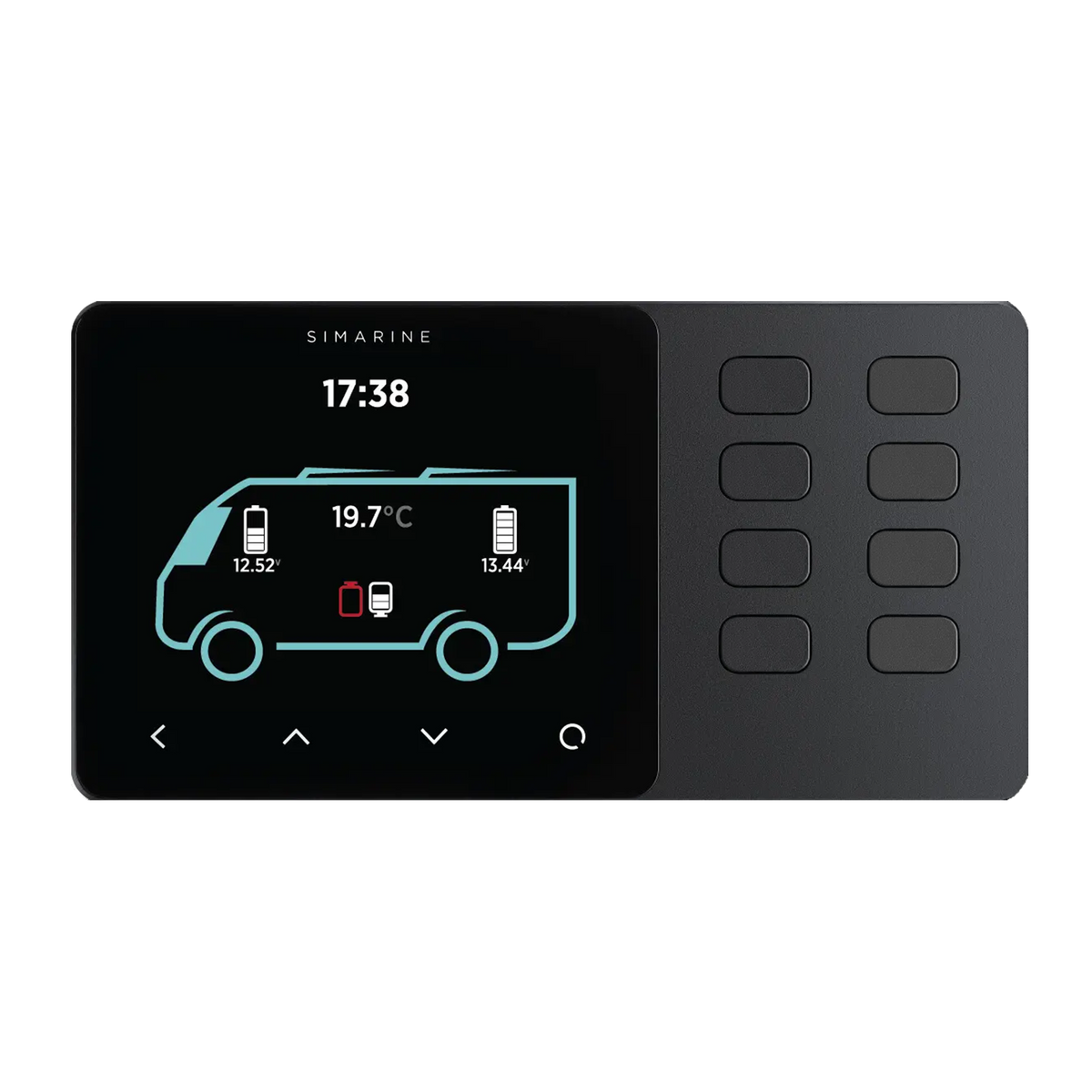

- Simarine VIA Battery Monitoring and Digital Switching
Specifications
Pre-Wired Board Power Systems Comparison
| SKU / Items Included | ESYS-C | ESYS-D | ESYS-E | ESYS-F | ESYS-G | ESYS-H | ESYS-I | ESYS-J | ESYS-K | ESYS-L | ESYS-M-EP-03 | ESYS-M-SI-03 | ESYS-N-EP-01 | ESYS-N-SI-01 | ESYS-O | ESYS-R-EP-01 | ESYS-R-SI-01 | ESYS-R-EP-02 | ESYS-R-SI-02 | ESYS-R-EP-03 | ESYS-R-SI-03 | ESYS-S-EP-02 | ESYS-S-SI-02 | ESYS-U | ESYS-COMBI-EP-01 | ESYS-COMBI-SI-01 | ESYS-COMBI-SI-02 | ESYS-ICA-EP-02 | ESYS-ICA-SI-02 | ESYS-ICB-EP-01 | ESYS-ICC-SI-01 | EPDM-01 | EPDM-02 | EPDM-03 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC2DC Battery Charger (Vehicle/Solar) | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC30-24 x 2 | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | |||
| AC 230v Battery Charger | EN31240 | EN31240 | EN31240 | EN31240 | EN31240 | EN31260 | EN31260 | EN31260 | EN31240 | EN31240 | EN31240 | EN31240 | EN31240 | EN31240 | EN31260 | EN31260 | EN312100 | EN312100 | EN31260 | EN31260 | EN31240 | |||||||||||||
| AC Transfer Inverter | EN1120S-X | EN1120S-X | EN1120S-X | EN1120S-X | EN1226S-X | EN1226S-X | EN1226S-X | EN1226S-X | EN1226S-X | EN1226S-X | ||||||||||||||||||||||||
| Inverter/Charger Combination Unit | EPC-3000-12 | EPC-3000-12 | EPC-3500-24 | EN230100-12 | EN230100-12 | EN220080-12 | EN230100-12 | |||||||||||||||||||||||||||
| Solar Controller | SR-TS-45-ED | SR-TS-45-ED | SR-TS-45-ED | SR-TS-45-ED | SR-TS-45-ED | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 | EN43540 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | |||||||||||||
| ePRO+ 500A Battery Monitor with Remote Display | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | |||||||||||||||||||
| Simarine PICO Battery Monitor Screen | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | ||||||||||||||||||

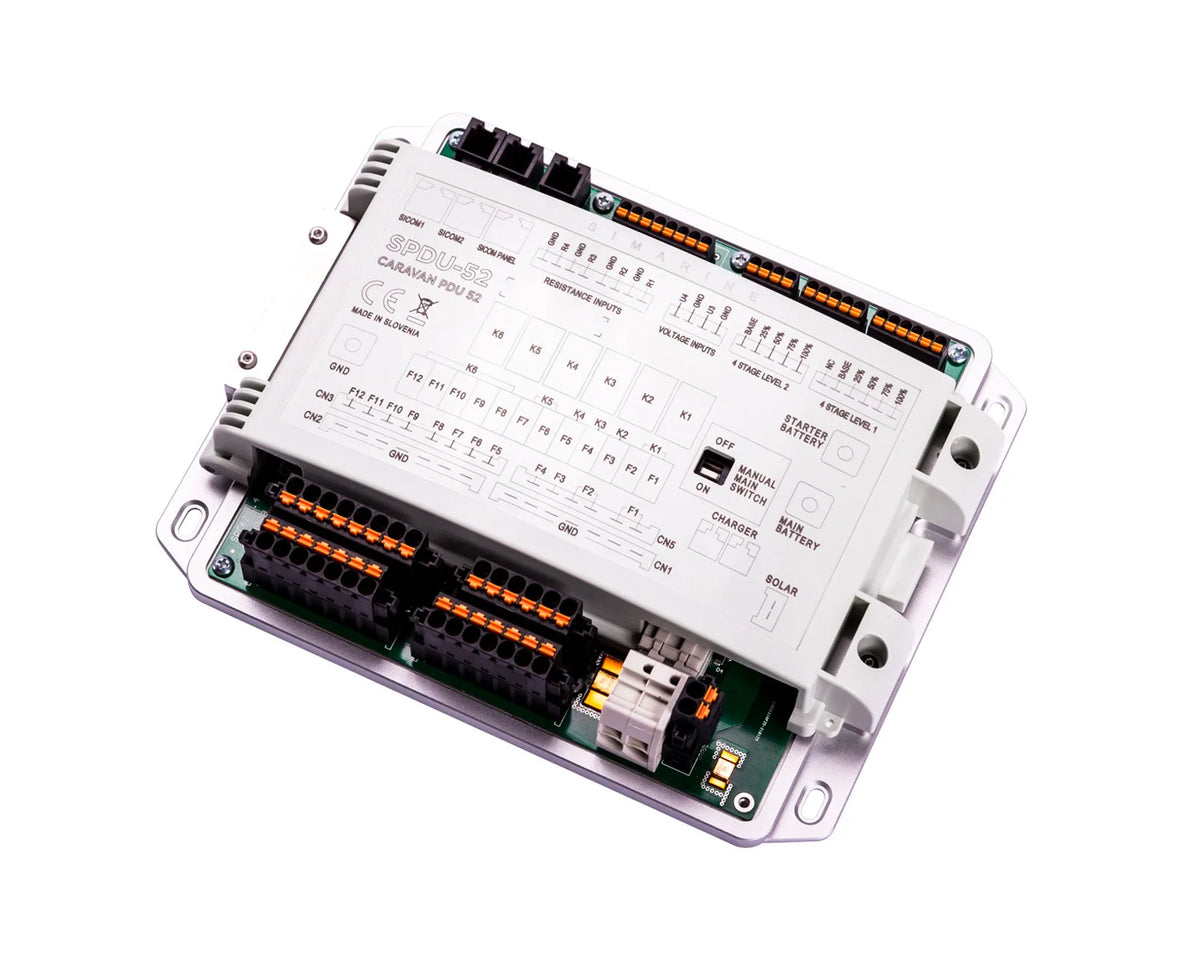

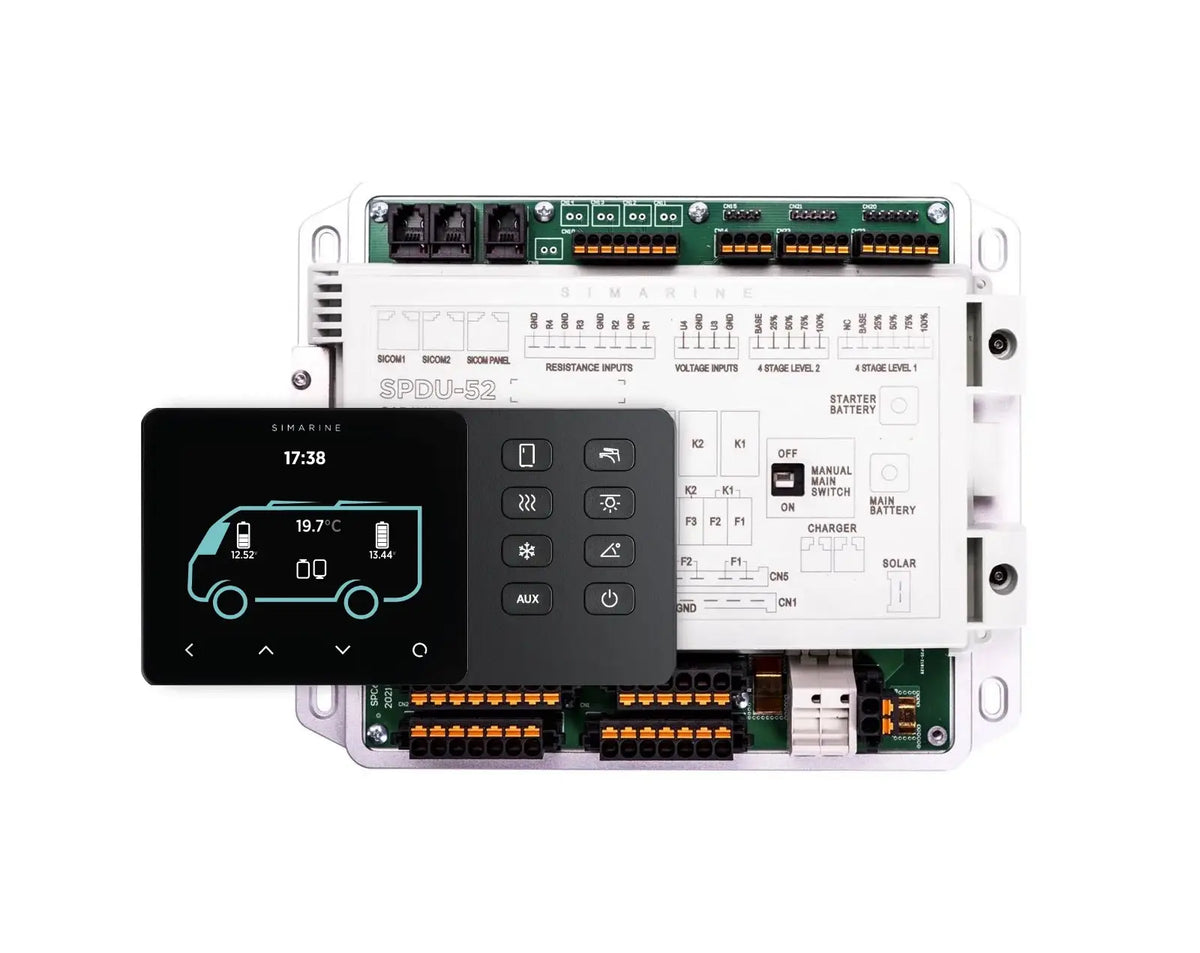

| Simarine VIA Monitor & Digital Switching | SI-SCC8/SPDU-52 | SI-SCC8/SPDU-52 | ||||||||||||||||||||||||||||||||
| Simarine SC303 300A Main Battery Shunt | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | ||||||||||||||||
| Simarine SCQ25T Individual Load/Charge Module | SI-SCQ25T | SI-SCQ25T | SI-SCQ25T | SI-SCQ25T | ||||||||||||||||||||||||||||||
| Simarine SCQ50 Individual Load/Charge Module | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | |||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | |||||||||||||||||||||||||||
| Low Battery Cutout | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | ||||||||||||||||||
| Main Load Distribution Fuse Block (Low Battery Protected) | EA-FB-07 | EA-FB-07 | EA-FB-08 | EA-FB-08 | EA-FB-08 | EA-FB-08 | ||||||||||||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | EA-FB-10 | EA-FB-10 | EA-FB-11 | EA-FB-11 | EA-FB-10 | EA-FB-10 | EA-FB-10 | EA-FB-11 | EA-FB-11 | |||||||||||||||||||||||||
| Battery Restart Switch (Lithium Batteries) | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | |||||||||||||||||||||||||||
| Inverter Circuit Breaker (Pre Wired Inverter Supply) | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB200 | EN-RCB250 | EN-RCB250 | EN-RCB250 | ||||||||||||
| Inverter/Charger Fuse Holder (Pre Wired Inverter/Charger Supply) | 400A T-Class | 400A T-Class | 400A T-Class | 400A T-Class | 400A T-Class | |||||||||||||||||||||||||||||
| Solar Input Circuit Breaker | EN-RCB40 | EN-RCB40 | EN-RCB40 | EN-RCB40 | EN-RCB60 | EN-RCB60 | EN-RCB60 | EN-RCB60 | EN-RCB60 | EN-RCB50 x 2 / EN-RCB40 x 1 | EN-RCB50 x 2 / EN-RCB40 x 1 | EN-RCB50 x 2 | EN-RCB50 | EN-RCB50 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB40 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB40 | |||||||
| Dimensions (mm) | 1185W x 380H x 125Dmm | 490W x 600H x 100Dmm | 490W x 600H x 100Dmm | 1185W x 380H x 125Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600H x 100Dmm | 490W x 600H x 100Dmm | 600W x 350H x 100Dmm | 600W x 350H x 100Dmm | 1190W x 380H x 100Dmm | 1190W x 380H x 100Dmm | 520W x 600H x 85Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 550W x 1195H x 125Dmm | 550W x 1195H x 125Dmm | 800W x 380H x 100Dmm | 535W x 1195H x 147Dmm | 535W x 1195H x 147Dmm | 535W x 1195H x 147Dmm | 535W x 1195H x 120Dmm | 535W x 1195H x 120Dmm | 1020W x 350H x 120Dmm | 715W x 605H x 120Dmm | 300W x 200H x 78Dmm | 200W x 460H x 78Dmm | 290W x 435H x 78Dmm |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| (*) Indicates Standard Fitment |
