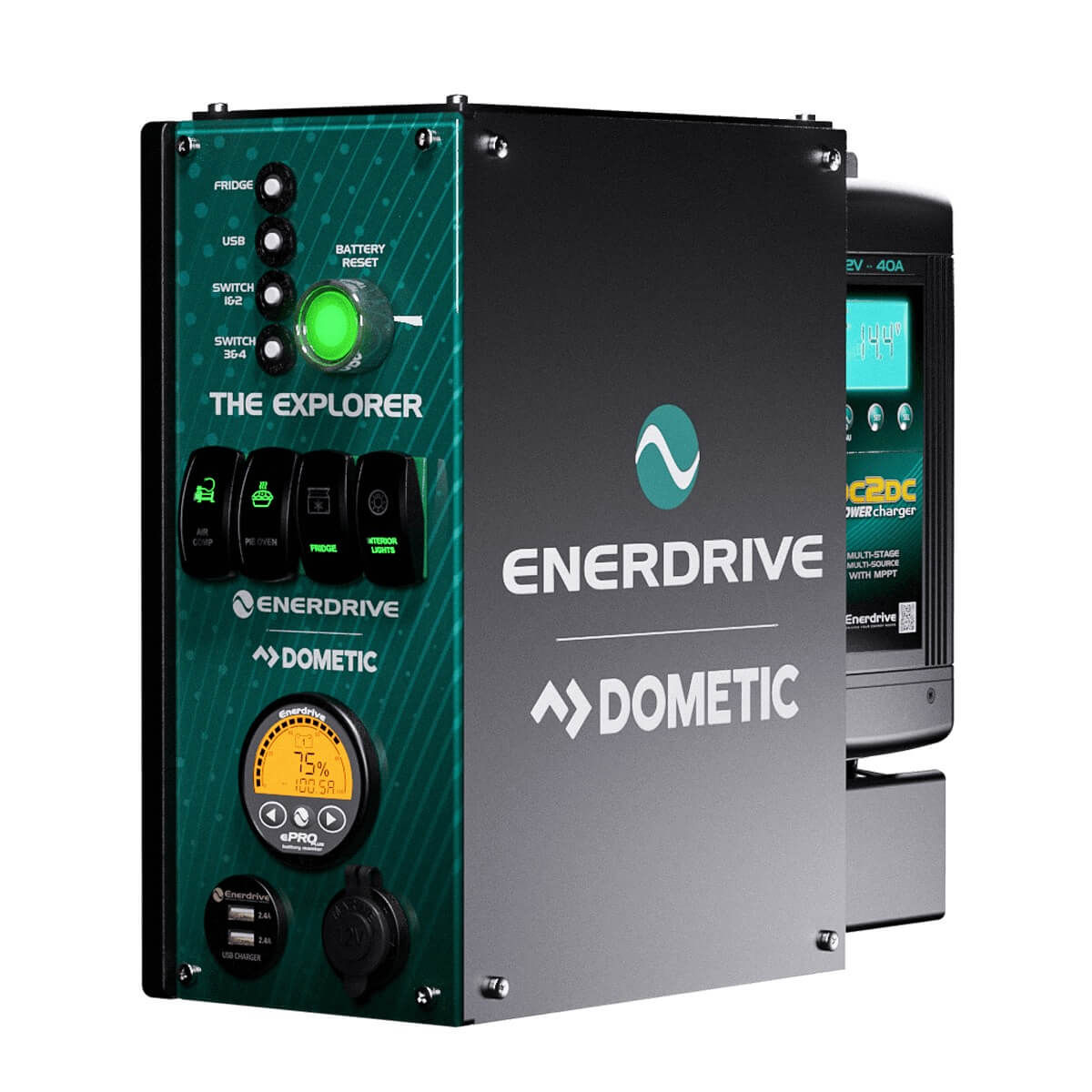

Explorer Power System

Combines a 40A DCDC MPPT, and DC load monitoring into a single, plug-and-play unit.

Product Details

All Explorer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs & vehicle/solar/tank inputs. All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicles canopy. The systems are available in either Left (Passenger side) or Right (Drivers side) or Roof Mount installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.

Features

With Enerdrive Dometic breaking into the 4WD canopy market in recent years, we have been consistently asked by manufacturers and end users to come up with a compact power solution to operate all of the electrical equipment that is ending up in the back of these canopies. From a simple system to operate a fridge and a couple of lights to a full on power station, these are the type of systems we have been asked for.

After many brainstorming sessions and 3D modelling designs, Enerdrive have produced 3 models to cover just about any customer request for power in their canopies.

The Explorer:

This system is designed for the end user only requiring a minimum power option in a neat package. Available in 3 different versions;

1. K-EXPLORER-01 inc ePRO+ Battery Monitor
2. K-EXPLORER-02 inc Simarine Battery Monitoring
3. K-EXPLORER-03 inc Simarine & Individual Load Monitoring

⚠️Please Note. Standard Stocked versions of this system have Green Face Plate. If you require a Custom (Black) face plate, please ensure you advise this at the time of placing your order.

The Explorer 01 for example consists of the following items

• Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
• 1 x ePRO+ Battery Monitor
• 4x Pre-wired Circuit Breakers for main power equipment
• 4 x Contura switches for Lights & Auxiliary loads
• Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse
• 1 x Fridge 50A Anderson Plug connection
• 1 x 12v CIG & 1 x Dual 2.4A USB socket
• Battery Reset button for kick starting your flat battery from the DC2DC Charger

All Explorer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs & vehicle/solar/tank inputs

All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicles canopy. The systems are available in either Left (Passenger side) or Right (Drivers side) or Roof Mount installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.

If you are interested in having custom engraving for switch/circuit breakers to your specific requirements, this option is available at an additional cost.

Please be aware that the Enerdrive Flat Battery restart button is only to be used when start system input is 12v only. This button is not suitable for use in 24v starting systems. If you do require restart facilities for a 24v start system please speak to the Enerdrive team. We can modify these systems to be suitable for 24v start systems at an additional cost.

Enerdrive are proud to bring to market this innovative design that can be installed by the manufacturer or end user in a neat one piece installation.

Specifications

4x4 Canopy Power Systems Comparison

Manuals, Safety Information And Downloads

• Canopy Power System Brochure
• Customer Rocker Switch Cover Order Form
