Dometic

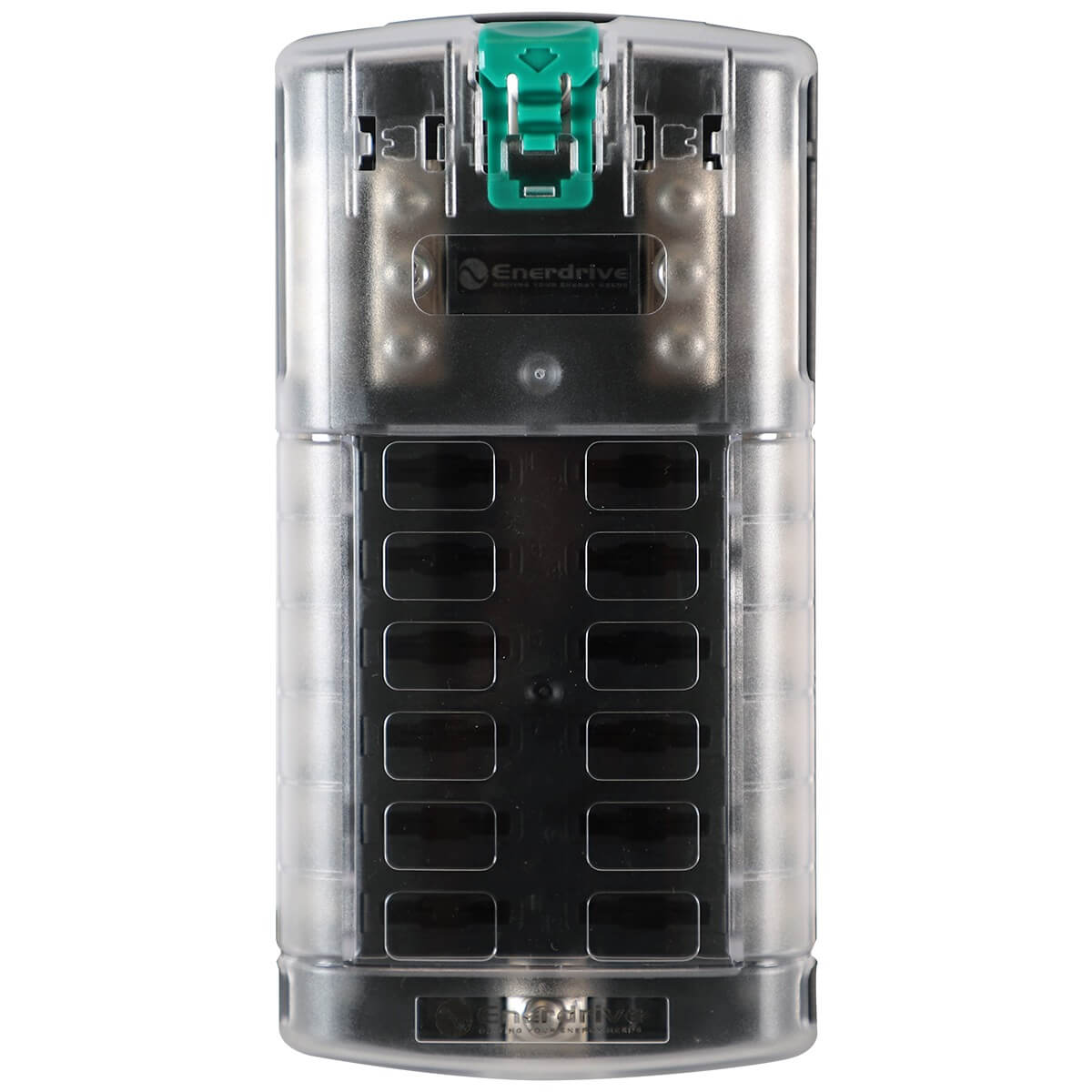

Fuse Block 12 Circuit with Negative Bus and Cover

Fuse Block 12 Circuit with Negative Bus and Cover

$74.00 AUD
$74.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

EA-FB-07

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover

Consolidates branch circuits and in-line fuses

  • Positive distribution bus with #10-32 stud
  • 32V 100Amp Max – 30Amp Max per circuit
  • Can be used for 24-hour circuits
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
  • Includes two label sets and screws.

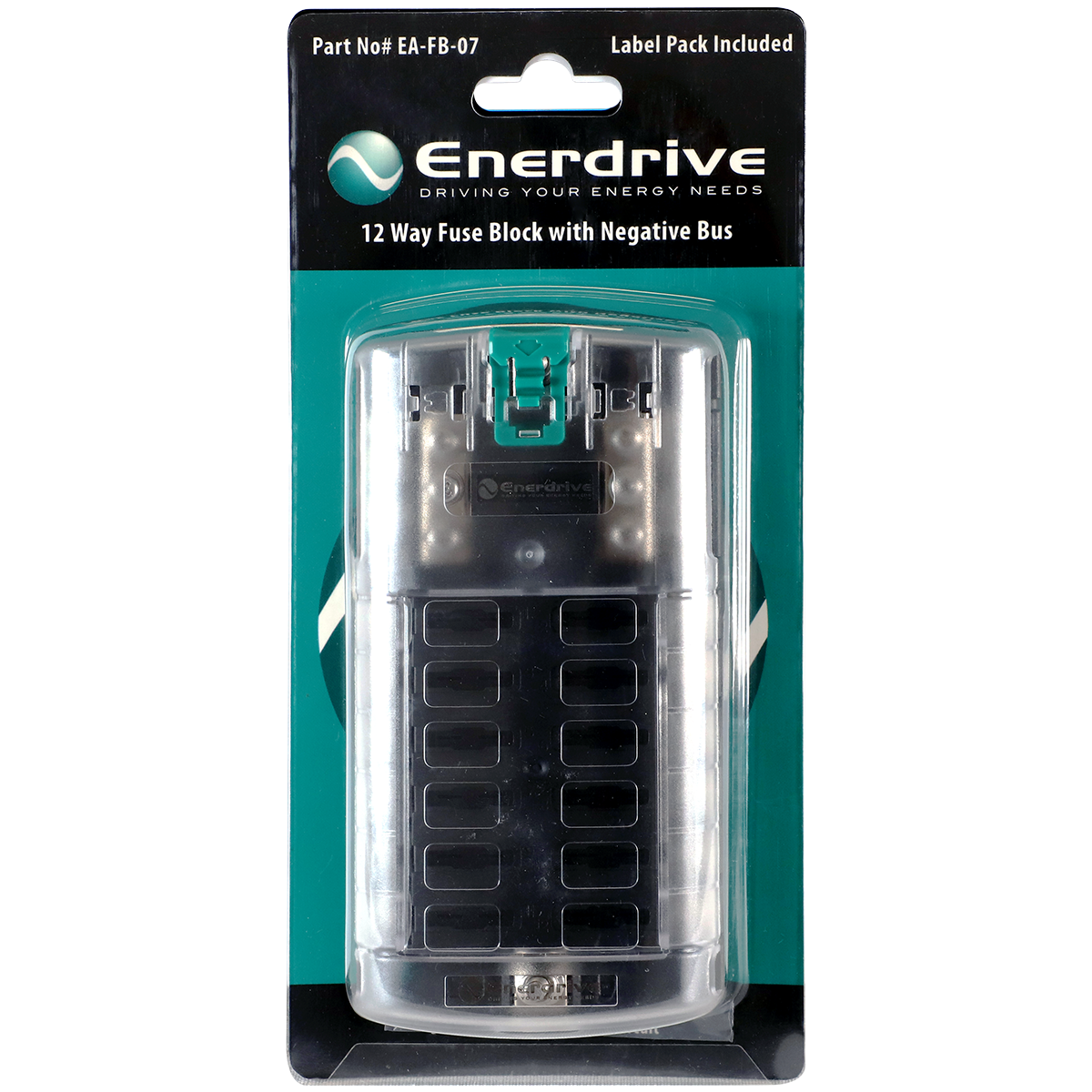

  • Retail Packaging

Features

ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover

Consolidates branch circuits and in-line fuses

  • Positive distribution bus with #10-32 stud
  • 32V 100Amp Max – 30Amp Max per circuit
  • Can be used for 24-hour circuits
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
  • Includes two label sets and screws.
  • Retail Packaging

Specifications

Fuse Block Rear Panel Mount Range Specifications

Fuse Block Rear Entry Panel Mount 1 In 6 Out with LEDs Fuse Block Rear Entry Panel Mount 1 In 6 Out with LEDs Fuse Block Rear Entry Panel Mount 6 In 6 Out with LEDs Fuse Block Rear Entry Panel Mount 1 In 12 Out with LEDs Fuse Block Rear Entry Panel Mount 1 In 12 Out with LEDs Fuse Block Rear Entry Panel Mount 12 In 12 Out with LEDs Fuse Block 12 Circuit with Negative Bus and Cover
SKU EA-FB-01 [DISCONTINUED] EA-FB50A-01 EA-FB-02 EA-FB-03 [DISCONTINUED] EA-FB50A-03 EA-FB-04 EA-FB-07
Circuits 6 6 6 12 12 12 12
Maximum Amperage 15A per circuit
50A per block		 15A per circuit
50A per block		 20A per circuit 15A per circuit
50A per block		 15A per circuit
50A per block		 20A per circuit 30A per circuit
100A per block
Maximum Voltage 32V DC 32V DC 32V DC 32V DC 32V DC 32V DC 32V DC
Mounting 8G Screw [M4] 8G Screw [M4] 8G Screw [M4] 8G Screw [M4] 8G Screw [M4] 8G Screw [M4] 8G Screw [M4]
Positive Bus Input #8-32 with Flat/Spring Washers #8-32 with Flat/Spring Washers Spade Terminals, Rear #8-32 with Flat/Spring Washers #8-32 with Flat/Spring Washers Spade Terminals, Rear #10-32 Stud
Positive Bus Output Spade Terminals Spade Terminals Spade Terminals, Rear Spade Terminals Spade Terminals Spade Terminals, Rear #10-32 Stud
Recommended Torque 24 in-lb (2.71 N.m) 24 in-lb (2.71 N.m) 24 in-lb (2.71 N.m) 24 in-lb (2.71 N.m) 24 in-lb (2.71 N.m) 24 in-lb (2.71 N.m) 24 in-lb (2.71 N.m)
Weight 0.17 kg 0.17 kg 0.18 kg 0.23 kg 0.23 kg 0.23 kg 0.34 kg

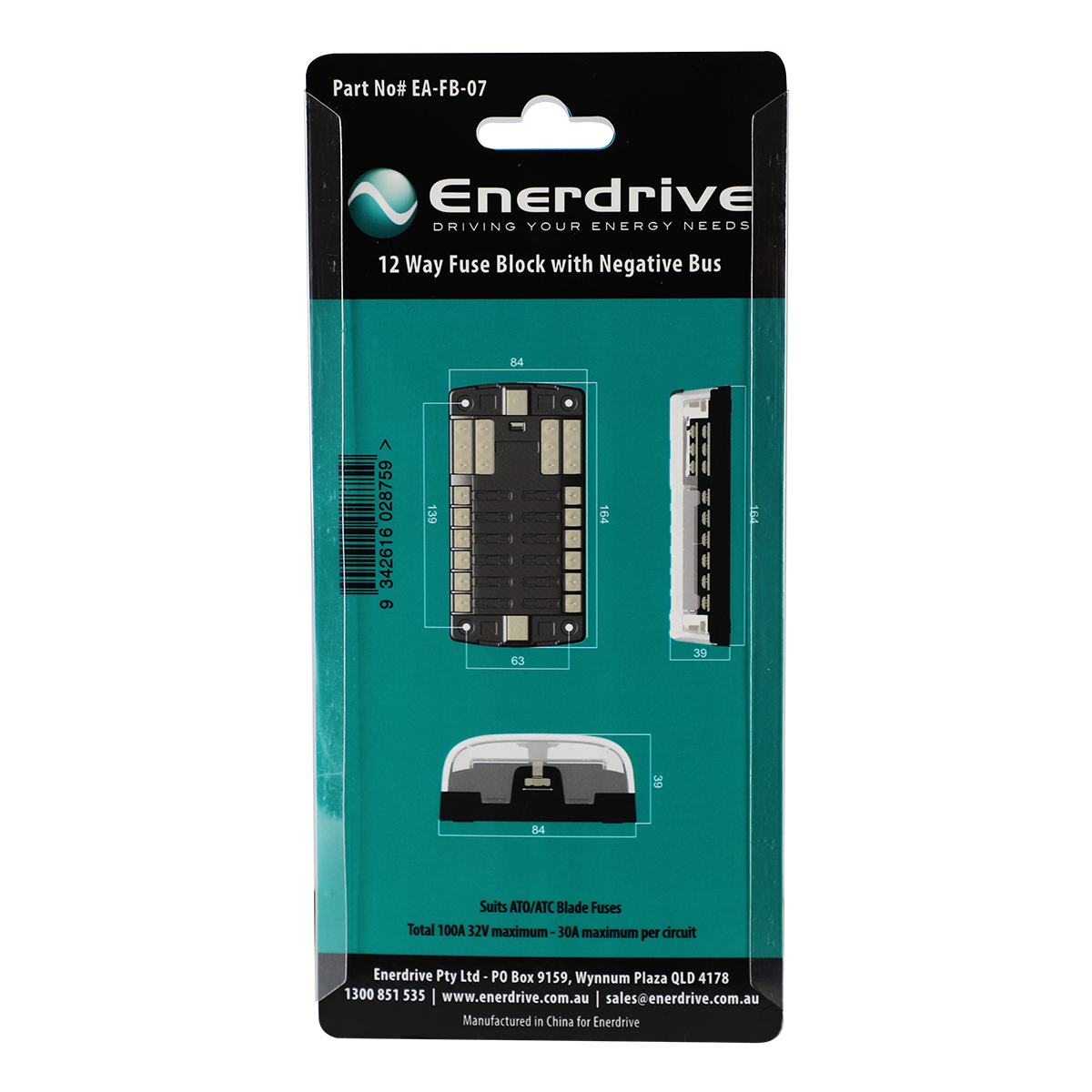

Size 92 x 87 x 61mm 92 x 87 x 61mm 92 x 87 x 61mm 130 x 87 x 62mm 130 x 87 x 62mm 130 x 87 x 61mm 164 x 84 x 39mm
