High Current Relays: Safely connect and disconnect. High-current relays are a common type of electromechanical relay used to switch and carry high currents. Those relays are often either connected directly to load cables by screwing connections or mounted onto a lead-frame. Automotive high-current relays are engineered for use in vehicle batteries, battery management, battery disconnection, start/stop systems, high performance electrical heaters, and drives and pumps for system voltages up to 48V and currents up to 200A within the automotive market.
** Used for Smart Alternator DC2DC Charger Installs**
** Used for Dual DC2DC Charger Installs**
Additional information
| SKU | R-P2512150HD, R-P1424150HD, R-P141275HD, R-1670916-KIT, R-50126 |
|---|
Features
A relay is an electronically operated switch that is remotely activated by an electromagnet which pulls a set of contacts to either make or break a circuit. Relays are commonly used for – among other functions – switching signals, radio frequencies, high current circuits when using a lower current circuit, and loads such as resistive, motor, lamp, inductive, and capacitive applications. This is helpful when an in-line switch or existing circuit does not have the capacity to handle the required current.
Functions of Relays
- Galvanic separation of the primary or actuating circuit and load circuits
- Single-input/multiple-output capability
- Separation of different load circuits for multi-pole relays
- Separation of AC and DC circuits
- Interface between electronic and power circuits
- Multiple switching operations – time delay, signal condition, among others
- Serves as an amplifier
High Current Relays: Safely connect and disconnect
High-current relays are a common type of electromechanical relay used to switch and carry high currents. Those relays are often either connected directly to load cables by screwing connections or mounted onto a lead-frame. Automotive high-current relays are engineered for use in vehicle batteries, battery management, battery disconnection, start/stop systems, high performance electrical heaters, and drives and pumps for system voltages up to 48V and currents up to 200A within the automotive market.
** Used for Smart Alternator DC2DC Charger Installs**
** Used for Dual DC2DC Charger Installs**
Specifications
| Enerdrive Part Number | Alternate Part No | Arrangement | Rated Voltage | Coil | Circuit | Limited Continuous Current |
|---|---|---|---|---|---|---|

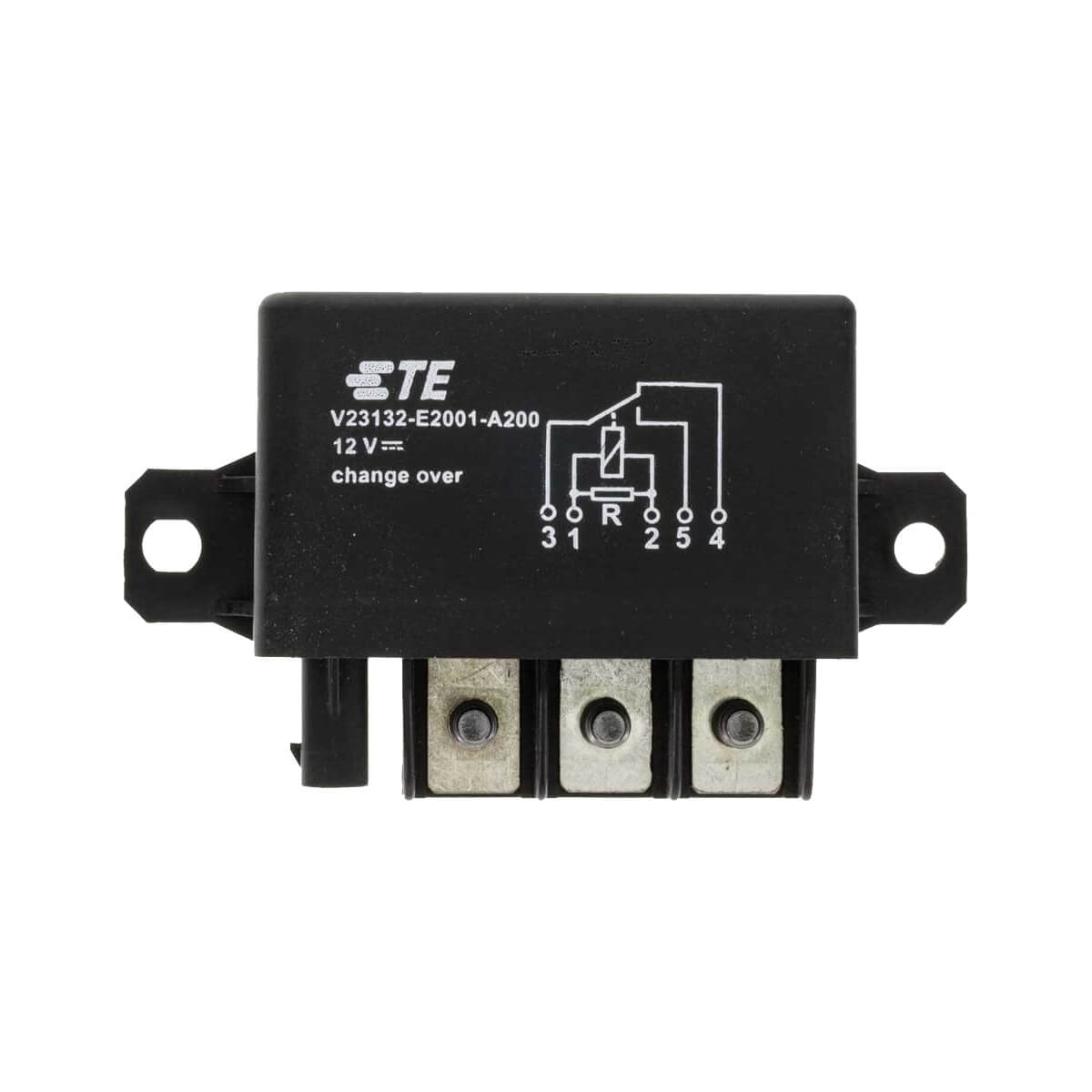

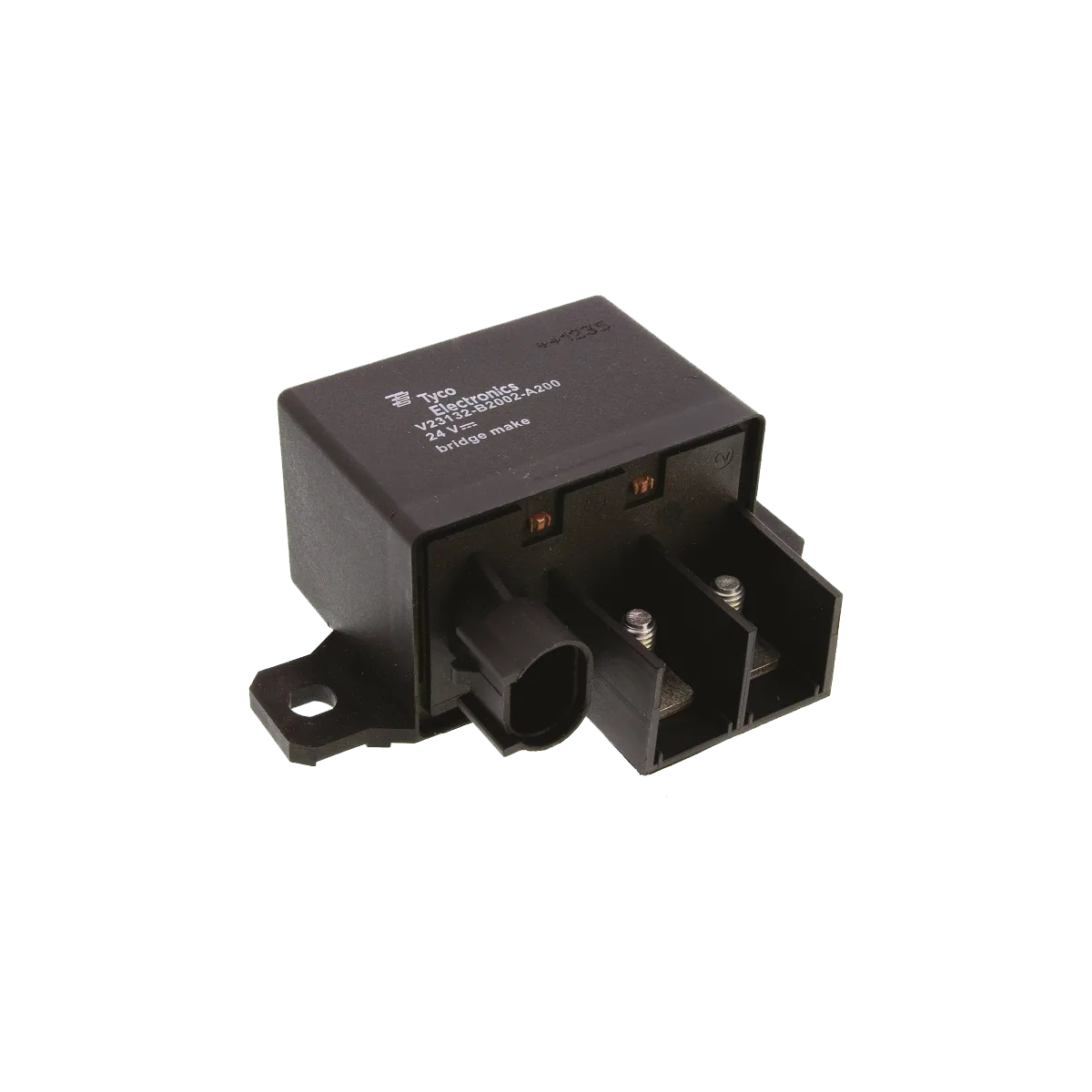

| R-P2512150HD | V23132-E2001-A200 | 1 form C, 1CO | 12VDC | 12VDC | COR | 23°C, Load Cables 16mm2, 130A |
| R-P1424150HD | V23132-B2002-A200 |
1 form X, 1 NO DM | 24VDC | 24VDC | NOBRR |
23°C, Load Cables 16mm2, 130A |

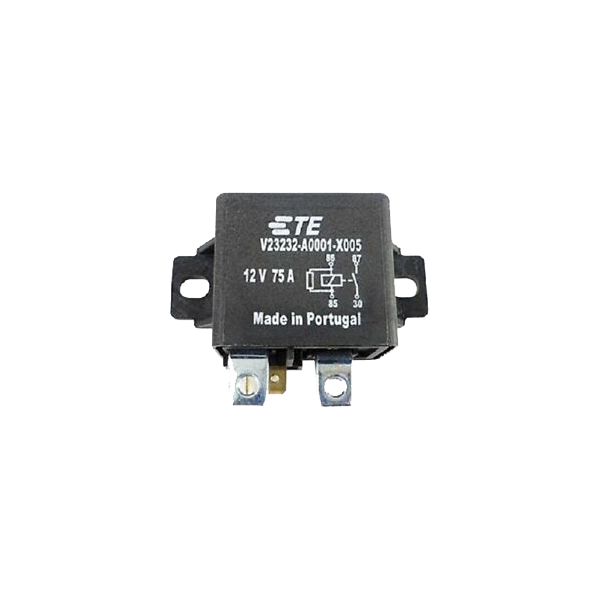

| R-P141275HD | V23232-A0001-X005 | 1 form A, 1 NO with resistor | 12VDC | 12VDC | NOR | 23°C, Load Cables 16mm2, 75A |

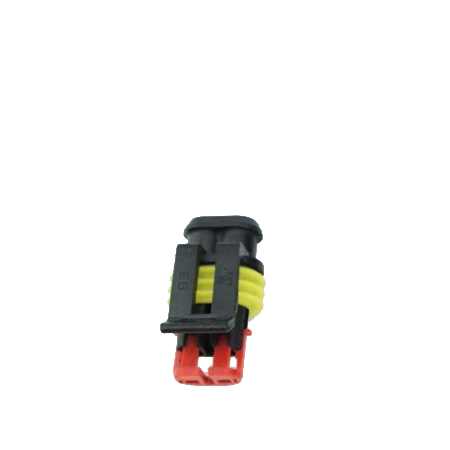

| R-1670916-KIT | Sense Lead Connector for R-P2512150HD | |||||

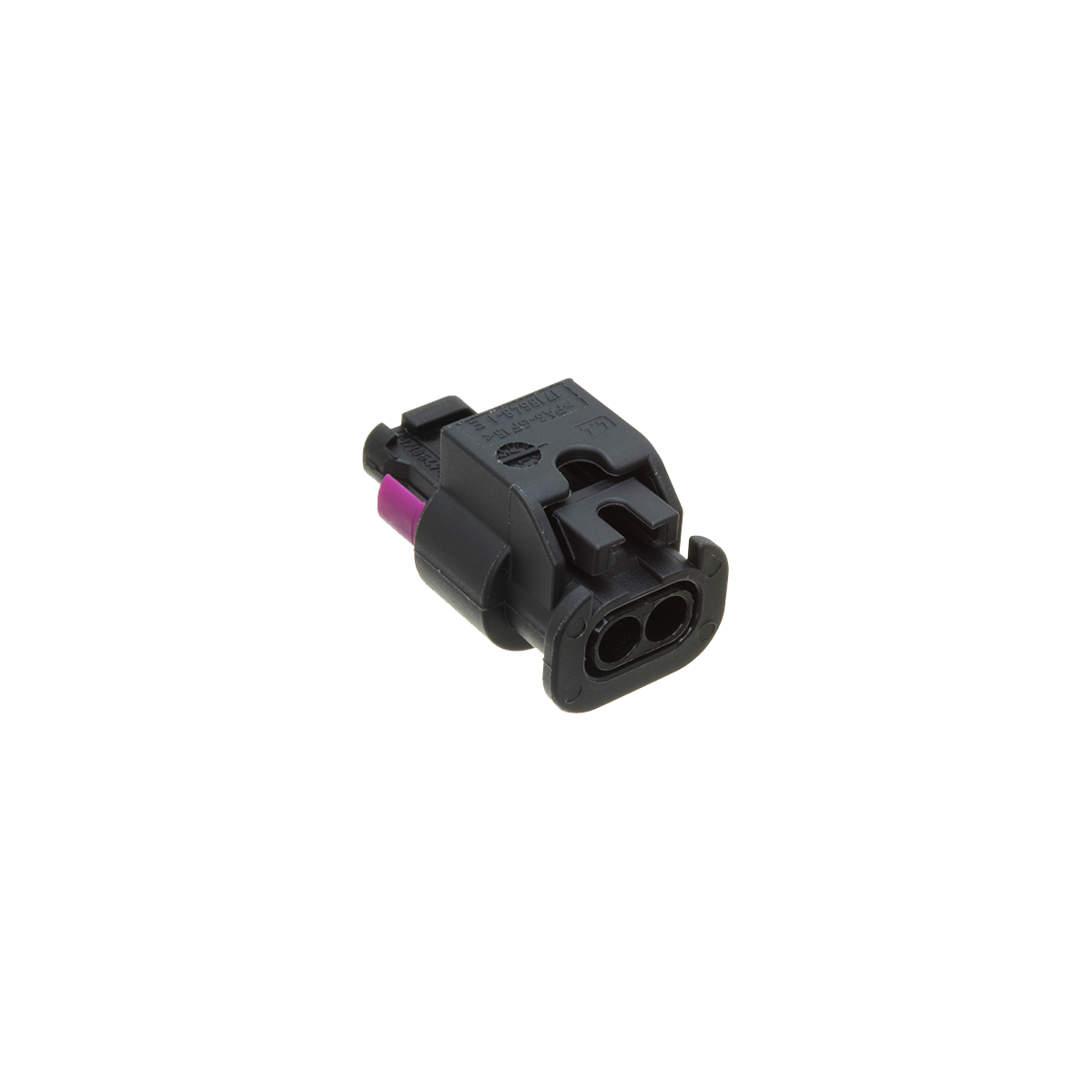

| R-50126 | Sense Lead Connector Kit Suit R-P1424150HD | |||||
