Hi Current Relays - R-P2512150HD
Hi Current Relays - R-P2512150HD
SKU:R-P2512150HD
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
High Current Relays: Safely connect and disconnect. High-current relays are a common type of electromechanical relay used to switch and carry high currents. Those relays are often either connected directly to load cables by screwing connections or mounted onto a lead-frame. Automotive high-current relays are engineered for use in vehicle batteries, battery management, battery disconnection, start/stop systems, high performance electrical heaters, and drives and pumps for system voltages up to 48V and currents up to 200A within the automotive market.
** Used for Smart Alternator DC2DC Charger Installs**
** Used for Dual DC2DC Charger Installs**
Additional information
| SKU | R-P2512150HD, R-P1424150HD, R-P141275HD, R-1670916-KIT, R-50126 |
|---|
Features
A relay is an electronically operated switch that is remotely activated by an electromagnet which pulls a set of contacts to either make or break a circuit. Relays are commonly used for – among other functions – switching signals, radio frequencies, high current circuits when using a lower current circuit, and loads such as resistive, motor, lamp, inductive, and capacitive applications. This is helpful when an in-line switch or existing circuit does not have the capacity to handle the required current.
Functions of Relays
- Galvanic separation of the primary or actuating circuit and load circuits
- Single-input/multiple-output capability
- Separation of different load circuits for multi-pole relays
- Separation of AC and DC circuits
- Interface between electronic and power circuits
- Multiple switching operations – time delay, signal condition, among others
- Serves as an amplifier
High Current Relays: Safely connect and disconnect
High-current relays are a common type of electromechanical relay used to switch and carry high currents. Those relays are often either connected directly to load cables by screwing connections or mounted onto a lead-frame. Automotive high-current relays are engineered for use in vehicle batteries, battery management, battery disconnection, start/stop systems, high performance electrical heaters, and drives and pumps for system voltages up to 48V and currents up to 200A within the automotive market.
** Used for Smart Alternator DC2DC Charger Installs**
** Used for Dual DC2DC Charger Installs**
Specifications
| Enerdrive Part Number | Alternate Part No | Arrangement | Rated Voltage | Coil | Circuit | Limited Continuous Current |
|---|---|---|---|---|---|---|

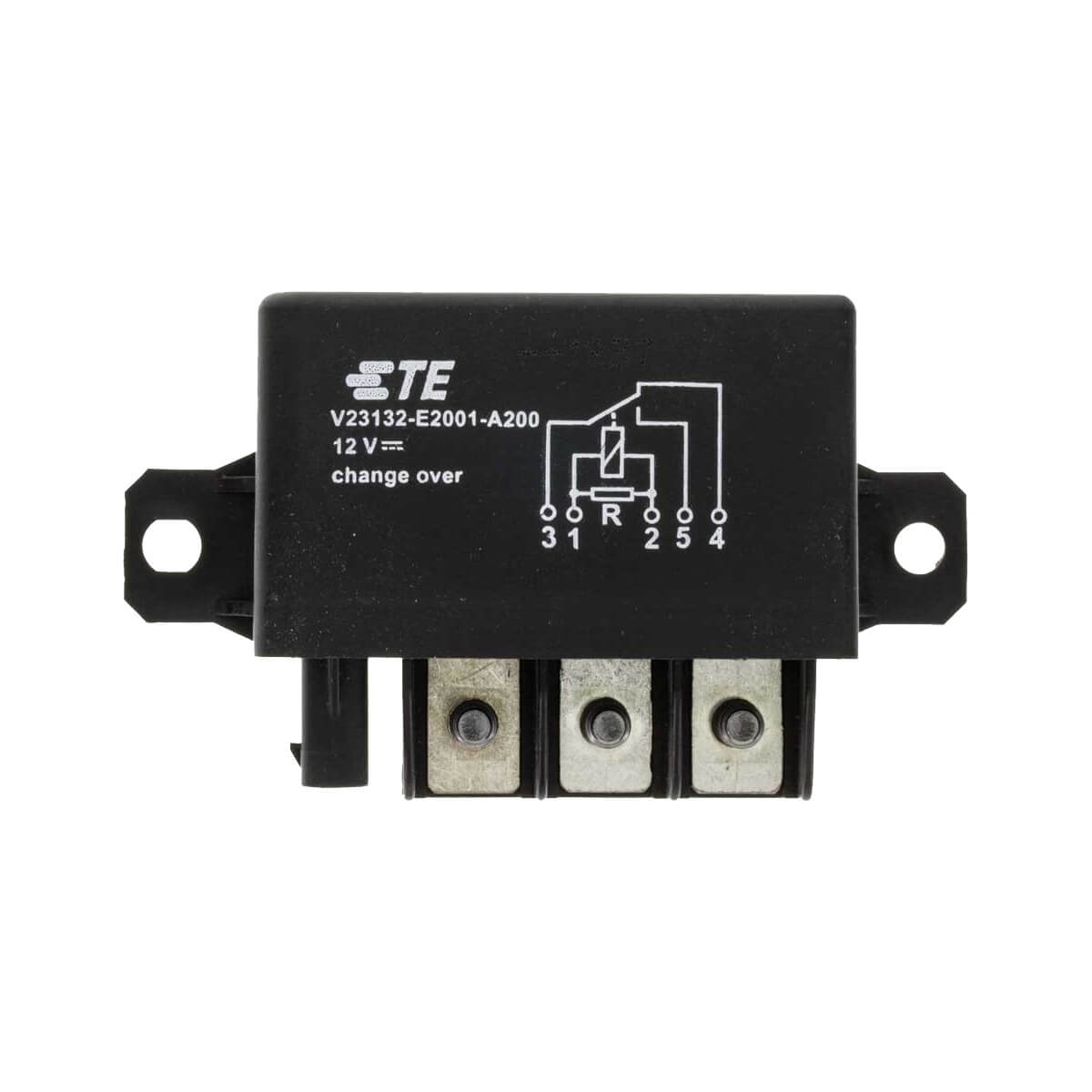

| R-P2512150HD | V23132-E2001-A200 | 1 form C, 1CO | 12VDC | 12VDC | COR | 23°C, Load Cables 16mm2, 130A |
| R-P1424150HD | V23132-B2002-A200 |

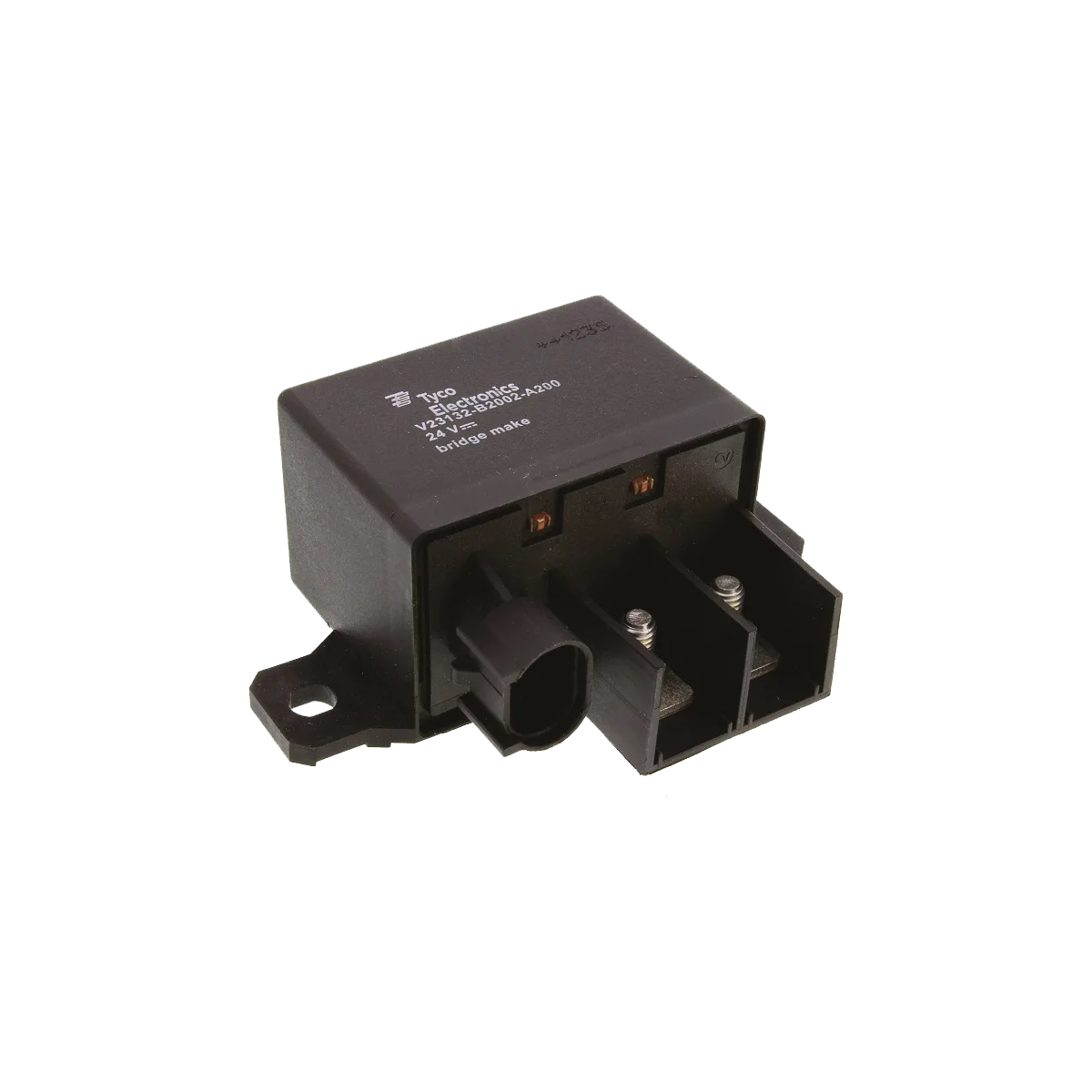

1 form X, 1 NO DM | 24VDC | 24VDC | NOBRR |
23°C, Load Cables 16mm2, 130A |

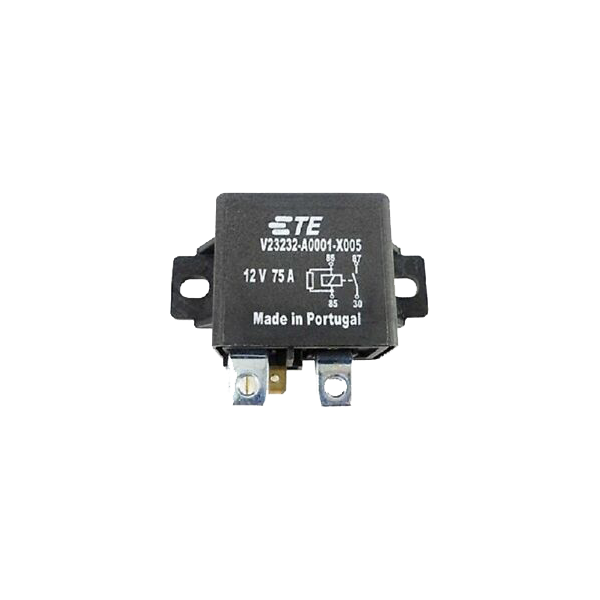

| R-P141275HD | V23232-A0001-X005 | 1 form A, 1 NO with resistor | 12VDC | 12VDC | NOR | 23°C, Load Cables 16mm2, 75A |

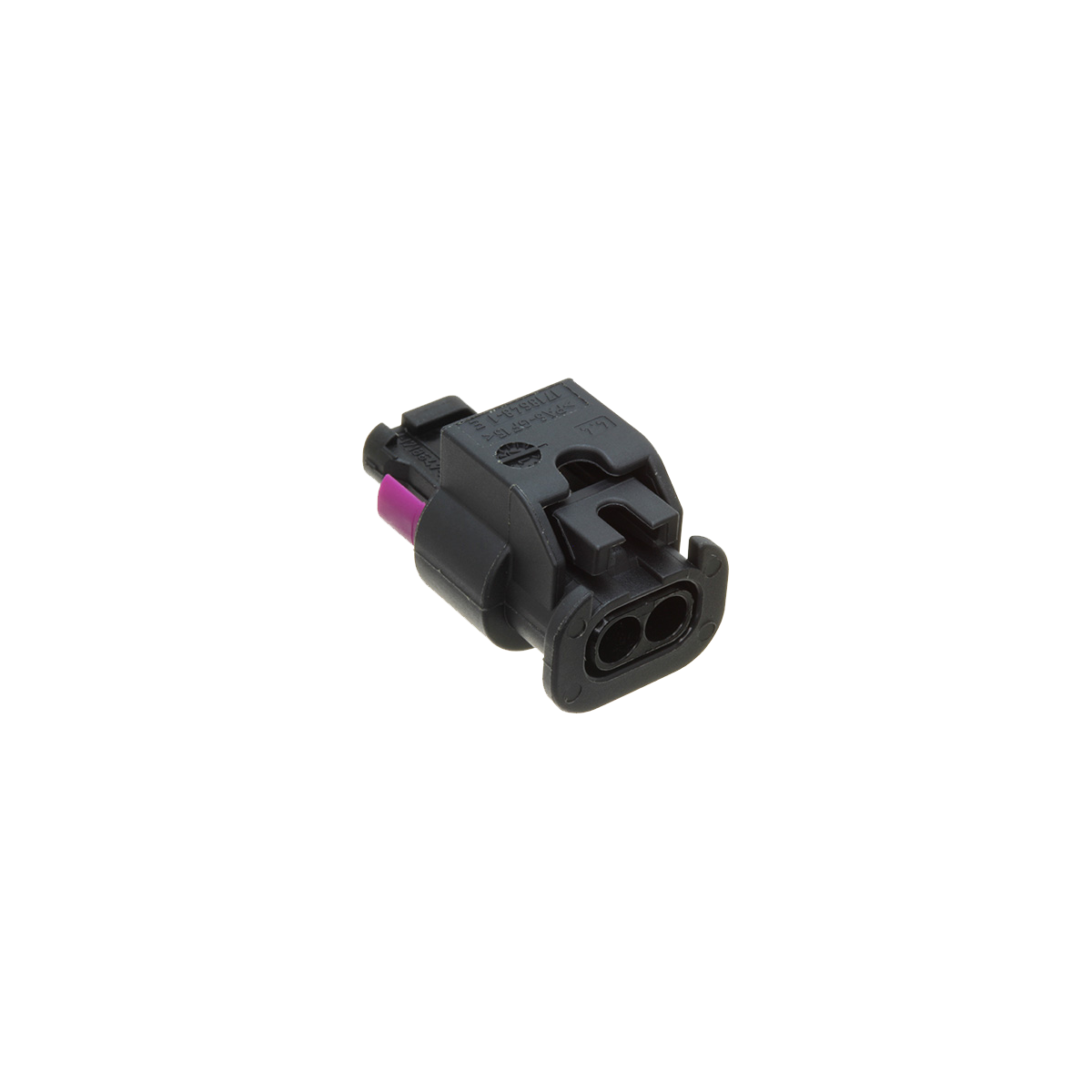

| R-1670916-KIT | Sense Lead Connector for R-P2512150HD | |||||

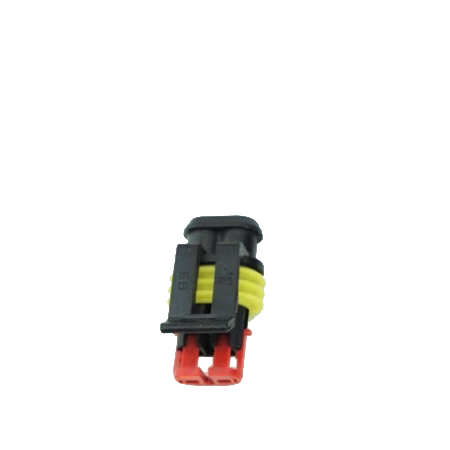

| R-50126 | Sense Lead Connector Kit Suit R-P1424150HD | |||||
