Journeyman Mounting Kits
Journeyman Mounting Kits
SKU:JM-RAN-AMA-01
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
Mount Kits
Every Journeyman install starts with the right mounting kit. Pick the one that matches your ute.

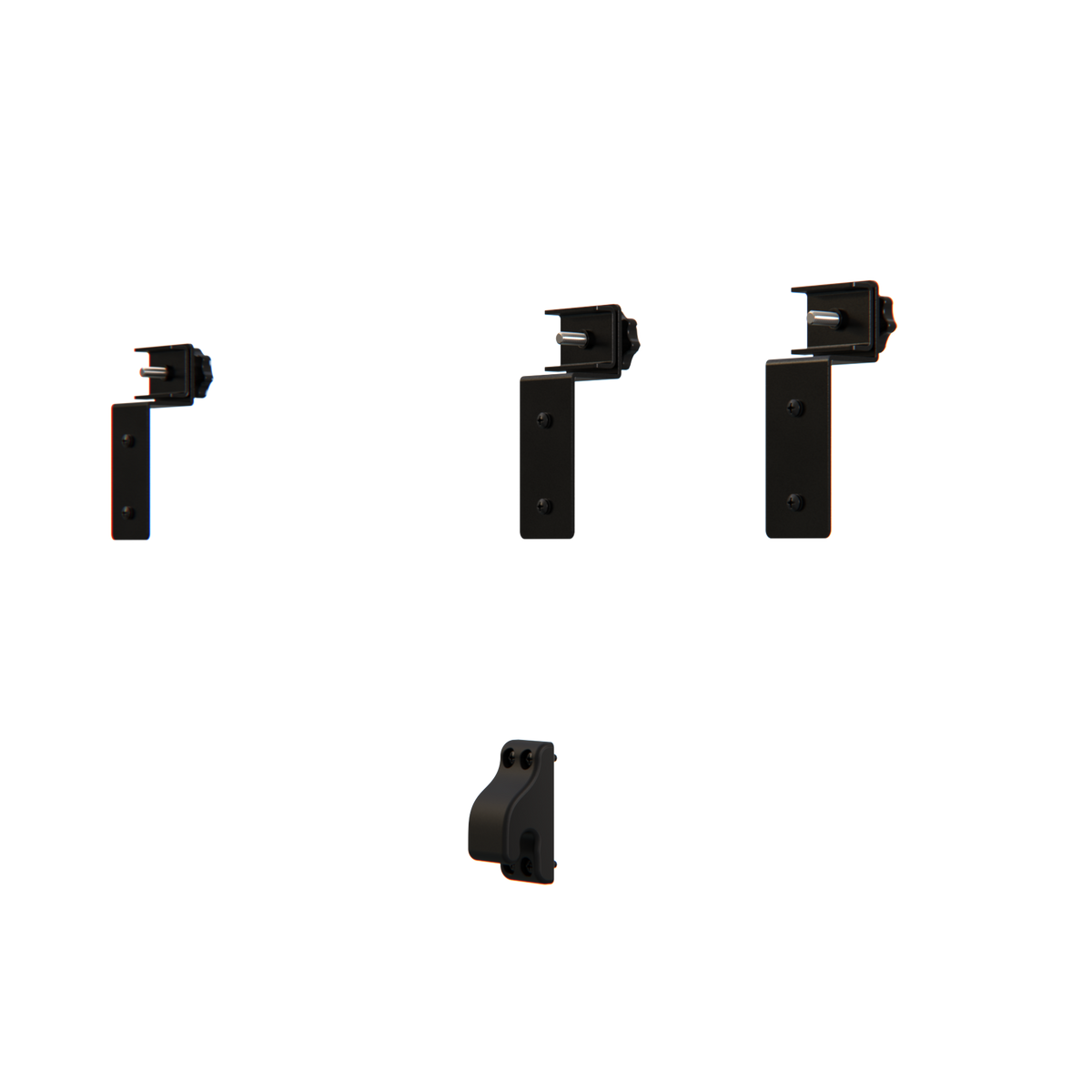

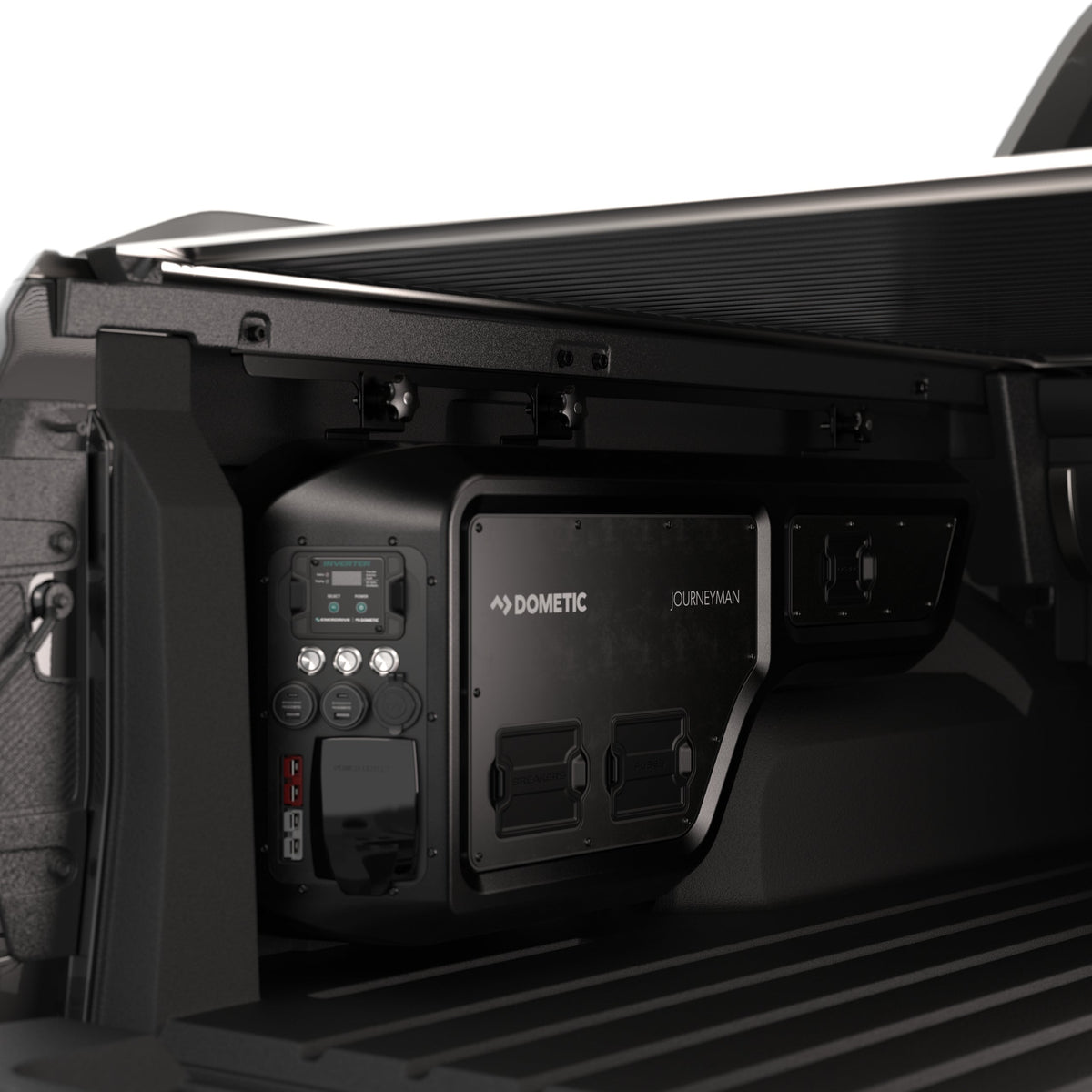

Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok with Tub Rails
SKU: JM-RAN-AMA-02For 2022-on Ford Ranger Next Gen and VW Amarok utes already fitted with OEM tub rails. The kit includes the brackets that attach the Journeyman directly to your existing rails — no drilling, no guesswork.
Fits: Ranger Wildtrak, Sport and Platinum (and other variants with factory rails). Not sure? Check the side walls of your tub for two pre-installed rails. If they're there, this is your kit.

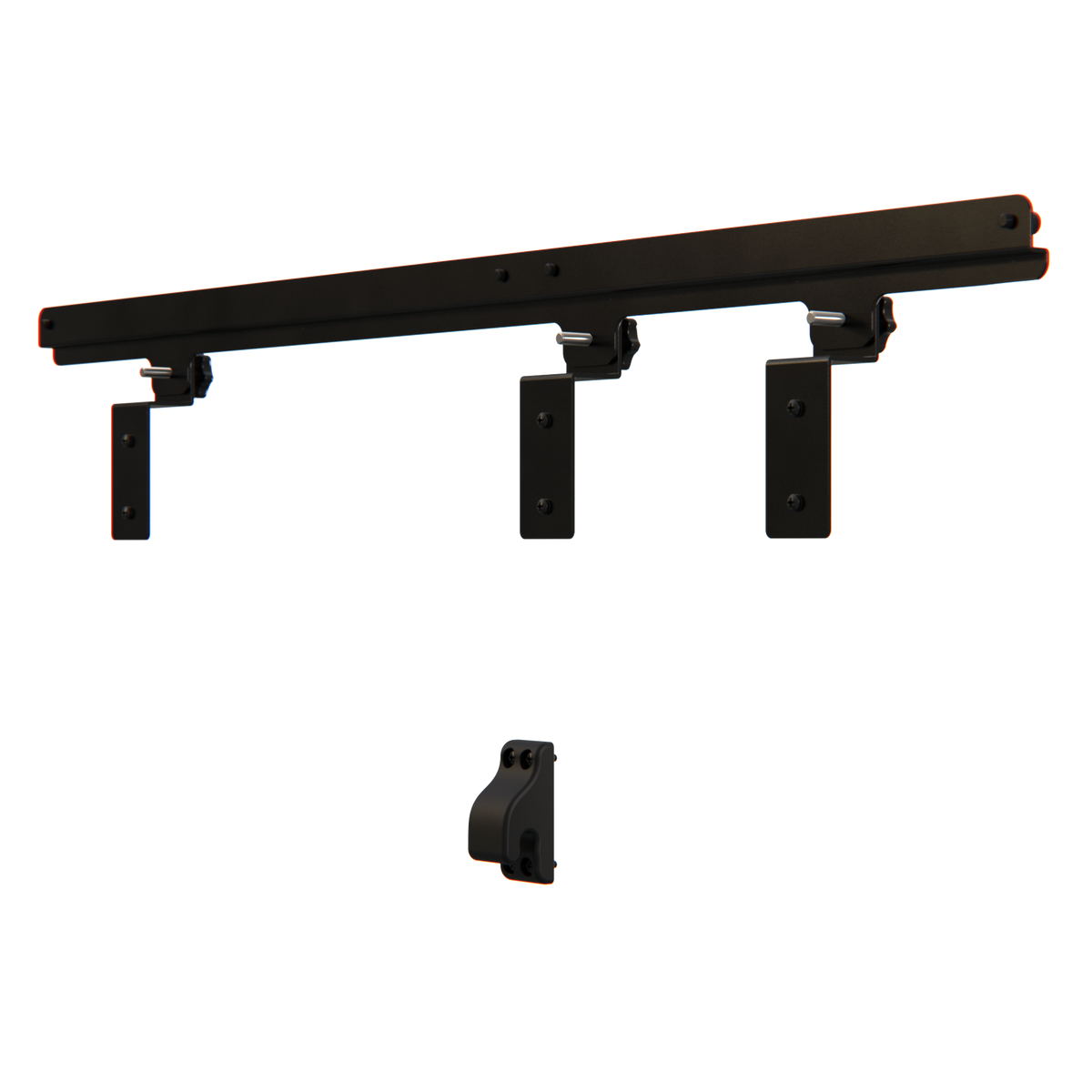

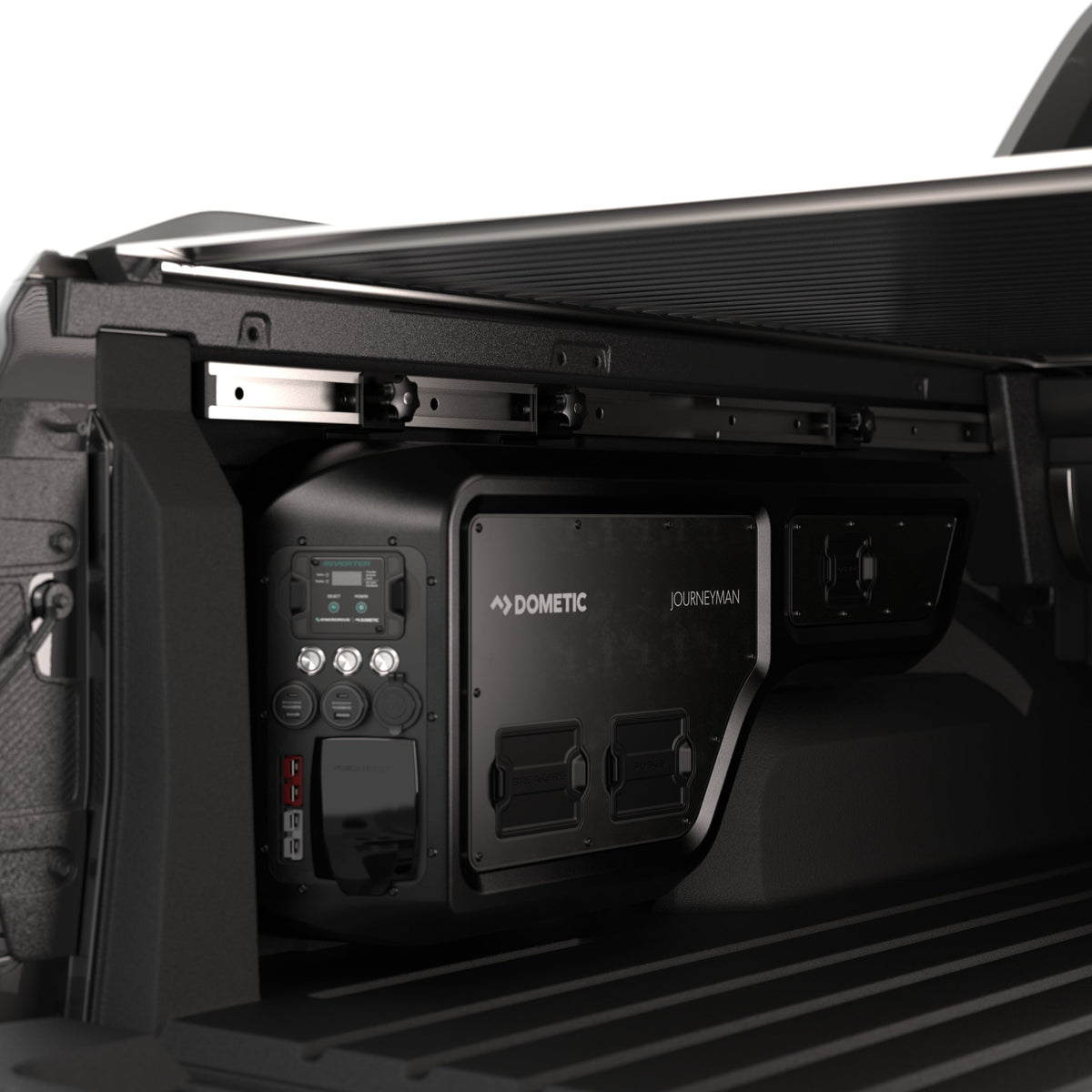

Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok without Tub Rails
SKU: JM-RAN-AMA-01For 2022-on Ford Ranger Next Gen and VW Amarok utes that didn't come with OEM tub rails. Includes the rail and the brackets, all designed to bolt straight into the factory mounting locations on your tub.
Fits: Ranger XL, XLS and other variants without factory rails. Not sure? If your tub side walls are smooth and have no pre-installed rails, this is your kit.

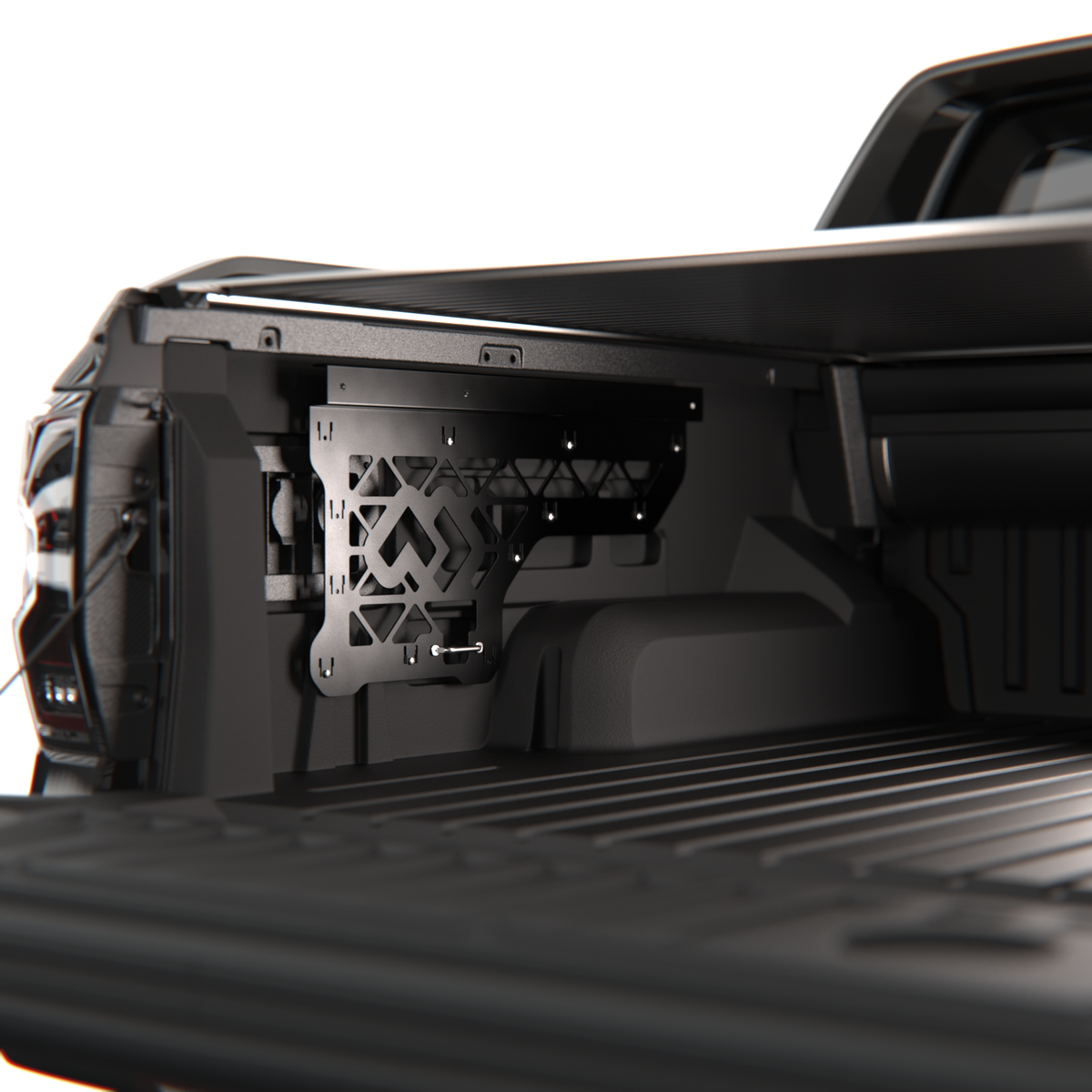

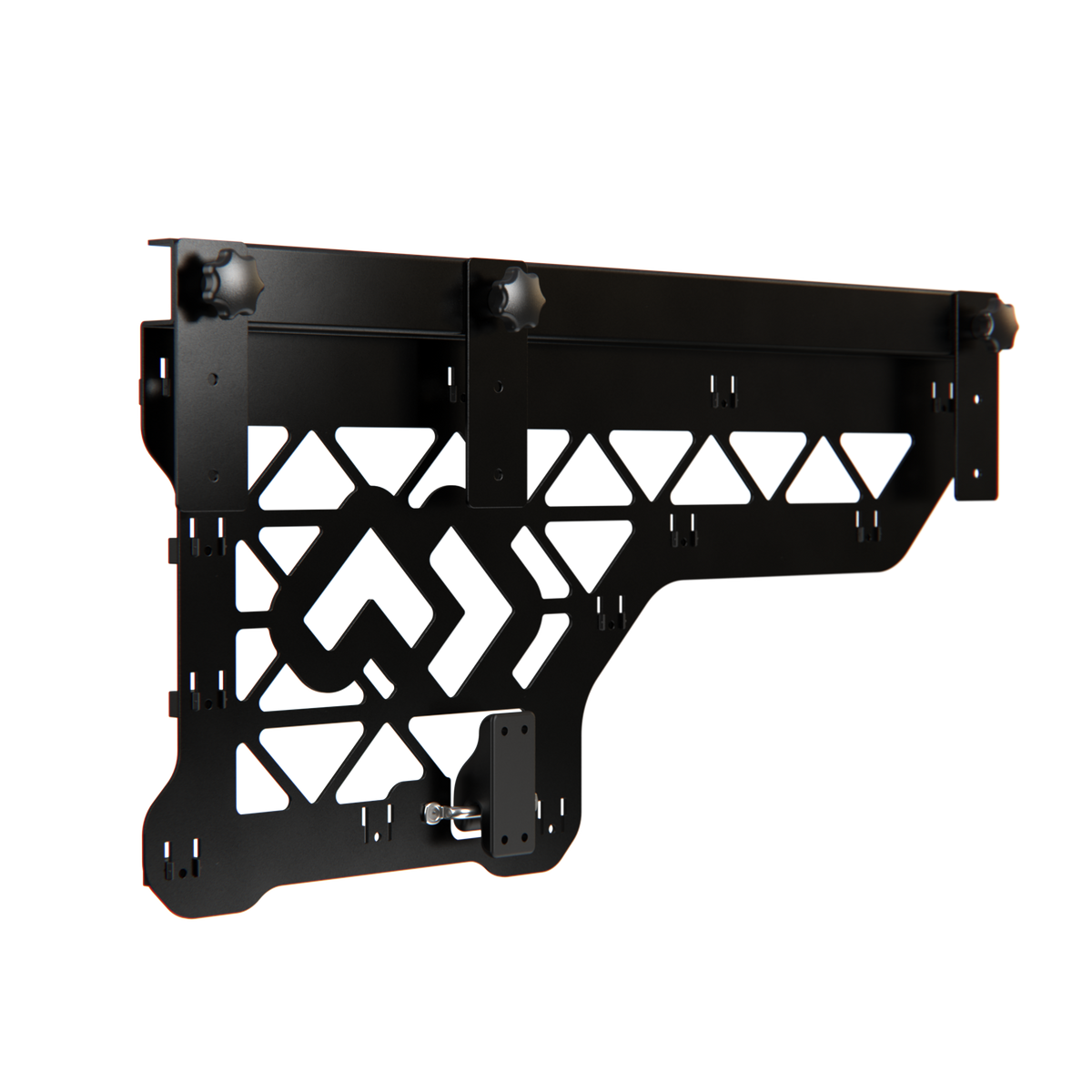

Journeyman Universal Mounting Kit
SKU: JM-MOUNTKIT-01For every ute that isn't a Next Gen Ranger or Amarok. Includes a mounting plate that fixes to the side wall of your tub, plus the brackets that secure the Journeyman to the plate. The plate replicates the rail spacing of our vehicle-specific kits, so the install looks and feels just as neat.
Fits: Toyota HiLux, Isuzu D-MAX, Mitsubishi Triton, Mazda BT-50, Nissan Navara and other dual cab utes with a factory tub.
Cable Kits
Once the Journeyman is mounted, connect it to your auxiliary battery with one of these pre-made cable kits. Choose the length that suits the distance between your battery and your Journeyman.
Journeyman Battery Cable Kit — 1.5 m
SKU: ENC-JM-70-1500MM70 mm² heavy-gauge cable, 1.5 metres long. Use this kit when your auxiliary battery sits close to the Journeyman in the tub. Includes a 175 A Anderson connector, 8 mm cable lugs and an inline fuse for full circuit protection.
Pick this if: Battery mounted under the Journeyman or against the same cab wall.
Journeyman Battery Cable Kit — 2.6 m
SKU: ENC-JM-70-2600MM70 mm² heavy-gauge cable, 2.6 metres long. Use this kit when your auxiliary battery sits further back in the tub or in a separate battery compartment. Includes a 175 A Anderson connector, 8 mm cable lugs and an inline fuse for full circuit protection.
Pick this if: Battery in the rear of the tub, under the tray, or in a dedicated battery box.
