Dometic

Journeyman Ute Tub Power System

$4,413.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:K-JOURNEYMAN-01

Mounting Bracket None Universal Mounting Bracket

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Journeyman combines a 2000W inverter, 40A DC-DC MPPT into a single, plug-and-play unit.

Product Details

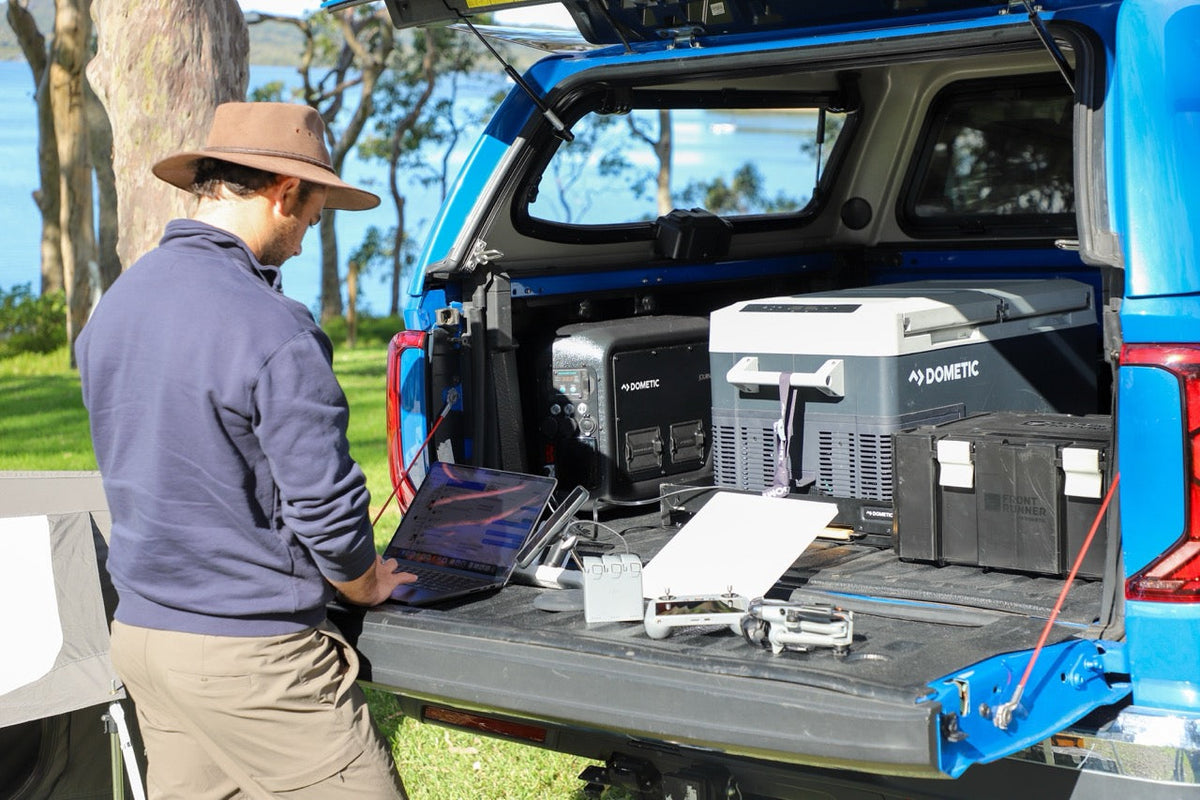

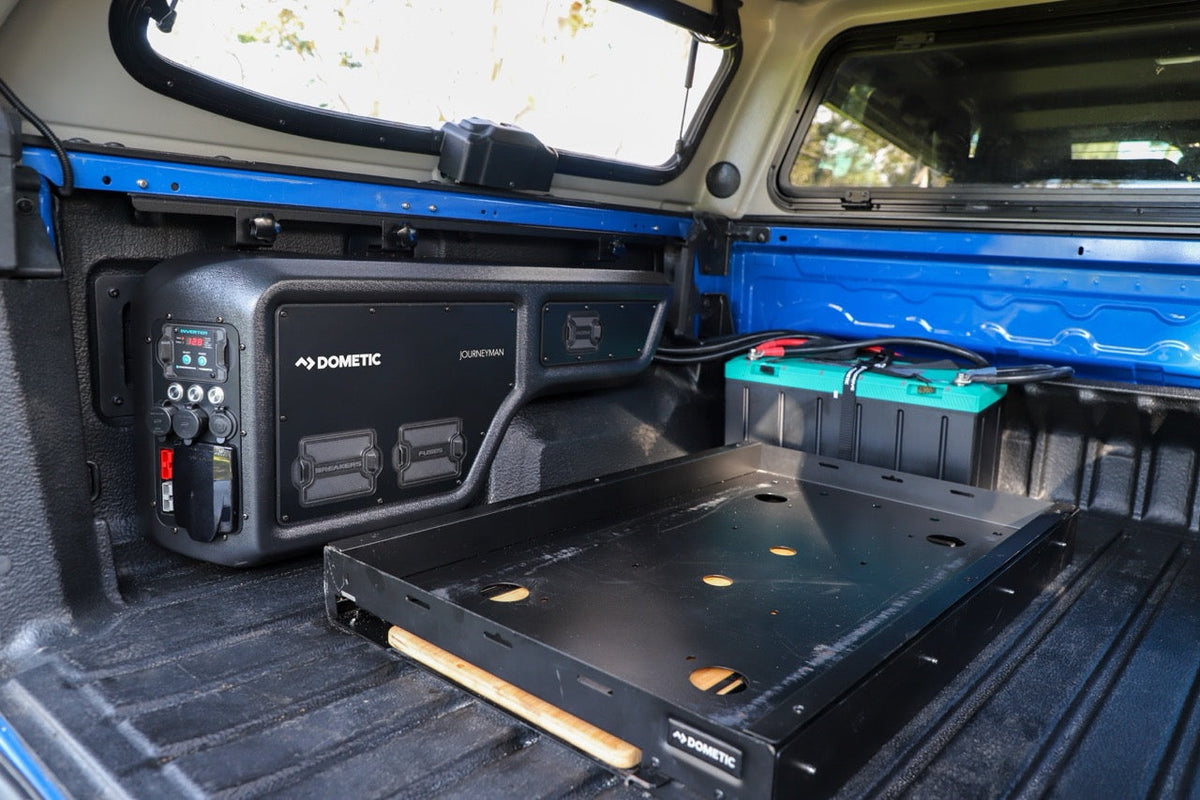

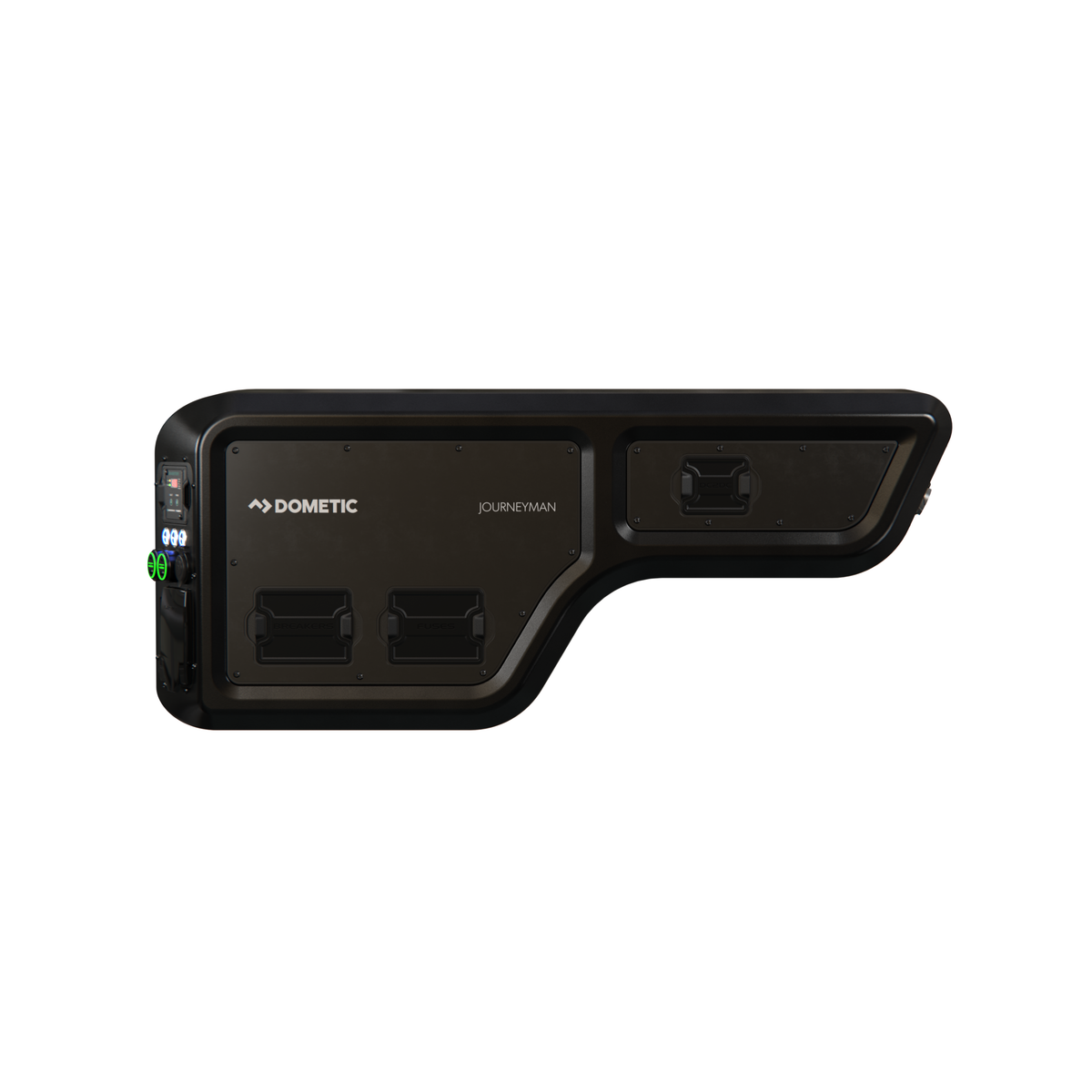

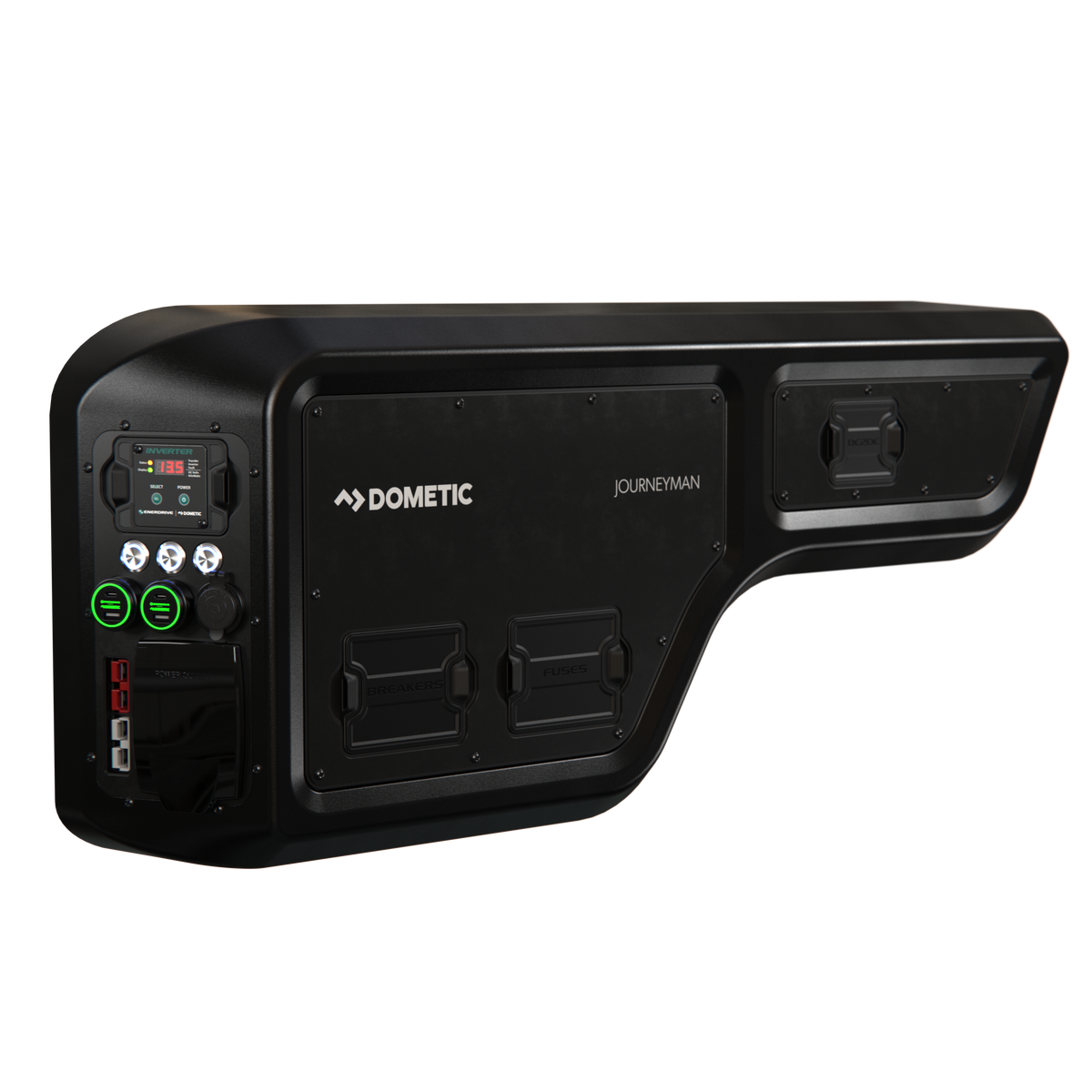

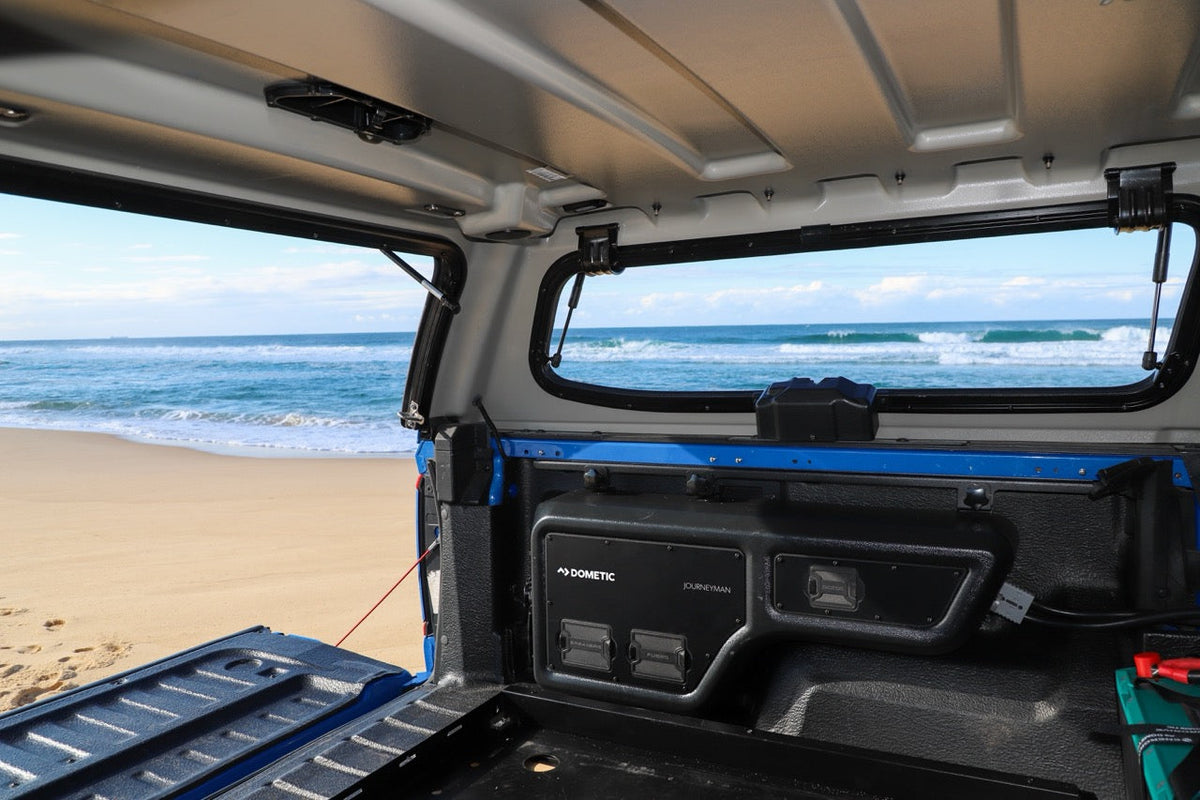

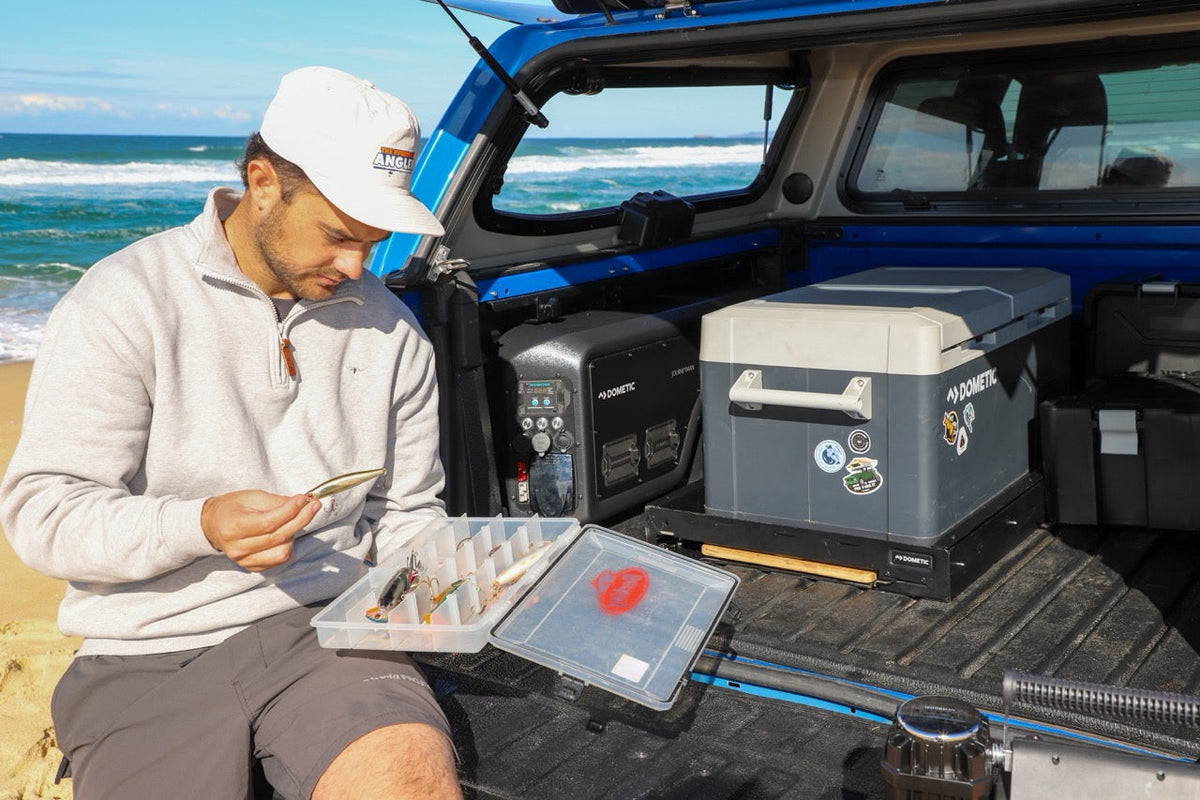

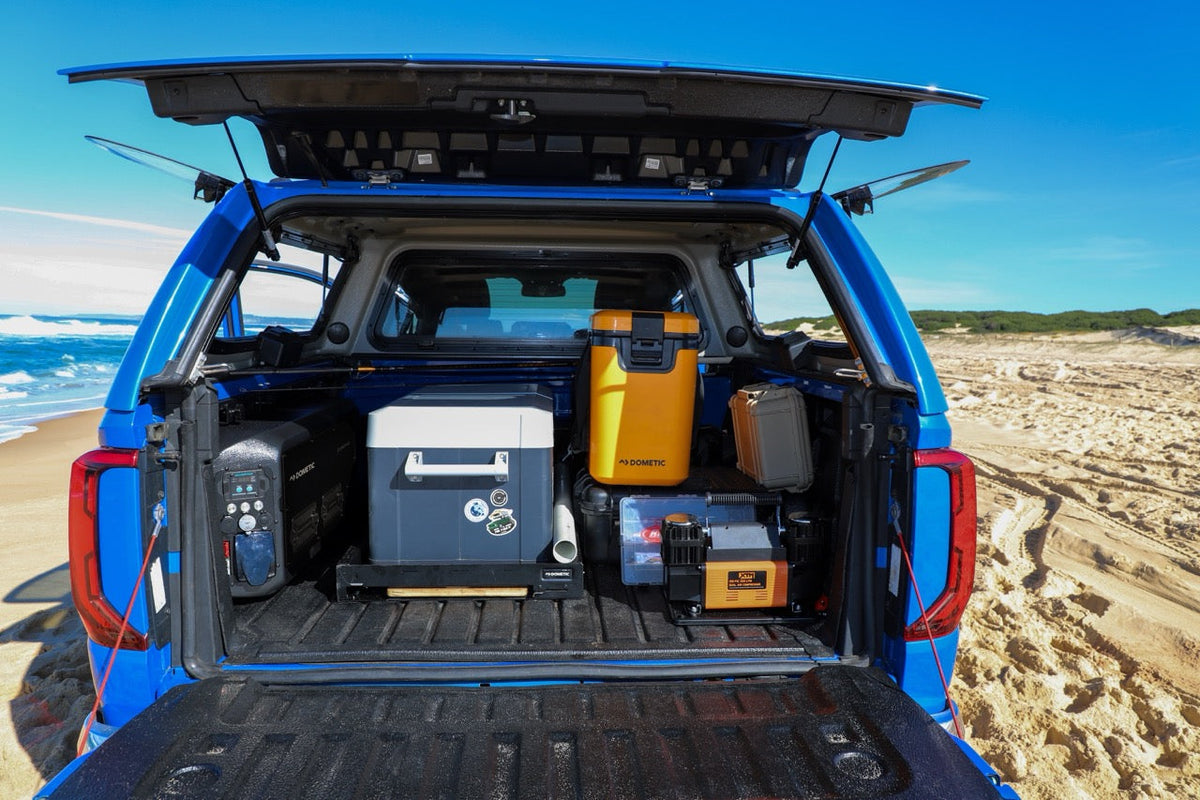

The Dometic Journeyman is a pre-wired ute tub power system designed to keep your gear powered on the road and off the beaten track. It combines a 2000W 230V AC transfer inverter with a 40A+ DC-DC vehicle and solar charger with MPPT, helping reduce installation time, cabling and space requirements.

Power your equipment through 12V, USB-A, USB-C and 230V outputs, and charge your battery from your vehicle or solar. Designed, engineered and assembled in Brisbane, Australia, the Journeyman comes with a five-year warranty.

Engineered for ute tubs
Pre-wired & ready to install

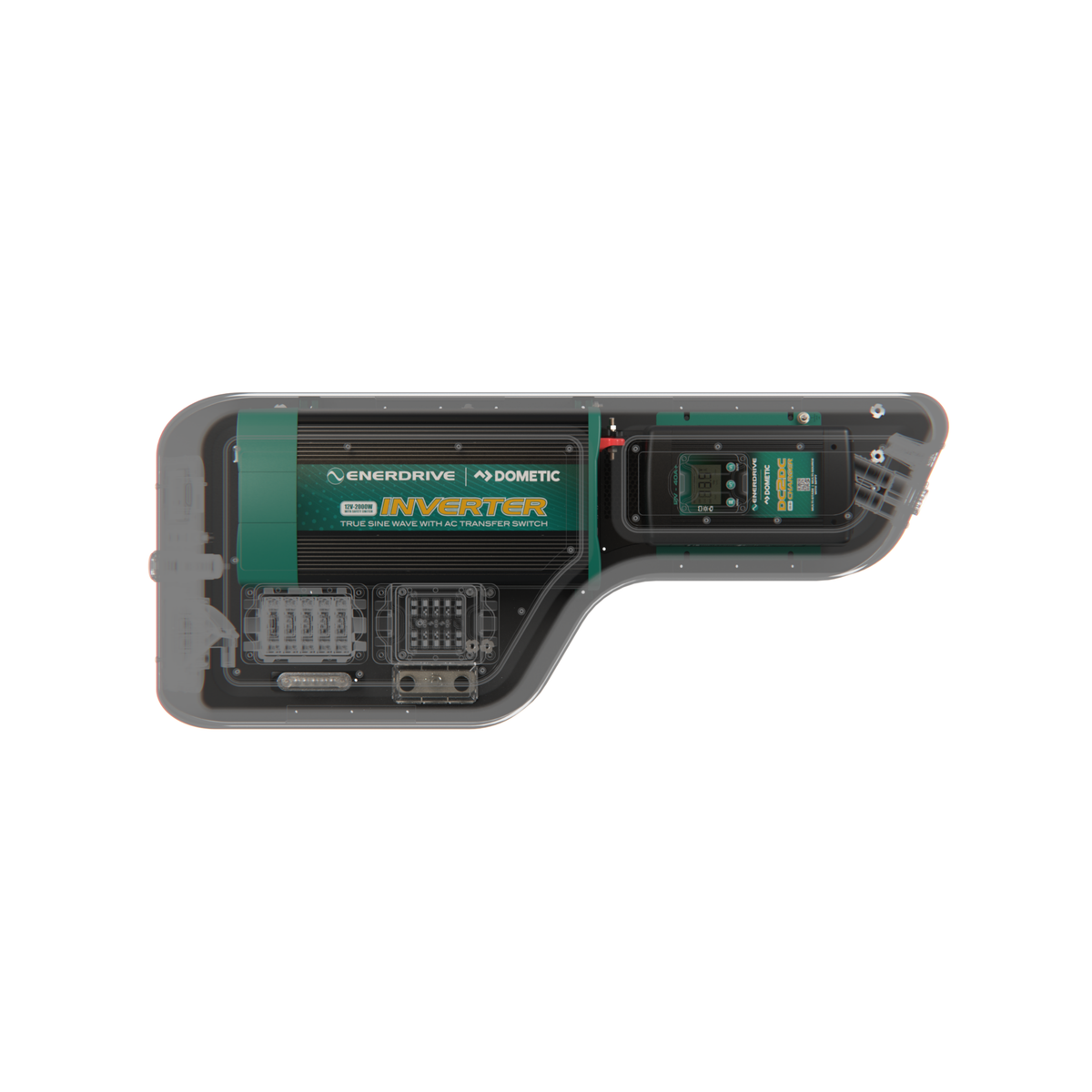

2000W 230V AC Transfer Inverter Installed (SKU: EN1120S-X)
40A+ DC-DC Vehicle/Solar Charger Installed (SKU: EN3DC40+)
12V cigarette socket output
Twin 100W USB-A & USB-C Outputs
230V Output
Designed, Engineered and Assembled in Brisbane, Australia
5 year warranty

Features

Mount Kits

Every Journeyman install starts with the right mounting kit. Pick the one that matches your ute.

Ranger / Amarok

Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok with Tub Rails

SKU: JM-RAN-AMA-02

For 2022-on Ford Ranger Next Gen and VW Amarok utes already fitted with OEM tub rails. The kit includes the brackets that attach the Journeyman directly to your existing rails — no drilling, no guesswork.

Fits: Ranger Wildtrak, Sport and Platinum (and other variants with factory rails). Not sure? Check the side walls of your tub for two pre-installed rails. If they're there, this is your kit.

Ranger / Amarok

Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok without Tub Rails

SKU: JM-RAN-AMA-01

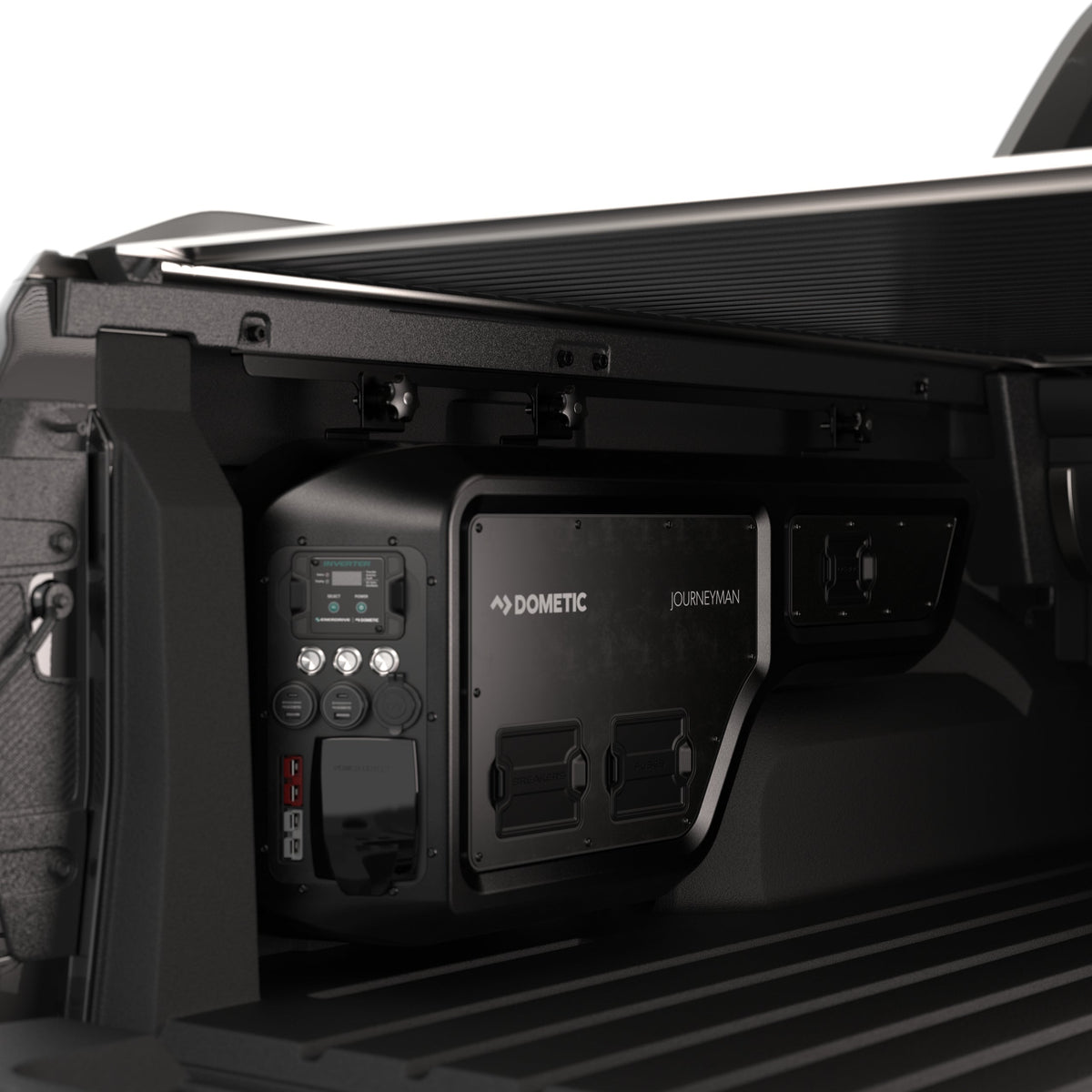

For 2022-on Ford Ranger Next Gen and VW Amarok utes that didn't come with OEM tub rails. Includes the rail and the brackets, all designed to bolt straight into the factory mounting locations on your tub.

Fits: Ranger XL, XLS and other variants without factory rails. Not sure? If your tub side walls are smooth and have no pre-installed rails, this is your kit.

All other utes

Journeyman Universal Mounting Kit

SKU: JM-MOUNTKIT-01

For every ute that isn't a Next Gen Ranger or Amarok. Includes a mounting plate that fixes to the side wall of your tub, plus the brackets that secure the Journeyman to the plate. The plate replicates the rail spacing of our vehicle-specific kits, so the install looks and feels just as neat.

Fits: Toyota HiLux, Isuzu D-MAX, Mitsubishi Triton, Mazda BT-50, Nissan Navara and other dual cab utes with a factory tub.

Cable Kits

Once the Journeyman is mounted, connect it to your auxiliary battery with one of these pre-made cable kits. Choose the length that suits the distance between your battery and your Journeyman.

1.5 metres

Journeyman Battery Cable Kit — 1.5 m

SKU: ENC-JM-70-1500MM

70 mm² heavy-gauge cable, 1.5 metres long. Use this kit when your auxiliary battery sits close to the Journeyman in the tub. Includes a 175 A Anderson connector, 8 mm cable lugs and an inline fuse for full circuit protection.

Pick this if: Battery mounted under the Journeyman or against the same cab wall.

2.6 metres

Journeyman Battery Cable Kit — 2.6 m

SKU: ENC-JM-70-2600MM

70 mm² heavy-gauge cable, 2.6 metres long. Use this kit when your auxiliary battery sits further back in the tub or in a separate battery compartment. Includes a 175 A Anderson connector, 8 mm cable lugs and an inline fuse for full circuit protection.

Pick this if: Battery in the rear of the tub, under the tray, or in a dedicated battery box.

Need a hand choosing? Your nearest Dometic installer can confirm the right mount and cable length for your ute. Find your nearest installer →

Specifications

4x4 Canopy Power Systems Comparison

SKU / Items Included	Journeyman	Explorer	Traveller	Lackey	Adventurer	Voyager	Voyager Digital	Salty One x Adventurer	Salty One x Voyager	Commercial Power System
SKU	K-JOURNEYMAN-01	K-EXPLORER-01, K-EXPLORER-02, K-EXPLORER-03	K-TRAVELLER-01, K-TRAVELLER-02, K-TRAVELLER-03	K-LACKEY-02	K-ADVENTURER-01, K-ADVENTURER-02, K-ADVENTURER-03	K-V3L01, K-V3R01, K-V3T01	K-V3L02, K-V3R02	K-ADVENTURER-03-L-S01, K-ADVENTURER-03-R-S01	K-V3L01-S01, K-V3R01-S01	K-CPS-01, K-CPS-02
DC Battery Charger	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)
AC Battery Charger	N/A	N/A	12V 40A AC Battery Charger	N/A	12V 40A AC Battery Charger	12V 100A AC Battery Charger	12V 100A AC Battery Charger	12V 40A AC Battery Charger	12V 100A AC Battery Charger	12V 40A AC Battery Charger
Solar Charge Input (Solar ready)	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Lithium Battery ready	✓	✓	✓	✓	✓	✓	✓	✓	✓	Supplied with B-TEC 12V 200Ah Slimline Lithium Battery
Inverter	2000W AC Transfer Inverter with Inbuilt RCD Safety Switch	N/A	N/A	2000W AC Transfer Inverter with Inbuilt RCD Safety Switch	2000W AC Transfer Inverter with Inbuilt RCD Safety Switch	3000W/100A Inverter-Charger	3000W/100A Inverter-Charger	2000W AC Transfer Inverter with Inbuilt RCD Safety Switch	3000W/100A Inverter-Charger	2000W Inverter
Battery Monitor		ePRO+ Battery Monitor (K-EXPLORER-01)	ePRO+ Battery Monitor (K-TRAVELLER-01)		ePRO+ Battery Monitor (K-ADVENTURER-01)	Simarine PICO	Simarine PICO	Simarine PICO	Simarine PICO	ePRO+ Battery Monitor
Simarine LCD Touch Screen WiFi Battery Monitoring System		K-EXPLORER-02 K-EXPLORER-03	K-TRAVELLER-02 K-TRAVELLER-03		K-ADVENTURER-02 K-ADVENTURER-03	✓	✓	✓	✓
Pre-Wired Circuit Breakers for Main Power Equipment	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Switches	3 x 10A Pushbutton with Indicator Light	4 x Contura Water Resistant Rocker Switches	4 x Contura Water Resistant Rocker Switches		4 x Contura Water Resistant Rocker Switches	4 x Contura Water Resistant Rocker Switches	6 x Digital Switches - Garmin PowerSwitch™ Digital Switch	4 x Contura Water Resistant Rocker Switches	4 x Contura Water Resistant Rocker Switches
Integrated Light Bar						Sold separately	✓		Sold separately
4 x Customisable Laser-etched Rocker Switches		✓	✓		✓	✓		✓	✓
Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse		✓	✓
Pre-wired 70mm2 Main Battery Cable Connection with Main DC Fuse	✓ (with 175A Anderson Plug Socket)			✓ (with 175A Anderson Plug Socket)	✓			✓
Pre-wired Fridge 50A Anderson Plug connection	✓	✓	✓			✓	✓		✓
USB Socket Output	Twin USB-A & C 100W Sockets (x2)	Twin USB-A 2.4A Hi Amp Sockets	Twin USB-A 2.4A Hi Amp Sockets	Twin USB-A 2.4A Hi Amp Sockets (x2)	Twin USB-A 2.4A Hi Amp Sockets	Twin USB-A 2.4A Hi Amp Sockets	2 x Dual USB-A + USB-C (Max. Output Power 100W) sockets come standard (4 x Outputs)	Dual USB-A + USB-C (Max. Output Power 100W)	Dual USB-A + USB-C (Max. Output Power 100W)	K-CPS-01 = Dual USB-A + USB-C* K-CPS-02 = 1x USB-A, 1x USB-C* *Max. Output Power 100W
Cig Socket Output	1	1	1	2	1	1	1	1	1	K-CPS-01 = 2 K-CPS-02 = 1
Anderson Plug Socket Output	1 (Front)			1		1	1		1	1
RCD Protected Powerpoint	1			1	1	2	2	1	2	K-CPS-01 = 4 K-CPS-02 = 2
Battery Reset Button		✓	✓		✓		✓	✓		✓
Individual Load/Charge Module for Simarine (SKU: SI-SCQ50)		K-EXPLORER-03	K-TRAVELLER-03		K-ADVENTURER-03	✓	✓	✓	✓
Water/Fuel Tank monitoring for Simarine - 2x resistance inputs included with SI-SC303		K-EXPLORER-02 (Included) K-EXPLORER-03 (Included)	K-TRAVELLER-02 (Included) K-TRAVELLER-03 (Included)		K-ADVENTURER-02 (Included) K-ADVENTURER-03 (Included)	Included	Included	Included	Included
Water/Fuel Tank Module for Simarine. 4x resistance inputs 3x voltage (SKU: SI-ST107)		K-EXPLORER-02 (Optional) K-EXPLORER-03 (Optional)	K-TRAVELLER-02 (Optional) K-TRAVELLER-03 (Optional)		K-ADVENTURER-02 (Optional) K-ADVENTURER-03 (Optional)	Optional	Optional	Optional	Optional
Low Battery Cutout DC Loads 60A				✓
Load Output 50A Circuit Breaker	✓			✓		✓	✓		✓	✓
Ignition Input for Smart Alternator Equipped Vehicles	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.	Yes. Requires connection.
2000W Inverter 200A Input Circuit Breaker	✓			✓	✓			✓		✓
3000W Inverter 300A Input Circuit Breaker						✓	✓		✓
Dimensions	911L x 165W x 390H	455L x 155W x 330H mm	685L x 155W x 330H mm	590L x 415W x 135D mm	630L x 155W x 665H mm	830W x 700H x 155D mm	830W x 700H x 155D mm	630L x 155W x 665H mm	830W x 700H x 155D mm	K-CPS-01 = 730L x 630W x 250H mm K-CPS-02 = 730H x 630D x 250W mm
Weight	20.0kg	7.0kg	10.5kg	15.0kg	18.0kg	28.5kg	28.5kg	18.0kg	28.5kg	60.0kg
Orientation	Left	Left, Right, Top (Ceiling) variants	Left, Right, Top (Ceiling) variants	Left, Right	Left, Right	Left, Right, Top (Ceiling)	Left, Right	Left, Right	Left, Right	K-CPS-01 = Horizontal K-CPS-02 = Upright
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years
(✓) or (SKU) Indicates Standard Fitment
