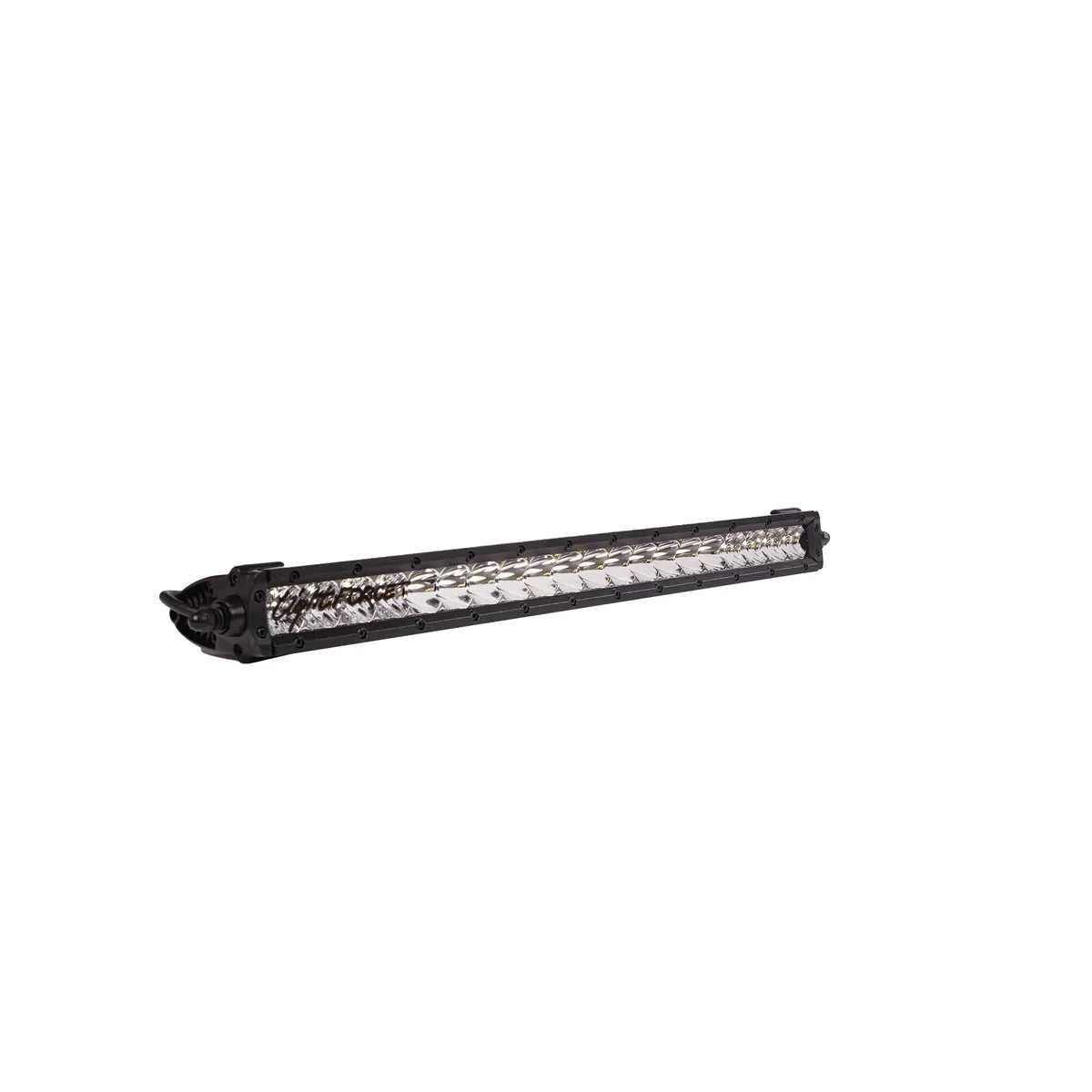

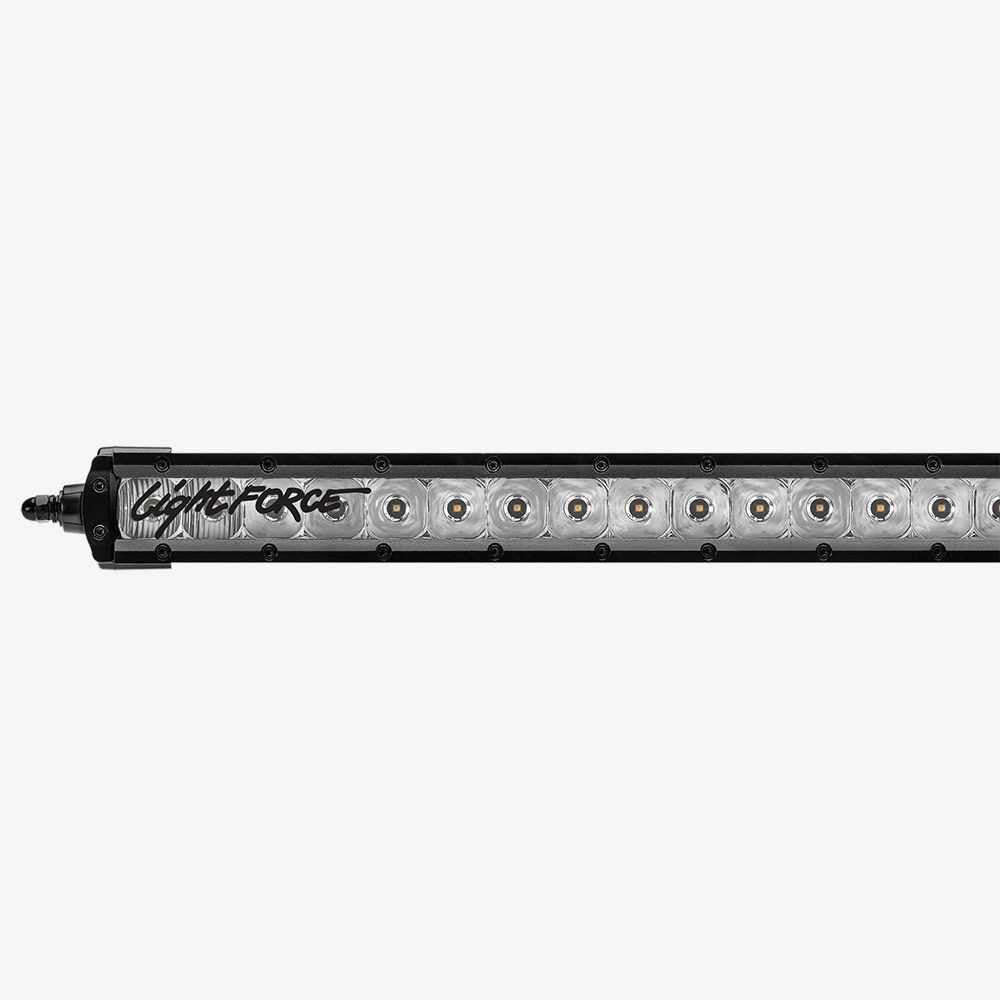

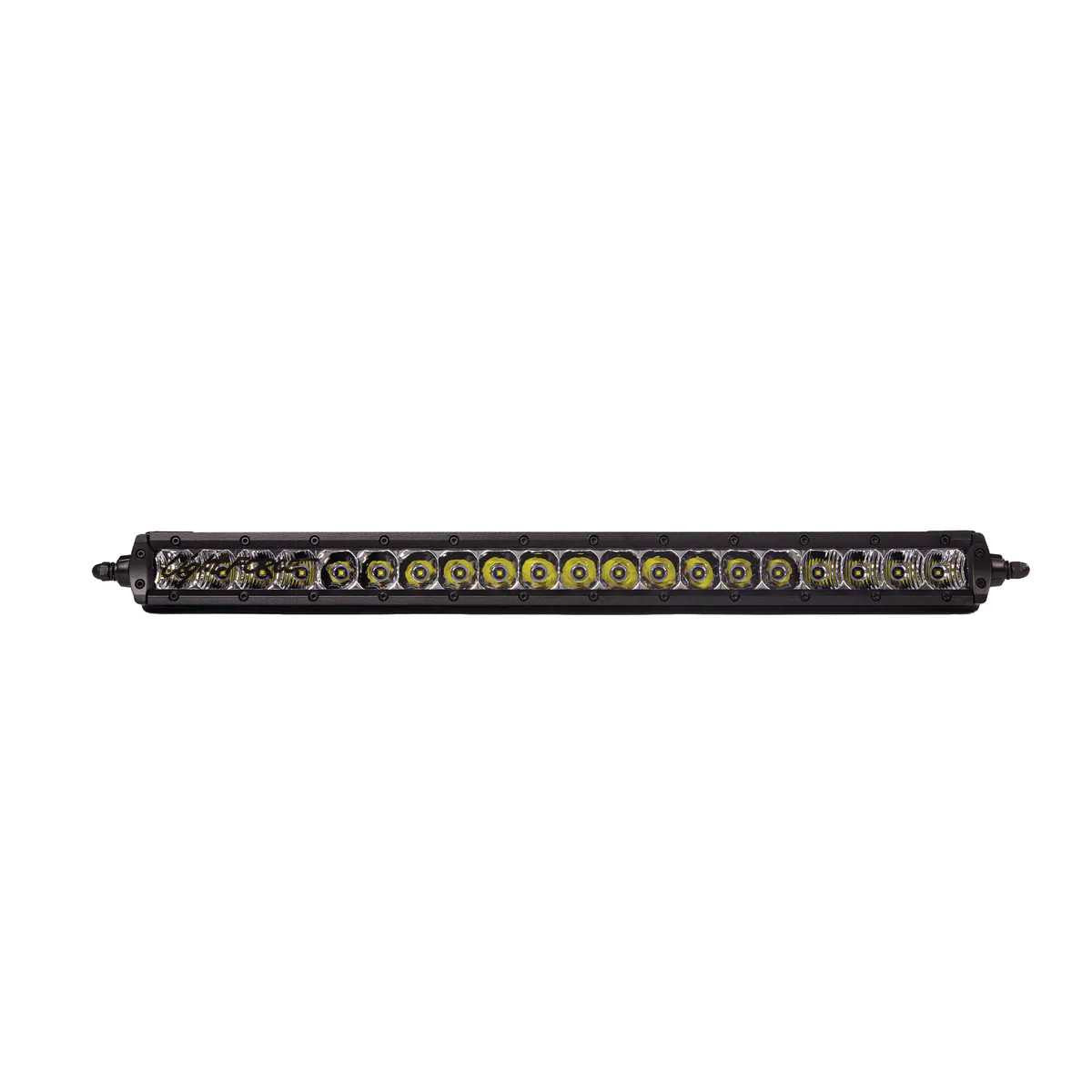

Lightforce 20" Single Row 4WD LED Driving Light Bar | 1 Lux @404M | 100W IP69K

Lightforce 20" Single Row 4WD Driving LED Light Bar | 1 Lux @404M | 100W IP69K

Lightforce performance is now available in our new black-bezel LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.

FEATURES

Extruded aluminium body with black anodized coating

IP69K rated to protect against moisture / contaminant ingress

Hard coated, scratch and high impact resistant polycarbonate lens

Custom moulded strain relief connector fitted to military spec cable

Genuine Gore® waterproof membrane with mechanical seal

Over, under and reverse voltage protection

Pulse width modulation thermal management circuitry

Protected against electromagnetic and radio frequency interference (RFI)

Stainless steel brackets and mounting hardware

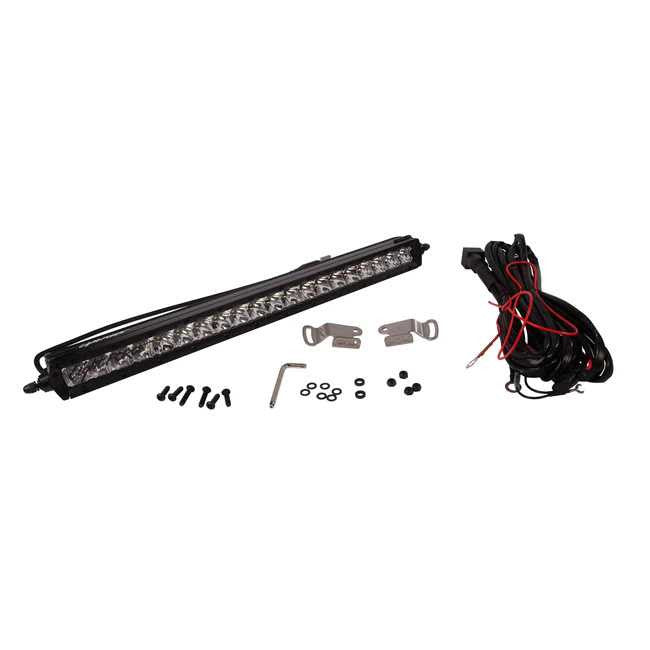

Comprehensive wiring harness

Broad operating voltage range of 10 ~ 36 volts

Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)

Deutsch waterproof connectors

RoHS certified

SPECIFICATIONS

Distance: 1 lux at

404m

Distance: 0.25 lux at

808m

Effective Lumens

4390

Raw Lumens

5600

Colour Temperature

5000K

Current Draw

7Amps @ 13.2V

Voltage Range

10V - 36V DC

Wattage

100W

Ingress Protection Rating

IP69K

Weight

1.22kg
