• m-LVD Low Voltage Disconnect
1 1

Dometic

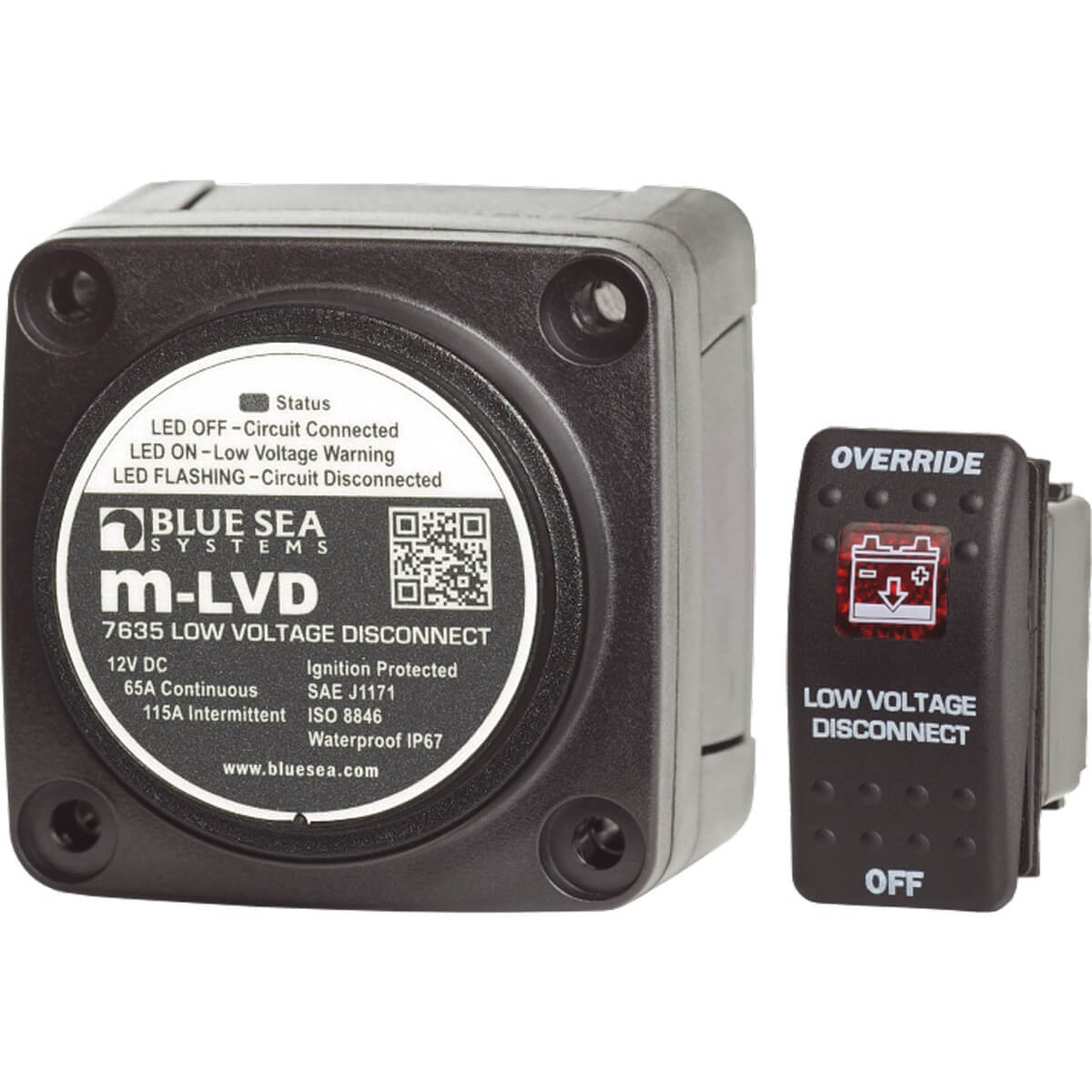

m-LVD Low Voltage Disconnect

m-LVD Low Voltage Disconnect

$181.00 AUD
$181.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

BS-7635

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life.

Features

m-LVD Low Voltage Disconnect

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don’t get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

  • Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
  • Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
  • Remote Control Switch Functions:
  • Disconnect Voltage Adjustment – Sets desired disconnect voltage
  • Override – Temporarily delays circuit disconnect for 10 minutes
  • OFF – Temporarily disconnects circuits until voltage rises
  • Override or OFF – Silences alarm (optional alarm required)
  • Case design allows surface, front panel, or rear panel mounting
  • Rear insulating cover protects rear contacts
  • Waterproof – rated IP67 for temporary immersion

Specifications

m-LVD Low Voltage Disconnect
Nominal Voltage 12V DC
Amperage Operating Current 95mA (Connected) 4mA (Open)
Terminal Stud Torque 60 in-lb (6.78 Nm)
Continuous Rating 65A
Intermittent Rating 115A (5 Min)
Maximum Cable Size 1/0 AWG (50mm2)
Terminal Stud Length 7/16 in (11.11 mm)
Terminal Stud Size 1/4″ – 20 (M6)
Weight 0.77lb (0.35 kg)

Manuals, Safety Information And Downloads

View full details
