• Mini Clamp Multimeter - AC/DC
1 1

Dometic

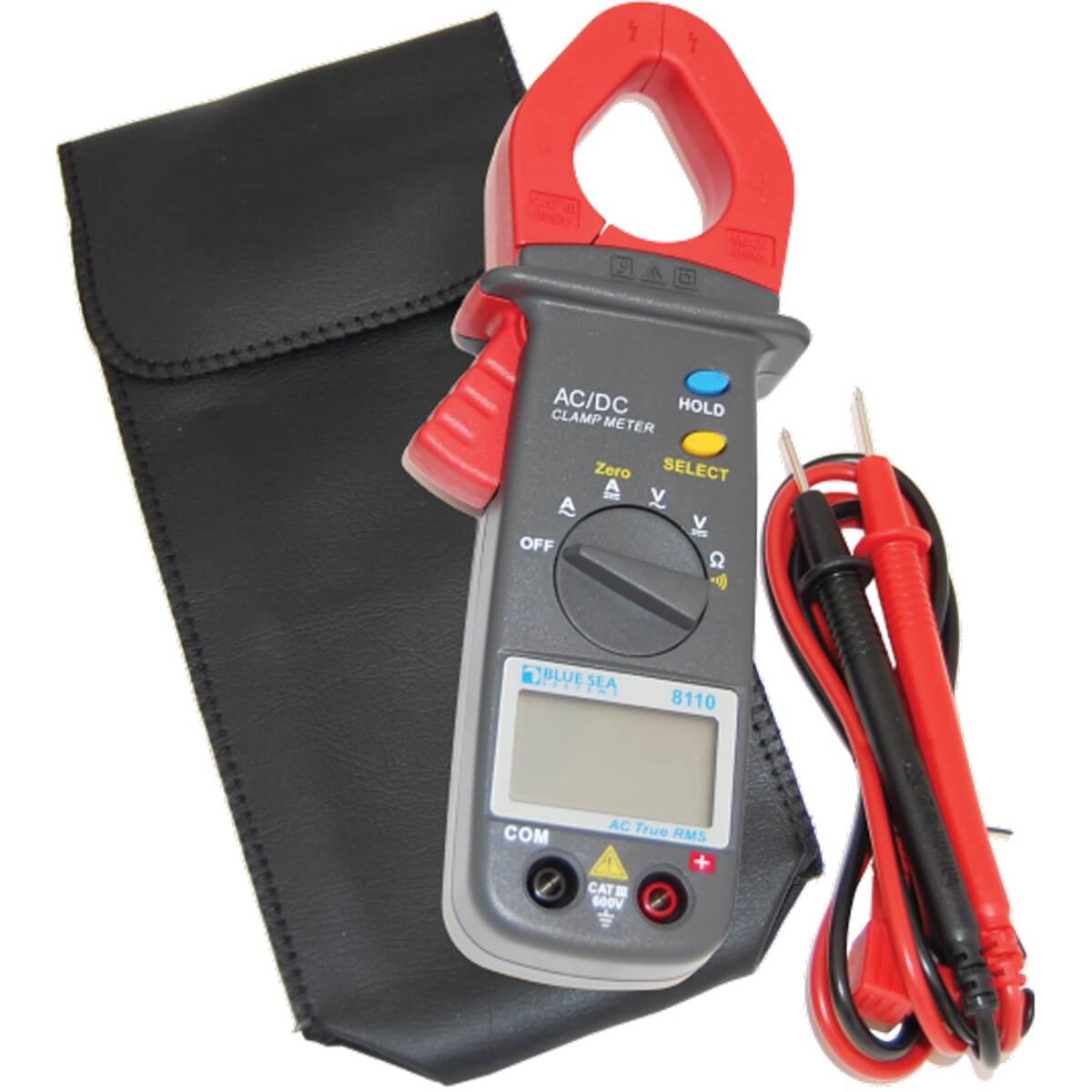

Mini Clamp Multimeter - AC/DC

Mini Clamp Multimeter - AC/DC

$367.00 AUD
$367.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

BS-8110B

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

  • Clamp allows measurement of AC and DC current in wires without disturbing the circuits or contacting live terminals
  • Auto range simplifies operation: 0.01-400 Amps, 0.001-600 Volts
  • Auto power-off selection – power turns off automatically after 10 minutes of non-use
  • True RMS – required for accurate measurement of inverter output
  • Large digital display makes reading measurements easy
  • Data hold – press “HOLD” button during measurement to lock reading value
  • Test leads included with meter

Features

Mini Clamp Multimeter – AC/DC
  • Clamp allows measurement of AC and DC current in wires without disturbing the circuits or contacting live terminals
  • Auto range simplifies operation: 0.01-400 Amps, 0.001-600 Volts
  • Auto power-off selection – power turns off automatically after 10 minutes of non-use
  • True RMS – required for accurate measurement of inverter output
  • Large digital display makes reading measurements easy
  • Data hold – press “HOLD” button during measurement to lock reading value
  • Test leads included with meter

Specifications

Mini Clamp Multimeter – AC/DC
Amperage 0.01-400A AC
0.01-400A DC
Voltage 0.001-600V AC
0.001-600V DC
Low Battery Indicator Yes
Maximum Clamp Size 30mm (1.18 in)
Measurement Resolution 4300 Counts
Operating Elevation up to 2000m above sea level
Operating Humidity Below 80% RH (no condensation)
Operating Temperature Range 0-50C (32-122F)
Range Auto
Resistance/Continuity Alarm 0.1-40MΩ
Sampling Rate Approximately 2 times/second
Weight 0.21 kg
