Morningstar EcoBoost MPPT Solar Controller - Metered - SR-EB-MPPT-20M
Morningstar EcoBoost MPPT Solar Controller - Metered - SR-EB-MPPT-20M
SKU:SR-EB-MPPT-20M
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details

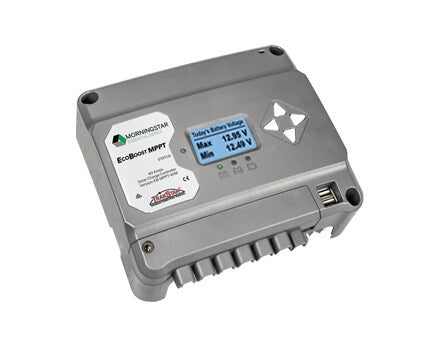

The EcoBoost MPPT™ solar charge controller brings Morningstar’s proprietary TrakStar Technology™ to our new line of Essentials controllers and accessories. The EcoBoost controllers automatically detect 12 or 24 V system configuration. They are highly efficient and accurate controllers designed to ensure that batteries attain a complete state of charge. They are also sophisticated load controllers. Using this feature to manage DC power consumption protects the batteries from over discharge and helps ensure long term system reliability. Small DC loads can be powered directly from the EcoBoost by way of two USB charging ports.
Morningstar EcoBoost controllers act as the central brain of PV powered DC electrical systems up to 1,120 watts and offer outstanding value, performance and dependability.
Accessories
| Description | |
|---|---|
 |
Remote Temperature Sensor (RTS) |
Note: Specifications subject to change without notice
Features
The EcoBoost MPPT™ is a Maximum Power Point Tracking (MPPT) solar charge controller within Morningstar’s Essential Series™. This controller was developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers. Metered and non-metered versions of this product are available at 20, 30, and 40 amp charge ratings for 12 and 24 volt battery systems.
- Two USB-A ports for charging multiple mobile phones/tablets
- 3 Amps of USB charging capacity
- Metered and non-metered versions
- Four stage battery charging
- Dusk ‘til dawn lighting control
- Load control
- Electronic and environmental protections
- Wide operating temperature range
Specifications
| Morningstar EcoBoost MPPT 20amp | Morningstar EcoBoost MPPT 30amp | Morningstar EcoBoost MPPT 40amp | |
|---|---|---|---|
| SKU | SR-EB-MPPT-20M | SR-EB-MPPT-30M | SR-EB-MPPT-40M |
| Electrical | |||
| Nominal Battery Voltage | 12V or 24V auto-detect | ||
| Battery Voltage Range | 10-35V | ||
| Voltage Accuracy | <= 0.1% +/- 50mV | ||
| Maximum Battery Current | 10A, 20A or 30A | ||
| Maximum PV open-circuit voltage | 120V | ||
| Load Current Rating | 10A, 20A or 30A | ||
| Self-Consumption | <1.2 Watts | ||
| LED Indications | (1) status, (3) Battery state of charge | ||
| Transient Surge Protection | 1500 Watts (solar, battery, load) | ||
| Environmental | |||
| Operating Temperature | -40°C to + 60°C | ||
| Storage Temperature | -40°C to + 80°C | ||
| Humidity | 100% non-condensing | ||
| Tropicalization | conformal coating, marine-rated terminals | ||
| Mechanical | |||
| Dimensions (W x L x D) | 196 x 173 x 71 cm | ||
| Weight | 1.4 kg | ||
| Wire Size Range | Power Terminals: 2.5 – 16 mm2 / 14 – 6 AWG Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG |
||
| Enclosure | IP20, Type 1 | ||
| Electronic Protections | |||
| Solar Input | overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current | ||
| Load Output | overload, short-circuit, high temperature, reverse polarity | ||
| Battery | reverse polarity (no battery removal) | ||
| Battery Charging | |||
| 4-Stage charging | Bulk, Absorption, Float, Equalize | ||
| Temperature Compensation Coefficient | -30mV/°C/12volt | ||
| Set-points | Absorption, Float, Equalize, HVD | ||
| Load & Lighting Control | |||
| Low Voltage Disconnect, Low Voltage Reconnect Settings | 11.4 V / 12.6 V or Custom (x2 for 24 volt systems) | ||
| Lighting Settings | Dusk to Dawn | ||
| Certifications | |||
| CE, TUV Listed | IEC 62109 | ||
| Meter | |||
| Resolution | 128 x 64 pixels | ||
| Viewing Area | 50 mm x 25 mm | ||
| Interactive | Yes | ||
Note: Specifications subject to change without notice.
Manuals, Safety Information And Downloads
- EcoBoost Data Sheet (1.2mb)
- Operation Manual (7.5mb)
