• Morningstar SunLight Controller - SR-SL-20L-24V
1 1

Morningstar

Morningstar SunLight Controller - SR-SL-20L-24V

Morningstar SunLight Controller - SR-SL-20L-24V

$356.00 AUD
$356.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SR-SL-20L-24V

Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

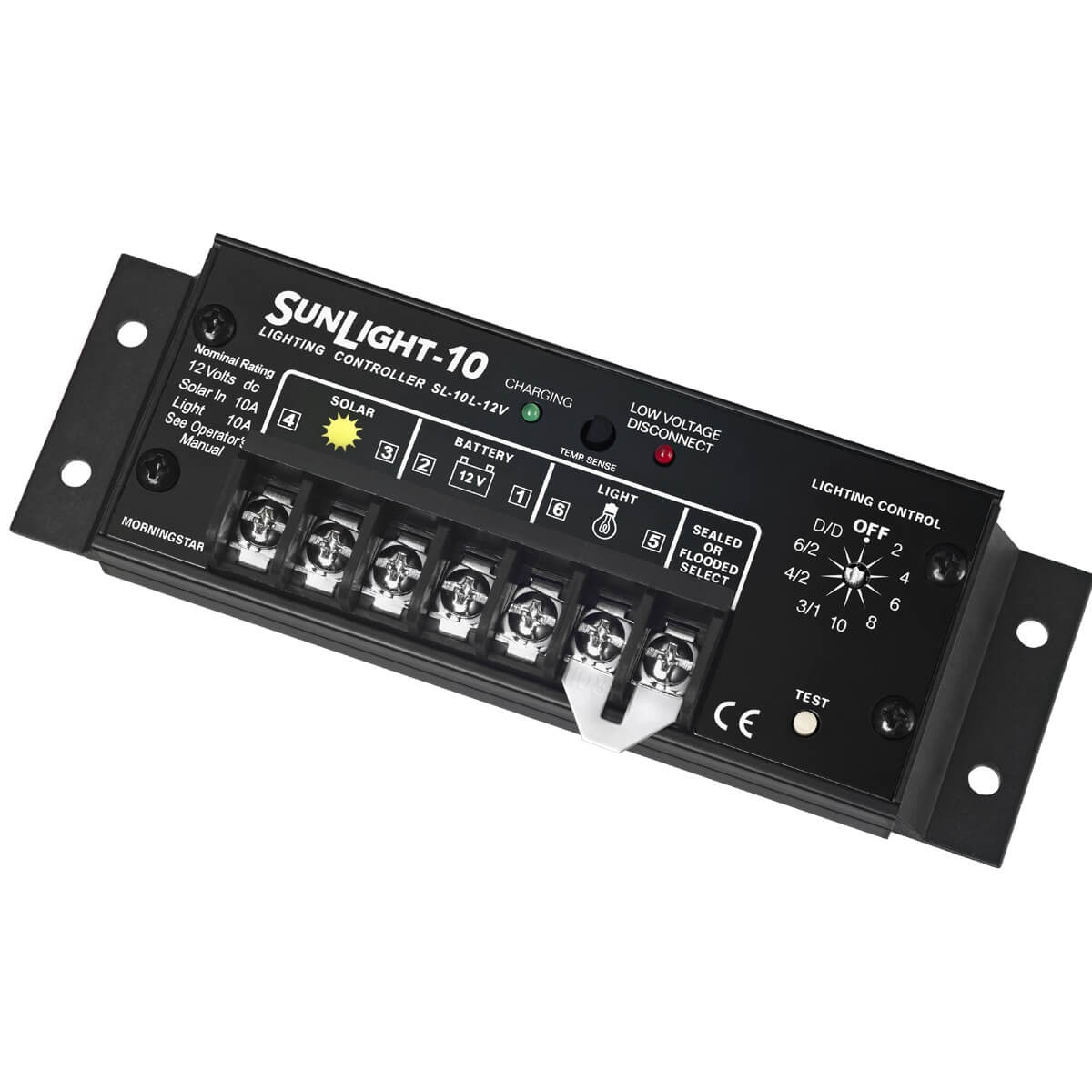

Morningstar’s SunLight™ solar lighting controller combines the SunSaver design with an advanced microcontroller for automatic lighting control functions.

Four Versions Available:
• 12 Volt: 10 and 20 amp ratings
• 24 Volt: 10 and 20 amp ratings

Additional information

SKU

SR-SL-10L-12V, SR-SL-10L-24V, SR-SL-20L-12V, SR-SL-20L-24V

Accessories

Description SL-10 SL-20 24 V
DIN Rail Clips Yes Yes Yes

Features

  • Provides 10 lighting options – User adjustable for 2 to 10 hours on or for on all night. Unique ON/OFF/ON settings conserve energy and turns light on again for 1 or 2 hours before sunrise. Timer accuracy is within 2 seconds.
  • Easy to install – To confirm correct installation, test button turns light on during the day and LED indicates selected lighting option.
  • Rugged industrial design – Epoxy encapsulated electronics, marine rated terminals and anodized aluminium case.

Specifications

Model SL-10 SL-20 SL-10 & SL-20 24 V
System Voltage 12 V 12 V 24 V
Maximum Voltage 30 V 30 V 50 V
Rated Solar Input 10A 20A n/a
PV Short Circuit Rating 12.5A 25A n/a
Rated Load 10A 20A n/a
25% Current Overload 5 minutes 5 minutes n/a
Regulation Voltage:
Sealed PWM 14.1 V 14.1 V 28.2 V
Flooded PWM 14.4 V 14.4 V 28.8 V
LVD 11.7 V 11.7 V 23.4 V
LVD Reconnect 12.8 V 12.8 V 25.6 V
Temp Compensation -27 mV/°C -27 mV/°C -54 mV/°C
Self consumption 8 mA 8 mA 9 mA
Ambient Operating Temperature –40°C to +60°C
Dimensions 16.8 x 5.5 x 3.4 cm
Warranty 5 years
