Morningstar TriStar Solar Controllers

Product Details

The TriStar™ is a three-function PWM controller for larger systems, providing reliable PWM solar battery charging or load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions. The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost to regulate battery charging in home systems and professional applications.

Features

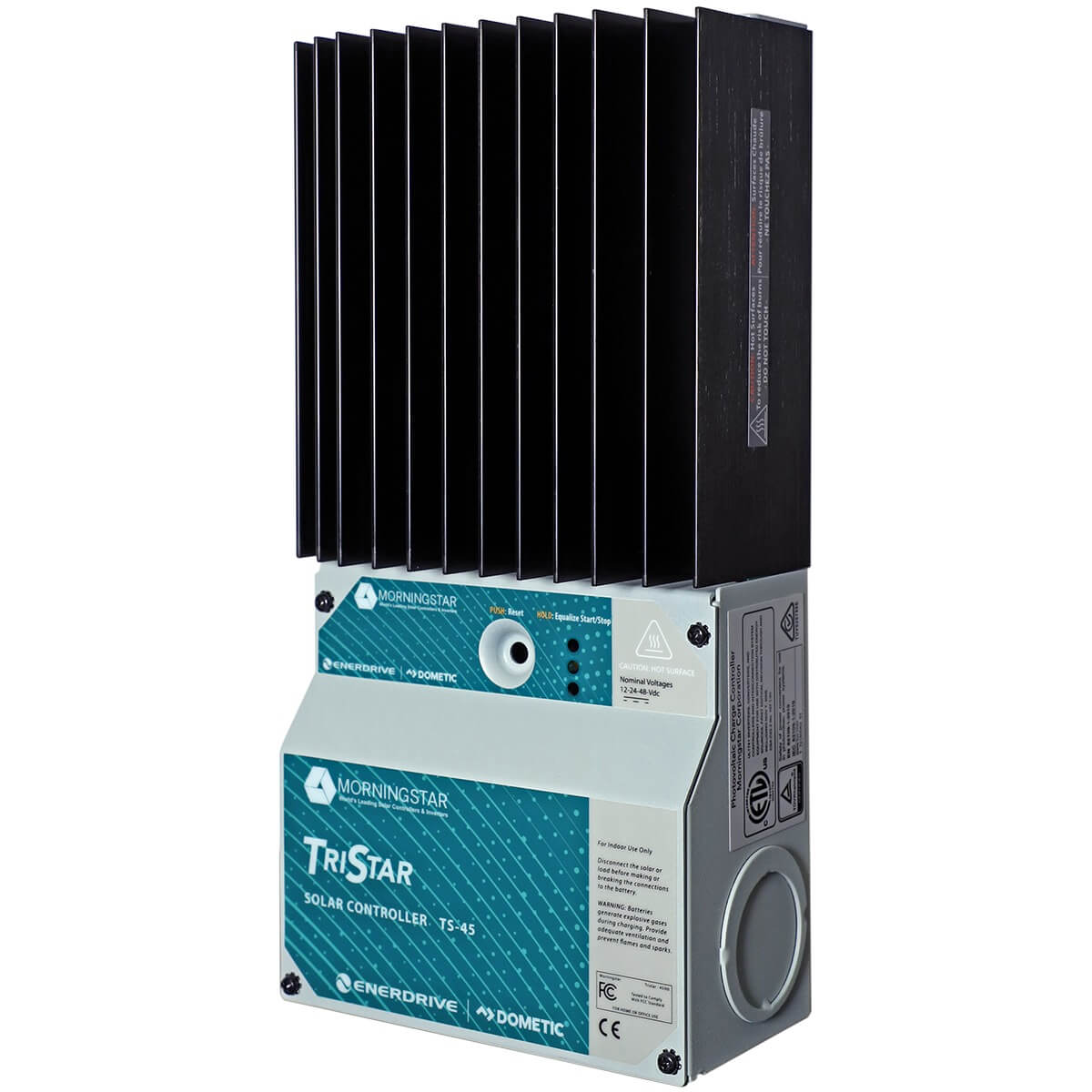

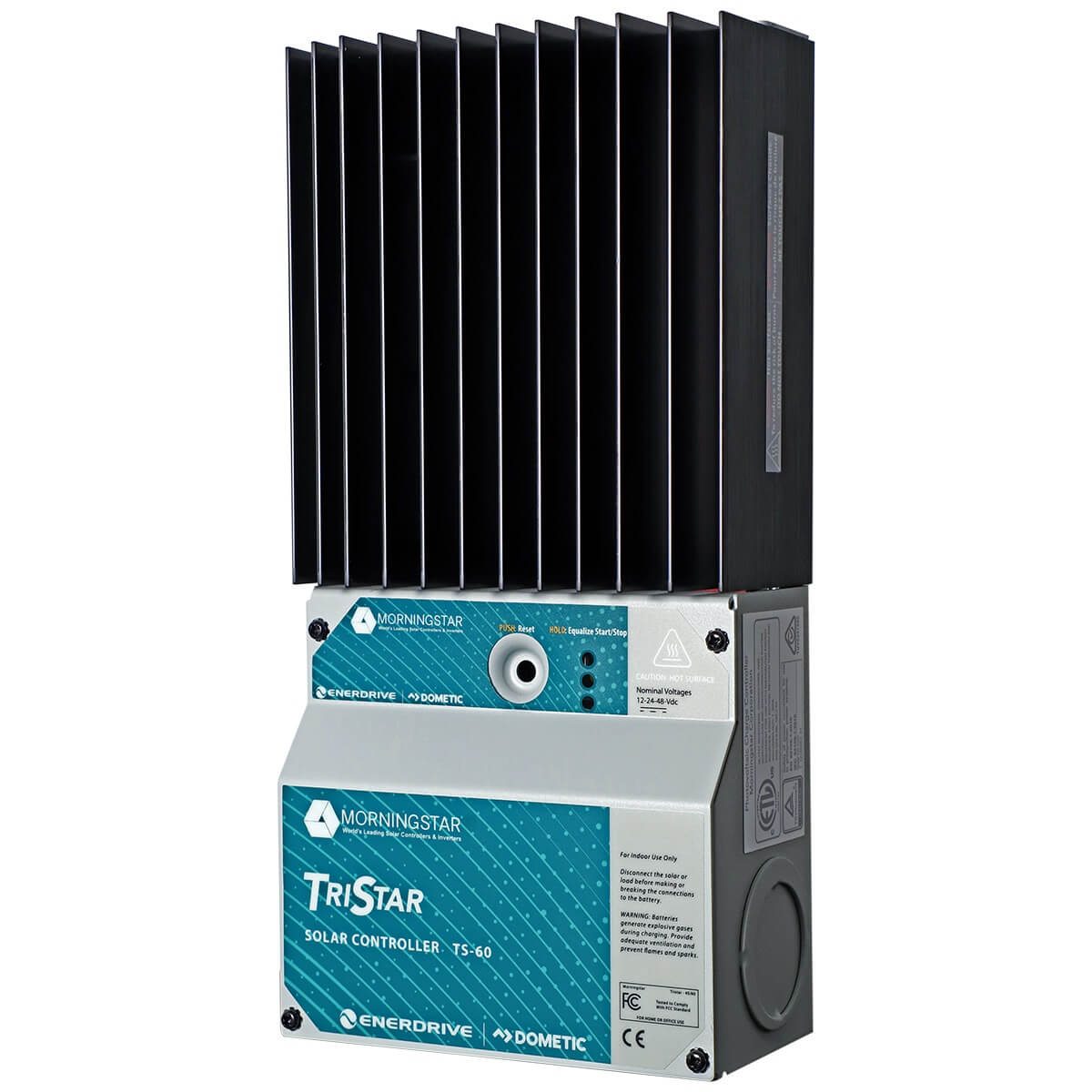

Morningstar TriStar Controller / 45 or 60 amps / 12 to 48 volts.

• The Morningstar TriStar is a three-function controller that provides reliable solar battery charging, load control or diversion regulation.
• Highest Reliability – Large heat sink and conservative design enables operating at full ratings to 45°C.
• More Information – Optional meter displays extensive system and controller information, automatic self-test and reset. Displays in 5 languages.
• Communications Capability – RS-232 connects to a personal computer for custom settings, data logging and remote monitoring and control.
• Fully Adjustable – DIP switch provides user with choice of 7 digital presets. Additional custom settings via RS-232.
• Extensive Electronic Protections – Fully protected against reverse polarity, short circuit, over current, high temperature and over voltage.

Specifications

Note: Specifications subject to change without notice.

Manuals, Safety Information And Downloads

• Morningstar TriStar User Manual
