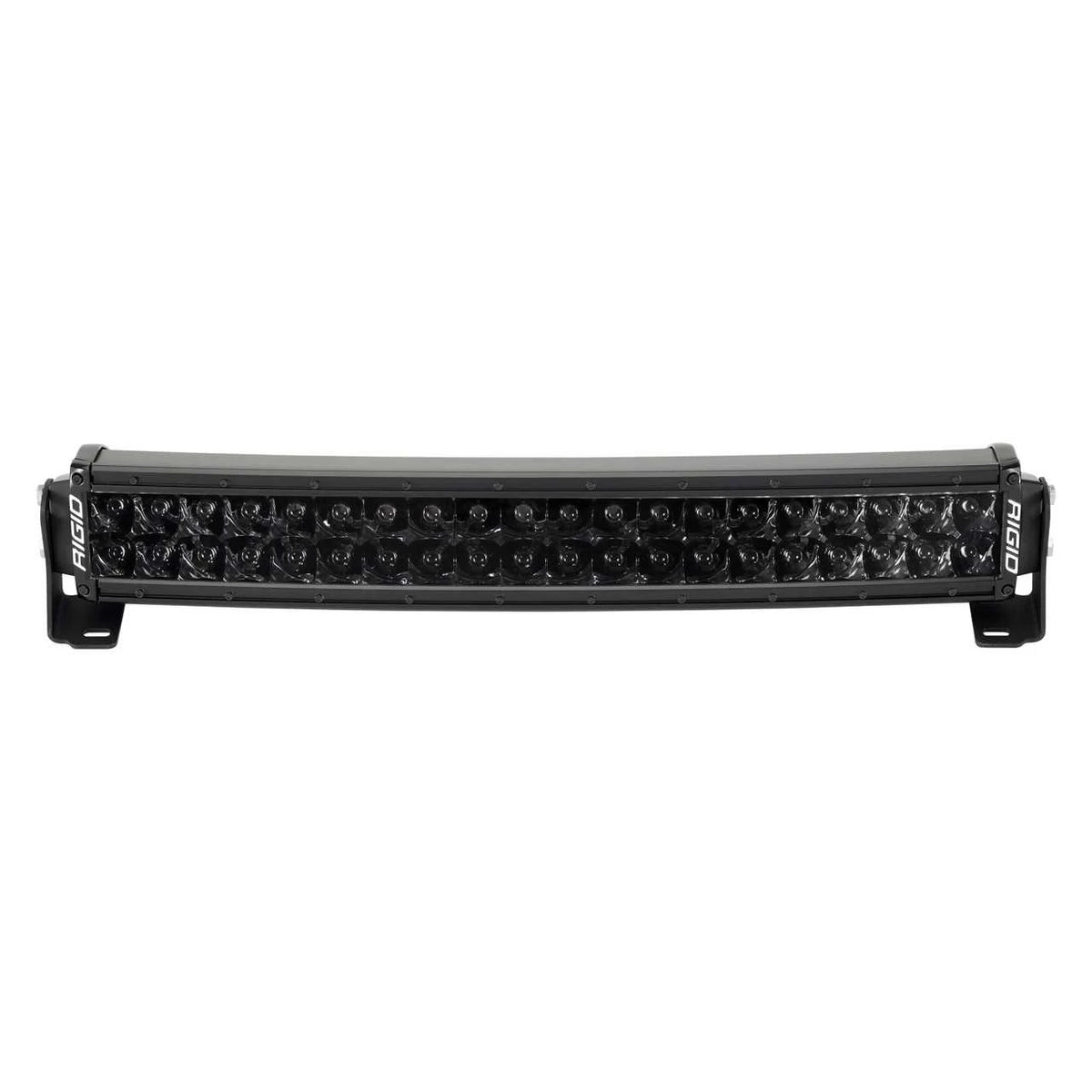

Rigid Industries RDS-Series Pro Midnight Edition 20" 234W Dual Row Spot Beam LED Light Bar

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it’s needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the patented RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers on today’s trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look. It’s all about stealth with RIGID’s new Midnight Optics. Utilizing our exclusive spot optic with a transparent black enamel coating, our Midnight Optics take the subtle “blacked out” look seriously featuring black oxide hardware. The Midnight Optics enable RIGID to “disappear” during the day while still providing powerful LED technology to light up the night. Thanks to improved LED technology, the Midnight Edition now offers more light output than ever before.

FEATURES:

Translucent Black Enamel on our Patented Hybrid Spot Optics

All Black Assembly Hardware

Special Black Polymer Coated Circuit Board

50,000 Plus Hour Lifespan

9-36 V DC

Durable UV Resistant Powder Coat

High-Grade Aluminum Alloy

Integrated Thermal Management System

Impact Resistant Polycorbonate Lens

Over/Under Voltage Protection

RFI/EMI Protection

Reverse Polarity Protection

RoHS Compliant

IP68 Compliant - Dust/Water Ingress

Operating Temp -40 Deg F To +145 Deg F

SAE J575 Compliant - Shock/Vibration

Off Road Use Only

LIGHTS COME WITH:

2 Black Powder Coated, L-shape brackets

Open Leads, No Connector

Harness w/Switch

Size

Part No.

Wt (Lbs)

Optics

Watts

Amp Draw

Voltage Max

*Raw Lumens

Lux @ 10m

Beam Distance @1Lux

Beam Distance @.25Lux

Horizontal Beam Angle

Compatible Light Series

20"

882213BLK

6.65

SPOT

234

16.72

36

31680

1129.56

336.1

672.2

16

RDS-SERIES PRO
