Simarine Combo Shunt Modules

Simarine Combo Shunt Modules

$228.00 AUD
$228.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SI-SC303

Sensor
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.

Product Details

Additional information

Active Shunt

300A, 500A

Features

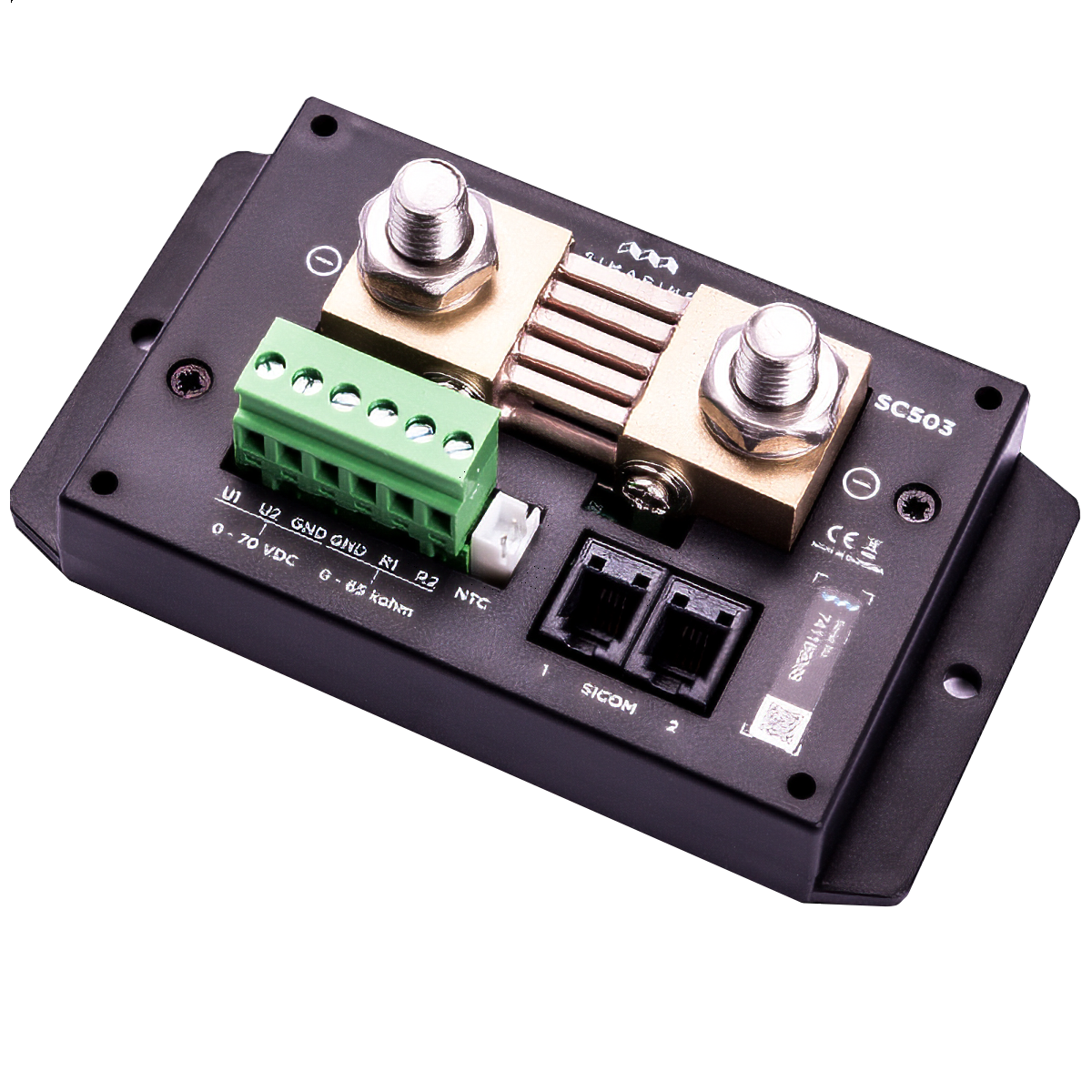

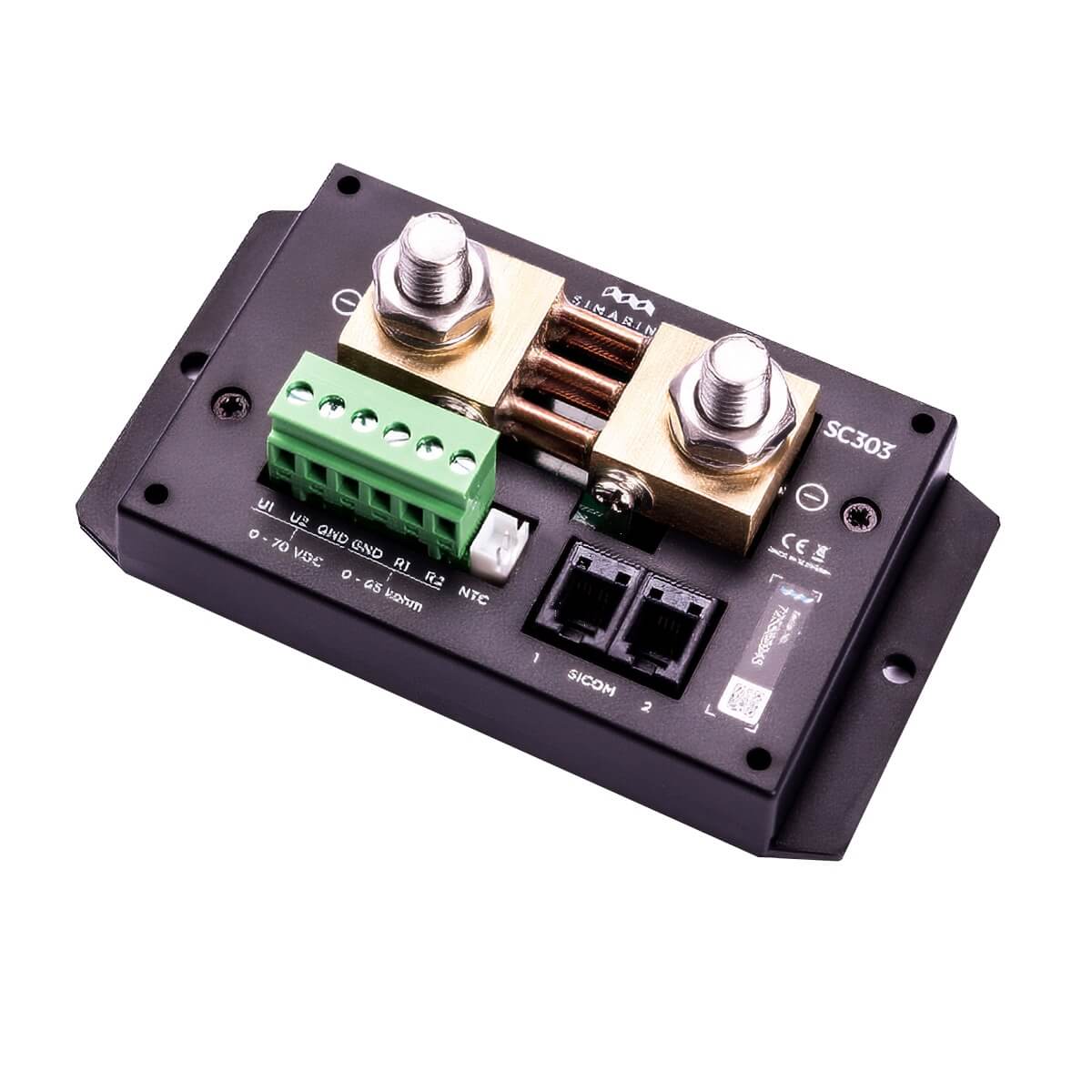

Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;

  • 2 x Voltage Inputs
  • 2 x Tank Level or Temperature Inputs
  • 1 x Socket for Temperature Sensor with JST connector
  • 1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.

It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

Free SIMARINE Android and iOS Apps:

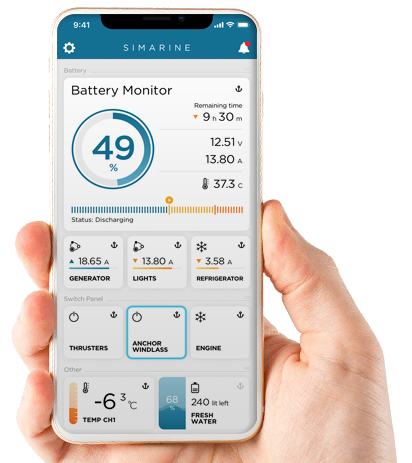

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications

Simarine SC303 and SC503 Shunts

Simarine Combo Quadro Shunt Module Simarine Combo Quadro Shunt Module
SKU SI-SC303 SI-SC503
Model 300A Active Shunt 500A Active Shunt
Voltage Range 6-35V 6-35V
Temperature Range -20 - +70°C -20 - +70°C
Power Consumption at 12V
Operating 1.2mA 1.2mA
Current Measuring Range
Per Channel - SC303 0.01 - 320A 0.01 - 320A
Per Channel - SC503 0.01 - 700A 0.01 - 700A
Accuracy ± 0,6 % ± 0,6 %
Resolution 0,01 A 0,01 A
Sampling rate 100 ms 100 ms
Maximum Current
Continuous 300A 500A
Peak current (<1 min) 700 A 1000A
Peak current (<5 min) 400 A 700 A
Voltage drop at 300 A 50 mV 50 mV
Maximum Voltage on Connections 35V 35V
Voltage Inputs
Range 0-75V 0-75V
Resolution 1mV 1mV
Accuracy ±0.2% ±0.2%
Sampling Rate 100ms 100ms
Resistance inputs
Range 0 Ohm - 65kOhm 0 Ohm - 65kOhm
Accuracy ± 3.0% ± 3.0%
Temperature Sensor – NTC 10k
Range -15 – +80 °C -15 – +80 °C
Accuracy (-10 – 60 °C, 14 – 140 °F) ± 3.0% ± 3.0%
Connectivity Up to Up to
Batteries 1 1
Temperature Sensors 3 3
Voltage and/or Resistance Sensors 2 2
SiCOM RJ9 Sockets 2 2
Installation and Dimension
Dimensions (length x width x depth) 120 x 120 x 60 mm 120 x 120 x 60 mm
Battery Connection M10 bolts M10 bolts
