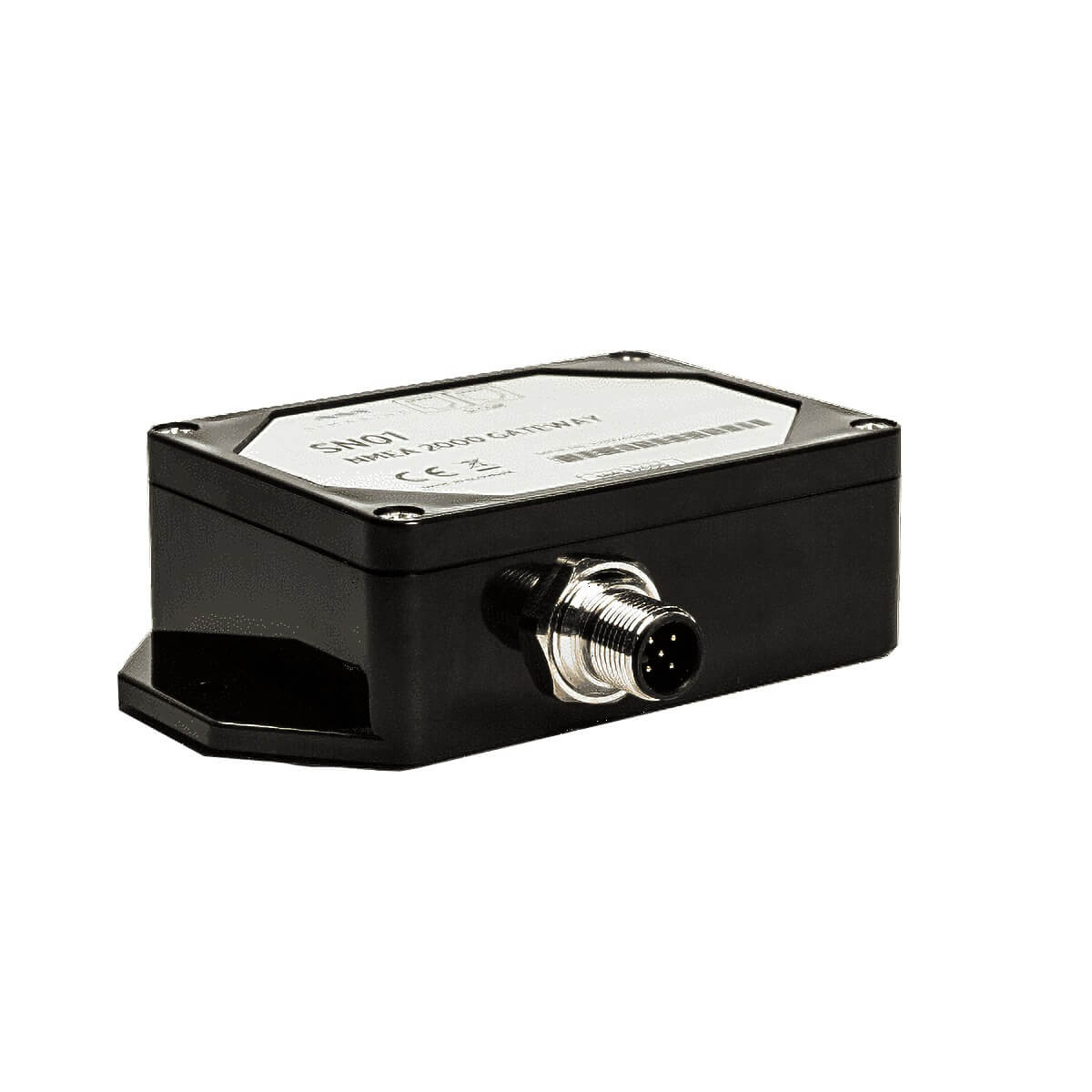

Simarine NMEA 2000 Gateway Module SN01
Simarine NMEA 2000 Gateway Module SN01
SKU:SI-SN01
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Features
Simarine SN01 SiCOM NMEA 2000 Gateway module allows your PICO to transmit data of the devices connected to the PICO system. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.

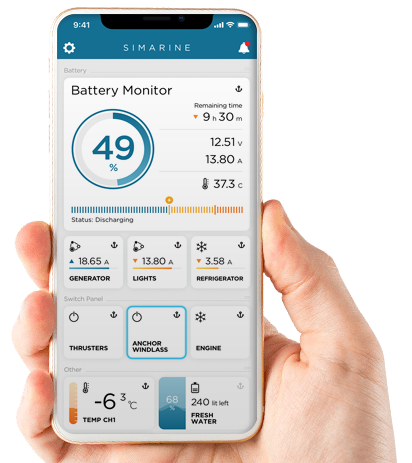

Free SIMARINE Android and iOS Apps:
Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
Specifications
| Model | Simarine NMEA 2000 Gateway Module |
|---|---|
| SI-SN01 | Simarine NMEA 2000 Gateway Module |
| Operating | |
| Power Source Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Power Consumption at 12V | |
| Operating | 0.8mA |
| Connectivity | Up To |
| NMEA 2000 backbone | 1 |
| SiCOM RJ9 Sockets | 2 |
Below is a list of supported NMEA 2000 PGN’s. PICO allows transmitting or receiving of certain PGN’s according to the table below.
| PGN | PGN Name | Receiving | Transmitting |
|---|---|---|---|
| 59904 | ISO Request | Yes | No |
| 60928 | ISO Address Claim | Yes | Yes |
| 126996 | Product Information | No | Yes |
| 127257 | Attitude | No | Yes |
| 127502 | Switch Bank Control | No | Yes |
| 127505 | Fluid Level | No | Yes |
| 127506 | DC Detailed Status | No | Yes |
| 127508 | Battery Status | No | Yes |
| 130310 | Environmental Parameters | No | Yes |
| 130314 | Actual Pressure | No | Yes |
