Simarine
Simarine PICO Monitor
Simarine PICO Monitor
SKU:SI-PICO-1
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details

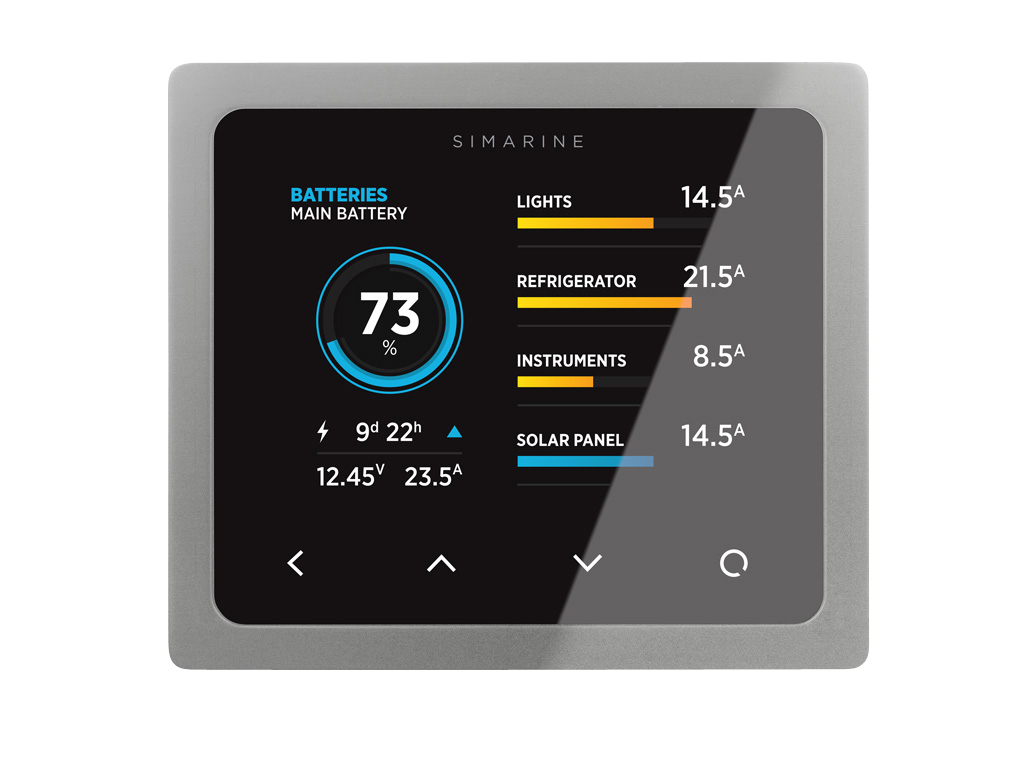

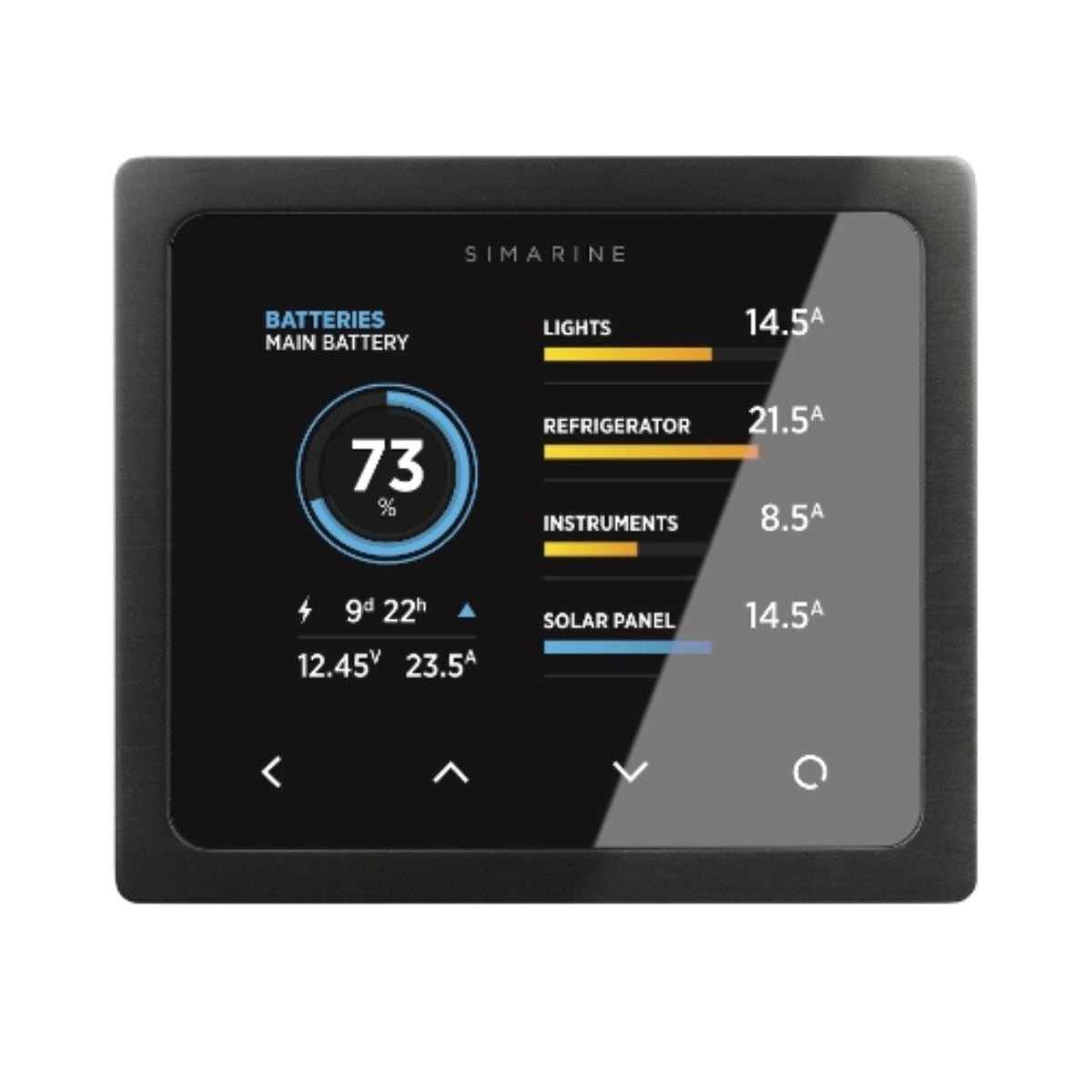

Simarine PICO sets new standards for battery and tank monitors in fields of design, functionality, connectivity and ease of use. PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.
Features
Simarine PICO sets new standards for battery and tank monitors in fields of design, functionality, connectivity and ease of use.
PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.

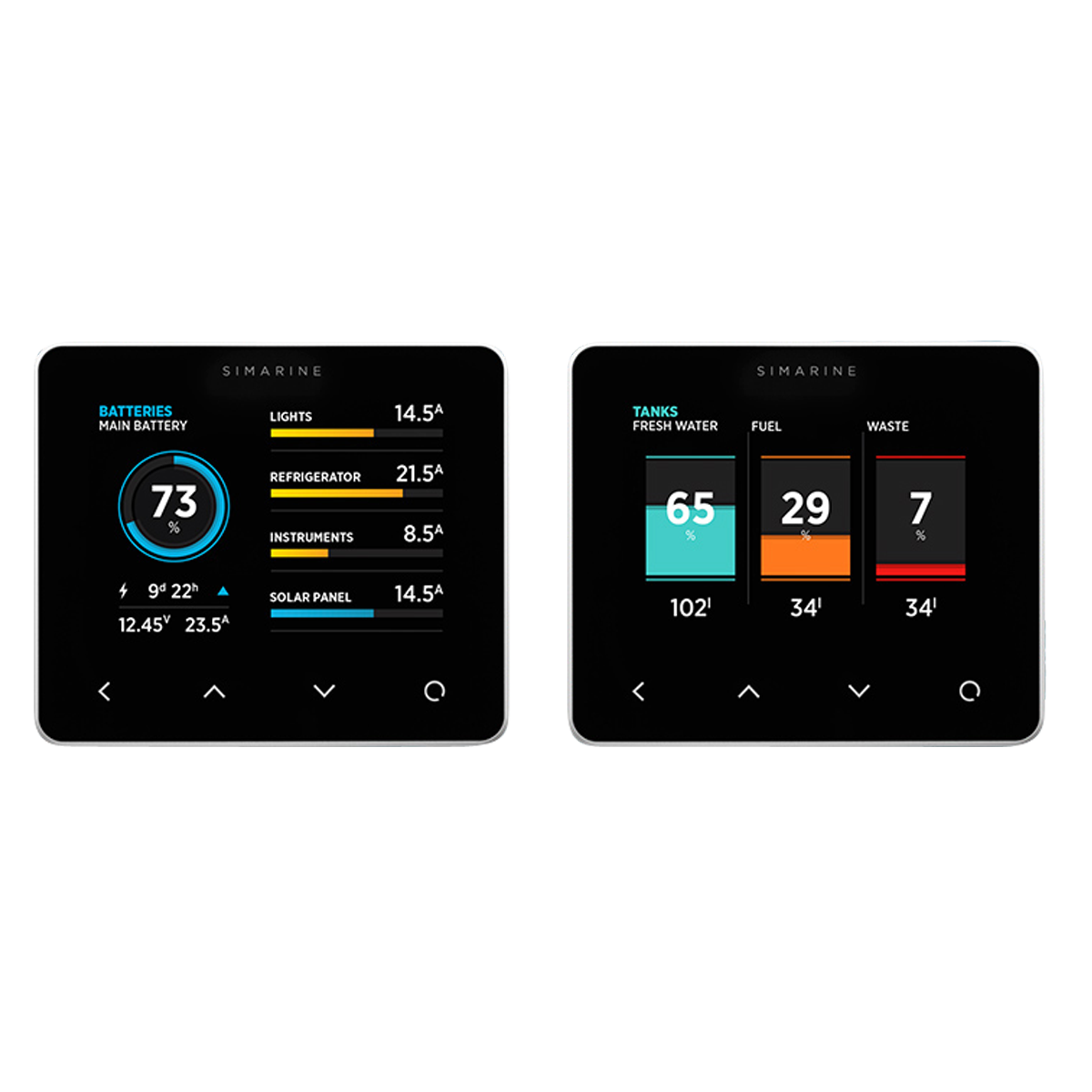

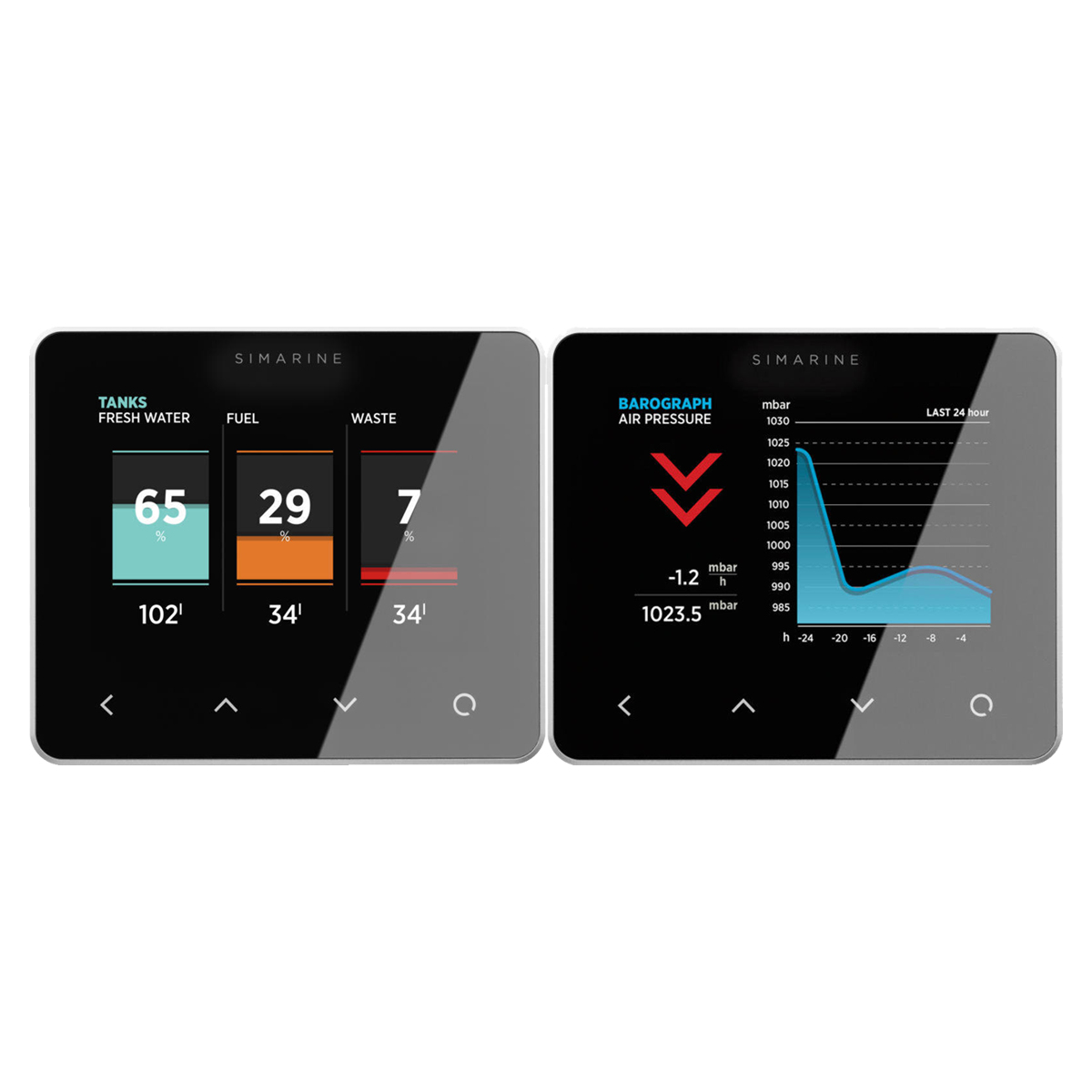

The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.
Free SIMARINE Android and iOS Apps:

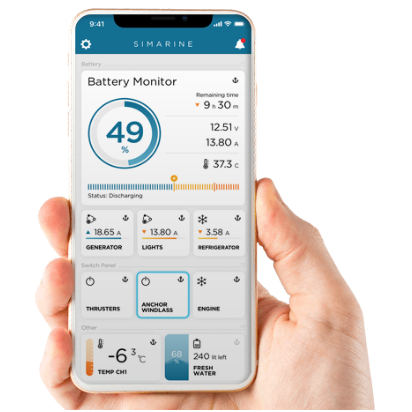

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
Specifications
| Model | Simarine Pico |
|---|---|
| SKU | SI-PICO-1 - Standalone Black Bezel |
| SI-PICO-2 - Standalone Silver Bezel | |
| SI-PICO-3 - Panel Mount Black Bezel | |
| SI-PICO-4 - Panel Mount Silver Bezel | |
| Power Source Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Power Consumption at 12V | |
| Operating, WiFi On, 100% Illumination | 90mA |
| Operating, WiFi Off, 70% Illumination | 35mA |
| Operating, WiFi Off, 0% Illumination | 18mA |
| Power Off, logger still active | 5mA |
| Resolution | |
| Current (A) | ±0.01A |
| Voltage (V) | ±0.01V |
| Amp Hours (Ah) | ±0.1Ah |
| SOC - State of Charge (0-100%) | ±0.01A |
| Temperature | ±0.1 °C/°F |
| Voltage Inputs Range | 0-75V |
| WiFi Radio Frequency Band | 2.4GHz |
| Dimensions (without Connectors) | |
| Standalone | 89 x 84 x 10mm |
| Panel Mount | 108.5 x 94 x 10mm |
| Connectivity | Up to |
| Batteries | 6 |
| Shunts | 24 |
| Temperature Sensors | 10 |
| Tank Level Sensors | 14 |
| Inclinometer Sensors | 2 |
| Smartphone Applications | 1 |
| Logger Capacity | Up to 3 Months |
Manuals, Safety Information And Downloads
