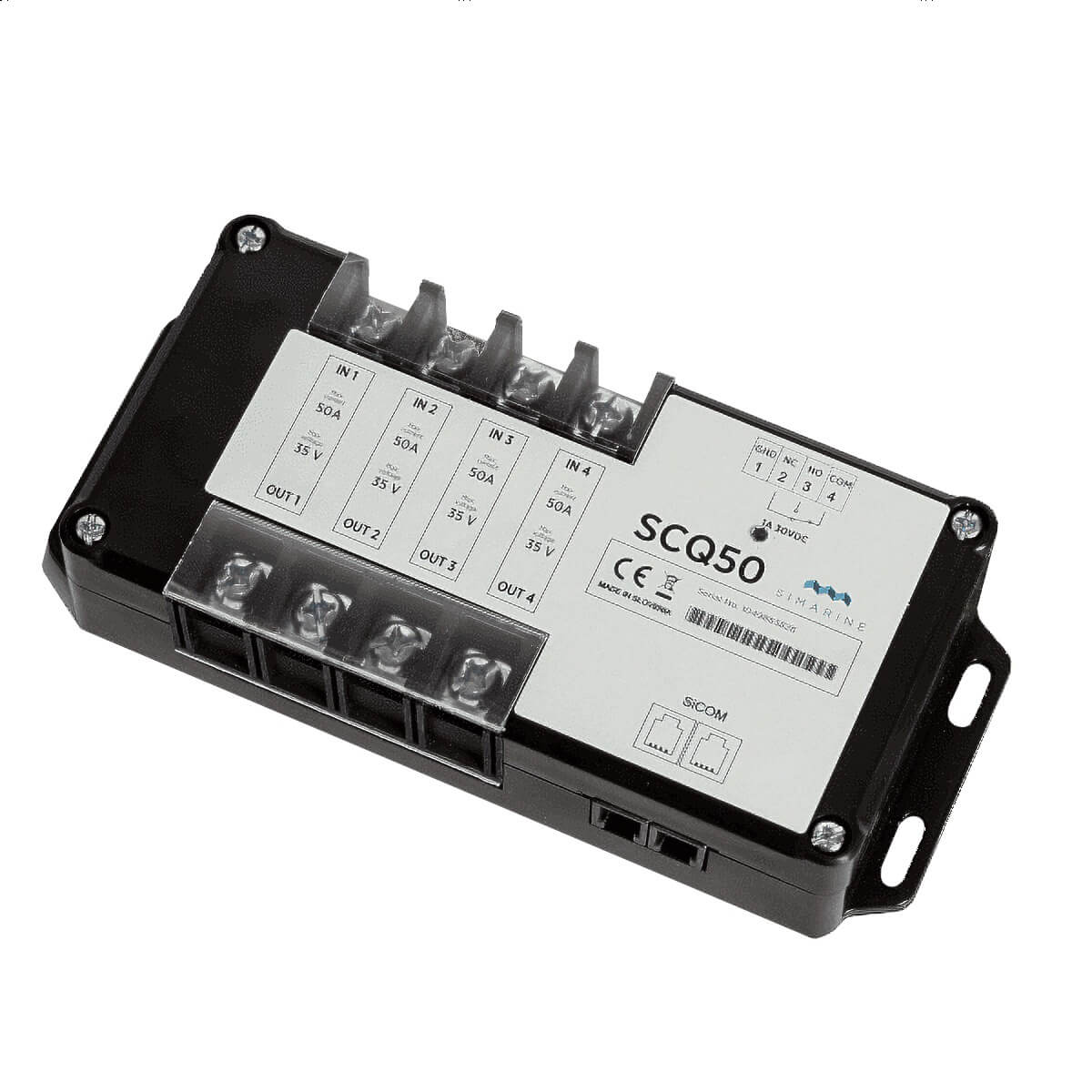

Simarine Quadro Shunt Module SCQ50
Simarine Quadro Shunt Module SCQ50
SKU:SI-SCQ50
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
Watch some of the viewing features of the Simarine monitoring system via the Simarine App available for use with iOS and Android devices. A Polaris head unit has been installed in our 2019 Hilux Dual Cab which allows for Android Apps to be directly installed on the unit. The head unit is then WIFI linked to the Simarine in the canopy of the vehicle allowing all of the data to be shown in the Cab of the Hilux.
Features
SCQ50 is an innovative shunt module for monitoring individual consumers and generators with;
- 4 x 50A Current Sensors
- For 12v and 24v Systems
Connection Possibilities;
- Up To 4 x Consumer Devices
- Up To 4 x Generators
- Combination of 4 of both
- 1 x Relay Input

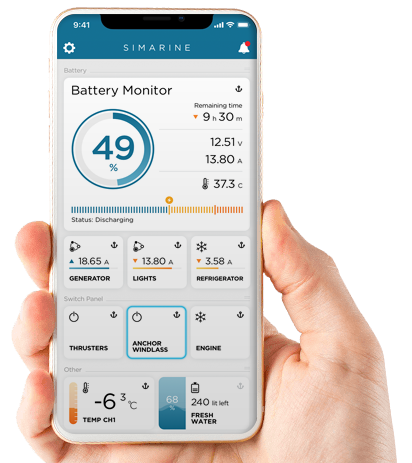

Free SIMARINE Android and iOS Apps:
Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
Specifications
| Model | Simarine Quadro Shunt Module |
|---|---|
| SI-SCQ50 | Quad Shunt 4 x 50A Circuits Module |
| Operating | |
| Power Source Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Power Consumption at 12V | |
| Operating | 3.5mA |
| Current Measuring Channels | 4 |
| Relay (monostable) | |
| Maximum Operating Current | 1A |
| Maximum Common Input Voltage | 6 – 30V |
| Voltage Inputs | |
| Per Channel | 0.01 – 50A |
| Resolution | 0.01A |
| Accuracy | ± 0.6 % |
| Sampling Rate | 100ms |
| Maximum Currents | |
| Continuous | 50A |
| Peak Current (<1 min) | 60A |
| Peak Current (<5 sec) | 60A |
| Voltage Drop at 25 A | 35mV |
| Maximum voltage on connections | 35V |
| Connectivity | Up To |
| Current Sensors | 4 |
| Relay Common Input (COM) | 1 |
| Relay Output Normally Open (NO) | 1 |
| Relay Output Normally Closed (NC) | 1 |
| SiCOM RJ9 Sockets | 2 |
| Installation and Dimension | |
| Dimensions (length x width x depth) | 182 x 80 x 37 mm |
| Weight | 230g |
