Product Details

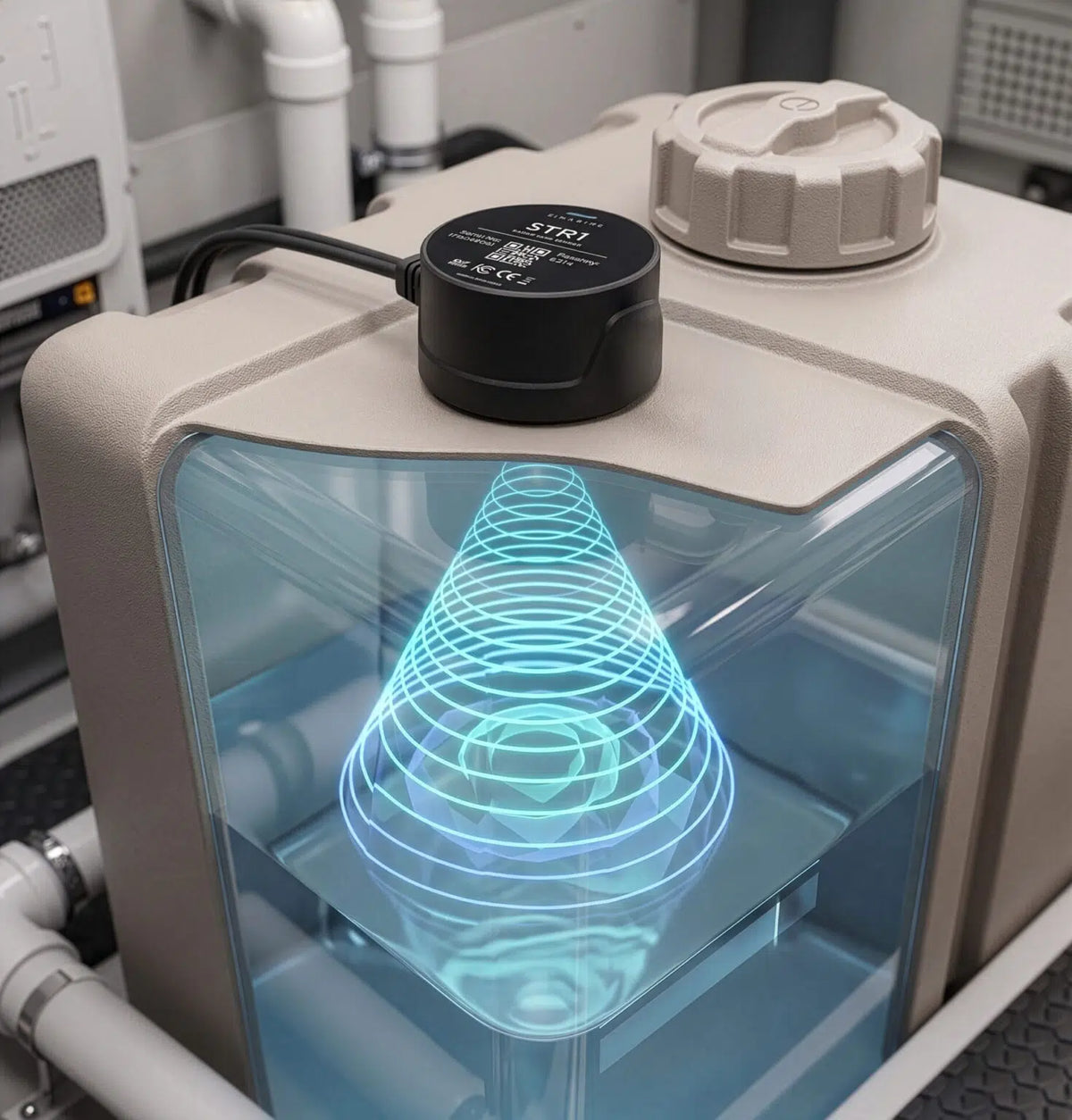

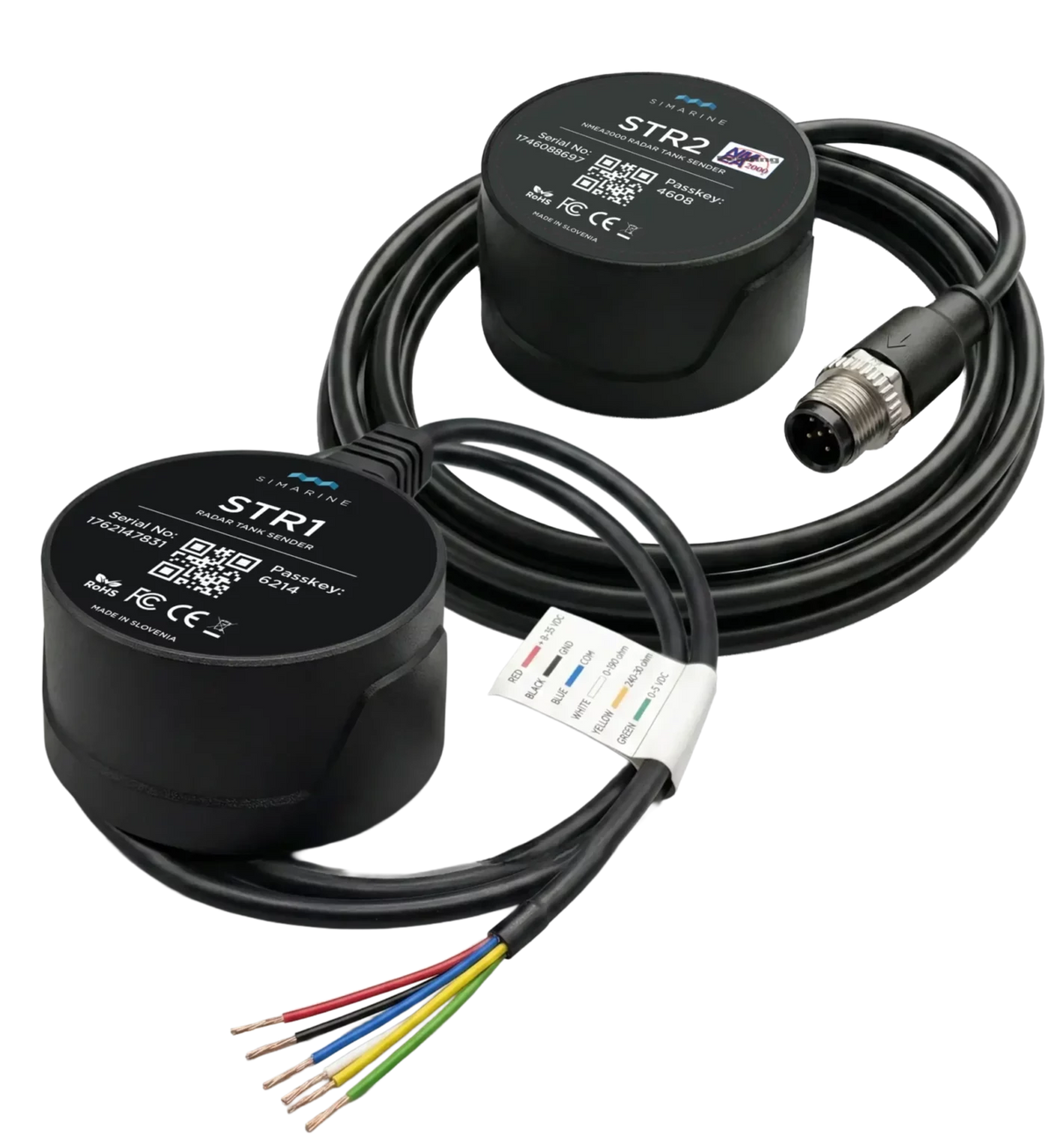

SIMARINE Radar Tank Level Sender measures liquid levels in plastic tanks from 150 to 2000 mm using high-precision radar.

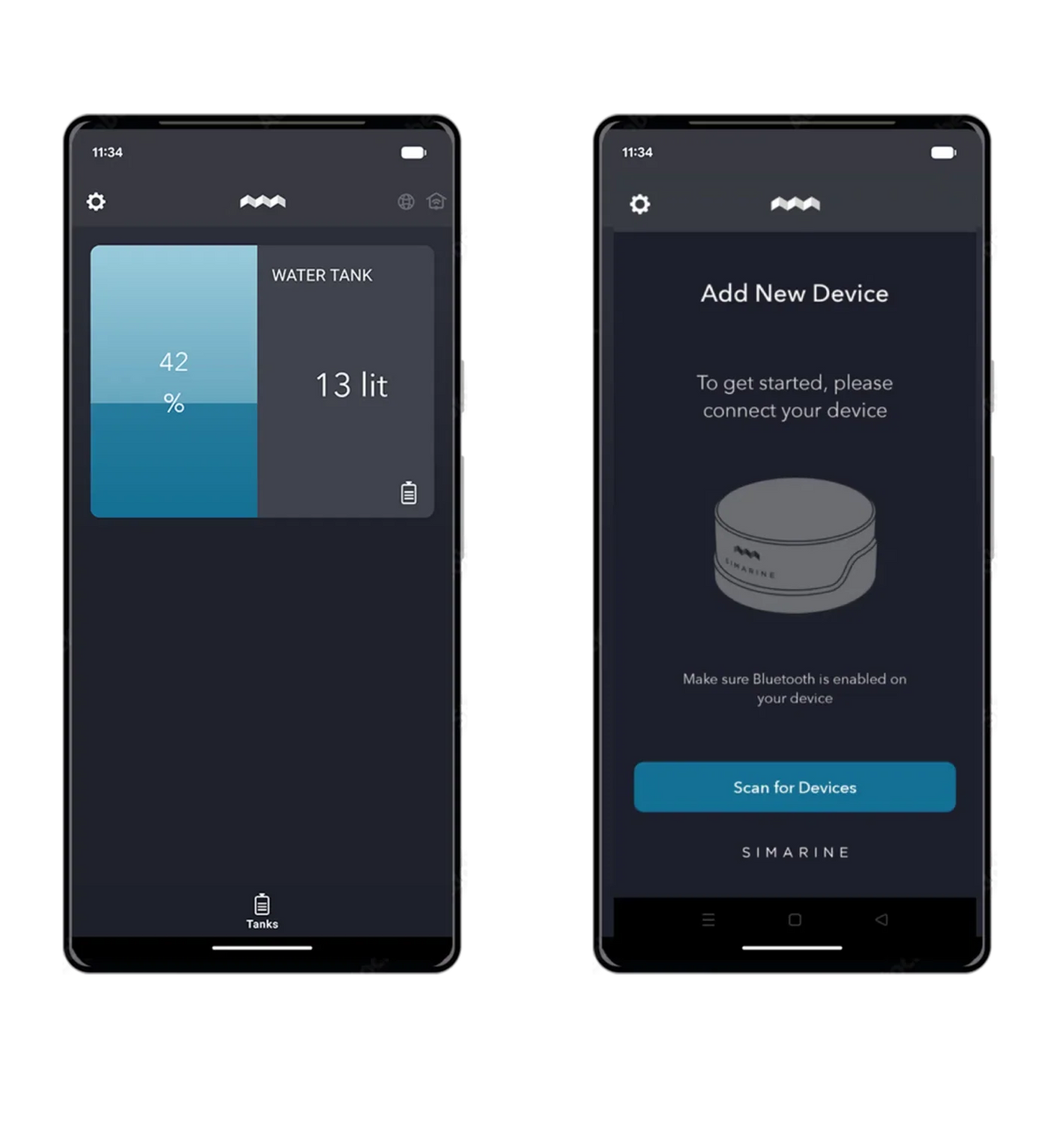

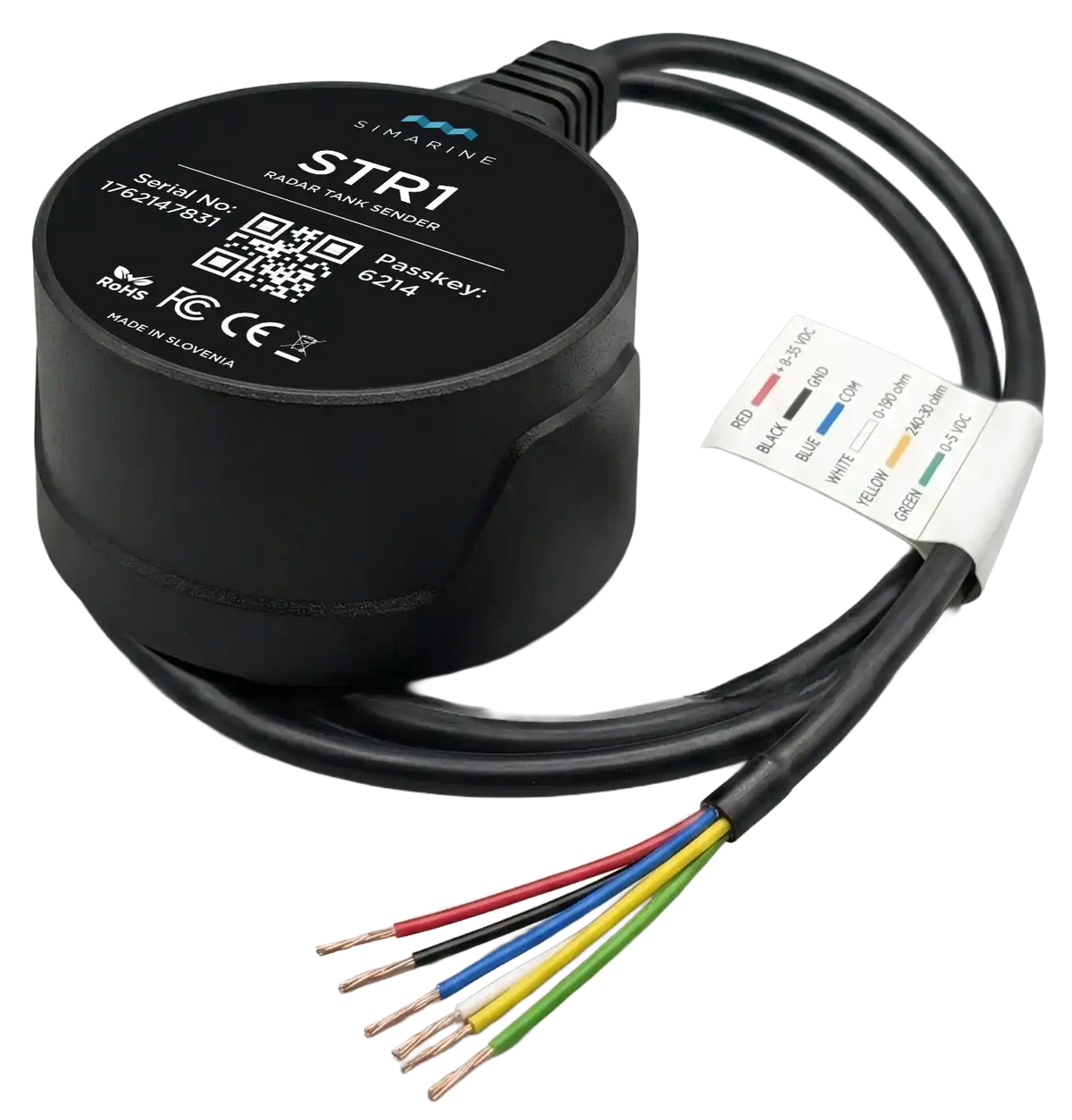

The STR1 analogue sensor outputs multiple signals at the same time: resistance 0–180 Ω, 240–30 Ω, 0–5 V voltage, and Bluetooth via the Simarine App.

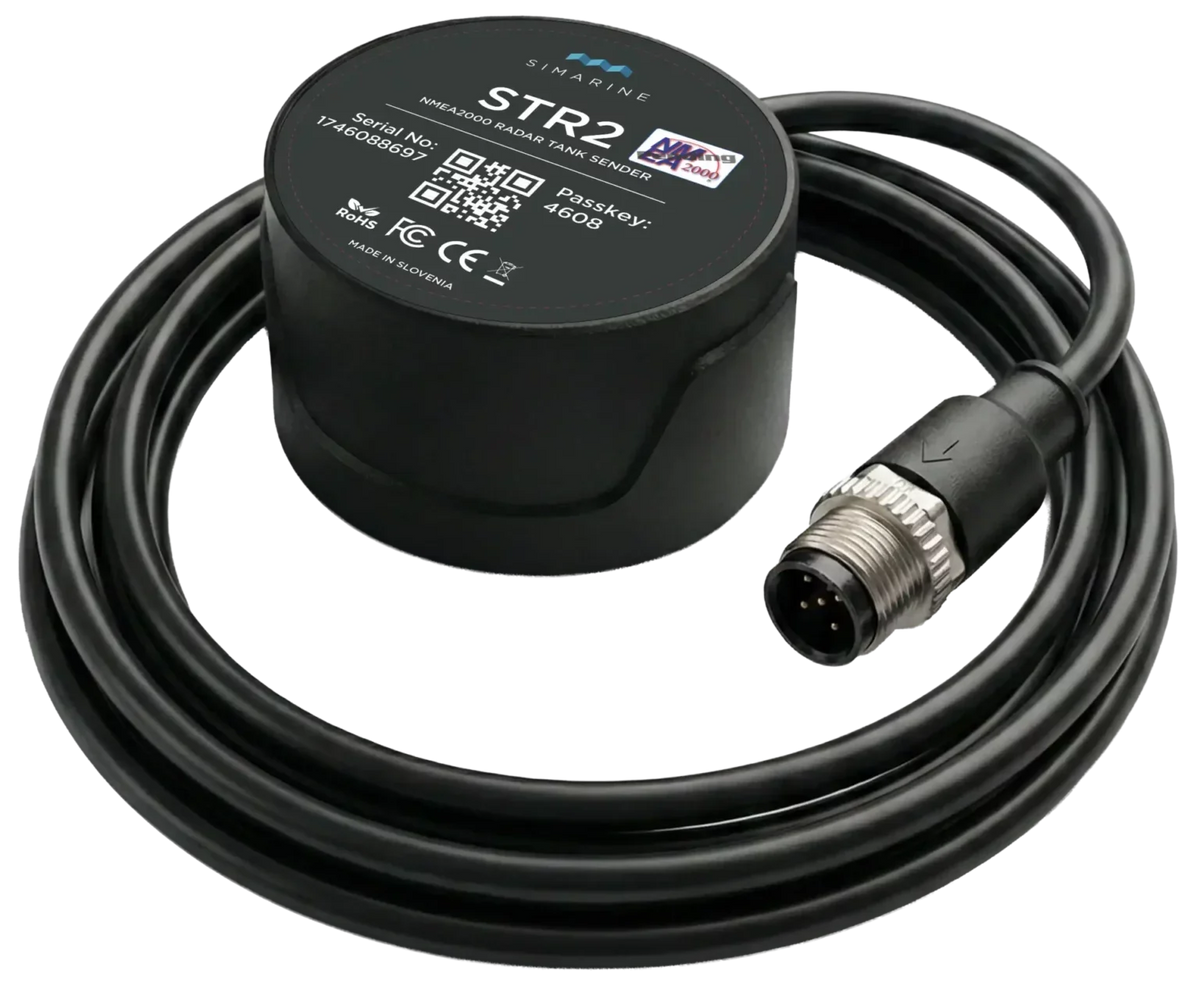

The STR2 NMEA 2000 sensor offers full support for the NMEA 2000 standard, enabling seamless communication with all modern marine equipment, as well as Bluetooth connectivity via the Simarine App. NMEA connector: Includes a dedicated connector for direct connection to the vessel’s NMEA 2000 backbone. No additional modules required: Tank level data is displayed directly on your marine chartplotter or multifunction display (MFD).
Have a metal tank? The radar signal requires a waveguide adapter for metal tank installations. The S5 flange adapter allows you to mount the STR1 or STR2 sender securely on top of the tank via the S5 flange opening. Add the S5 flange adapter to your order
