Dometic

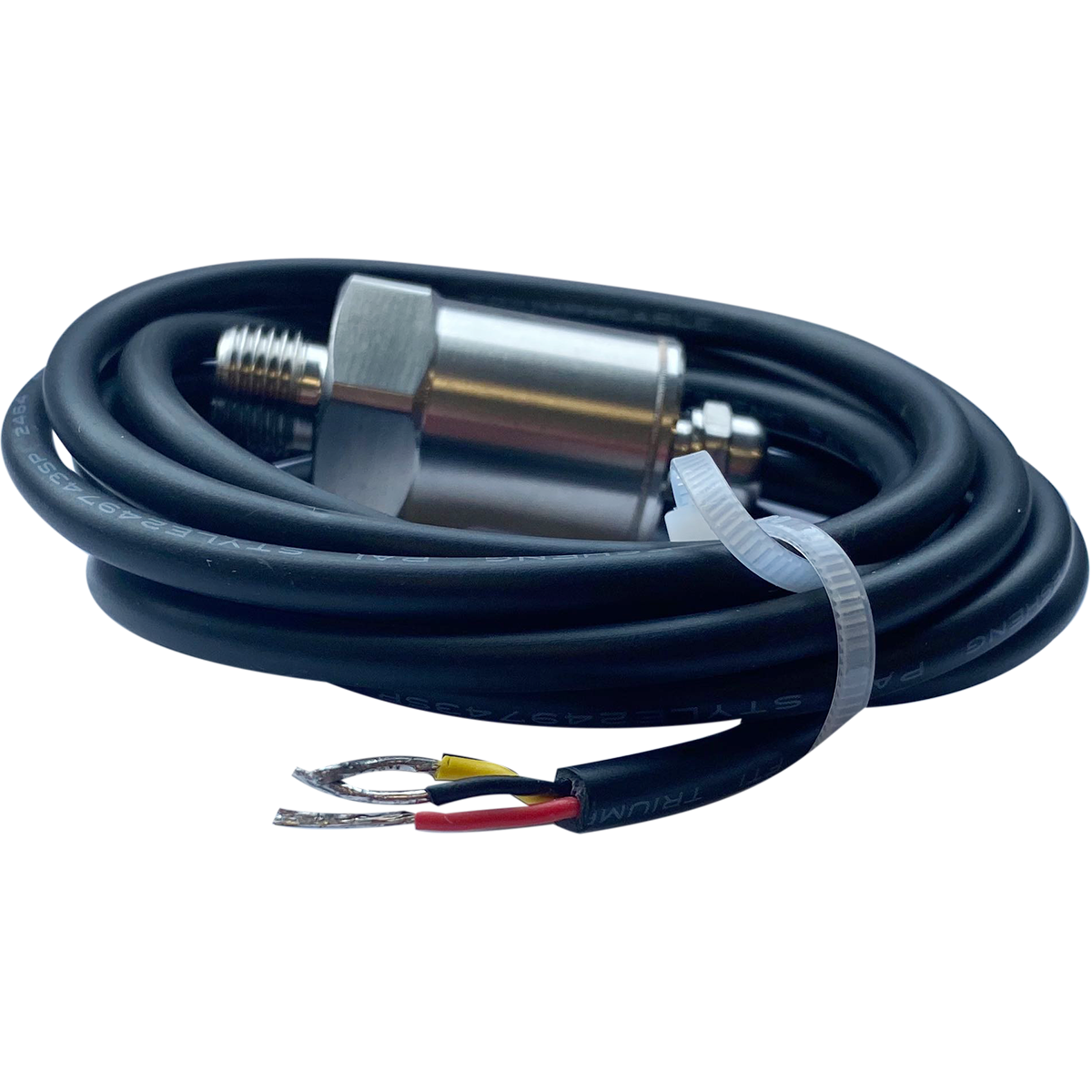

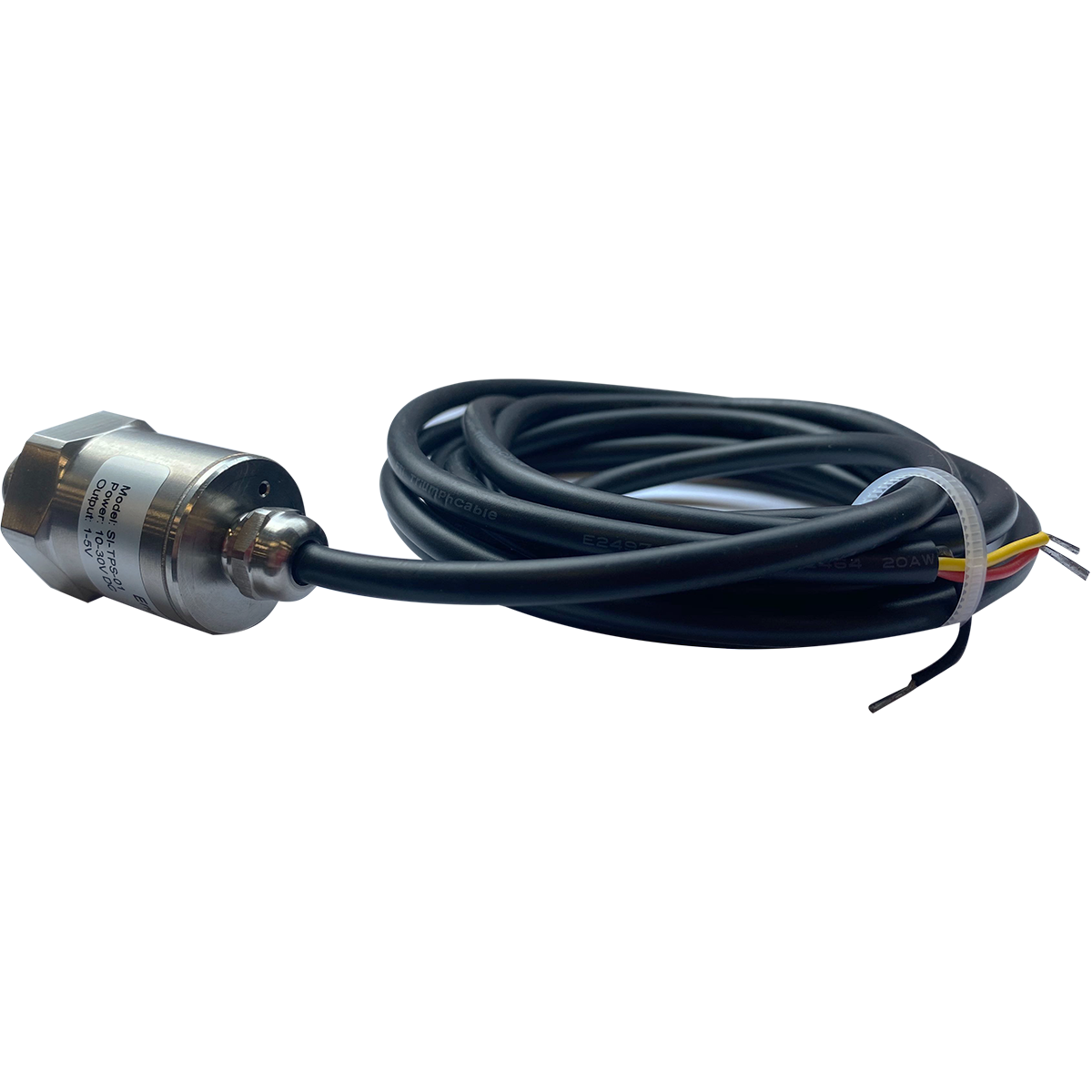

Tank Senders - Pressure Sensor
Tank Senders - Pressure Sensor
Regular price
$139.00 AUD
Regular price
Sale price
$139.00 AUD
Taxes included.
Shipping calculated at checkout.
SKU:SI-TPS-01
Quantity
Shipping Information:
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
Enerdrive Dometic do a selection of Rod Style and Pressure tank senders to suit virtually any tank shape. Ranging from 150mm to 500mm in Rod Style and up to 3m depths in Pressure Senders. Suitable for Water, Grey Water, Fuel, Diesel.
Features
Enerdrive SI-TPS is from a series of High Performance compact pressure senders. These transmit by using a ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. it has features of anti-corrosion, anti wear, shock resistance and vibration resistance. In addition to the general range of sensors, it’s most outstanding characteristic is the positive and negative gauge pressure function.
Specifications
| SI-TPS-# Pressure Senders | Description |
|---|---|
| Pressure Type | Gauge |
| Input Power Supply | 9V-32V |
| Output | 0.5-5.0V, 2 Meter Cable |
| Sensor Output Voltage | 5V, Min 3V/Max 5.5V |
| Wire Connection | Red: Input Positive 9-32V Black: Input/Common Negative 9-32V Yellow: Signal Output |
| Accuracy | 0.5% |
| Temperature Range | -45...85C |
| Housing Material | Stainless Steel 304 |
| Ingress Protection | IP67 |
| Tank Depth Ranges | SI-TPS-01, 0-500mm SI-TPS-02, 0-1000mm SI-TPS-03, 0-3000mm |
| Mounting Position | Horizontal in the low side of the tank or Vertical in the outlet pipe before the pump. Do not mount on bottom of tank. |
| Mounting Type | 1/4 BSP Thread - 25mm Hexagon |
