Tank Senders - S3 Rod Sensor
Tank Senders - S3 Rod Sensor
SKU:EN-TS150
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
Product Details
Enerdrive Dometic do a selection of Rod Style and Pressure tank senders to suit virtually any tank shape. Ranging from 150mm to 500mm in Rod Style and up to 3m depths in Pressure Senders. Suitable for Water, Grey Water, Fuel, Diesel.
Features

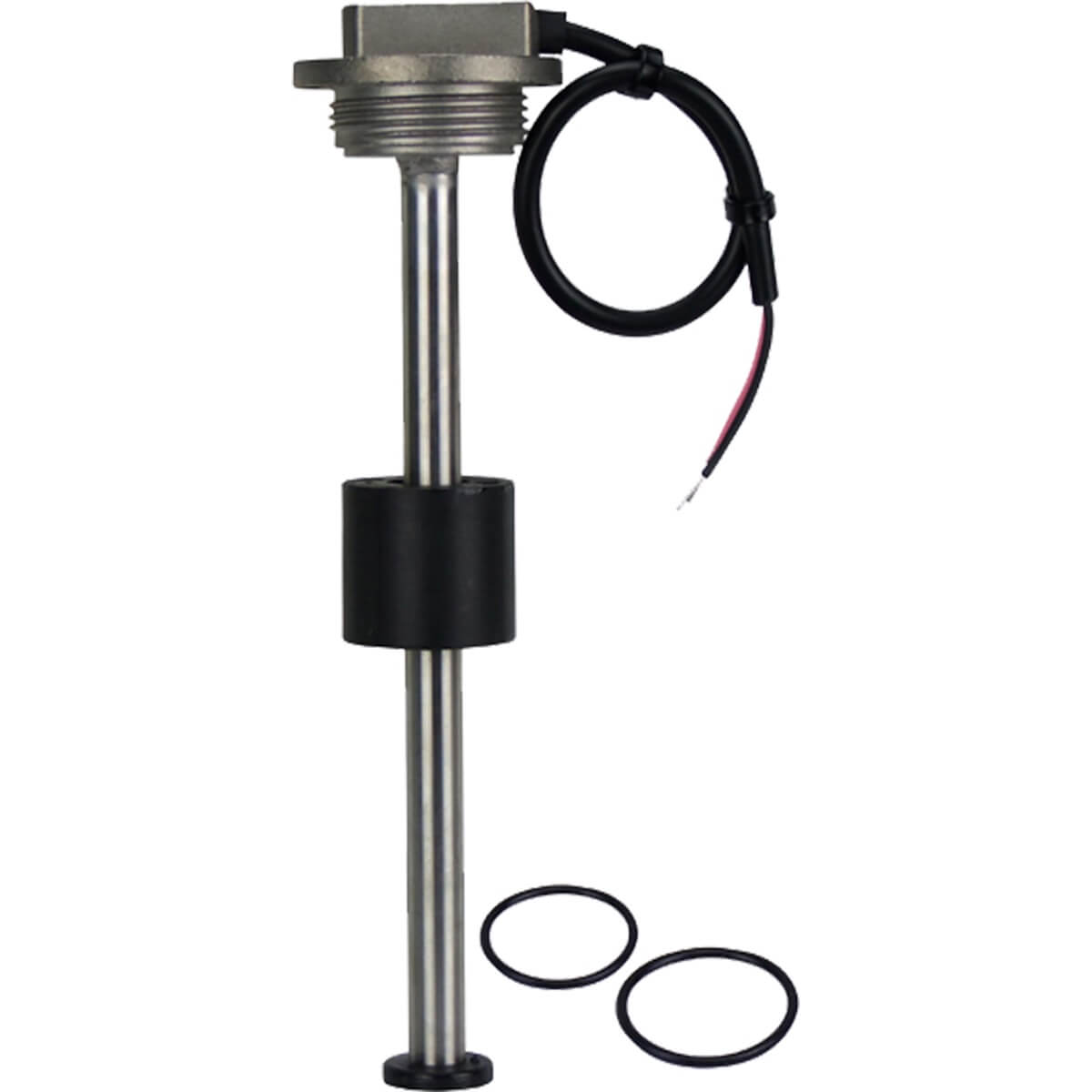

The S3 sender is an innovative solution for monitoring the level of fuel and/or water tanks in boats, trucks, coaches, caravans and recreational vehicles.
With the float as the only moving external part, the S3 designed with longevity, durability and performance in mind. Constructed in AISI 316 stainless steel it’s suitable for a wide range of mediums including, diesel, petrol, oil, potable and grey water.

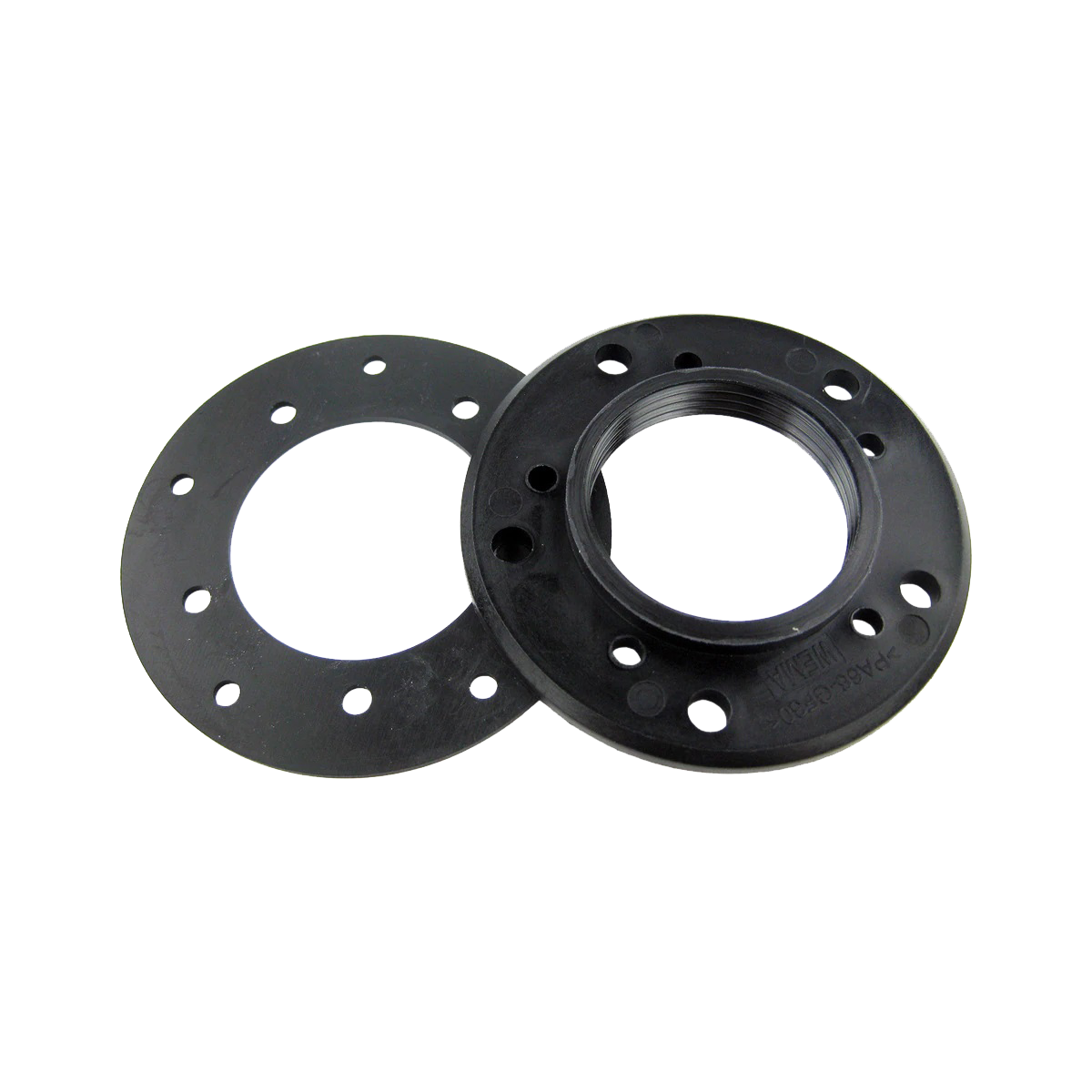

Mounts via a 1 1/4″ BSP pipe fitting and can be simply screwed into the top of a matching tank. The connection cable has a sealed entry into the top of the sender for water resistance. A 5 hole mounting flange adapter is available for thin wall tanks that are not suitable for screw threads.
Specifications
Specifications
| EN-TS-# Rod Style Senders | Description |
|---|---|
| Lengths | 130 - 1380mm (25mm Increments) |
| Output | 240-33 Ohms |
| Wire Connection | Blue: Input/Common Negative Black: Signal Output |
| Housing Material | Stainless Steel 316 |
| Ingress Protection | IP67 |
| Mounting Position | Mounted in top of the Tank. |
| Mounting Type | 1-1/4 BSP Thread. |
| Mounting Adapter Accessory (Sold Separately) | 1 ¼" BSP thread to Dual 5 Hole Pattern Adapter. Converts to SAE 5 hole or VDO 5 hole pattern for retro-fitting |
| SI-TPS-# Pressure Senders | Description |
|---|---|
| Pressure Type | Gauge |
| Input Power Supply | 9V-32V |
| Output | 0.5-5.0V, 2 Meter Cable |
| Sensor Output Voltage | 5V, Min 3V/Max 5.5V |
| Wire Connection | Red: Input Positive 9-32V Black: Input/Common Negative 9-32V Yellow: Signal Output |
| Accuracy | 0.5% |
| Temperature Range | -45...85C |
| Housing Material | Stainless Steel 304 |
| Ingress Protection | IP67 |
| Tank Depth Ranges | SI-TPS-01, 0-500mm SI-TPS-02, 0-1000mm SI-TPS-03, 0-3000mm |
| Mounting Position | Horizontal in the low side of the tank or Vertical in the outlet pipe before the pump. Do not mount on bottom of tank. |
| Mounting Type | 1/4 BSP Thread - 25mm Hexagon |
