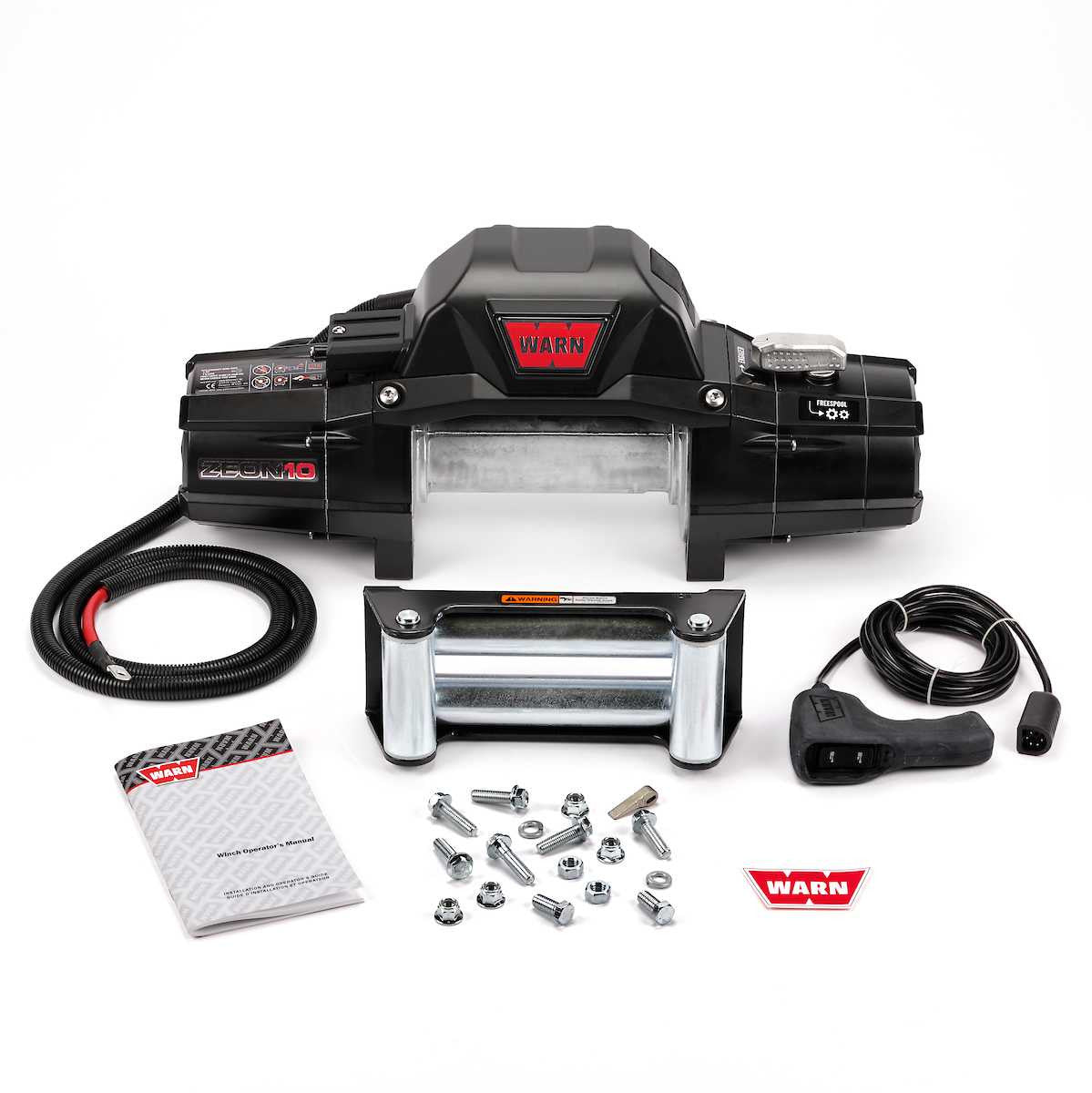

WARN Zeon 10 24V 10000lbs Electric Winch CE | Roller fairlead, Rope Not Included | 90665

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck busting sealing keeps out everything but the good times. Add a hyper durable cast aluminum housing, satin black finish, and 10,000 Pounds. Single line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks

New Design Planetary Gear Train And Series Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power

Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion

Improved Winch Sealing To Keep The Elements Out

Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation

10,000 Pounds Single Line Pulling Capacity

Limited Lifetime Warranty for Mechanical Components.

Specifications:

Part numbers: 90665 (ZEON 10, 24V),

Rated line pull: 10,000 lbs. (4536 kg) single-line

Motor: 24V DC, series wound

Electrical controls: Contactor

Remote Control: Remote switch, 12’ (3.7m) Lead

Geartrain: 3-stage planetary

Gear ratio: 216:1

Clutch (freespooling): Rotating ring gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.15”/9.0” (80mm/229mm)

Rope: No rope included

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72” (1.83m)

Finish: Satin-black powder coat

Weight: 37 kg
