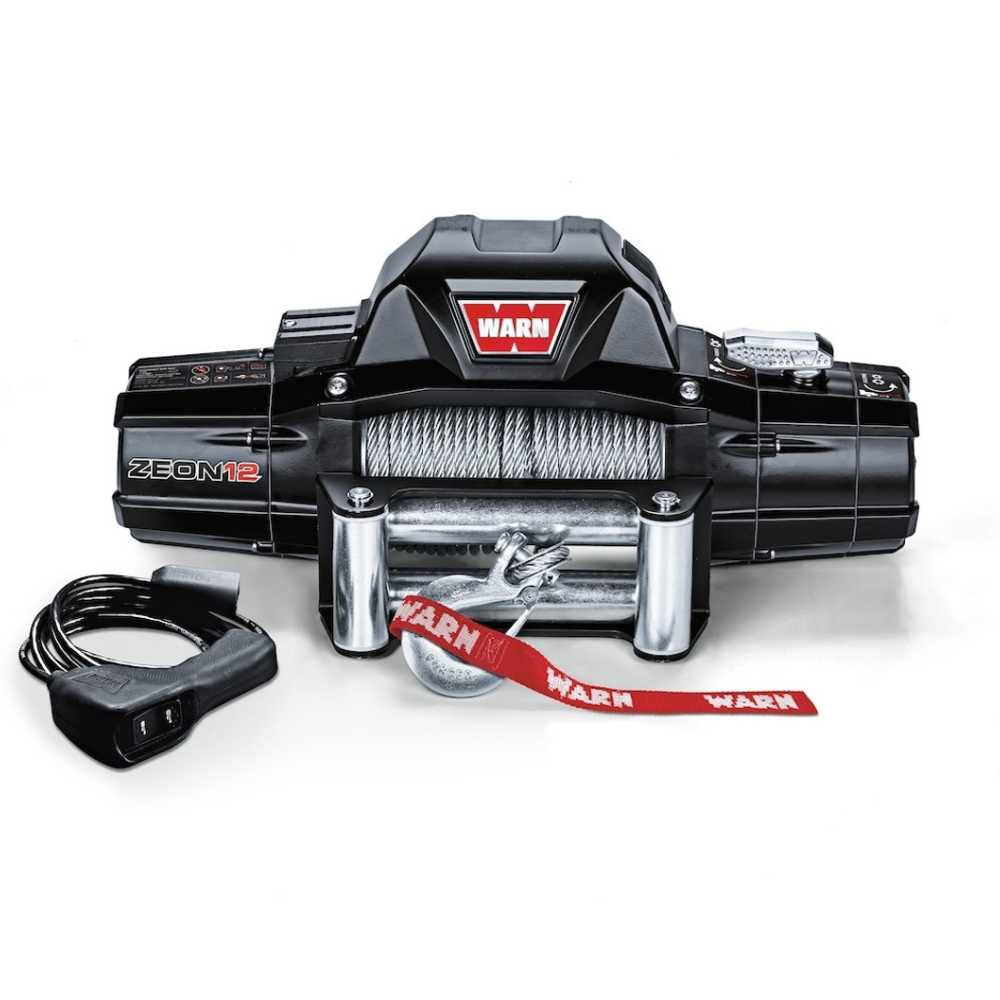

WARN ZEON 12 Electric Winch (24V) Roller Fairlead | Steel rope not included | 90666
WARN ZEON 12 Electric Winch (24V) Roller Fairlead | Steel rope not included | 90666
SKU:90666
Shipping costs may vary depending on the size, weight and destination of this product. For an exact shipping quote, please contact our team on 0484 945 845 before placing your order.
ZEON 12 WINCH (24V) - 90666
The Zeon 12 electric winch with 24-volts comes with a roller fairlead. Steel rope not included.
Please Note: This product requires a compatible bumper or mounting plate and must be mounted to a vehicle. Please visit our Mounting & Protection category for available options.
OVERVIEW:
The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, and a hefty 12,000 Pounds single line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.
Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
Gear Train And Motor Deliver Reliable Pulling Power That Is Fast, And Quieter Than Ever
Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion, Improved Winch Sealing To Keep The Elements Out
12,000 Pounds (5443 Kilogram) Single Line Pulling Capacity
Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
Limited Lifetime Warranty
SPECIFICATIONS:
TYPE
Electric
MOUNT TYPE
Vehicle Mounted
RECOMMENDED USE
Vehicle Recovery
VOLTAGE
24 Volt
ELECTRICAL CONTROL TYPE
Contactors
MOTOR TYPE
Series Wound
THERMAL SHUTOFF
No
DRIVE GEAR TYPE
Planetary
GEAR REDUCTION RATIO
216:1
FREE SPOOLING
Yes
BRAKE TYPE
Mechanical Cone
LINE DIAMETER (IN)
3/8 Inch
LINE LENGTH (FT)
80 Feet
LINE MATERIAL
Steel
FAIRLEAD TYPE
Roller
CONFORMS TO J706 STANDARDS
No
REMOTE TYPE
Handheld Remote Switch
MOUNTING HOLE QUANTITY
4
OPERATION TYPE
Automatic
MOUNTING PATTERN LENGTH (IN)
10 Inch
MOUNTING PATTERN WIDTH (IN)
4-1/2 Inch
INCLUDES MOUNTING HARDWARE
No
COLOR
Black
MAX AMP DRAW/ LINE PULL
252 Amp Draw/ 12000 Pound
MAX LINE PULL/ LINE SPEED
12000 Pound/ 5.7 Feet Per Minute
