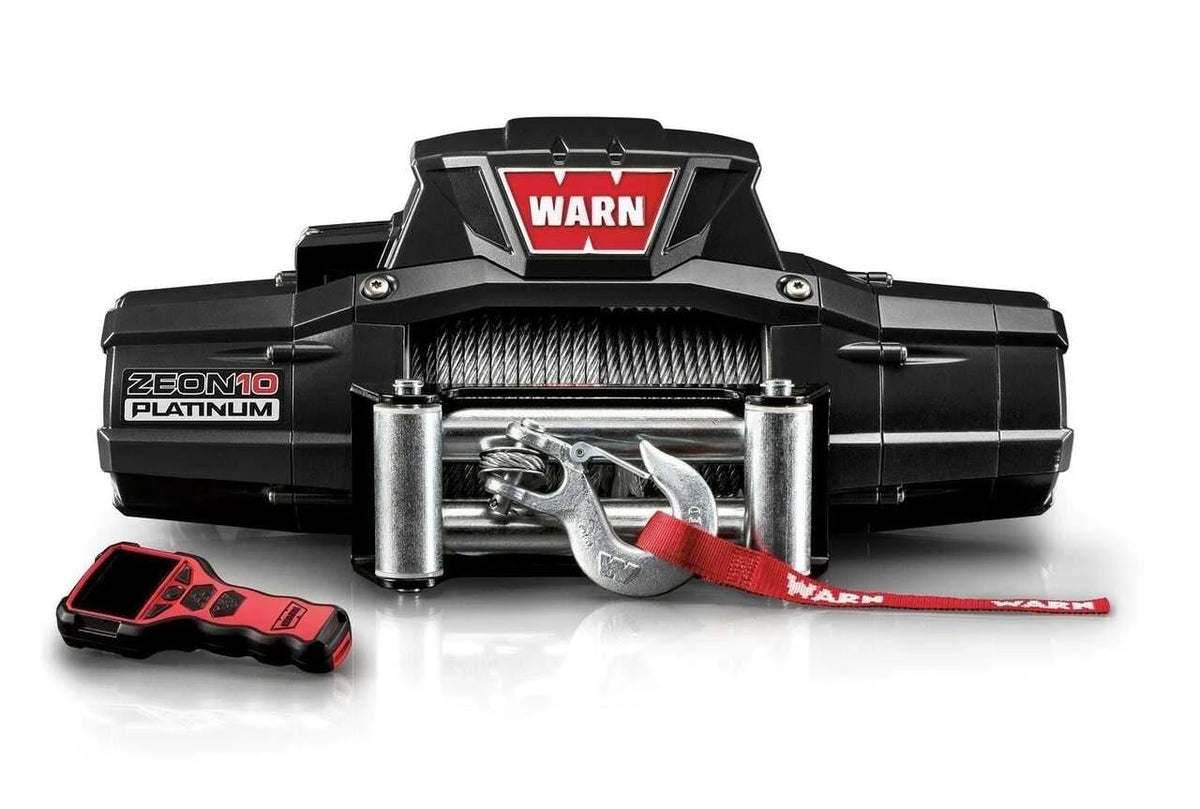

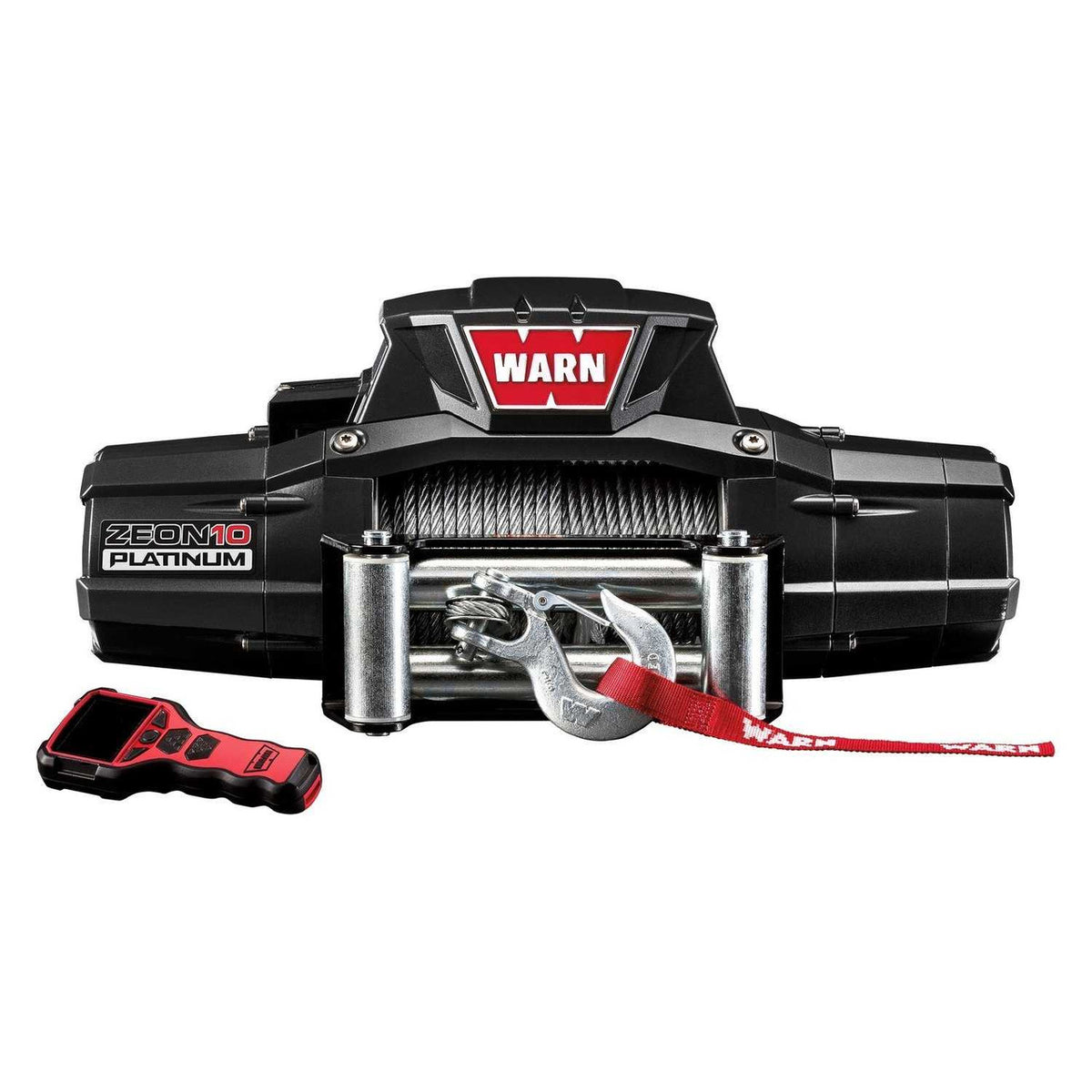

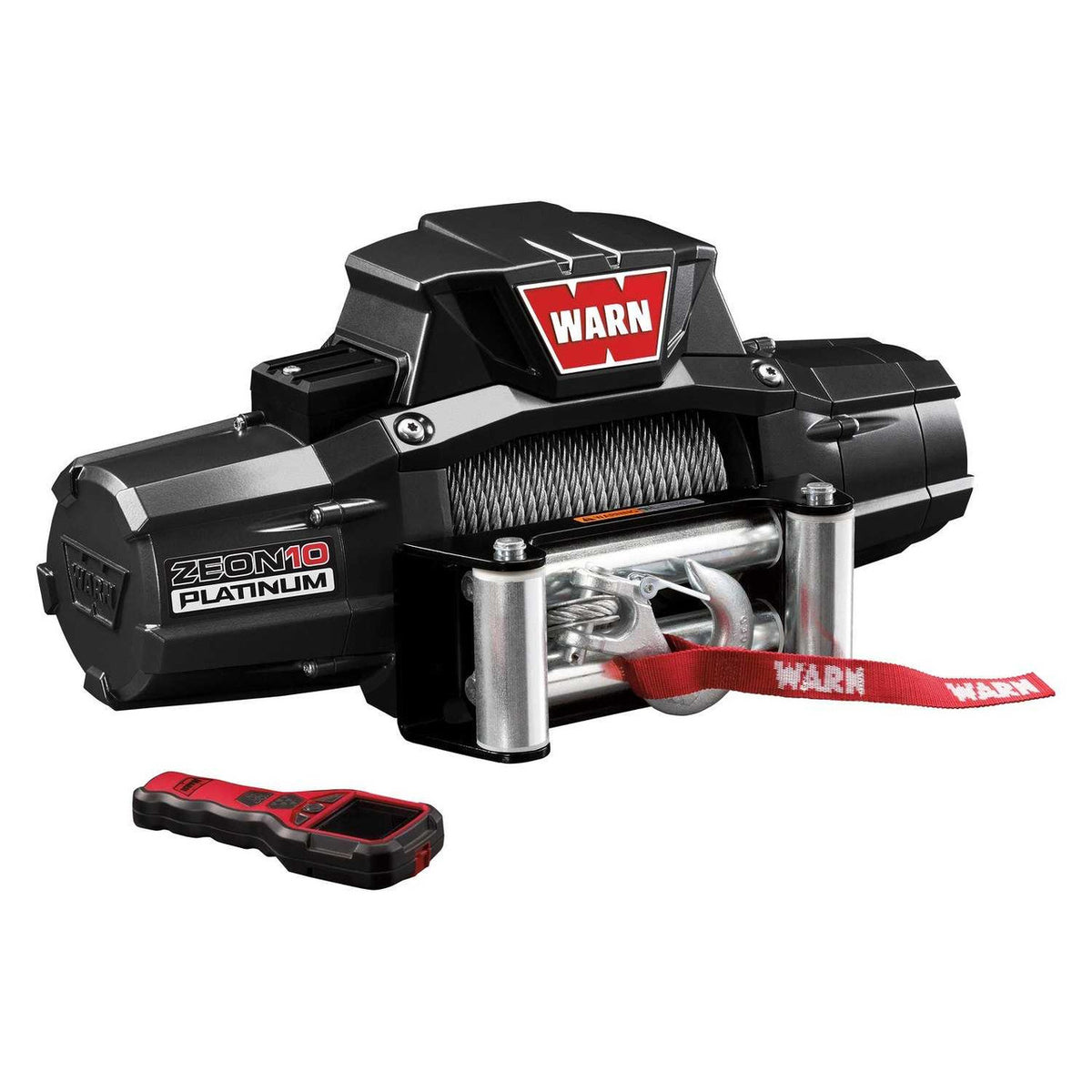

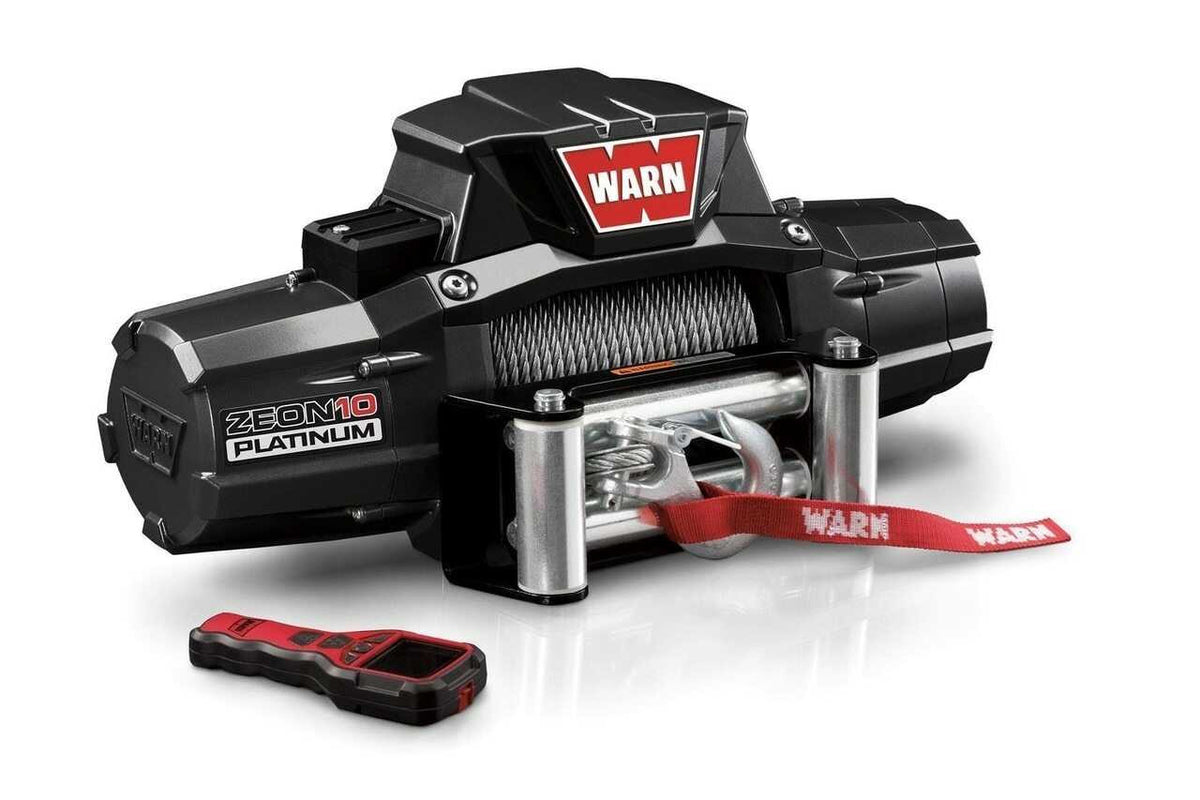

WARN ZEON Platinum 10 Electric Winch | 92810 | 10000 lbs 12V DC Wire Rope Wireless Remote

With state-of-the-art features, cutting-edge technology, and world-class engineering, the ZEON Platinum is the future of winching. The one-of-a-kind Advanced Wireless Remote controls the clutch, power in/power out, plus it displays motor temperature and vehicle battery info. It also can control two 12-volt accessories, which can be plugged directly into the winch.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

Rated line pull of 10,000 lbs. (4536 kg) single-line

Comes with 80' of 3/8" (24.38m of 9.52mm) aircraft-grade wire rope and a roller fairlead

Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud

The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter

All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating

Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing

Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation

Extreme waterproofing meets rigorous IP68 standards--the highest rating in the WARN Truck/SUV winch lineup

Automatic mechanical cone brake offers excellent control while winching

Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.

Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications:

TYPE: Electric

MOUNT TYPE: Vehicle Mounted

RECOMMENDED USE: Vehicle Recovery

VOLTAGE: 12 Volt

ELECTRICAL CONTROL TYPE: Contactors

MOTOR TYPE: Series Wound

THERMAL SHUTOFF: No

DRIVE GEAR TYPE: Planetary

GEAR REDUCTION RATIO: 162:1

FREE SPOOLING: Yes

BRAKE TYPE: Mechanical Cone

LINE DIAMETER (IN): 3/8 Inch

LINE LENGTH (FT): 80 Feet

LINE MATERIAL: Steel

FAIRLEAD TYPE: Roller

REMOTE TYPE: Wireless

MOUNTING HOLE QUANTITY: 4

MOUNTING PATTERN LENGTH (IN): 10 Inch

MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch

INCLUDES MOUNTING HARDWARE: Yes

COLOR: Black

DRUM MATERIAL: Aluminum

MAX LINE PULL/ LINE SPEED: 10000 Pound/ 5.6 Feet Per Minute

MAX AMP DRAW/ LINE PULL: 465 Amp Draw/ 10000 Pound
