WARN ZEON XD 14-S 14,000lbs 12V Electric Winch | 80’ of 3/8” Spydura Synthetic Rope | 110014

ZEON XD 14-S - 110014 | Warn ZEON XD. The name to trust when it's all on the line.®

The ZEON XD 14-S winch has a pull capacity of 14,000 pounds, the highest pulling capacity in its class. It comes with 80’ feet of 3/8” Spydura synthetic rope and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Overview:

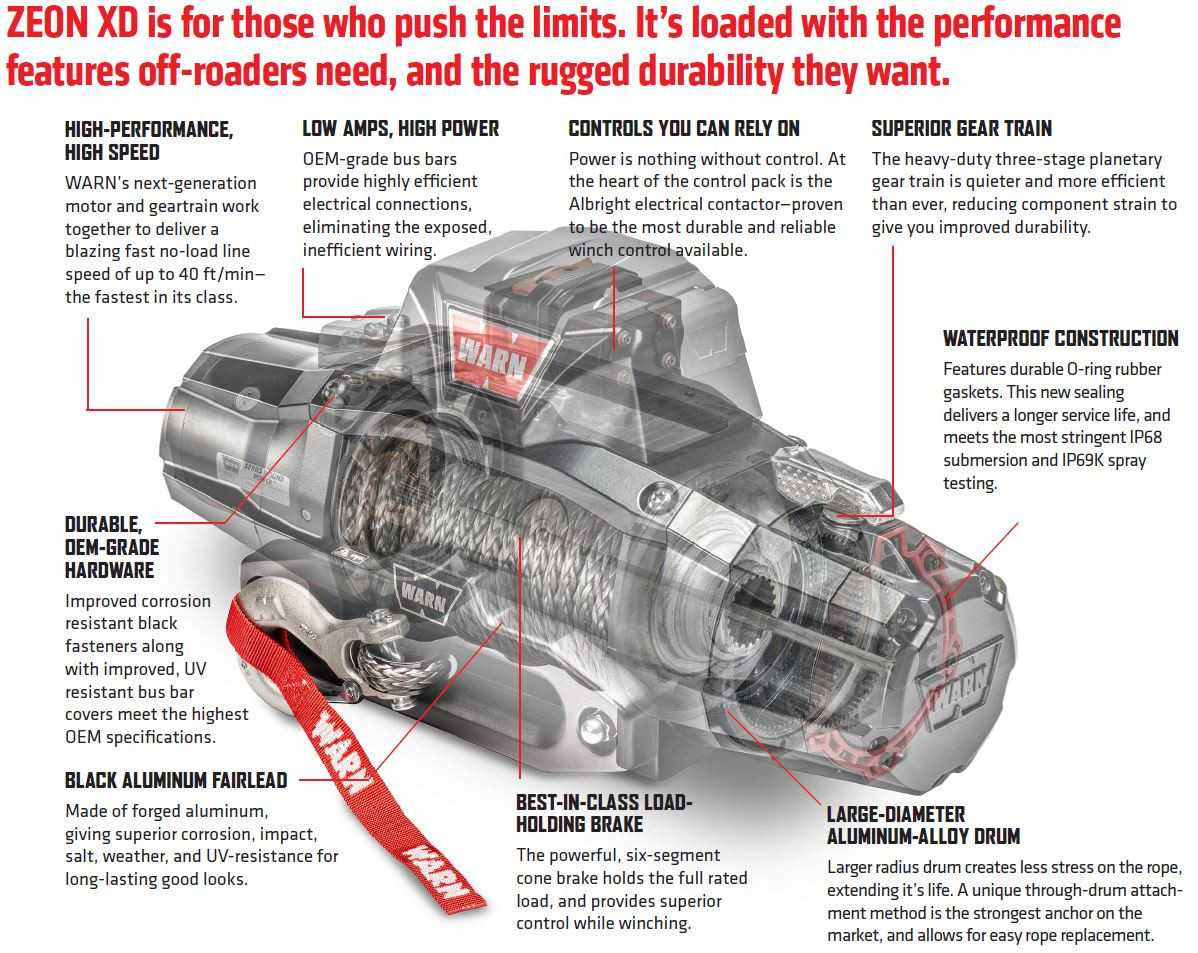

Redesigned and retooled from the ground up for ultimate performance and durability— ZEON XD is there for the times it just has to work, in all conditions. And with the industry’s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.

Engineered, tested, and assembled in Clackamas, Oregon, USA.

New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.

Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.

Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.

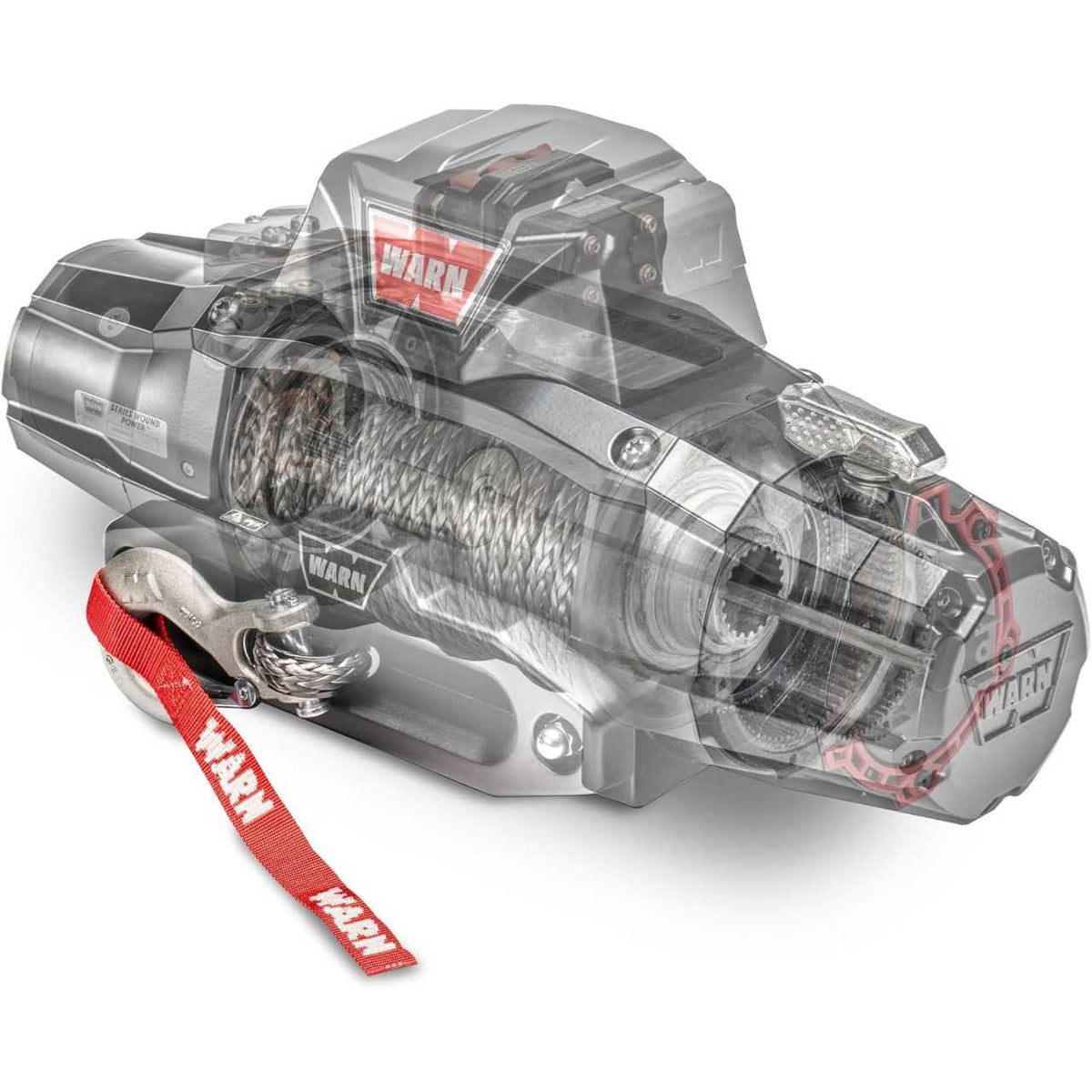

Full metal armor protects components from impact and damage.

WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.

Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.

Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.

Available in 14,000 lb. capacities, with synthetic rope, for a variety of trucks, Jeeps, and SUVs

Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app

Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.

Specifications:

Rated Line Pull (Single Line): 14,000 lbs. (6,350 kg)

No Load Line Speed: 26.1 ft/min (7.95 m/min)

Rated Load Line Speed: 2.1 ft/min (0.64 m/min)

No Load Motor Current: 65 Amps

Rated Load Motor Current: 482 Amps, 466 Amps

Motor: 12V DC, series wound (exclusive WARN high-performance design)

Electrical Controls: Contactor

Wiring: Automotive OE-grade buss bars

Corrosion Resistance: 408-hour salt spray

Ingress Protection: IP68 submersion and IP69K spray testing (entire unit)

Remote Control: Corded remote with 12' (3.7 m) lead, plus HUB wireless receiver

Geartrain: 3-stage planetary

Gear Ratio: 213:1

Clutch (freespooling): Rotating ring gear with stainless steel clutch lever; manual lever operation

Brake: Automatic, six-segment mechanical cone

Drum Diameter/Length: 3.15"/9.0" (80 mm/229 mm)

Rope: 3/8" x 80' (9.52 mm x 24.38 m) Spydura Pro synthetic

Fairlead: Black anodized, forged aluminum hawse

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83 m)

Finish: Satin-black powder coat

Final Point of Assembly: WARN facility in Clackamas, Oregon, USA

Warranty: Limited lifetime mechanical, 7 years electrical

Weight: 85 lbs (in box)
